OPGW Single Dead End Steel Pole Drilled or Vang Configuration Assemblies
e990f6cb2c5c415792cae837c8a72223

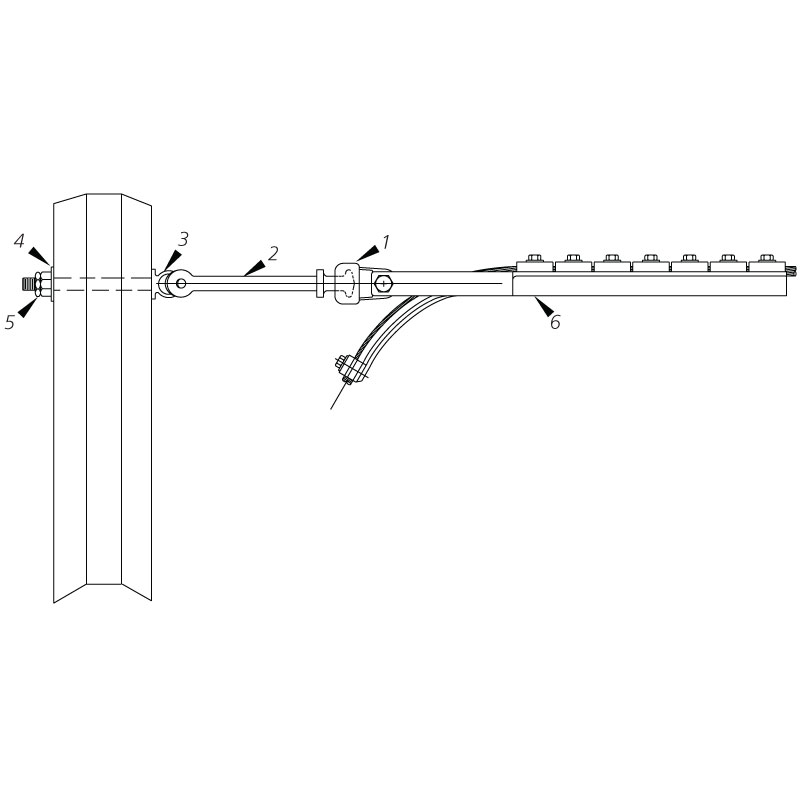

161 AFLglobal.com 1 (800) 8 90-8878 © 2008, AFL, all rights reserved. PP-3-00040, R evision 3, 3.6.2025 Specications are subject to change w ithout notice. 161 Fiber Optic Cable Accessories continued 2 1 3 4 5 6 OPGW Single Dead End Steel Pole/Drilled Configuration Assemblies 2 1 3 4 5 6 Assembly Code OSPDE2 - AFL NO. DNOXXXX Cable Spec. Number Assembly Code OSPDE1 - AFL NO. DNOXXXX Cable Spec. Number Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Socket Eye Galvanized Steel SE-BDE 1 2 Y-Clevis Ball Hot Link Galvanized Steel YCBHL 1 Pin Dia. = 0.75" (19 mm) 3 3/4" Shoulder Eye Bolt Galvanized Steel SEB-3/4-14 1 Length = 14" 4 3/4" Washer Nut Galvanized Steel WN-3/4 1 5 3/4" MF Lock Nut Galvanized Steel LN-3/4 1 6 Bolted Deadend (Included) Aluminum Determined by AFL 1 Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Link Plate Aluminum ODELP10 1 2 Y-Clevis Clevis Galvanized Steel YCC 1 Pin Dia. = 0.75" (19 mm) 3 3/4" Shoulder Eye Bolt Galvanized Steel SEB-3/4-14 1 Length = 14" 4 3/4" Washer Nut Galvanized Steel WN-3/4 1 5 3/4" MF Lock Nut Galvanized Steel LN-3/4 1 6 Bolted Deadend (Included) Aluminum Determined by AFL 1
162 AFLglobal.com 1 (800) 8 90-8878 © 2008, AFL, all rights reserved. PP-3-00040, R evision 3, 3.6.2025 Specications are subject to change w ithout notice. 162 Fiber Optic Cable Accessories continued 2 1 3 2 1 3 OPGW Single Dead End Steel Pole/Vang Configuration Assemblies Assembly Code OSPDE3 - AFL NO. DNOXXXX Cable Spec. Number Assembly Code OSPDE4 - AFL NO. DNOXXXX Cable Spec. Number Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Socket Eye Galvanized Steel SE-BDE 1 2 Y-Clevis Ball Hot Link Galvanized Steel YCBHL 1 Pin Dia. = 0.75" (19 mm) 3 Bolted Deadend (Included) Aluminum Determined by AFL 1 Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Link Plate Aluminum ODELP10 1 2 Y-Clevis Clevis Galvanized Steel YCC 1 Pin Dia. = 0.75" (19 mm) 3 Bolted Deadend (Included) Aluminum Determined by AFL 1
163 AFLglobal.com 1 (800) 8 90-8878 © 2008, AFL, all rights reserved. PP-3-00040, R evision 3, 3.6.2025 Specications are subject to change w ithout notice. 163 Fiber Optic Cable Accessories OPGW Single Dead End Steel Pole/Vang Configuration Assemblies (cont.) 2 1 3 Assembly Code OSPDE5 - AFL NO. DNOXXXX Cable Spec. Number Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Link Plate Aluminum ODELP10 1 2 Y-Clevis Clevis 90º Galvanized Steel YCC-90 1 Pin Dia. = 0.75" (19 mm) 3 Bolted Deadend (Included) Aluminum Determined by AFL 1
Applications:
- Steel pole
