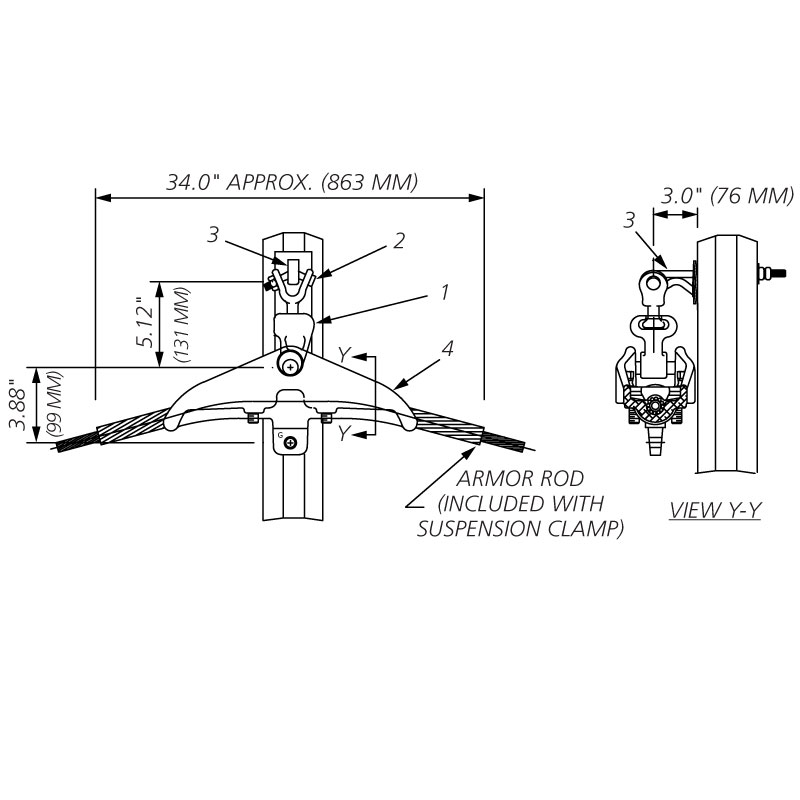

1 AFLglobal.com 1 (800) 890-8878 © 2008, AFL, all rights reserved. PP-3-00041, Revision 5, 3.4.2025 Specications are subject to change w ithout notice. 1 Fiber Optic Cable Accessories continued Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Y-Clevis Eye 90º Galvanized Steel YC90E-750-1750 1 Pin Dia. = 0.75" (19 mm) 2 Shield Wire Support Bracket Galvanized Steel SFOSB-WP-14 1 14" Bolt, 0.63" (16 mm) Dia. 3 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 OPGW Single Suspension Steel Pole/Drilled Configuration Assembly Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Socket Eye Galvanized Steel SE-SC 1 2 Y-Clevis Ball Galvanized Steel YCBS 1 Pin Dia. = 0.75" (19 mm) 3 Shield Wire Support Bracket Galvanized Steel SFOSB-WP-14 1 14" Bolt, 0.63" (16 mm) Dia. 4 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 Assembly Code OSPSP1 - AFL NO. XXX/XXX SUME Range Code Assembly Code OSPSP2 - AFL NO. XXX/XXX SUME Range Code G 2 1 34.0" APPROX. (863 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 3.88" (99 MM) 5.12" (131 MM) 3 4 3 3.0" (76 MM) 0.63" (16 MM) G 2 1 34.0" APPROX. (863 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 3.88" (99 MM) 2.81" (71 MM) 3 2 3.0" (76 MM) 0.63" (16 MM) 2 AFLglobal.com 1 (800) 890-8878 © 2008, AFL, all rights reserved. PP-3-00041, Revision 5, 3.4.2025 Specications are subject to change w ithout notice. 2 Fiber Optic Cable Accessories Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Y-Clevis Eye 90º Galvanized Steel YC90E-750-1750 1 Pin Dia. = 0.75" (19 mm) 2 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Socket Eye Galvanized Steel SE-SC 1 2 Y-Clevis Ball Galvanized Steel YCBS 1 Pin Dia. = 0.75" (19 mm) 3 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 OPGW Single Suspension Steel Pole/Vang Configuration Assemblies Assembly Code OSPSP3 - AFL NO. XXX/XXX SUME Range Code Assembly Code OSPSP4 - AFL NO. XXX/XXX SUME Range Code 2 2 1 1 34.0" APPROX. (863 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 2.81" (71 MM) 3.88" APPROX. (99 MM) 2 1 3 VIEW Y-Y Y Y 3 2 1 continued 2 AFLglobal.com 1 (800) 890-8878 © 2008, AFL, all rights reserved. PP-3-00041, Revision 5, 3.4.2025 Specifications are subject to change without notice. 2 3 AFLglobal.com 1 (800) 890-8878 © 2008, AFL, all rights reserved. PP-3-00041, Revision 5, 3.4.2025 Specications are subject to change w ithout notice. 3 Fiber Optic Cable Accessories Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Y-Clevis Eye 90º Galvanized Steel YC90E-750-1750 1 Pin Dia. = 0.75" (19mm) 2 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 3 Eye Bolt Galvanized Steel 4 Banding Adaptor Aluminum Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Y-Clevis Eye Galvanized Steel YCE-690-1125 1 Pin Dia. = 0.75" (19 mm) 2 Suspension Clamp Assembly (Included) Aluminum SUME XXX/XXX 1 Assembly Code OSPSP5 - AFL NO. XXX/XXX SUME Range Code Assembly Code OSPSP6 - AFL NO. XXX/XXX SUME Range Code OPGW Single Suspension Steel Pole/Vang Configuration Assemblies (cont.) 2 2 1 1 34.0" APPROX. (863 MM) 3.88" APPROX. (99 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 2.81" (71 MM) 2 2 2 1 3 4 34.0" APPROX. (863 MM) BANDING MATERIAL SUPPLIED BY CUSTOMER ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 2.81" (71 MM) 3.88" APPROX. (99 MM)
