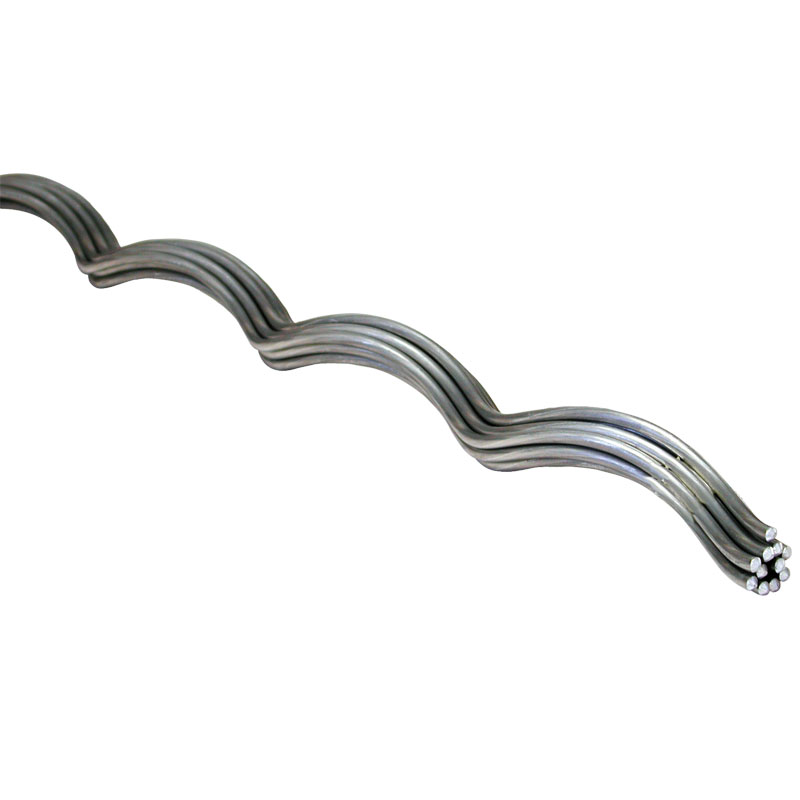

Line guards are designed to protect the conductor by reducing bending, compression,and abrasion at the support point, particularly where hand-ties are used. Line guards are recommended as protection for spans of less than 300 ft. (91 m). Manufactured from aluminum alloy, they are designed for use with ACSR, AAC, AAAC, ACSS, SSAC, TW Types and ACAR conductors. All guard sets are manufactured with right-hand lay as standard.
1cdb36043d494acdbf40898d27e9e3f2
1 Formed Wire Formed Wire © 2006, AFL, all rights reserved. PP-3-00746, Revision 3, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 ### Numeric Range Numeric Range Code (from catalog) Line Guards Line guards are designed to protect the conductor by reducing bending, compression, and abrasion at the support point, particularly where hand-ties are used. Line guards are recommended as protection for spans of less than 300 ft. (91 m). Manufactured from aluminum alloy, they are designed for use with ACSR, AAC, AAAC, ACSS, SSAC, TW Types and ACAR conductors. All guard sets are manufactured with right-hand lay as standard. Features Color Coded and Center Marked For ease of identification to conductor size, the line guards are color coded in the center of the rod. This feature also assists in alignment of the rods during installation. Repair Damage When no more than 25% of the outside strands on an ACSR or aluminum conductor have been damaged outside the support area, line guards may be used to restore 100% of the rated conductance and strength of the line. Do not use line guards for repair at the support point. Tap Over Line guards may be tapped over on ACSR and aluminum conductor. Where tapping is used, it is strongly recommended that the conductor be thoroughly wire brushed and an oxide inhibitor be applied. Extra High Voltage Applications For 345 kV and above, the line guards ends are modified to eliminate Corona effects and include a suffix of ‘EHV’ at the end of the product number. Customized Line Guards For line guards with special requirements, such as longer lengths or non-standard lay direction contact the AFL Technical Support Team at 1.800.866.7385. @ Configuration @ A - Aluminum Material @@@ Blank - < 345 kV EHV - > 345 kV Voltage Range Blank - Single Support D - Double Support LG Basic Unit Series Designation Example: For single 795 26/7, Aluminum conductor diameter of 1.099 to 1.139 inches and Extra High Voltage, the complete catalog number is: ALG279EHV Ordering Information continued
© 2006, AFL, all rights reserved. PP-3-00746, Revision 3, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Formed Wire Formed Wire Ordering Information—Line Guards AFL NO. CONDUCTOR DIAMETER RANGE NOMINAL CABLE SIZE ROD DIAMETER (INCHES) QTY OF SET COLOR CODE ROD LENGTH (INCHES) PACKAGING PER BOX MIN. (INCHES) MAX. (INCHES) UNITS WEIGHT (LBS) ALG046 0.182 0.193 #6, 7W All Aluminum 0.102 7 Purple 17 (S) 29 (D) 100 12 (S) 19 (D) ALG049 0.194 0.207 #6, 7W Aluminum Alloy 0.102 7 Blue 17 (S) 29 (D) 100 12 (S) 19 (D) ALG056 0.220 0.228 #5, 6/1 0.121 7 White 17 (S) 29 (D) 100 16 (S) 26 (D) ALG058 0.229 0.243 #4, 7W All Aluminum 0.121 8 Brown 19 (S) 31 (D) 100 20 (S) 32 (D) ALG062 0.244 0.259 #4, 6/1, 7/1 0.121 8 Orange 19 (S) 31 (D) 100 20 (S) 32 (D) ALG066 0.260 0.273 #3, 7W All Aluminum 0.121 8 Green 19 (S) 31 (D) 100 20 (S) 32 (D) ALG069 0.274 0.289 #3, 7W Aluminum Alloy 0.121 9 Yellow 21 (S) 33 (D) 100 25 (S) 38 (D) ALG073 0.290 0.308 #2, 7W All Aluminum 0.121 9 Purple 21 (S) 33 (D) 100 25 (S) 38 (D) ALG078 0.309 0.326 #2, 6/1, 7/1 0.121 9 Red 21 (S) 33 (D) 100 25 (S) 38 (D) ALG083 0.327 0.346 #1, 7W All Aluminum 0.121 10 Blue 21 (S) 33 (D) 100 28 (S) 42 (D) ALG088 0.347 0.366 #1, 6/1 0.121 10 Green 23 (S) 35 (D) 100 30 (S) 44 (D) ALG093 0.367 0.389 1/0, 7W All Aluminum 0.121 11 Black 23 (S) 35 (D) 100 32 (S) 46 (D) ALG099 0.390 0.413 1/0, 6/1 0.121 11 Yellow 25 (S) 37 (D) 100 35 (S) 50 (D) ALG105 0.414 0.436 3/0, 7W-19W Comp. 0.121 12 Brown 25 (S) 37 (D) 50 20 (S) 29 (D) ALG111 0.437 0.463 2/0, 6/1, 7/1 0.121 13 Blue 27 (S) 39 (D) 50 23 (S) 32 (D) ALG118 0.464 0.490 3/0, 7W-19W 0.121 13 Green 27 (S) 39 (D) 50 24 (S) 32 (D) ALG124 0.491 0.521 3/0, 6/1 0.121 14 Orange 29 (S) 41 (D) 50 26 (S) 36 (D) ALG132 0.522 0.551 4/0, 7W-19W 0.121 14 Black 29 (S) 41 (D) 50 26 (S) 36 (D) ALG140 0.552 0.585 4/0 6/1 0.121 15 Red 31 (S) 43 (D) 50 30 (S) 40 (D) ALG149 0.586 0.606 266.8 19W 0.146 14 Black 31 (S) 43 (D) 50 40 (S) 54 (D) ALG154 0.607 0.630 266.8 18/1 0.146 14 White 33 (S) 45 (D) 50 42 (S) 57 (D) ALG160 0.631 0.655 266.8 26/7 0.146 14 Yellow 33 (S) 45 (D) 50 42 (S) 57 (D) continued
3 Formed Wire Formed Wire © 2006, AFL, all rights reserved. PP-3-00746, Revision 3, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Ordering Information—Line Guards (cont.) End Finish of Rods: 1. Chamfered ends - standard on diameters up to 0.250”. 2. Ball ends - standard on diameters greater than 0.250”. 3. Tapered ends for EHV - designated by suffix ‘EHV’. AFL NO. CONDUCTOR DIAMETER RANGE NOMINAL CABLE SIZE ROD DIAMETER (INCHES) QTY OF SET COLOR CODE ROD LENGTH (INCHES) PACKAGING PER BOX MIN. (INCHES) MAX. (INCHES) UNITS WEIGHT (LBS) ALG166 0.656 0.679 336.4 19W 0.146 15 Brown 35 (S) 47 (D) 50 48 (S) 62 (D) ALG172 0.680 0.703 303.714 0.146 15 Blue 35 (S) 47 (D) 50 48 (S) 62 (D) ALG179 0.704 0.740 336.4 26/7 0.146 16 Green 37 (S) 49 (D) 25 54 (S) 70 (D) ALG188 0.741 0.792 397.5 18/1, 26/7, 24/7 0.146 17 Orange 39 (S) 51 (D) 25 60 (S) 77 (D) ALG201 0.793 0.840 477 18/1, 19W, 37W 0.146 18 Purple 39 (S) 51 (D) 25 64 (S) 82 (D) ALG213 0.841 0.898 477 24/7, 26/7, 30/7 0.146 19 Blue 41 (S) 53 (D) 25 36 (S) 45 (D) ALG228 0.899 0.954 556.5 24/7, 26/7, 30/7, 19W, 37W 0.167 18 Green 43 (S) 55 (D) 25 46 (S) 58 (D) ALG242 0.955 0.986 605 26/7, 636 0.182 17 White 45 (S) 57 (D) 25 54 (S) 68 (D) ALG250 0.987 1.016 636 26/7, 666.6 24/7 0.182 18 Yellow 45 (S) 57 (D) 25 58 (S) 72 (D) ALG258 1.017 1.064 715.5 26/7, 24/7, 795 37W, 61W 0.182 18 Brown 47 (S) 59 (D) 25 60 (S) 74 (D) ALG270 1.065 1.098 874.5 37W, 61W 0.204 17 Green 49 (S) 61 (D) 15 44 (S) 25 (D) ALG279 1.099 1.153 795 26/7, 30/19 0.250 15 Orange 49 (S) 61 (D) 15 58 (S) 72 (D) ALG293 1.154 1.208 954 45/7, 54/7 0.250 15 Purple 51 (S) 63 (D) 15 62 (S) 75 (D) ALG307 1.209 1.268 1192.5 61W 0.250 16 Black 53 (S) 65 (D) 15 68 (S) 82 (D) ALG322 1.269 1.327 1192.5 45/7 0.250 17 White 53 (S) 65 (D) 10 48 (S) 58 (D) ALG337 1.328 1.390 1351.5 61W, 1272 45/7, 54/19 0.250 17 Yellow 55 (S) 67 (D) 10 50 (S) 60 (D) ALG353 1.391 1.440 1431 45/7 0.310 15 Brown 57 (S) 69 (D) 5 36 (S) 44 (D) ALG366 1.441 1.508 1431 54/19 0.310 16 Blue 59 (S) 71 (D) 5 40 (S) 48 (D) ALG383 1.509 1.578 1590 54/19, 1750 61W 0.310 16 Green 61 (S) 73 (D) 5 42 (S) 49 (D) ALG401 1.579 1.651 1780 84/19 0.310 17 Orange 63 (S) 75 (D) 5 43 (S) 53 (D) ALG419 1.652 1.728 2034 72/7 0.365 15 Purple 65 (S) 77 (D) 5 54 (S) 66 (D) ALG439 1.729 1.890 2156 84/19 0.365 16 Red 67 (S) 79 (D) 5 (S) 3 (D) 55 (S) 45 (D) continued
© 2006, AFL, all rights reserved. PP-3-00746, Revision 3, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 4 Formed Wire Formed Wire Line Guards Cross Reference SINGLE ALUMINUM AFL NO. DULMISON ® PLP ® * ALG046 ALG0460 MG-0122 ALG049 ALG0490 MG-0123 ALG056 ALG0560 MG-0125 ALG058 ALG0580 MG-00126 ALG062 ALG0620 MG-0127 ALG066 ALG0660 MG-0128 ALG069 ALG0690 MG-0129 ALG073 ALG0730 MG-0130 ALG078 ALG0780 MG-0131 ALG083 ALG0830 MG-0132 ALG088 ALG0880 MG-0133 ALG093 ALG0930 MG-0134 ALG099 ALG0990 MG-0135 ALG105 ALG1050 MG-0136 ALG111 ALG1110 MG-0137 ALG118 ALG1180 MG-0138 ALG124 ALG1240 MG-0139 ALG132 ALG1320 MG-0143 ALG140 ALG 1400 MG-0141 ALG149 ALG 1490 MG-0142 ALG154 ALG 1540 MG-0143 ALG160 ALG 1605 MG-0144 ALG166 ALG 1665 MG-0145 ALG172 ALG 1725 MG-0146 ALG179 ALG 1790 MG-0147 ALG188 ALG 1880 MG-0148 ALG201 ALG 2015 MG-0149 ALG213 ALG 2135 MG-0150 ALG228 ALG 2285 MG-0151 ALG242 ALG 2425 MG-0152 ALG250 ALG 2505 MG-0153 ALG258 ALG 2585 MG-0154 ALG270 ALG 2705 MG-0155 ALG279 ALG 2790 MG-0156 ALG293 ALG 2930 MG-0157 SINGLE ALUMINUM AFL NO. DULMISON ® PLP ® * ALG307 ALG 3070 MG-0158 ALG322 ALG 3225 MG-0159 ALG337 ALG 3375 MG-0160 ALG353 ALG 3535 MG-0161 ALG366 ALG 3660 MG-0162 ALG383 ALG 3835 — ALG401 ALG 4010 — ALG419 ALG4195 — ALG439 ALG 4390 — DOUBLE ALUMINUM AFL NO. DULMISON ® PLP ® * DALG046 DALG0460 MG-0305 DALG049 DALG0490 MG-0306 DALG056 DALG0560 MG-0308 DALG058 DALG0580 MG-0309 DALG062 DALG0620 MG-0310 DALG066 DALG0660 MG-0311 DALG069 DALG0690 MG-0312 DALG073 DALG0730 MG-0313 DALG078 DALG0780 MG-0314 DALG083 DALG0830 MG-0315 DALG088 DALG0880 MG-0316 DALG093 DALG0930 MG-0317 DALG099 DALG0990 MG-0318 DALG105 DALG1050 MG-0319 DALG111 DALG1110 MG-0320 DALG118 DALG1180 MG-0321 DALG124 DALG1240 MG-0322 DALG132 DALG1320 MG-0324 DALG140 DALG 1400 MG-0324 DALG149 DALG 1490 MG-0325 DALG154 DALG1540 MG-0326 DALG160 DALG 1605 MG-0327 DALG166 DALG 1665 MG-0328 DALG172 DALG 1725 MG-0329 DOUBLE ALUMINUM AFL NO. DULMISON ® PLP ® * DALG179 DALG 1790 MG-0330 DALG188 DALG 1880 MG-0331 DALG201 DALG 2015 MG-0332 DALG213 DALG 2135 MG-0333 DALG228 DALG 2285 MG-0334 DALG242 DALG 2425 MG-0335 DALG250 DALG 2505 MG-0336 DALG258 DALG 2585 MG-0337 DALG270 DALG 2705 MG-0338 DALG279 DALG 2790 MG-0339 DALG293 DALG 2930 MG-0340 DALG307 DALG 3070 MG-0341 DALG322 DALG 3225 MG-0342 DALG337 DALG 3375 MG-0343 DALG353 DALG 3535 MG-0344 DALG366 DALG 3660 MG-0345 DALG383 DALG 3835 — DALG401 DALG 4010 — DALG419 DALG4195 — DALG439 DALG 4390 — * PLP is a trademark of Preformed Line Products.
Features:
- Color coded for ease of identification
- Full strength restoration when less than 50% of the outer strands are broken
- Special ends for high voltage application
