The 5000 Series Jumper Connector is designed for AAC conductors. The jumper connector is fabricated from AFL seamless drawn aluminum. All jumper connectors are designed for limited tension use and maintain a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
196f91a90f4a47fa8d250f5f20d30ec4
455 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00201, Revision 1, 11.21.2024 Speci cations are subject to change without notice. 455 230 kV Aluminum Compression Type 5000 Series The 5000 Series Jumper Connector is designed for AAC conductors. The jumper connector is fabricated from AFL seamless drawn aluminum. All jumper connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used. Ordering Information Catalog Number Conductor Die Size Aluminum Hex Die Dimensions in inches ACSR or AAC Code Word Size KCMil Stranding Al/St Diameter in inches L 5073.391 AAC Poppy 1/0 7 0.368 73AH 6.00 5074.438 ACSR Raven 1/0 6/1 0.398 74AHA 7.00 5074.438 AAC Aster 2/0 7 0.414 74AHA 7.00 5074.484 ACSR Quail 2/0 6/1 0.447 74AH 7.00 5074.484 ACSR Phlox 3/0 7 0.464 74AH 7.00 5075.547 ACSR Pigeon 3/0 6/1 0.502 75AH 8.00 5075.547 AAC Oxlip 4/0 7 0.522 75AH 8.00 5075.609 ACSR Penguin 4/0 6/1 0.563 75AH 8.00 5075.609 AAC Valerian 250 19 0.575 75AH 8.00 5075.609 AAC Laurel 266.8 19 0.593 75AH 8.00 5076.650 ACSR Waxwing 266.8 18/1 0.609 76AH 9.00 5076.650 AAC Peony 300 19 0.629 76AH 9.00 5076.688 ACSR Owl 266.8 6/7 0.633 76AH 9.00 5076.688 ACSR Partridge 266.8 26/7 0.642 76AH 9.00 5076.688 AAC Tulip 336.4 19 0.666 76AH 9.00 5076.719 ACSR Ostrich 300 26/7 0.680 76AH 9.00 5076.719 ACSR Merlin 336.4 18/1 0.684 76AH 9.00 5076.750 AAC Canna 397.5 19 0.724 76AH 9.00 5076.781 ACSR Linnet 336.4 26/7 0.720 76AH 9.00 5076.781 ACSR Chickadee 397.5 18/1 0.743 76AH 9.00 5020.719 AAC Daffodil 350 19 0.679 20AH 10.00 5020.781 ACSR Linnet 336.4 26/7 0.720 20AH 10.00 5020.781 ACSR Oriole 336.4 30/7 0.741 20AH 10.00 5020.781 ACSR Chickadee 397.5 18/1 0.743 20AH 10.00 5020.812 ACSR Brant 397.5 24/7 0.772 20AH 10.00 5020.812 AAC Goldentuft 450 19 0.770 20AH 10.00 5020.812 AAC Yarrow 450 37 0.772 20AH 10.00 5020.812 AAC Cosmos 477 19 0.793 20AH 10.00 5020.812 AAC Syringa 477 37 0.795 20AH 10.00 L
456 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00201, Revision 1, 11.21.2024 Speci cations are subject to change without notice. 456 230 kV Aluminum Compression Type 5000 Series Ordering Information Catalog Number Conductor Die Size Aluminum Hex Die Dimensions in inches ACSR or AAC Code Word Size KCMil Stranding Al/St Diameter in inches L 5020.844 ACSR Ibis 397.5 26/7 0.783 20AH 10.00 5020.844 ACSR Lark 397.5 30/7 0.806 20AH 10.00 5024.875 ACSR Pelican 477 18/1 0.814 24AH 11.00 5024.875 AAC Cosmos 477 19 0.793 24AH 11.00 5024.875 AAC Syringa 477 37 0.795 24AH 11.00 5024.875 AAC Zinnia 500 19 0.811 24AH 11.00 5024.875 AAC Hyacinth 500 37 0.813 24AH 11.00 5024.938 ACSR Flicker 477 24/7 0.846 24AH 11.00 5024.938 ACSR Hawk 477 26/7 0.858 24AH 11.00 5024.938 ACSR Hen 477 30/7 0.883 24AH 11.00 5024.938 ACSR Osprey 556.5 18/1 0.879 24AH 11.00 5024.938 AAC Dahlia 556.5 19 0.856 24AH 11.00 5024.938 AAC Mistletoe 556.5 37 0.858 24AH 11.00 5024.938 AAC Meadowsweet 600 37 0.891 24AH 11.00 5024.969 ACSR Parakeet 556.5 24/7 0.914 24AH 11.00 5024.969 ACSR Dove 556.5 26/7 0.927 24AH 11.00 5024.969 AAC Orchid 636 37 0.918 24AH 11.00 5024.969 AAC Heuchera 650 37 0.928 24AH 11.00 5027.100 ACSR Eagle 556.5 30/7 0.953 27AH 12.00 5027.100 ACSR Peacock 605 24/7 0.953 24AH 12.00 5027.100 ACSR Squab 605 26/7 0.966 24AH 12.00 5027.100 ACSR Swift 636 36/1 0.930 24AH 12.00 5027.100 ACSR Kingbird 636 18/1 0.940 24AH 12.00 5027.100 AAC Flag 700 61 0.964 24AH 12.00 5027.106 ACSR Teal 605 30/19 0.994 27AH 12.00 5027.106 ACSR Rook 636 24/7 0.977 27AH 12.00 5027.106 ACSR Grosbeak 636 26/7 0.990 27AH 12.00 5027.106 ACSR Egret 636 30/19 1.019 27AH 12.00 5027.106 ACSR Flamingo 666.6 24/7 1.000 27AH 12.00 5027.106 AAC Violet 715.5 37 0.974 27AH 12.00 5027.106 AAC Nasturtium 715.5 61 0.975 27AH 12.00 5027.106 AAC Petunia 750 37 0.997 27AH 12.00 5027.106 AAC Cattail 750 61 0.998 27AH 12.00 5030.109 ACSR Stilt 715.5 24/7 1.036 30AH 13.00 5030.109 ACSR Starling 715.5 26/7 1.051 30AH 13.00 5030.109 ACSR Coot 795 36/1 1.040 30AH 13.00 5030.109 AAC Arbutus 795 37 1.026 30AH 13.00 5030.109 AAC Lilac 795 61 1.028 30AH 13.00 5030.109 AAC — 800 37 1.031 30AH 13.00 5030.109 AAC Heliotrope 800 61 1.031 30AH 13.00 5030.116 ACSR Redwing 715.5 30/19 1.081 30AH 13.00 5030.116 ACSR Tern 795 45/7 1.063 30AH 13.00 5030.116 ACSR Condor 795 54/7 1.093 30AH 13.00 5030.116 ACSR Drake 795 26/7 1.108 30AH 13.00 5030.116 ACSR Cuckoo 795 24/7 1.092 30AH 13.00 5030.116 AAC Snapdragon 900 61 1.094 30AH 13.00 5030.122 ACSR Mallard 795 30/19 1.140 30AH 13.00 5030.122 ACSR Ruddy 900 45/7 1.131 30AH 13.00 5030.122 ACSR Canary 900 54/7 1.162 30AH 13.00 5030.122 ACSR Catbird 954 36/1 1.140 30AH 13.00 5030.122 ACSR Rail 954 45/7 1.165 30AH 13.00 5030.122 AAC Magnolia 954 37 1.124 30AH 13.00
457 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00201, Revision 1, 11.21.2024 Speci cations are subject to change without notice. 457 230 kV Aluminum Compression Type 5000 Series Ordering Information Catalog Number Conductor Die Size Aluminum Hex Die Dimensions in inches ACSR or AAC Code Word Size KCMil Stranding Al/St Diameter in inches L 5030.122 AAC Goldenrod 954 61 1.126 30AH 13.00 5030.122 AAC Camellia 1000 61 1.152 30AH 13.00 5030.122 AAC Bluebell 1033.5 37 1.170 30AH 13.00 5030.122 AAC Larkspur 1033.5 61 1.172 30AH 13.00 5030.125 ACSR Cardinal 954 54/7 1.196 30AH 13.00 5030.125 ACSR Tanager 1033.5 36/1 1.186 30AH 13.00 5034.128 ACSR 0rtolan 1033.5 45/7 1.212 34AH 14.00 5034.128 AAC Marigold 1113 61 1.216 34AH 14.00 5034.134 ACSR Curlew 1033.5 54/7 1.244 34AH 14.00 5034.134 ACSR Bluejay 1113 45/7 1.259 34AH 14.00 5034.134 AAC Hawthorn 1192.5 61 1.258 34AH 14.00 5034.134 AAC Narcissus 1272 61 1.300 34AH 14.00 5034.138 ACSR Bunting 1192.5 45/7 1.302 34AH 14.00 5034.138 ACSR Finch 1113 54/19 1.293 34AH 14.00 5036.144 ACSR Bittern 1272 45/7 1.345 36AH 15.00 5036.144 ACSR Grackle 1192.5 54/19 1.333 36AH 15.00 5036.144 AAC Columbine 1351 61 1.340 36AH 15.00 5036.144 AAC Carnation 1431 61 1.379 36AH 15.00 5036.147 ACSR Pheasant 1272 54/19 1.382 36AH 15.00 5036.147 ACSR Dipper 1351.5 45/7 1.386 36AH 15.00 5036.147 ACSR — 1500 91 1.412 36AH 15.00 5036.147 AAC Gladiolus 1510.5 61 1.187 36AH 15.00 5038.150 ACSR Martin 1351.5 54/19 1.424 38AH 16.00 5038.150 ACSR Bobolink 1431 45/7 1.427 38AH 16.00 5038.156 ACSR Plover 1431 54/19 1.465 38AH 16.00 5038.156 ACSR Nuthatch 1510.5 45/7 1.466 38AH 16.00 5038.156 AAC Coreopsis 1590 61 1.250 38AH 16.00 5038.156 AAC Dogwood 1590 91 1.454 38AH 16.00 5040.162 ACSR Parrot 1510.5 54/19 1.506 40AH 17.00 5040.162 ACSR Lapwing 1590 45/7 1.504 40AH 17.00 5040.162 ACSR Falcon 1590 54/19 1.545 40AH 17.00 5040.162 AAC Jessamine 1750 61 1.525 40AH 17.00 5042.178 ACSR Chukar 1780 84/19 1.602 42AH 17.00 5042.178 ACSR — 2034 72/7 1.681 42AH 17.00 5042.178 AAC Cowslip 2000 91 1.630 42AH 17.00 5044.181 ACSR Kiwi 2167 72/7 1.737 44AH 17.00 5044.181 AAC Sagebrush 2250 91 1.729 44AH 17.00 5044.181 AAC — 2300 61 1.750 44AH 17.00 5044.181 AAC — 2300 91 1.750 44AH 17.00 5044.184 ACSR Bluebird 2156 84/19 1.762 44AH 17.00 5044.188 ACSR Thrasher 2312 76/19 1.802 44AH 17.00 5044.188 AAC Lupine 2500 91 1.823 44AH 17.00 5048.197 ACSR Joree 2515 76/19 1.880 48AH 19.00 5048.197 AAC Bitterroot 2750 91 1.912 48AH 19.00
Features:
- Aluminum alloy
- Compression connectors
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
The 5000 Series Jumper Connector is designed for AAC conductors. The jumper connector is fabricated from AFL seamless drawn aluminum. All jumper connectors are designed for limited tension use and maintain a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Tee Terminal Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps,230 kV Aluminum Welded Stud to Bus Pipe Couplers
251

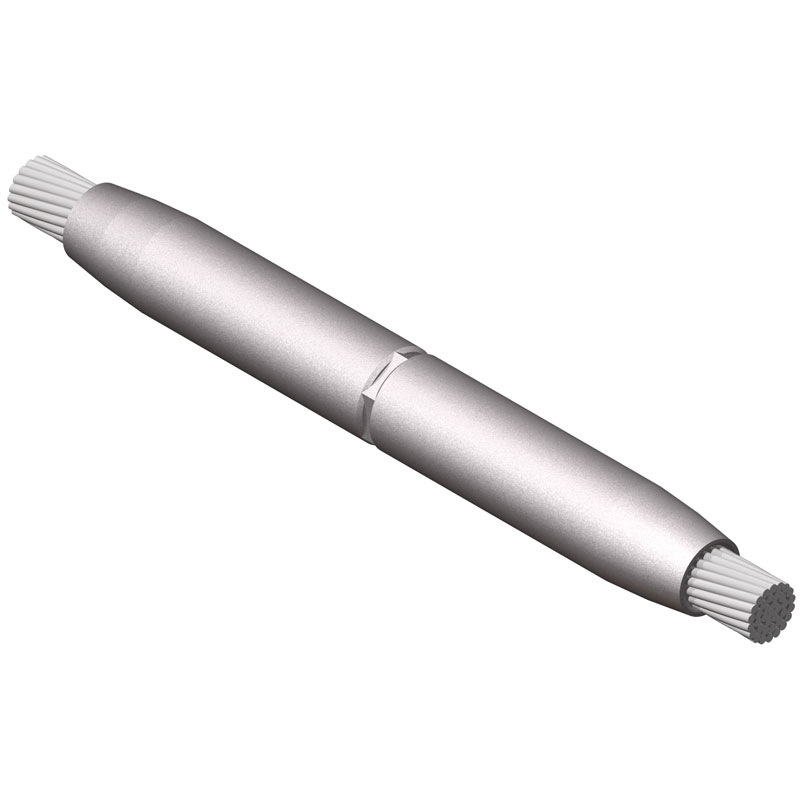

230 kV Aluminum Compression Couplers
Close
230 kV Aluminum Compression Couplers
Features:
- Aluminum alloy
- Compression connectors
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
PRODUCT DESCRIPTION
The 5000 Series Jumper Connector is designed for AAC conductors. The jumper connector is fabricated from AFL seamless drawn aluminum. All jumper connectors are designed for limited tension use and maintain a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
