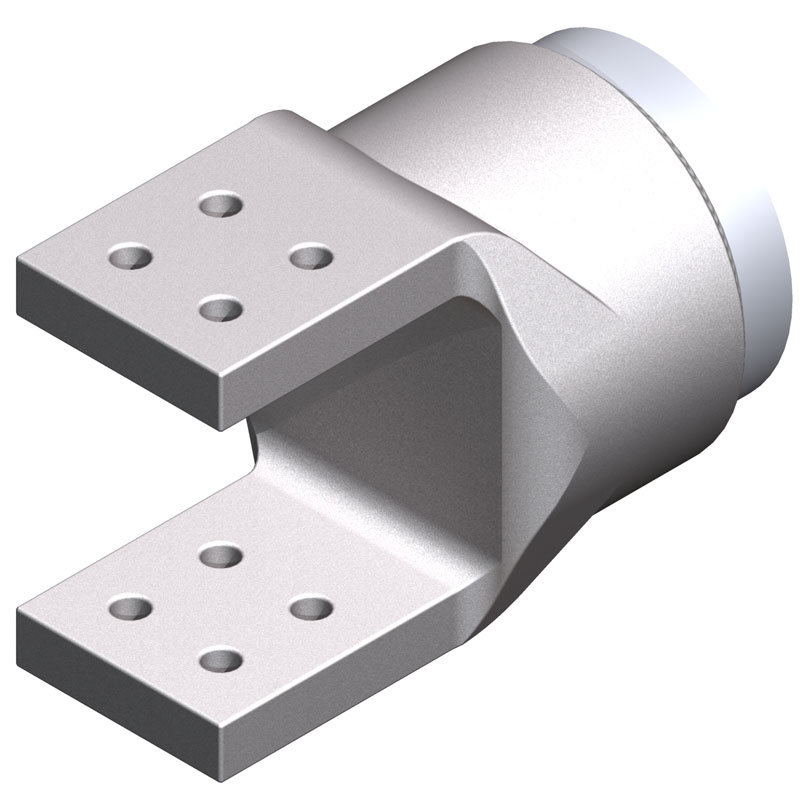

420 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00179, Revision 1, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 420 TYPE 34300 Tube To Flat Material Aluminum Alloy Ordering Information Catalog Number SPS Dimensions in Inches Nominal Weight in lbs A B C D 34308E 3 7.62 4.12 2.62 1.75 5.20 34309E 3 1/2 8.19 4.69 2.94 2.00 5.90 34310E 4 8.44 5.19 3.25 2.25 6.20 34312E 5 9.00 6.38 3.44 2.75 8.30 34313E 6 9.50 7.56 4.25 3.25 9.50 Double terminal is designed to connect to aluminum or copper pads. ∅ 9/16 1 3/4 C A C 1 1/8 4 D B AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 421 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 421 230 kV Aluminum Welded WP2C-N-AA WP2CA-N-45-AA Material Aluminum Alloy Notes 1. Add "U" for undrilled. Ex: WP2C35-2NU-AA 2. Add "F" for finished on both sides 3. For a 30° add suffix'-30', for a 45° add suffix'-45', and for a 90° add suffix '-90'. You must also add an 'A' after WP2C. 4. For a 350 MCM cable, with a 4 hole pad finished on both sides, with a 45° angle use WP2CA35-4NF-45-AA. TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA Welded Terminal to Two Cables WP2C-N-AA FIG. 1 X WP2CA-N-45-AA WP2CA-N-90-AA X F FIG. 2 T L FIG. 3 ∅ 9/16 ∅ 9/16 1 3/4 1 3/4 1 3/4 1 3/4 A B 6 1 1/4 C C A WP2CA-N-30-AA 1 3/4 1 3/4 X C ∅ 9/16 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 422 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 422 Ordering Information Catalog Number FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C F L T X WP2C35-2N-AA 1 336.4 (19), 350 (19,37,61) 300 (26/7) 1 5/8 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C35-4N-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 3 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C35-4N4-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 4 1 1/4 4 1 1/4 5 1/2 3/8 1 1/8 WP2C40-2N-AA 1 397.5 (19), 350 (19,37,61) 336.4 (18/1,26/7,30/7) 1 5/8 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C40-4N-AA 2 397.5 (19), 400 (19,37) 336.4 (18/1,26/7,30/7) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C48-2N-AA 1 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/18) 1 5/8 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C48-4N-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/18) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-2N-AA 1 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-4N-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-4N4-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 4 1 1/4 4 1 3/8 5 1/2 3/8 1 1/8 WP2C65-2N-AA 1 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 1 5/8 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C65-4N-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C65-4N4-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C71-2N-AA 1 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 1 5/8 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C71-4N-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C71-4N4-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C80-2N-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 1 3/4 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C80-4N-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C80-4N4-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C90-2N-AA 1 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 2 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C90-4N-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C90-4N4-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C95-2N-AA 1 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 2 1 3/4 3 1 5/8 5 1/2 5/8 WP2C95-4N-AA 2 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 3 1 3/4 3 1 5/8 5 1/2 5/8 WP2C95-4N4-AA 2 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 4 1 3/4 4 1 5/8 6 11/16 1 1/8 TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA continued 423 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 423 230 kV Aluminum Welded TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA Ordering Information Catalog Number FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C F L T X WP2C103-2N-AA 1 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 2 1 3/4 3 1 3/4 5 1/2 5/8 WP2C103-4N-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 3 1 3/4 3 1 3/4 5 1/2 5/8 WP2C103-4N4-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 4 1 3/4 4 1 7/8 6 1/2 1 1/8 WP2C111-2N-AA 1 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 2 1/2 1 3/4 3 1 7/8 5 1/2 5/8 WP2C111-4N-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 3 1 3/4 3 1 7/8 5 1/2 5/8 WP2C111-4N4-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 4 1 3/4 4 1 5/8 6 11/16 1 1/8 WP2C127R-4N-AA 2 1272MCM ROPELAY NA 3 2 3 2 1/4 5 1/2 3/4 5/8 WP2C127R-4N4-AA 2 1272MCM ROPELAY NA 4 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C135-2N-AA 1 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 2 1/2 2 3 2 1/4 5 1/4 5/8 5/8 WP2C135-4N-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 5/8 5/8 WP2C135-4N4-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 4 2 4 2 1/4 6 1/4 5/8 1 1/8 WP2C151-2N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 3/4 5/8 WP2C151-4N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 3 2 1/4 5 3/4 3/4 5/8 WP2C151-4N4-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 4 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C151-6N4-AA 3 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 6 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C170-2N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 3/4 5/8 WP2C170-4N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 3 2 1/4 3 1/2 2 1/4 6 3/4 5/8 WP2C170-4N4-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 4 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C170-6N4-AA 3 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 6 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C190-4N-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 3 2 1/4 3 2 1/4 5 1/2 3/4 5/8 WP2C190-4N4-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 4 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C190-6NA-AA 3 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 6 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C225-4N-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 3 2 1/4 3 2 1/2 5 1/2 3/4 5/8 WP2C225-4N4-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 4 2 1/4 4 2 1/2 6 1/2 3/4 1 1/8 WP2C225-6N4-AA 3 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 6 2 1/4 4 2 1/2 6 1/2 3/4 1 1/8 WP2C250-4N-AA 2 2500 (91,127,169) 2156 (84/19) 3 2 1/4 3 2 3/4 5 1/2 3/4 5/8 WP2C250-4N4-AA 2 2500 (91,127,169) 2156 (84/19) 4 2 1/4 4 2 3/4 6 1/2 3/4 1 1/8 WP2C250-6N4-AA 3 2500 (91,127,169) 2156 (84/19) 6 2 1/4 4 2 3/4 6 1/2 3/4 1 1/8 WP2C300-4N-AA 2 2750 (91), 3000 (127,169) 2870 ACSR 3 2 1/4 3 2 3/4 5 1/2 7/8 5/8 WP2C300-4N4-AA 2 2750 (91), 3000 (127,169) 2870 ACSR 4 2 1/4 4 2 3/4 6 1/2 7/8 1 1/8 424 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 424 WPCA-N-90-AA WPC-N-AA TYPE , WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Offset Welded Terminal to Cable Material Aluminum Alloy Notes • Add "U" for undrilled • Add "F" for finished on both sides • For a 3", 4-hole NEMA pad at 45° angle to 450 MCM cable, order: WPCA48-4N-45-AA • For a 3", 4-hole NEMA pad at 90° angle finished on both sides to 450 MCM cable, order: WPCA48-4NF-90-AA continued WPC-N-AA A A T L B A 1 3/4 X C WPCA-N-45-AA WPCA-N-90-AA FIG. 3 FIG. 2 ∅ 9/16 1 3/4 1 3/4 X WPCA-N-30-AA FIG. 1 1 3/4 1 3/4 C 1 3/4 X ∅ 9/16 ∅ 9/16 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 425 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 425 230 kV Aluminum Welded TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC10-2N-AA 1 1/0 (7,19) 1 (6/1), 1/0 (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC10-4N-AA 2 1/0 (7,19) 1 (6/1), 1/0 (6/1) 3 3/4 3 5/16 4 5/8 WPC13-2N-AA 1 2/0 (7,19,37) 2/0, (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC17-2N-AA 1 3/0 (7,19,37) 101.8 (12/7), 3/0 (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC21-2N-AA 1 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 1 3/4 1 3 3/8 4 1/4 5/8 WPC21-4N-AA 2 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 3 1 3 5/16 4 1/4 5/8 WPC21-4N4-AA 2 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 4 1 4 5/16 5 1/4 1 1/8 WPC31-2N-AA 1 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 1 3/4 1 3 3/8 4 1/4 5/8 WPC31-4N-AA 2 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 3 1 3 3/8 4 1/4 5/8 WPC31-4N4-AA 2 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC35-2N-AA 1 336.4 (19), 350 (19,37,61) 300 (26/7) 1 3/4 1 3 3/8 4 1/4 5/8 WPC35-4N-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 3 1 3 3/8 4 1/4 5/8 WPC35-4N4-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC40-2N-AA 1 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 1 3/4 1 1/4 3 3/8 4 1/2 5/8 WPC40-4N-AA 2 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC40-4N4-AA 2 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC48-2N-AA 1 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 3/8 4 1/2 5/8 WPC48-4N-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC48-4N4-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 4 1 1/4 4 1/2 3/8 6 3/16 1 1/8 WPC55-2N-AA 1 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 3/8 4 1/2 5/8 WPC55-4N-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC55-4N4-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC65-2N-AA 1 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC65-4N-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC65-4N4-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC71-2N-AA 1 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC71-4N-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 3 1 1/2 3 1/2 4 3/4 5/8 WPC71-4N4-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC79-2N-AA 1 795 MCM — 1 3/4 1 1/2 3 5/8 4 3/4 5/8 WPC79-3N-AA 2 795 MCM — 3 1 1/2 3 5/8 4 3/4 5/8 WPC80-2N-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC80-2N3-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 2 1 1/2 3 1/2 4 3/4 5/8 WPC80-4N-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC80-4N4-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 continued 426 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 426 TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC90-2N-AA 1 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 2 1 1/2 3 1/2 4 3/4 5/8 WPC90-4N-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC90-4N4-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC95-2N-AA 1 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 2 1 3/4 3 1/2 5 5/8 WPC95-4N-AA 2 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC95-4N4-AA 2 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC103-2N-AA 1 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 2 1 3/4 3 1/2 5 5/8 WPC103-4N-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC103-4N4-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC103-4N4- AA-T3/4 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 4 1 3/4 4 3/4 6 1 1/8 WPC111-2N-AA 1 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 2 1/2 1 3/4 3 1/2 5 5/8 WPC111-4N-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC111-4N4-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC127A-4N-AA 2 — 1272 MCM 3 2 3 3/4 5 1/4 5/8 WPC127A-4N4-AA 2 — 1272 MCM 4 2 4 11/16 5 1/2 1 1/8 WPC127R-4N-AA 2 1272 MCM ROPE LAY — 3 2 3 11/16 5 1/2 5/8 WPC127R-4N4-AA 2 1272 MCM ROPE LAY — 4 2 4 1/4 11/16 6 1/2 1 1/8 WPC135-2N-AA 1 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 2 1/2 2 3 9/16 5 1/4 5/8 WPC135-4N-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 3 2 3 9/16 5 1/4 5/8 WPC135-4N4-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 4 2 4 9/16 6 1/4 1 1/8 WPC151-4N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 1/4 3 11/16 5 5/8 5/8 WPC151-4N4-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 4 2 1/4 4 11/16 6 5/8 1 1/8 WPC159-2N-AA 1 1590 MCM — 2 1/2 2 3 11/16 5 5/16 5/8 WPC159-4N-AA 2 1590 MCM — 3 2 3 11/16 5 5/16 5/8 WPC159-4N4-AA 2 1590 MCM — 4 2 4 11/16 6 5/16 1 1/8 WPC170-2N-AA 1 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 2 1/2 2 1/4 3 3/4 5 1/2 5/8 WPC170-4N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 3 2 1/4 3 5/8 5 1/2 5/8 WPC170-4N4-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 4 2 1/4 4 3/4 6 5/8 1 1/8 WPC190-4N-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 3 2 1/4 3 11/16 5 1/2 5/8 WPC190-4N4-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 4 2 1/4 4 11/16 6 1/2 1 1/8 WPC190-6N4-AA 3 1750 (127, 169), 1800 (127, 169), 1900 (127, 169) 1590 (45/7, 54/19), 1780 (84/19) 6 2 1/4 4 11/16 6 1/2 1 1/8 WPC205-4N4-AA 2 2049 MCM ACAR — 4 2 1/4 4 3/4 6 9/16 1 1/8 continued 427 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 427 230 kV Aluminum Welded TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC225-4N-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 3 2 1/4 3 3/4 5 9/16 5/8 WPC225-4N4-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 4 2 1/4 4 3/4 6 9/16 1 1/8 WPC225-6N4-AA 3 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 6 2 1/4 4 3/4 6 9/16 1 1/8 WPC234-4N4-AA 2 2336 MCM ACAR — 4 2 1/4 4 3/4 6 9/16 1 1/8 WPC240R-4N4-AA 2 2.4 DI — 4 2 3/4 4 1/4 1 7 1/4 1 1/8 WPC250-4N-AA 2 2500 (91,127,169) 2156 (84/19) 3 2 1/4 3 3/4 5 1/2 5/8 WPC250-4N4-AA 2 2500 (91,127,169) 2156 (84/19) 4 2 1/4 4 3/4 6 1/2 1 1/8 WPC300-4N-AA 2 2750 (91), 3000 (127,169) 2870 MCM 3 2 1/4 3 3/4 5 1/2 5/8 WPC300-4N4-AA 2 2750 (91), 3000 (127,169) 2870 MCM 4 2 1/4 4 3/4 6 5/8 1 1/8 428 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 428 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. WTP-N-AA TYPE WTP-N-AA Flush Welded Terminal Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTP400-4N4U-AA 2. Add "F" for finished pad on both sides. EX: WTP75-2NF-AA T ∅ 9/16 FIG. 1 1.75 A X ∅ 9/16 1.75 X A 1.75 C 1.75 1.75 X 1.75 ∅ 9/16 A C L C H FIG. 2 FIG. 3 continued 429 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 429 230 kV Aluminum Welded Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C H L T X WTP75-2N-AA 3/4 1 2.00 3.00 1.31 4.31 0.38 0.63 WTP75-4N-AA 3/4 2 3.00 3.00 1.31 4.31 0.38 0.63 WTP100-2N-AA 1 1 2.00 3.00 1.19 4.25 0.50 0.63 WTP100-4N-AA 1 2 3.00 3.00 1.00 4.25 0.38 0.63 WTP100-4N4-AA 1 2 4.00 4.00 1.00 5.25 0.38 1.13 WTP125-2N-AA 1-1/4 1 2.00 3.00 1.25 4.63 0.50 0.63 WTP125-4N-AA 1-1/4 2 3.00 3.00 1.44 5.00 0.63 0.63 WTP125-4N4-AA 1-1/4 2 4.00 4.00 1.25 5.44 0.50 1.13 WTP150-2N-AA 1-1/2 1 2.00 3.00 1.56 5.00 0.50 0.63 WTP150-4N-AA 1-1/2 2 3.00 3.00 1.56 5.00 0.50 0.63 WTP150-4N4-AA 1-1/2 2 4.00 4.00 1.56 6.00 0.50 1.13 WTP200-2N-AA 2 1 2.00 3.00 1.69 4.88 0.50 0.63 WTP200-4N-AA 2 2 3.00 3.00 1.81 5.25 0.63 0.63 WTP200-4N4-AA 2 2 4.00 4.00 1.69 5.88 0.63 1.13 WTP250-2N-AA 2-1/2 1 2.00 3.00 1.94 5.25 0.63 0.63 WTP250-4N-AA 2-1/2 2 3.00 3.00 1.94 5.25 0.63 0.63 WTP250-4N4-AA 2-1/2 2 4.00 4.00 1.88 6.25 0.63 1.13 WTP300-2N-AA 3 1 2.00 3.00 2.31 5.63 0.63 0.63 WTP300-4N-AA 3 2 3.00 3.00 2.25 5.38 0.63 0.63 WTP300-4N4-AA 3 2 4.00 4.00 2.25 6.38 0.63 1.13 WTP300-5N4-AA 3 3 5.00 4.00 2.31 6.63 0.63 1.13 WTP300-6N4-AA 3 3 6.00 4.00 2.31 6.63 0.63 1.13 WTP350-2N-AA 3-1/2 1 2.00 3.00 2.56 5.50 0.75 0.63 WTP350-4N-AA 3-1/2 2 3.00 3.00 2.56 5.50 0.75 0.63 WTP350-4N4-AA 3-1/2 2 4.00 4.00 2.56 6.50 0.75 1.13 WTP350-5N4-AA 3-1/2 3 5.00 4.00 2.56 6.88 0.75 1.13 WTP350-6N4-AA 3-1/2 3 6.00 4.00 2.56 6.88 0.75 1.13 WTP400-4N-AA 4 2 3.00 3.50 2.97 6.38 0.75 0.63 WTP400-4N4-AA 4 2 4.00 4.00 2.97 7.50 0.75 1.13 WTP400-5N4-AA 4 3 5.00 4.00 2.88 7.13 0.75 1.13 WTP400-6N4-AA 4 3 6.00 4.00 2.88 7.13 0.75 1.13 WTP500-4N-AA 5 2 3.00 3.00 3.44 6.63 0.88 0.63 WTP500-4N4-AA 5 2 4.00 4.00 3.44 7.00 0.88 1.13 WTP500-5N4-AA 5 3 5.00 4.00 3.44 7.63 0.88 1.13 WTP500-6N4-AA 5 3 6.00 4.00 3.44 7.63 0.88 1.13 WTP600-4N-AA 6 2 3.00 3.00 3.94 7.13 1.00 0.63 WTP600-4N4-AA 6 2 4.00 4.50 4.25 8.94 1.06 1.13 WTP600-5N4-AA 6 3 5.00 4.00 3.94 8.13 1.00 1.13 WTP600-6N4-AA 6 3 6.00 4.00 3.94 7.00 1.00 1.13 WTP800R-4N4-AA 8" OD 2 4.00 4.00 5.08 8.13 1.25 1.13 WTP800R-6N4-AA 8" OD 3 6.00 4.00 5.02 8.00 1.25 1.13 TYPE WTP-N-AA Flush Welded Terminal 430 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 430 WTPA-N-45-AA TYPE WTPA-N-45-AA Flush Welded Terminal, 45 Degree Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTPA400-4N4U-45-AA 2. Add "F" for finished pad on both sides. EX: WTPA75-2NF-AA T ∅ 0.56 1.75 A X 45° C FIG. 1 FIG. 2 FIG. 3 ∅ 0.56 1.75 A X C 1.75 ∅ 0.56 1.75 A X C 1.75 1.75 continued 431 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 431 230 kV Aluminum Welded Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C T X WTPA75-2N-45-AA 3/4 1 2.00 3.00 0.38 0.63 WTPA75-4N-45-AA 3/4 2 3.00 3.00 0.38 0.63 WTPA100-2N-45-AA 1 1 2.00 3.00 0.50 0.63 WTPA100-4N-45-AA 1 2 3.00 3.00 0.38 0.63 WTPA100-4N4-45-AA 1 2 4.00 4.00 0.38 1.13 WTPA125-2N-45-AA 1-1/4 1 2.00 3.00 0.50 0.63 WTPA125-4N-45-AA 1-1/4 2 3.00 3.00 0.63 0.63 WTPA125-4N4-45-AA 1-1/4 2 4.00 4.00 0.50 1.13 WTPA150-2N-45-AA 1-1/2 1 2.00 3.00 0.50 0.63 WTPA150-4N-45-AA 1-1/2 2 3.00 3.00 0.50 0.63 WTPA150-4N4-45-AA 1-1/2 2 4.00 4.00 0.50 1.13 WTPA200-2N-45-AA 2 1 2.00 3.00 0.50 0.63 WTPA200-4N-45-AA 2 2 3.00 3.13 0.50 0.63 WTPA200-4N4-45-AA 2 2 4.00 4.00 0.50 1.13 WTPA250-2N-45-AA 2-1/2 1 2.00 3.25 0.63 0.63 WTPA250-4N-45-AA 2-1/2 2 3.00 3.00 0.63 0.63 WTPA250-4N4-45-AA 2-1/2 2 4.00 4.00 0.63 1.13 WTPA300-2N-45-AA 3 1 2.00 3.00 0.63 0.63 WTPA300-4N-45-AA 3 2 3.00 3.00 0.63 0.63 WTPA300-4N4-45-AA 3 2 4.00 4.00 0.75 1.13 WTPA300-5N4-45-AA 3 3 5.00 4.00 0.63 1.13 WTPA300-6N4-45-AA 3 3 6.00 4.00 0.63 1.13 WTPA350-2N-45-AA 3-1/2 1 2.00 3.00 0.75 0.63 WTPA350-4N-45-AA 3-1/2 2 3.00 3.00 0.75 0.63 WTPA350-4N4-45-AA 3-1/2 2 4.00 4.00 0.75 1.13 WTPA350-5N4-45-AA 3-1/2 3 5.00 4.00 0.75 1.13 WTPA350-6N4-45-AA 3-1/2 3 6.00 4.00 0.75 1.13 WTPA400-4N-45-AA 4 2 3.00 3.00 0.75 0.63 WTPA400-4N4-45-AA 4 2 4.00 4.00 0.75 1.13 WTPA400-5N4-45-AA 4 3 5.00 4.00 0.75 1.13 WTPA400-6N4-45-AA 4 3 6.00 4.00 0.75 1.13 WTPA500-4N-45-AA 5 2 3.00 3.00 0.88 0.63 WTPA500-4N4-45-AA 5 2 4.00 4.00 0.88 1.13 WTPA500-5N4-45-AA 5 3 5.00 4.00 0.88 1.13 WTPA500-6N4-45-AA 5 3 6.00 4.00 0.88 1.13 WTPA600-4N-45-AA 6 2 3.00 3.00 1.00 0.63 WTPA600-4N4-45-AA 6 2 4.00 4.00 0.63 1.13 WTPA600-5N4-45-AA 6 3 5.00 4.00 1.00 1.13 WTPA600-6N4-45-AA 6 3 6.00 4.00 0.63 1.13 WTPA800R-4N4-45-AA 8" OD 2 4.00 4.00 1.25 1.13 WTPA800R-6N4-45-AA 8" OD 3 6.00 4.00 1.25 1.13 TYPE WTPA-N-45-AA Flush Welded Terminal, 45 Degree 432 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 432 WTPA-N-90-AA TYPE WTPA-N-90-AA Flush Welded Terminal, 90 Degree Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTPA400-4N4U-90-AA 2. Add "F" for finished pad on both sides. EX: WTPA75-2NF-90-AA ∅ 0.56 1.75 A X C FIG. 1 FIG. 3 ∅ 0.56 1.75 A X C 1.75 1.75 T FIG. 2 1.75 A X C 1.75 ∅ 0.56 L continued 433 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 433 230 kV Aluminum Welded Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C L T X WTPA75-2N-90-AA 3/4 1 2.00 3.00 3.88 0.38 0.63 WTPA75-4N-90-AA 3/4 2 3.00 3.00 3.88 0.38 0.63 WTPA100-2N-90-AA 1 1 2.00 3.00 4.19 0.38 0.63 WTPA100-4N-90-AA 1 2 3.00 3.00 4.19 0.38 0.63 WTPA100-4N4-90-AA 1 2 4.00 4.00 5.19 0.38 1.13 WTPA125-2N-90-AA 1-1/4 1 2.00 3.00 4.50 0.63 0.63 WTPA125-4N-90-AA 1-1/4 2 3.00 3.00 4.50 0.63 0.63 WTPA125-4N4-90-AA 1-1/4 2 4.00 4.00 5.63 0.50 1.13 WTPA150-2N-90-AA 1-1/2 1 2.00 3.00 4.69 0.50 0.63 WTPA150-4N-90-AA 1-1/2 2 3.00 3.00 4.69 0.50 0.63 WTPA150-4N4-90-AA 1-1/2 2 4.00 4.00 5.63 0.50 1.13 WTPA200-2N-90-AA 2 1 2.00 3.00 4.75 0.50 0.63 WTPA200-4N-90-AA 2 2 3.00 3.00 4.75 0.50 0.63 WTPA200-4N4-90-AA 2 2 4.00 4.00 5.75 0.50 1.13 WTPA250-2N-90-AA 2-1/2 1 2.50 3.00 6.19 0.63 0.63 WTPA250-4N-90-AA 2-1/2 2 3.00 3.00 5.20 0.63 0.63 WTPA250-4N4-90-AA 2-1/2 2 4.00 4.00 6.19 0.63 1.13 WTPA300-2N-90-AA 3 1 2.00 3.00 5.44 0.63 0.63 WTPA300-4N-90-AA 3 2 3.00 3.00 5.41 0.63 0.63 WTPA300-4N4-90-AA 3 2 4.00 4.00 6.44 0.63 1.13 WTPA300-5N4-90-AA 3 3 5.00 4.00 6.44 0.63 1.13 WTPA300-6N4-90-AA 3 3 6.00 4.00 6.44 0.63 1.13 WTPA350-2N-90-AA 3-1/2 1 2.00 3.00 5.72 0.75 0.63 WTPA350-4N-90-AA 3-1/2 2 3.00 3.00 5.75 0.75 0.63 WTPA350-4N4-90-AA 3-1/2 2 4.00 4.00 6.75 0.75 1.13 WTPA350-5N4-90-AA 3-1/2 3 5.00 4.00 6.75 0.75 1.13 WTPA350-6N4-90-AA 3-1/2 3 6.00 4.00 6.75 0.75 1.13 WTPA400-4N-90-AA 4 2 3.00 3.00 6.52 0.75 0.63 WTPA400-4N4-90-AA 4 2 4.00 4.00 7.02 0.75 1.13 WTPA400-5N4-90-AA 4 3 5.00 4.00 7.02 0.75 1.13 WTPA400-6N4-90-AA 4 3 6.00 4.00 7.02 0.75 1.13 WTPA500-4N-90-AA 5 2 3.00 3.50 7.06 0.88 0.63 WTPA500-4N4-90-AA 5 2 4.00 4.00 7.56 0.88 1.13 WTPA500-5N4-90-AA 5 3 5.00 4.00 7.56 0.88 1.13 WTPA500-6N4-90-AA 5 3 6.00 4.50 8.12 1.13 1.13 WTPA600-4N-90-AA 6 2 3.00 3.00 7.00 1.00 0.63 WTPA600-4N4-90-AA 6 2 4.00 4.00 8.22 1.00 1.13 WTPA600-5N4-90-AA 6 3 5.00 4.00 8.22 1.00 1.13 WTPA600-6N4-90-AA 6 3 6.00 4.00 8.22 1.00 1.13 WTPA800R-4N4-90-AA 8" OD 2 4.00 4.00 9.33 1.25 1.13 WTPA800R-6N4-90-AA 8" OD 3 6.00 4.00 9.33 1.25 1.13 TYPE WTPA-N-90-AA Flush Welded Terminal, 90 Degree 434 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00556, Revision 9, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 434 TYPE WTPC-N-AA External Center Form Welded Terminal Material Aluminum Alloy Notes • Add "U" for undrilled • Add "F" for finished on both sides EX: WTPC75-2NF-AA FIELD WELD FIG. 2 X A 1 3/4 ∅ 9/16 FIG. 1 L T C C FIG. 3 1 3/4 ∅ 9/16 X A 1 3/4 A ∅ 9/16 C X 1 3/4 1 3/4 1 3/4 Ordering Information Catalog Number Figure Number SPS Dimensions in Inches A C L T X WTPC75-2N-AA 1 3/4 2 3 4 5/8 3/8 5/8 WTPC75-4N-AA 2 3/4 3 3 4 5/8 3/8 5/8 WTPC100-2N-AA 1 1 2 3 5 3/8 5/8 WTPC100-4N-AA 2 1 3 3 5 3/8 5/8 WTPC100-4N4-AA 2 1 4 4 6 3/8 1 1/8 WTPC125-2N-AA 1 1 1/4 2 3 5 1/2 5/8 WTPC125-4N4-AA 2 1 1/4 4 4 6 1/2 1 1/8 WTPC125-4N-AA 2 1 1/4 3 3 5 1/2 5/8 WTPC150-2N-AA 1 1 1/2 2 3 5 5/8 5/8 WTPC150-4N4-AA 2 1 1/2 4 4 6 1/32 1/2 1 1/8 WTPC150-4N-AA 2 1 1/2 3 3 4 5/8 1/2 5/8 WTPC200-2N-AA 1 2 2 3 5 1/2 5/8 WTPC200-4N4-AA 2 2 4 4 6 1/2 1 1/8 WTPC200-4N-AA 2 2 3 3 5 1/2 5/8 WTPC250-2N-AA 1 2 1/2 3 3 5 5/8 5/8 WTPC250-4N4-AA 2 2 1/2 4 4 6 5/8 1 1/8 WTPC250-4N-AA 2 2 1/2 3 3 5 5/8 5/8 WTPC300-2N-AA 1 3 2 1/2 3 5 1/4 3/4 5/8 WTPC300-4N4-AA 2 3 4 4 6 5/8 3/4 1 1/8 WTPC300-4N-AA 2 3 3 3 5 1/4 3/4 5/8 WTPC350-4N-AA 2 3 1/2 3 3 5 5/8 3/4 5/8 WTPC350-4N4-AA 2 3 1/2 4 4 6 5/8 3/4 1 1/8 WTPC400-2N-AA 1 4 2 1/2 3 6 3/4 5/8 WTPC400-4N4-AA 2 4 4 4 7 7/8 1 1/8 WTPC400-4N-AA 2 4 3 3 6 3/4 5/8 WTPC400-5N4-AA 3 4 5 4 6 3/4 3/4 1 1/8 WTPC400-6N4-AA 3 4 6 4 1/2 7 1/2 7/8 1 1/8 WTPC500-4N-AA 2 5 3 3 1/2 6 7/8 3/4 5/8 WTPC500-4N4-AA 2 5 4 4 7 3/8 3/4 1 1/8 WTPC500-5N4-AA 3 5 5 4 7 3/8 7/8 1 1/8 WTPC500-6N4-AA 3 5 6 4 7 3/8 7/8 1 1/8 WTPC600-4N4-AA 2 6 4 4 7 7/8 1 1 1/8 WTPC600-6N4-AA 3 6 6 1/8 4 7 7/8 1 1 1/8 WTPC800-4N4-AA 2 8 4 4 7 7/8 1 1/4 1 1/8 WTPC800-6N4-AA 3 8 6 4 7 7/8 1 1/4 1 1/8 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 435 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00568, Revision 4, 1.9.2025 Specifications are subject to change without notice. 435 230 kV Aluminum Welded WTPIA-N-90-AA WTPI-N-AA TYPE WTPI-N-AA, WTPIA-N-45-AA, WTPIA-N-90-AA Internal Welded Terminal WTPI-N-AA the pad and pipe run parallel, WTPIA-N-45-AA the pad is at a 45° angle to the pipe, and WTPI-N-90-AA the pad is at a 90° angle to the pipe. Material Aluminum Notes • Add "U" for undrilled • Add "F" for finished on both sides. EX: WTP75-2NF-AA • For a 1" SPS pipe to a 3" NEMA pad at 45°, order: WTPIA100-4N-45-AA • For a 2" SPS pipe to a 4" NEMA pad at 90°, order: WTPIA200-4N4-90-AA • For a 2" SPS pipe to a 4" NEMA pad finished on both sides, order: WTPI200-4N4F-AA • For a 1" SPS pipe to a 4" pad undrilled order: WTPI100-4N4U-AA WTPI-N-AA WTPIA-N-45-AA WTPIA-N-90-AA A 1 3/4 ∅ 9/16 T B X C FIG. 1 FIG. 2 ∅ 9/16 1 3/4 X 1 3/4 A C FIG. 3 ∅ 9/16 C 1 3/4 X 1 3/4 1 3/4 A CROSS DESIGN continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 436 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00568, Revision 4, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 436 Ordering Information Catalog Number SPS Figure Number Dimensions in Inches SCH 40 SCH 80 A B C T X WTPI75-2N-AA WTPI75E-2N-AA 3/4 1 1-1/2 3/4 3 3/8 5/8 WTPI100-2N-AA WTPI100E-2N-AA 1 1 1-1/2 3/4 3 3/8 5/8 WTPI100-4N-AA WTPI100E-4N-AA 1 2 3 3/4 3 3/8 5/8 WTPI100-4N4-AA WTPI100E-4N4-AA 1 2 4 3/4 4 3/8 1-1/8 WTPI150-2N-AA WTPI150E-2N-AA 1-1/2 1 2 1 3 1/2 5/8 WTPI150-4N-AA WTPI150E-4N-AA 1-1/2 2 3 1 3 1/2 5/8 WTPI150-4N4-AA WTPI150E-4N4-AA 1-1/2 2 4 1 4 1/2 1-1/8 WTPI200-2N-AA WTPI200E-2N-AA 2 1 2 1-1/4 3 5/8 5/8 WTPI200-4N-AA WTPI200E-4N-AA 2 2 3 1-1/4 3 5/8 5/8 WTPI200-4N4-AA WTPI200E-4N4-AA 2 2 4 1-1/4 4 5/8 1-1/8 WTPI200-6N4-AA * WTPI200E-6N4-AA * 2 3 6 2 4 5/8 1-1/8 WTPI250-2N-AA WTPI250E-2N-AA 2-1/2 1 2 1-1/2 3 5/8 5/8 WTPI250-4N-AA WTPI250E-4N-AA 2-1/2 2 3 1-1/2 3 5/8 5/8 WTPI250-4N4-AA WTPI250E-4N4-AA 2-1/2 2 4 1-1/2 4 5/8 1-1/8 WTPI300-2N-AA WTPI300E-2N-AA 3 1 2 1-3/4 3 5/8 5/8 WTPI300-4N-AA WTPI300E-4N-AA 3 2 3 1-3/4 3 3/4 5/8 WTPI300-4N4-AA WTPI300E-4N4-AA 3 2 4 1-3/4 4 5/8 1-1/8 WTPI300-6N4-AA * WTPI300E-6N4-AA * 3 3 6 2 4 3/4 1-1/8 WTPI350-4N-AA WTPI350E-4N-AA 3-1/2 2 3 2 3 3/4 5/8 WTPI350-4N4-AA * WTPI350E-4N4-AA * 3-1/2 2 4 2 4 3/4 1-1/8 WTPI400-6N4-AA WTPI400E-6N4-AA 4 3 6 2-1/4 4 3/4 1-1/8 WTPI400-4N-AA WTPI400E-4N-AA 4 2 3 2-1/4 3 3/4 5/8 WTPI400-4N4-AA WTPI400E-4N4-AA 4 2 4 2-1/4 4 3/4 1-1/8 WTPI500-4N-AA WTPI500E-4N-AA 5 2 3 2-7/8 3 7/8 5/8 WTPI500-4N4-AA WTPI500E-4N4-AA 5 2 4 2-7/8 4 7/8 1-1/8 WTPI600-4N-AA WTPI600E-4N-AA 6 2 3 3-3/8 3 1 5/8 WTPI600-4N4-AA WTPI600E-4N4-AA 6 2 4 3-3/8 4 1 1-1/8 * Cross Design TYPE WTPI-N-AA, WTPIA-N-45-AA, WTPIA-N-90-AA Internal Welded Terminal 437 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00569, Revision 3, 1.9.2025 Specifications are subject to change without notice. 437 230 kV Aluminum Welded ∅ 9/16 1 3/4 C X A FIG. 3 1 3/4 1 3/4 Material Aluminum Alloy Notes 1. Add "U" for undrilled. EX: WTPIC100-2NU-AA 2. Add "F" for finished on both sides. EX: WTPIC100-2NF-AA Ordering Information Catalog Number SPS Figure Number Dimensions in Inches SCH 40 SCH 80 A B C L T X WTPIC100-2N-AA WTPIC100E-2N-AA 1 1 2 3/4 3 4 1/4 3/8 5/8 WTPIC100-4N-AA WTPIC100E-4N-AA 1 2 3 3/4 3 4 1/4 3/8 5/8 WTPIC150-2N-AA WTPIC150E-2N-AA 1-1/2 2 2 1 3 4 1/2 1/2 5/8 WTPIC150-4N-AA WTPIC150E-4N-AA 1-1/2 1 3 1 3 4 1/2 1/2 5/8 WTPIC200-2N-AA WTPIC200E-2N-AA 2 2 2 1 1/4 3 5 1/4 5/8 5/8 WTPIC200-4N4-AA WTPIC200E-4N4-AA 2 1 4 1 1/4 4 6 1/4 5/8 1 1/8 WTPIC200-4N-AA WTPIC200E-4N-AA 2 2 3 1 1/4 3 5 1/4 5/8 5/8 WTPIC250-2N-AA WTPIC250E-2N-AA 2-1/2 2 2 1 1/2 3 5 1/2 5/8 5/8 WTPIC250-4N4-AA WTPIC250E-4N4-AA 2-1/2 1 4 1 1/2 4 6 1/2 5/8 1 1/8 WTPIC250-4N-AA WTPIC250E-4N-AA 2-1/2 2 3 1 1/2 3 5 1/2 5/8 5/8 WTPIC300-4N4-AA WTPIC300E-4N4-AA 3 2 4 1 3/4 4 6 3/4 5/8 1 1/8 WTPIC300-4N-AA WTPIC300E-4N-AA 3 2 3 1 3/4 3 5 3/4 5/8 5/8 WTPIC350-4N4-AA WTPIC350E-4N4-AA 3-1/2 2 4 2 4 7 1/4 3/4 1 1/8 WTPIC350-4N-AA WTPIC350E-4N-AA 3-1/2 2 3 2 3 6 1/4 3/4 5/8 WTPIC400-4N4-AA WTPIC400E-4N4-AA 4 2 4 2 1/4 4 7 1/4 3/4 1 1/8 WTPIC400-4N-AA WTPIC400E-4N-AA 4 2 3 2 1/4 3 6 1/4 3/4 5/8 WTPIC500-4N4-AA WTPIC500E-4N4-AA 5 2 4 2 1/2 4 8 1/8 7/8 1 1/8 WTPIC500-4N-AA WTPIC500E-4N-AA 5 2 3 2 1/2 3 7 1/8 7/8 5/8 WTPIC600-4N4-AA WTPIC600E-4N4-AA 6 2 4 3 3/8 4 8 3/4 1 1 1/8 WTPIC600-6N4-AA WTPIC600E-6N4-AA 6 3 6 3 3/8 4 9 7/16 1 1 1/8 WTPIC800-4N4-AA WTPIC800E-4N4-AA 8 2 4 3 3/8 4 8 3/4 1 1/8 1 1/8 FIG. 2 FIG. 1 T 1 3/4 ∅ 9/16 1 3/4 1 3/4 L C B C X A C A X TYPE WTPIC-N-AA Internal Center Formed Welded Terminal AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 438 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 438 WTPOA-N-90-AA WTPO-N-AA TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA WTPO-N-AA flush half sleeve welded terminal, WTPOA-N-45-AA flush 45° half sleeve welded terminal, and WTPOA-N-90-AA flush 90° half sleeve welded terminal. Material Aluminum Alloy Notes 1. To specify contact finish on top surface of pad in addition to bottom surface add letter "F" to the catalog number. Ex: 2NF - 4NF - 4N4F. 2. For a 45° flush half sleeve terminal, 2" SPS, and 4", 4 hole NEMA pad order: WTPOA200-4N4-45-AA. 3. For a 90° flush half sleeve terminal, 2" SPS, and 4", 4 hole NEMA pad finished on both sides order: WTPOA200-4N4F-90-AA. WTPO-N-AA FIG. 1 A FIG. 2 1 3/4 ∅ 9/16 WTPOA-N-45-AA WTPOA-N-90-AA T X C B H A 1 3/4 ∅ 9/16 ∅ 9/16 1 3/4 C X 1 3/4 C X 1 3/4 A 1 3/4 FIG. 3 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 439 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 439 230 kV Aluminum Welded Ordering Information SPS Catalog Number Figure Number Angle Dimensions in Inches A B C H T X 3/4 WTPO75-2N-AA 1 - 1 5/8 1 3 1 3/8 5/8 3/4 WTPOA75-2N-45-AA 1 45° 1 5/8 1 3 - 3/8 5/8 3/4 WTPOA75-2N-90-AA 1 90° 1 5/8 1 3 - 3/8 5/8 3/4 WTPO75-4N-AA 2 - 3 1 3 1 3/8 5/8 3/4 WTPOA75-4N-45-AA 2 45° 3 1 3 - 3/8 5/8 3/4 WTPOA75-4N-90-AA 2 90° 3 1 3 - 3/8 5/8 1 WTPO100-2N-AA 1 - 1 15/16 1 1/8 3 1 3/16 3/8 5/8 1 WTPOA100-2N-45-AA 1 45° 1 15/16 1 1/8 3 - 3/8 5/8 1 WTPOA100-2N-90-AA 1 90° 1 15/16 1 1/4 3 - 3/8 5/8 1 WTPO100-4N-AA 2 - 3 1 1/8 3 1 3/16 3/8 5/8 1 WTPOA100-4N-45-AA 2 45° 3 1 1/8 3 - 3/8 5/8 1 WTPOA100-4N-90-AA 2 90° 3 1 1/4 3 - 3/8 5/8 1 1/4 WTPO125-2N-AA 1 - 2 1 3/8 3 1 3/8 3/8 5/8 1 1/4 WTPOA125-2N-45-AA 1 45° 2 1 3/8 3 - 3/8 5/8 1 1/4 WTPOA125-2N-90-AA 1 90° 2 1 3/8 3 - 1/2 5/8 1 1/4 WTPO125-4N-AA 2 - 3 1 3/8 3 1 3/8 7/16 5/8 1 1/4 WTPOA125-4N-45-AA 2 45° 3 1 3/8 3 - 7/16 5/8 1 1/4 WTPOA125-4N-90-AA 2 90° 3 1 3/8 3 - 1/2 5/8 1 1/4 WTPOA125-4N4-90-AA 2 90° 4 1 3/8 4 - 1/2 1 1/8 1 1/2 WTPO150-2N-AA 1 - 2 1 5/8 3 1 15/32 7/16 5/8 1 1/2 WTPOA150-2N-45-AA 1 45° 2 1 5/8 3 - 1/2 5/8 1 1/2 WTPOA150-2N-90-AA 1 90° 2 1 5/8 3 - 1/2 5/8 1 1/2 WTPO150-4N-AA 2 - 3 1 5/8 3 1 15/32 1/2 5/8 1 1/2 WTPOA150-4N-45-AA 2 45° 3 1 5/8 3 - 1/2 5/8 1 1/2 WTPOA150-4N-90-AA 2 90° 3 1 5/8 3 - 1/2 5/8 1 1/2 WTPO150-4N4-AA 2 - 4 1 5/8 4 1 15/32 1/2 1 1/8 1 1/2 WTPOA150-4N4-45-AA 2 45° 4 1 5/8 4 - 1/2 1 1/8 1 1/2 WTPOA150-4N4-90-AA 2 90° 4 1 5/8 4 - 1/2 1 1/8 2 WTPO200-2N-AA 1 - 2 1 7/8 3 1 23/32 7/16 5/8 2 WTPOA200-2N-45-AA 1 45° 2 1 7/8 3 - 7/16 5/8 2 WTPOA200-2N-90-AA 1 90° 2 1 7/8 3 - 1/2 5/8 2 WTPO200-4N-AA 2 - 3 1 7/8 3 1 23/32 1/2 5/8 2 WTPOA200-4N-45-AA 2 45° 3 1 7/8 3 - 1/2 5/8 2 WTPOA200-4N-90-AA 2 90° 3 1 7/8 3 - 7/16 5/8 2 WTPO200-4N4-AA 2 - 4 1 7/8 4 1 23/32 1/2 1 1/8 2 WTPOA200-4N4-45-AA 2 45° 4 1 7/8 4 - 1/2 1 1/8 2 WTPOA200-4N4-90-AA 2 90° 4 1 7/8 4 - 7/16 1 1/8 2 1/2 WTPO250-2N-AA 1 - 2 2 1/4 3 1 31/32 5/8 5/8 2 1/2 WTPOA250-2N-45-AA 1 45° 2 2 1/4 3 - 5/8 5/8 2 1/2 WTPOA250-2N-90-AA 1 90° 2 2 1/4 3 - 5/8 5/8 2 1/2 WTPO250-4N-AA 2 - 3 2 1/4 3 1 31/32 5/8 5/8 2 1/2 WTPOA250-4N-45-AA 2 45° 3 2 1/4 3 - 5/8 5/8 2 1/2 WTPOA250-4N-90-AA 2 90° 3 2 1/4 3 - 5/8 5/8 2 1/2 WTPO250-4N4-AA 2 - 4 2 1/4 4 1 31/32 5/8 1 1/8 2 1/2 WTPOA250-4N4-45-AA 2 45° 4 2 1/4 4 - 5/8 1 1/8 2 1/2 WTPOA250-4N4-90-AA 2 90° 4 2 1/4 4 - 5/8 1 1/8 3 WTPO300-2N-AA 1 - 2 2 1/2 3 2 11/32 5/8 5/8 3 WTPOA300-2N-45-AA 1 45° 2 2 1/2 3 - 5/8 5/8 3 WTPOA300-2N-90-AA 1 90° 2 2 1/2 3 - 5/8 5/8 TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA continued 440 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 440 TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA Ordering Information SPS Catalog Number Figure Number Angle Dimensions in Inches A B C H T X 3 WTPO300-4N-AA 2 - 3 2 1/2 3 2 11/32 5/8 5/8 3 WTPOA300-4N-45-AA 2 45° 3 2 1/2 3 - 5/8 5/8 3 WTPOA300-4N-90-AA 2 90° 3 2 1/2 3 - 5/8 5/8 3 WTPO300-4N4-AA 2 - 4 2 1/2 4 2 11/32 5/8 1 1/8 3 WTPOA300-4N4-45-AA 2 45° 4 2 1/2 4 - 5/8 1 1/8 3 WTPOA300-4N4-90-AA 2 90° 4 2 1/2 4 - 5/8 1 1/8 3 1/2 WTPO350-2N-AA 1 - 2 3 3 2 19/32 3/4 5/8 3 1/2 WTPOA350-2N-45-AA 1 45° 2 3 3 - 3/4 5/8 3 1/2 WTPOA350-2N-90-AA 1 90° 2 3 3 - 3/4 5/8 3 1/2 WTPO350-4N-AA 2 - 3 3 3 2 19/32 3/4 5/8 3 1/2 WTPOA350-4N-45-AA 2 45° 3 3 3 - 3/4 5/8 3 1/2 WTPOA350-4N-90-AA 2 90° 3 3 3 - 3/4 5/8 3 1/2 WTPO350-4N4-AA 2 - 4 3 4 2 19/32 3/4 1 1/8 3 1/2 WTPOA350-4N4-45-AA 2 45° 4 3 4 - 3/4 1 1/8 3 1/2 WTPOA350-4N4-90-AA 2 90° 4 3 4 - 3/4 1 1/8 3 1/2 WTPO350-5N4-AA 3 - 5 3 4 2 19/32 3/4 1 1/8 3 1/2 WTPOA350-5N4-45-AA 3 45° 5 3 4 - 3/4 1 1/8 3 1/2 WTPOA350-5N4-90-AA 3 90° 5 3 4 - 3/4 1 1/8 4 WTPO400-2N-AA 1 - 2 3 1/2 3 2 27/32 3/4 5/8 4 WTPOA400-2N-45-AA 1 45° 2 3 1/2 3 - 3/4 5/8 4 WTPOA400-2N-90-AA 1 90° 2 3 3/4 3 - 3/4 5/8 4 WTPO400-4N-AA 2 - 3 3 1/2 3 2 27/32 3/4 5/8 4 WTPOA400-4N-45-AA 2 45° 3 3 1/2 3 - 3/4 5/8 4 WTPOA400-4N-90-AA 2 90° 3 3 3/4 3 - 3/4 5/8 4 WTPO400-4N4-AA 2 - 4 3 1/2 4 2 27/32 3/4 1 1/8 4 WTPOA400-4N4-45-AA 2 45° 4 3 1/2 4 - 3/4 1 1/8 4 WTPOA400-4N4-90-AA 2 90° 4 3 3/4 4 - 3/4 1 1/8 5 WTPO500-2N-AA 1 - 2 3 1/2 3 3 3/8 3/4 5/8 5 WTPOA500-2N-45-AA 1 45° 2 3 1/2 3 - 3/4 5/8 5 WTPOA500-2N-90-AA 1 90° 2 3 1/2 3 - 3/4 5/8 5 WTPO500-4N-AA 2 - 3 3 1/2 3 3 3/8 3/4 5/8 5 WTPOA500-4N-90-AA 2 90° 3 3 1/2 3 - 7/8 5/8 5 WTPOA500-4N-45-AA 2 45° 3 4 3 - 7/8 5/8 5 WTPO500-4N4-AA 2 - 4 3 1/2 4 3 3/8 3/4 1 1/8 5 WTPOA500-4N4-45-AA 2 45° 4 3 1/2 4 - 3/4 1 1/8 5 WTPOA500-4N4-90-AA 2 90° 4 3 1/2 4 - 7/8 1 1/8 5 WTPO500-6N4-AA 3 - 6 3 1/2 4 3 3/8 3/4 1 1/8 5 WTPOA500-6N4-45-AA 3 45° 6 3 1/2 4 - 3/4 1 1/8 5 WTPOA500-6N4-90-AA 3 90° 6 3 1/2 4 - 3/4 1 1/8 6 WTPO600-4N4-AA 2 - 4 3 5/8 4 3 3/8 1 1 1/8 6 WTPOA600-4N4-45-AA 2 45° 4 3 5/8 4 - 1 1 1/8 6 WTPOA600-4N4-90-AA 2 90° 4 3 5/8 4 - 1 1 1/8 441 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00571, Revision 3, 1.9.2025 Specifications are subject to change without notice. 441 230 kV Aluminum Welded Material Aluminum Alloy Notes 1. Add suffix "F" to the catalog number to add contact finish to both pad surfaces. EX: WTPOC200-2NF-AA Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A B C T X WTPOC100-2N-AA 1 1 2 1 1/8 3 3/8 5/8 WTPOC100-4N-AA 1 2 3 1 1/8 3 3/8 5/8 WTPOC125-2N-AA 1-1/4 1 2 1 3/8 3 3/8 5/8 WTPOC125-4N-AA 1-1/4 2 3 1 3/8 3 3/8 5/8 WTPOC150-2N-AA 1-1/2 1 2 1 5/8 3 1/2 5/8 WTPOC150-4N-AA 1-1/2 2 3 1 5/8 3 3/8 5/8 WTPOC150-4N4-AA 1-1/2 2 4 1 5/8 4 3/8 1 1/8 WTPOC200-2N-AA 2 1 2 1 7/8 3 1/2 5/8 WTPOC200-4N-AA 2 2 3 1 7/8 3 1/2 5/8 WTPOC200-4N4-AA 2 2 4 1 7/8 4 1/2 1 1/8 WTPOC250-2N-AA 2-1/2 1 2 2 1/4 3 1/2 5/8 WTPOC250-4N-AA 2-1/2 2 3 2 1/4 3 1/2 5/8 WTPOC250-4N4-AA 2-1/2 2 4 2 1/4 4 1/2 1 1/8 WTPOC300-2N-AA 3 1 2 2 1/2 3 5/8 5/8 WTPOC300-4N-AA 3 2 3 2 1/2 3 5/8 5/8 WTPOC300-4N4-AA 3 2 4 2 1/2 4 5/8 1 1/8 WTPOC350-2N-AA 3-1/2 1 2 3 3 3/4 5/8 WTPOC350-4N-AA 3-1/2 2 3 3 3 3/4 5/8 WTPOC350-4N4-AA 3-1/2 2 4 3 4 3/4 1 1/8 WTPOC400-2N-AA 4 1 2 3 1/2 3 3/4 5/8 WTPOC400-4N-AA 4 2 3 3 1/2 3 3/4 5/8 WTPOC400-4N4-AA 4 2 4 3 1/2 4 3/4 1 1/8 WTPOC500-4N-AA 5 2 3 3 1/2 3 7/8 5/8 WTPOC500-4N4-AA 5 2 4 3 1/2 4 3/4 1 1/8 WTPOC600-4N4-AA 6 2 4 3 1/2 4 1 1 1/8 WTPOC800R-4N4-AA 8 2 4 3 1/2 4 1 1 1/8 WTPOC800-4N4-AA 8 2 4 3 1/2 4 1 1 1/8 FIG. 2 FIG. 1 T 1 3/4 ∅ 9/16 B A C X 1 3/4 X A 1 3/4 C ∅ 9/16 TYPE WTPOC-AA Welded Terminal Lug AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 445 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00584, Revision 8, 9.26.2025 Specifications are subject to change without notice. 445 230 kV Aluminum Welded Material Aluminum Alloy Laminates Pure Aluminum TYPE WXL-90V-AA Expansion Terminal Connector Notes • If alignment guide is not needed add "P" to the catalog number. EX: WXL200P-4N4-90V-AA Ordering Information Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T X WXL100-2N-90V-AA WXL100E-2N-90V-AA 1 1 1-1/2 3 5-1/8 1-1/2 3-1/4 10-5/8 1/2 5/8 WXL100-4N-90V-AA WXL100E-4N-90V-AA 1 2 3 3 5-1/8 1-1/2 3-1/4 10-5/8 1/2 5/8 WXL100-4N4-90V-AA WXL100E-4N4-90V-AA 1 2 4 4 5-1/8 1-1/2 3-1/4 12-1/8 1/2 1-1/8 WXL125-2N-90V-AA WXL125E-2N-90V-AA 1 1/4 1 2 1/4 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 WXL125-4N-90V-AA WXL125E-4N-90V-AA 1 1/4 2 3 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 WXL150-2N-90V-AA WXL150E-2N-90V-AA 1-1/2 1 2-1/2 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 WXL150-4N-90V-AA WXL150E-4N-90V-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 WXL200-2N-90V-AA WXL200E-2N-90V-AA 2 1 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 WXL200-4N-90V-AA WXL200E-4N-90V-AA 2 2 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 WXL200-4N4-90V-AA WXL200E-4N4-90V-AA 2 2 4 4 7-3/16 2-1/2 4-1/2 15-3/8 3/4 1-1/8 WXL250-2N-90V-AA WXL250E-2N-90V-AA 2-1/2 1 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 WXL250-4N-90V-AA WXL250E-4N-90V-AA 2-1/2 2 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 WXL250-4N4-90V-AA WXL250E-4N4-90V-AA 2-1/2 2 4 4 7-11/16 2-1/2 4-1/2 15-7/8 3/4 1-1/8 WXL300-2N-90V-AA WXL300E-2N-90V-AA 3 1 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 WXL300-4N-90V-AA WXL300E-4N-90V-AA 3 2 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 WXL300-4N4-90V-AA WXL300E-4N4-90V-AA 3 2 4 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 FIG. 2 FIG. 1 1 3/4 1 3/4 A C F X 1 3/4 A A C E NOM. D T X L FIG. 3 C 1 3/4 1 3/4 X 1 3/4 ∅ 9/16 ∅ 9/16 ∅ 9/16 A FIG. 4 C 1 3/4 X 1 3/4 ∅ 9/16 1 3/4 1 3/4 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 446 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00584, Revision 8, 9.26.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 446 TYPE WXL-90V-AA Expansion Terminal Connector Ordering Information (cont.) Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T X WXL350-2N-90V-AA WXL350E-2N-90V-AA 3-1/2 1 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 5/8 WXL350-4N-90V-AA WXL350E-4N-90V-AA 3-1/2 2 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 5/8 WXL350-4N4-90V-AA WXL350E-4N4-90V-AA 3-1/2 2 4 4 9-3/4 2-1/2 4-1/2 18-5/16 7/8 1-1/8 WXL350-6N4-90V-AA WXL350E-6N4-90V-AA 3-1/2 3 6 4 9 3/4 2 1/2 4 1/2 18 5/16 3/4 1 1/8 WXL400-2N-90V-AA WXL400E-2N-90V-AA 4 1 3 3 10 2-1/2 4-1/2 18 1 5/8 WXL400-4N-90V-AA WXL400E-4N-90V-AA 4 2 3 3 10 2-1/2 4-1/2 18 1 5/8 WXL400-4N4-90V-AA WXL400E-4N4-90V-AA 4 2 4 4 10 2-1/2 4-1/2 19 1 1-1/8 WXL400-6N4-90V-AA WXL400E-6N4-90V-AA 4 3 6 4-1/2 10 2-1/2 4-1/2 16-1/2 3/4 1-1/8 WXL500-4N-90V-AA WXL500E-4N-90V-AA 5 2 3 3 10 2-1/2 4-1/2 18 1-1/4 5/8 WXL500-4N4-90V-AA WXL500E-4N4-90V-AA 5 2 4 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 WXL500-6N4-90V-AA WXL500E-6N4-90V-AA 5 3 6 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 WXL600-4N-90V-AA WXL600E-4N-90V-AA 6 2 3 3 6-9/16 2-1/2 5-3/16 13-9/16 1-1/8 5/8 WXL600-4N4-90V-AA WXL600E-4N4-90V-AA 6 2 4 4 6-9/16 2-1/2 5-3/16 14-9/16 1-1/8 1-1/8 WXL600-6N4-90V-AA WXL600E-6N4-90V-AA 6 3 6 4 6-9/16 2-1/2 5-3/16 14-9/16 1-1/8 1-1/8 WXL600-8N4-90V-AA WXL600E-8N4-90V-AA 6 4 8 4 6-9/16 2 1/2 5-3/16 14-9/16 1 1 1/8 447 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00585, Revision 6, 9.26.2025 Specifications are subject to change without notice. 447 230 kV Aluminum Welded TYPE WXL-AA, WXL-E-AA Expansion Terminal Connector Material Aluminum Alloy Notes • Add "P" to suffix of WXL for no alignment guide. EX: WXLP200-4N-AA • Add "F" to suffix of pad type for contact finish on both sides of the pad. EX: WXL200-4NF-AA FIG. 1 ∅ 9/16 FIG. 2 1 3/4 ALUMINUM FLEXIBLE STRAPS COMPOSED OF "EC" ALUMINUM LAMINATES CUSTOMER PIPE FIELD WELD L F C T D A A E X 1 3/4 Y Y ∅ 9/16 1 3/4 X 1 3/4 1 3/4 X 1 3/4 A ∅ 9/16 FIG. 3 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 448 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00585, Revision 6, 9.26.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 448 TYPE WXL-AA, WXL-E-AA Expansion Terminal Connector Ordering Information Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T Y X WXL100-2N-AA WXL100E-2N-AA 1 1 1-3/4 3 5-1/8 1-1/2 3-1/2 10-5/8 1/2 NA 5/8 WXL100-4N-AA WXL100E-4N-AA 1 2 3 3 5-1/8 1-1/2 3-1/2 10-5/8 1/2 5/8 5/8 WXL125-2N-AA WXL125E-2N-AA 1-1/4 1 2-1/4 3 6 1-1/2 3-1/2 11-1/2 1/2 NA 5/8 WXL125-4N-AA WXL125E-4N-AA 1-1/4 2 3 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 5/8 WXL125-4N4-AA WXL125E-4N4-AA 1-1/4 2 4 4 6 1-1/2 3-1/2 11-1/2 1/2 1-1/8 1-1/8 WXL150-2N-AA WXL150E-2N-AA 1-1/2 1 2-1/2 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL150-4N-AA WXL150E-4N-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL150-4N4-AA WXL150E-4N4-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL200-2N-AA WXL200E-2N-AA 2 1 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 NA 5/8 WXL200-4N-AA WXL200E-4N-AA 2 2 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 5/8 WXL200-4N4-AA WXL200E-4N4-AA 2 2 4 4 7-3/16 2-1/2 4-1/2 14-3/8 3/4 1-1/8 1-1/8 WXL200-6N4-AA WXL200E-6N4-AA 2 3 6 4 7-3/16 2-1/2 4-1/2 14-3/8 3/4 1-1/4 1-1/8 WXL250-2N-AA WXL250E-2N-AA 2-1/2 1 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 NA 5/8 WXL250-4N-AA WXL250E-4N-AA 2-1/2 2 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 5/8 WXL250-4N4-AA WXL250E-4N4-AA 2-1/2 2 4 4 7-11/16 2-1/2 4-1/2 15-7/8 3/4 1-1/8 1-1/8 WXL300-2N-AA WXL300E-2N-AA 3 1 3 3 8-3/16 2-1/2 4-1/2 16 7/8 NA 5/8 WXL300-4N-AA WXL300E-4N-AA 3 2 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 5/8 WXL300-4N4-AA WXL300E-4N4-AA 3 2 4 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 1-1/8 WXL300-6N4-AA WXL300E-6N4-AA 3 3 6 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 1-1/8 WXL350-2N-AA WXL350E-2N-AA 3-1/2 1 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 NA 5/8 WXL350-4N-AA WXL350E-4N-AA 3-1/2 2 3 4-1/4 9-3/4 2-1/2 4-1/2 18-9/16 13/16 5/8 5/8 WXL350-4N4-AA WXL350E-4N4-AA 3-1/2 2 4 4 9-3/4 2-1/2 4-1/2 18-5/16 7/8 1-1/8 1-1/8 WXL400-2N-AA WXL400E-2N-AA 4 1 3 3 10 2-1/2 4-1/2 18 1 NA 5/8 WXL400-4N-AA WXL400E-4N-AA 4 2 3 3 10 2-1/2 4-1/2 18 1 5/8 5/8 WXL400-4N4-AA WXL400E-4N4-AA 4 2 4 4 10 2-1/2 4-1/2 19 1 1-1/8 1-1/8 WXL400-6N4-AA WXL400E-6N4-AA 4 3 6 4 10 2-1/2 5-9/16 19-1/4 1 1-1/4 1-1/8 WXL500-4N-AA WXL500E-4N-AA 5 2 3 3 10 2-1/2 4-1/2 18 1-1/4 5/8 5/8 WXL500-4N4-AA WXL500E-4N4-AA 5 2 4 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 1-1/8 WXL500-6N4-AA WXL500E-6N4-AA 5 3 6 4 10 2-1/2 5-5/8 19 1 1-1/4 1-1/8 WXL600-4N-AA WXL600E-4N-AA 6 2 3 3 6-9/16 2-1/2 5-3/16 13-9/16 1-1/8 5/8 5/8 WXL600-4N4-AA WXL600E-4N4-AA 6 2 4 4 6-9/16 2-1/2 5-3/16 14-9/16 1-1/8 1-1/8 1-1/8 WXL600-6N4-AA WXL600E-6N4-AA 6 3 6 4 6-9/16 2-1/2 5-3/16 14-9/16 1-1/8 1-1/4 1-1/8 WXL800-4N4-AA WXL800E-4N4-AA 8 2 4 4 15 2-1/2 4-1/2 24-3/8 1-3/8 1-1/8 1-1/8 WXL800-6N4-AA WXL800E-6N4-AA 8 3 6 4 15 2-1/2 4-1/2 24-3/8 1-3/8 1-1/4 1-1/8 447 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00586, Revision 2, 2.13.2025 Specifications are subject to change without notice. 447 230 kV Aluminum Welded Material Aluminum Alloy Notes 1. Add "P" to suffix of WXLO for no alignment guide. EX: WXLOP300-4N-AA 2. Add "F" to suffix of pad type for contact finish on both sides of the pad. EX: WXLO300-4NF-AA ∅ 9/16 1 3/4 C L F D E NOM. X FIG. 2 U A 1 3/4 ∅ 9/16 FIG. 1 A C X 1 3/4 H T TYPE WXLO-AA, WXLO-E-AA Expansion Terminal Connector continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 448 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00586, Revision 2, 2.13.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 448 Ordering Information Catalog Number Pipe Size Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F H L T U X WXLO100-2N-AA WXLO100E-2N-AA 1 1 1 3/4 3 5 1/8 1 1/2 3 1/2 1 1/8 10 5/8 5/8 N/A 5/8 WXLO100-4N-AA WXLO100E-4N-AA 1 2 3 3 5 1/8 1 1/2 3 1/2 1 5/16 10 5/8 1/2 5/8 5/8 WXLO125-2N-AA WXLO125E-2N-AA 1 1/4 1 2 1/4 3 6 1 1/2 3 1/2 1 5/16 11 1/2 1/2 N/A 5/8 WXLO125-4N-AA WXLO125E-4N-AA 1 1/4 2 3 3 6 1 1/2 3 1/2 1 5/16 11 1/2 1/2 5/8 5/8 WXLO125-4N4-AA WXLO125E-4N4-AA 1 1/4 2 4 4 6 1 1/2 3 1/2 1 5/8 12 3/4 1/2 1 1/8 1 1/8 WXLO150-2N-AA WXLO150E-2N-AA 1 1/2 1 2 1/2 3 7 1/8 1 1/2 3 1/2 1 5/8 12 3/4 5/8 N/A 5/8 WXLO150-4N-AA WXLO150E-4N-AA 1 1/2 2 3 3 7 1/8 1 1/2 3 1/2 1 5/8 12 3/4 5/8 5/8 5/8 WXLO200-2N-AA WXLO200E-2N-AA 2 1 2 3 7 3/16 2 1/2 4 1/2 2 14 3/8 3/4 N/A 5/8 WXLO200-4N-AA WXLO200E-4N-AA 2 2 3 3 7 3/16 2 1/2 4 1/2 2 14 3/8 3/4 3/4 7/8 WXLO200-4N4-AA WXLO200E-4N4-AA 2 2 4 4 7 3/16 2 1/2 4 1/2 2 15 3/8 3/4 1 1/8 1 1/8 WXLO250-4N-AA WXLO250E-4N-AA 2 1/2 2 3 3 7 11/16 2 1/2 4 1/2 2 9/32 14 7/8 3/4 5/8 5/8 WXLO250-4N4-AA WXLO250E-4N4-AA 2 1/2 2 4 4 7 11/16 2 1/2 4 1/2 2 9/32 15 7/8 3/4 1 1/8 1 1/8 WXLO300-4N-AA WXLO300E-4N-AA 3 2 3 3 8 3/16 2 1/2 4 1/2 2 5/8 16 7/8 5/8 5/8 WXLO300-4N4-AA WXLO300E-4N4-AA 3 2 4 4 8 3/16 2 1/2 4 1/2 2 5/8 17 7/8 1 1/8 1 1/8 WXLO350-4N-AA WXLO350E-4N-AA 3 1/2 2 3 3 9 3/4 2 1/2 4 1/2 2 15/16 17 5/16 7/8 5/8 5/8 WXLO350-4N4-AA WXLO350E-4N4-AA 3 1/2 2 4 4 9 3/4 2 1/2 4 1/2 2 15/16 18 5/16 1 1 1/8 1 1/8 WXLO400-4N-AA WXLO400E-4N-AA 4 2 3 3 10 2 1/2 4 1/2 3 1/4 18 1 5/8 5/8 WXLO400-4N4-AA WXLO400E-4N4-AA 4 2 4 4 10 2 1/2 4 1/2 3 1/4 19 1 1 1/8 1 1/8 WXLO500-4N-AA WXLO500E-4N-AA 5 2 3 3 10 2 1/2 4 1/2 3 1/2 18 1 1/4 5/8 5/8 WXLO500-4N4-AA WXLO500E-4N4-AA 5 2 4 4 10 2 1/2 4 1/2 3 1/2 19 1 1/4 1 1/8 1 1/8 WXLO600-4N-AA WXLO600E-4N-AA 6 2 3 3 12 2 1/2 4 1/2 4 1/4 20 3/8 1 3/8 5/8 5/8 WXLO600-4N4-AA WXLO600E-4N4-AA 6 2 4 4 12 2 1/2 4 1/2 4 1/4 21 3/8 1 3/8 1 1/8 1 1/8 TYPE WXLO-AA, WXLO-E-AA Expansion Terminal Connector
