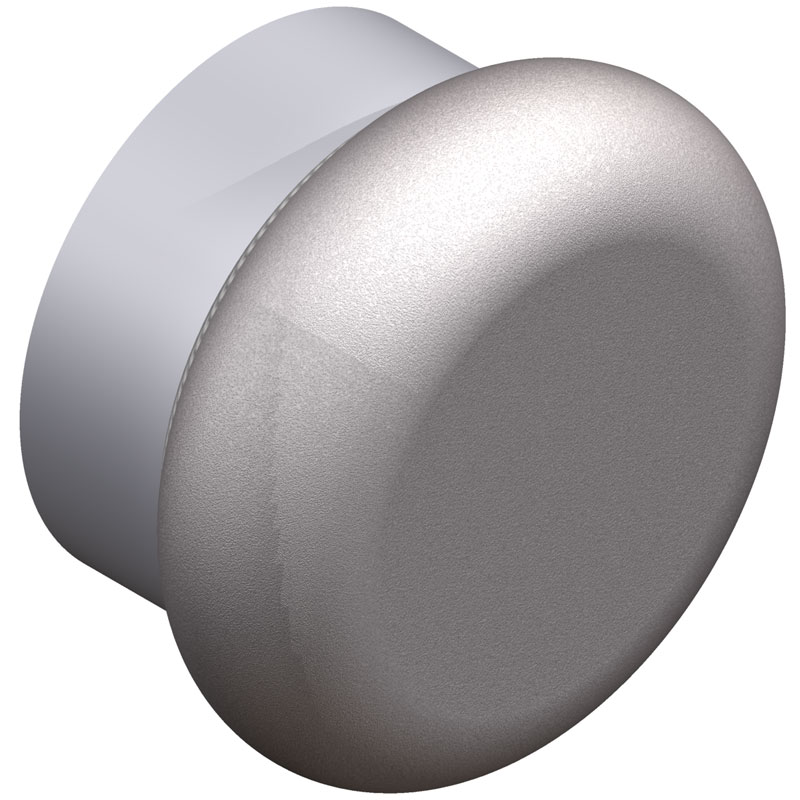

Welded end plug is designed for use on bus pipe. Used to minimize electrostatic losses and to prevent nesting of birds.
3973c3309c1c4f8fb011f100d22695ce
403 230 k V Al. Welded End Bells © 2023, AFL, all rights reserved. PP-3-00885, Revision, 0, 7.6.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Welded End Bells TYPE WCX-AA Aluminum Welded, External Fit End Plug External fit end plug for aluminum pipe or tube. End bell is inserted onto pipe and field welded. Good for both Schedule 40 and 80 sizes. Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES A B C WCX75-AA 3/4 1 1/2 7/16 5/8 WCX100-AA 1 1 7/8 7/16 5/8 WCX125-AA 1 1/4 2 1/4 1/2 3/4 WCX150-AA 1 1/2 2 11/32 3/8 25/32 WCX200-AA 2 3 15/32 7/8 WCX250-AA 2 1/2 3 23/32 19/32 1 1/8 WCX300-AA 3 4 3/8 25/32 1 1/2 WCX350-AA 3 1/2 4 31/32 13/16 1 5/8 WCX400-AA 4 5 5/8 29/32 1 7/8 WCX500-AA 5 6 23/32 1 1/8 2 7/32 WCX600-AA 6 7 7/8 1 11/32 2 7/16 B A C Material Aluminum Alloy
© 2010, AFL, all rights reserved. PP-3-00521, Revision 2, 10.17.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 404 230 k V Aluminum Welded End Bells 230 kV Al. Welded End Bells TYPE WCI-AA, WCI-E-AA Aluminum Welded, Internal Fit, Corona / End Bell Internal fit corona or end bell for aluminum pipe or tube. Bell is inserted into pipe end and field welded. Material Aluminum Alloy Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES SCH 40 SCH 80 A B C WCI75-AA WCI75E-AA 3/4 1-1/16 7/16 7/8 WCI100-AA WCI100E-AA 1 1-5/16 7/16 7/8 WCI125-AA WCI125E-AA 1-1/4 1-21/32 1/2 1 WCI150-AA WCI150E-AA 1-1/2 1-29/32 1/2 1-1/8 WCI200-AA WCI200E-AA 2 2-3/8 1/2 1-1/8 WCI250-AA WCI250E-AA 2-1/2 2-7/8 5/8 1-3/8 WCI300-AA WCI300E-AA 3 3-1/2 1 2-1/8 WCI350-AA WCI350E-AA 3-1/2 4 1 2 WCI400-AA WCI400E-AA 4 4-1/2 1 2 WCI500-AA WCI500E-AA 5 5-9/16 1-1/4 2-1/4 WCI600-AA WCI600E-AA 6 6-5/8 1-1/4 2-1/4 WCI600-5/8-AA — 6 6-5/8 1 2 WCI800-AA WCI800E-AA 8 8-5/8 1 2-1/4 B ∅ A C
405 230 k V Aluminum Welded End Bells 230 kV Aluminum Welded End Bells © 2010, AFL, all rights reserved. PP-3-00529, Revision 0, 12.20.10 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE WP-AA, WP-E-AA Aluminum Welded, Internal Fit, End Plug Internal fit end plug for aluminum pipe or tube. End plug is inserted into pipe and field welded. Material Aluminum Alloy Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES SCH 40 SCH 80 A B WP150-AA WP150E-AA 1 1/2 1/4 3/16 WP200-AA WP200E-AA 2 1/4 3/16 WP250-AA WP250E-AA 2 1/2 1/4 3/16 WP300-AA WP300E-AA 3 1/4 3/16 WP350-AA WP350E-AA 3 1/2 1/4 3/16 WP400-AA WP400E-AA 4 1/4 3/16 WP500-AA WP500E-AA 5 3/8 1/4 WP600-AA WP600E-AA 6 3/8 1/4 WP800-AA WP800E-AA 8 3/8 1/4 B A
Features:
- Aluminum Alloy
- Internal and external fit parts
- Meets NEMA CC1 standards
Applications:
- Rated for 230 kV
- Substation
- Aluminum bus pipe
Welded end plug is designed for use on bus pipe. Used to minimize electrostatic losses and to prevent nesting of birds.
