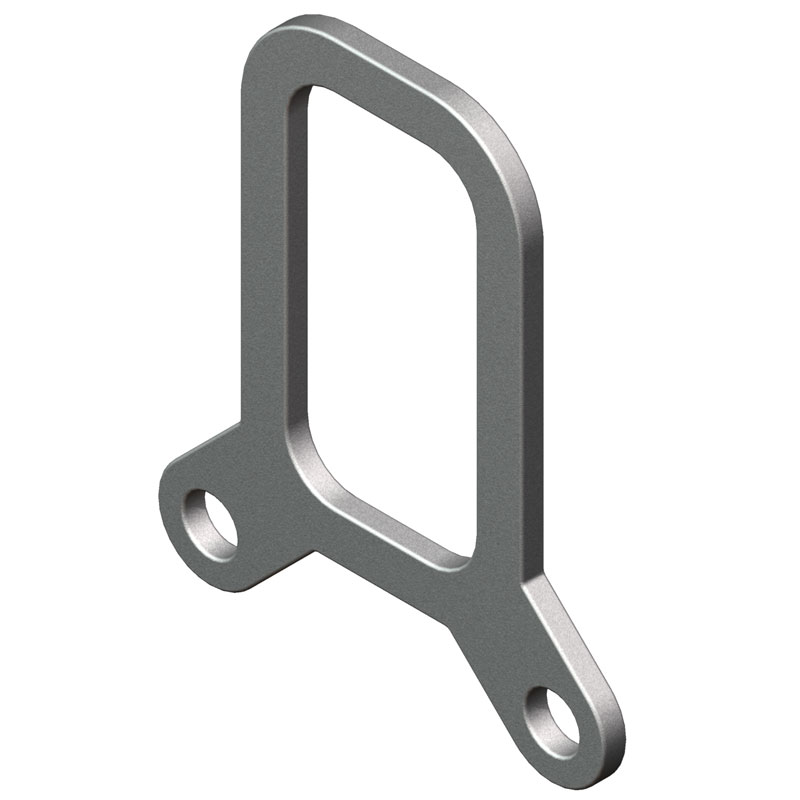

An aluminum spacer for a standard bus bar spacing of 1/4 inch. Designed for use with both A and H clamps.
ab1cb471c90847f3b11358cd68bb682e
297 230 kV Aluminum Bolted Bar Clamps and Spacers 230 kV Aluminum Bolted Bar Clamps and Spacers www.AFLglobal.com or 800-890-8878 © 2010, AFL, all rights reserved. 11.09.10 Specifications are subject to change without notice. TYPE BS-AA Alumnium Bar Spacer An aluminum spacer for a standard bus bar spacing of 1/4 inch. Designed for use with both A and H clamps. Material Aluminum Alloy Ordering Information CATALOG NUMBER WIDTH OF BUSES DIMENSIONS IN INCHES M T L W BOLT SIZE BS11-AA 1 1 1 5/8 2 5/16 3/8 BS21-AA 2 1 2 5/8 2 5/16 3/8 BS22-AA 2 2 2 5/8 3 5/16 3/8 BS31-AA 3 1 3 5/8 2 5/16 3/8 BS32-AA 3 2 3 5/8 3 5/16 3/8 BS33-AA 3 3 3 5/8 4 5/16 3/8 BS42-AA 4 2 4 5/8 3 5/16 3/8 BS43-AA 4 3 4 3/4 4 3/4 1/2 BS44-AA 4 4 4 3/4 5 3/4 1/2 BS52-AA 5 2 5 3/4 3 5/8 1/2 BS53-AA 5 3 5 3/4 4 3/4 1/2 BS54-AA 5 4 5 3/4 5 3/4 1/2 BS55-AA 5 5 5 7/8 7 1/8 5/8 BS62-AA 6 2 6 3/4 3 5/8 1/2 BS63-AA 6 3 6 3/4 4 3/4 1/2 BS64-AA 6 4 6 3/4 5 3/4 1/2 BS65-AA 6 5 6 7/8 7 1/8 5/8 BS66-AA 6 6 6 7/8 8 1/8 5/8 W 1/4 M T L
Features:
- Aluminum alloy
- Works with all bus bar clamps and supports
- 1/4 inch thick spacer
Applications:
- Rated for 230 kV
- Substation
- Aluminum bus bar
An aluminum spacer for a standard bus bar spacing of 1/4 inch. Designed for use with both A and H clamps.
