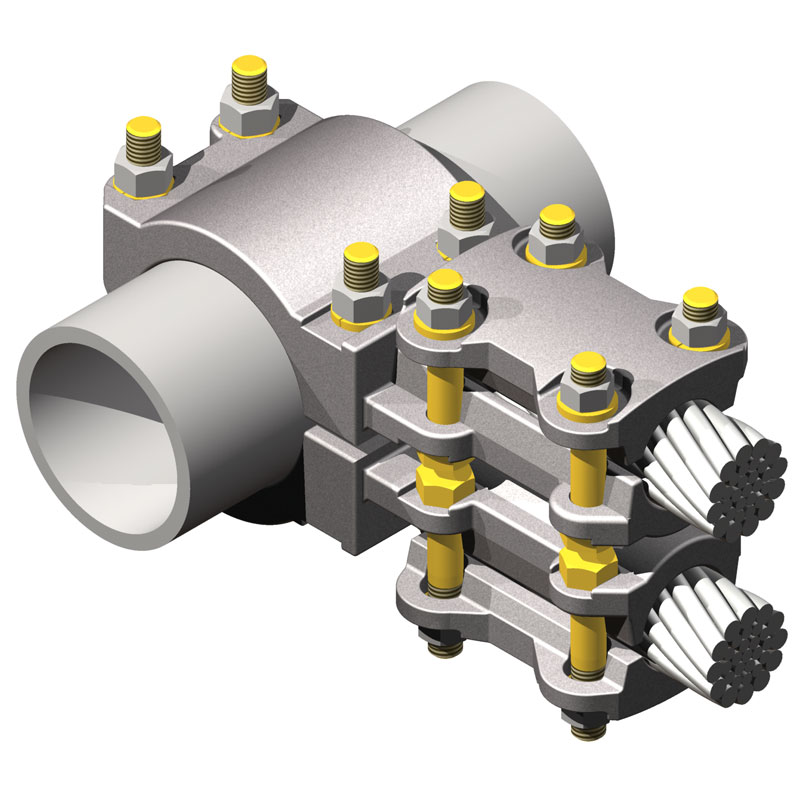

334 230 kV Aluminum Bolted Tee & Vee Connectors © 2011, AFL, all rights reserved. PP-3-00254, Revision 2, 12.14.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Tee & Vee Connectors A variable tap pipe to cable tee connector. Cable clamping section is provided with two independently acting aluminum alloy saddles. Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. TYPE BPCV-AA, BP2CV-AA Aluminum Tee Connector For Tubular Bus To A Cable Tap Notes 1. For tin plating, add "-SN" to end of catalog number. EX: BP2CV300-125-AA-SN 2. For galvanized steel hardware, add "-GS" to end of catalog number. EX: BP2CV300-125-AA-GS 3. For grade five galvanized steel hardware, add "-GS5" to end of catalog number. EX: BPCV75-125-AA-GS5 4. For two cables in-line, add "-90V" to catalog number. EX: BP2CV400-200-90V-AA B BPCV-AA L H BP2CV-AA BP2CV-90V-AA FIG. 1 FIG. 2 www.AFLglobal.com or 800-890-8878 335 230 kV Aluminum Bolted Tee & Vee Connectors © 2011, AFL, all rights reserved. PP-3-00254, Revision 2, 12.14.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Tee & Vee Connectors Ordering Information CATALOG NUMBER FIG. NO. SPS CABLE TAP DIMENSIONS IN INCHES ALUMINUM ACSR BPCV BP2CV MIN MAX MIN MAX B L H BPCV50-25-AA BP2CV50-25-AA 1 1/2 #1/0 250 MCM #1/0 #4/0 2.75 6.13 3.00 BPCV50-50-AA BP2CV50-50-AA 1 1/2 1/0 STR 250 MCM #1/0 #4/0 2.75 6.13 3.00 BPCV75-25-AA BP2CV75-25-AA 1 3/4 #1/0 250 MCM #1/0 #4/0 2.75 6.13 3.00 BPCV75-40-AA BP2CV75-40-AA 1 3/4 250 MCM 400 MCM #4/0 397.5 2.75 6.13 3.00 BPCV75-60-AA BP2CV75-60-AA 1 3/4 350 MCM 600 MCM 336.4 477 2.75 6.13 3.00 BPCV75-90-AA BP2CV75-90-AA 1 3/4 500 MCM 900 MCM 477 795 2.75 6.13 3.00 BPCV75-125-AA BP2CV75-125-AA 1 3/4 900 MCM 1250 MCM 715 1113 2.75 6.38 3.25 BPCV75-160-AA BP2CV75-160-AA 1 3/4 1250 MCM 1600 MCM 1113 1431 2.75 7.50 4.38 BPCV75-200-AA BP2CV75-200-AA 1 3/4 1500 MCM 2000 MCM 1272 1780 2.75 7.63 4.50 BPCV100-25-AA BP2CV100-25-AA 1 1 1/0 STR 250 MCM #1/0 #4/0 2.75 6.38 3.00 BPCV100-40-AA BP2CV100-40-AA 1 1 250 MCM 400 MCM #4/0 397.5 2.75 6.38 3.00 BPCV100-60-AA BP2CV100-60-AA 1 1 350 MCM 600 MCM 336.4 477 2.75 6.38 3.00 BPCV100-90-AA BP2CV100-90-AA 1 1 500 MCM 900 MCM 477 795 2.75 6.38 3.00 BPCV100-125-AA BP2CV100-125-AA 1 1 900 MCM 1250 MCM 715 1113 2.75 6.63 3.25 BPCV100-160-AA BP2CV100-160-AA 1 1 1250 MCM 1600 MCM 1113 1431 2.75 7.75 4.38 BPCV100-200-AA BP2CV100-200-AA 1 1 1500 MCM 2000 MCM 1272 1780 2.75 7.88 4.50 BPCV125-10-AA BP2CV125-10-AA 2 1 1/4 4 #1/0 4 #1/0 3.00 5.50 1.88 BPCV125-25-AA BP2CV125-25-AA 1 1 1/4 1/0 STR 250 MCM #1/0 #4/0 3.00 6.88 3.00 BPCV125-40-AA BP2CV125-40-AA 1 1 1/4 250 MCM 400 MCM #4/0 397.5 3.00 6.88 3.00 BPCV125-60-AA BP2CV125-60-AA 1 1 1/4 350 MCM 600 MCM 336.4 477 3.00 6.88 3.00 BPCV125-90-AA BP2CV125-90-AA 1 1 1/4 500 MCM 900 MCM 477 795 3.00 6.88 3.00 BPCV125-125-AA BP2CV125-125-AA 1 1 1/4 900 MCM 1250 MCM 715 1113 3.00 7.13 3.25 BPCV125-160-AA BP2CV125-160-AA 1 1 1/4 1250 MCM 1600 MCM 1113 1431 3.00 8.25 4.38 BPCV125-200-AA BP2CV125-200-AA 1 1 1/4 1500 MCM 2000 MCM 1272 1780 3.00 8.38 4.50 BPCV150-25-AA BP2CV150-25-AA 1 1 1/2 1/0 STR 250 MCM #1/0 #4/0 3.00 6.88 3.00 BPCV150-40-AA BP2CV150-40-AA 1 1 1/2 250 MCM 400 MCM #4/0 397.5 3.00 6.88 3.00 BPCV150-60-AA BP2CV150-60-AA 1 1 1/2 350 MCM 600 MCM 336.4 477 3.00 6.88 3.00 BPCV150-90-AA BP2CV150-90-AA 1 1 1/2 500 MCM 900 MCM 477 795 3.00 6.88 3.00 BPCV150-125-AA BP2CV150-125-AA 1 1 1/2 900 MCM 1250 MCM 715 1113 3.00 7.13 3.25 BPCV150-160-AA BP2CV150-160-AA 1 1 1/2 1250 MCM 1600 MCM 1113 1431 3.00 8.25 4.38 BPCV150-200-AA BP2CV150-200-AA 1 1 1/2 1500 MCM 2000 MCM 1272 1780 3.00 8.38 4.50 BPCV200-10-AA BP2CV200-10-AA 2 2 4 #1/0 4 #1/0 3.25 6.25 1.88 BPCV200-25-AA BP2CV200-25-AA 1 2 1/0 STR 250 MCM #1/0 #4/0 3.25 7.75 3.00 BPCV200-40-AA BP2CV200-40-AA 1 2 250 MCM 400 MCM #4/0 397.5 3.25 7.75 3.00 BPCV200-60-AA BP2CV200-60-AA 1 2 350 MCM 600 MCM 336.4 477 3.25 7.75 3.00 BPCV200-60-S-AA BP2CV200-60-S-AA 1 2 #4/0 600 MCM #3/0 477 3.25 7.75 3.00 BPCV200-90-AA BP2CV200-90-AA 1 2 500 MCM 900 MCM 477 795 3.25 7.75 3.00 BPCV200-125-AA BP2CV200-125-AA 1 2 900 MCM 1250 MCM 715 1113 3.25 8.00 3.25 BPCV200-160-AA BP2CV200-160-AA 1 2 1250 MCM 1600 MCM 1113 1431 3.25 9.13 4.38 BPCV200-200-AA BP2CV200-200-AA 1 2 1500 MCM 2000 MCM 1272 1780 3.25 9.25 4.50 BPCV200-250-AA BP2CV200-250-AA 1 2 2000 MCM 2500 MCM 1780 2300 3.25 9.25 4.50 BPCV250-25-AA BP2CV250-25-AA 1 2 1/2 1/0 STR 250 MCM #1/0 #4/0 3.25 7.88 3.00 BPCV250-40-AA BP2CV250-40-AA 1 2 1/2 250 MCM 400 MCM #4/0 397 3.25 7.88 3.00 BPCV250-60-AA BP2CV250-60-AA 1 2 1/2 350 MCM 600 MCM 336.4 477 3.25 7.88 3.00 BPCV250-90-AA BP2CV250-90-AA 1 2 1/2 500 MCM 900 MCM 477 795 3.25 8.13 3.00 BPCV250-125-AA BP2CV250-125-AA 1 2 1/2 900 MCM 1250 MCM 715 1113 3.25 8.38 3.25 BPCV250-160-AA BP2CV250-160-AA 1 2 1/2 1250 MCM 1600 MCM 1113 1431 3.25 8.50 4.38 BPCV250-200-AA BP2CV250-200-AA 1 2 1/2 1500 MCM 2000 MCM 1272 1780 3.25 8.63 4.50 BPCV250-250-AA BP2CV250-250-AA 1 2 1/2 2000 MCM 2500 MCM 1780 2300 3.25 8.63 4.50 BPCV300-10-AA BP2CV300-10-AA 2 3 4 STR #1/0 4 #1/0 3.75 7.47 1.88 BPCV300-25-AA BP2CV300-25-AA 1 3 1/0 STR 250 MCM #1/0 #4/0 3.00 8.88 3.00 BPCV300-40-AA BP2CV300-40-AA 1 3 250 MCM 400 MCM #4/0 397.5 3.00 8.88 3.00 BPCV300-60-AA BP2CV300-60-AA 1 3 350 MCM 600 MCM 336.4 477 3.00 8.88 3.00 BPCV300-90-AA BP2CV300-90-AA 1 3 500 MCM 900 MCM 477 795 3.50 8.88 3.00 BPCV300-125-AA BP2CV300-125-AA 1 3 900 MCM 1250 MCM 715 1113 3.50 8.88 3.25 BPCV300-160-AA BP2CV300-160-AA 1 3 1250 MCM 1600 MCM 1113 1431 3.75 10.00 4.38 TYPE BPCV-AA, BP2CV-AA Aluminum Tee Connector For Tubular Bus To A Cable Tap 336 230 kV Aluminum Bolted Tee & Vee Connectors © 2011, AFL, all rights reserved. PP-3-00254, Revision 2, 12.14.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Tee & Vee Connectors TYPE BPCV-AA, BP2CV-AA Aluminum Tee Connector For Tubular Bus To A Cable Tap Ordering Information CATALOG NUMBER FIG. NO. SPS CABLE TAP DIMENSIONS IN INCHES ALUMINUM ACSR BPCV BP2CV MIN MAX MIN MAX B L H BPCV300-200-AA BP2CV300-200-AA 1 3 1500 MCM 2000 MCM 1272 1780 3.75 10.13 4.50 BPCV300-250-AA BP2CV300-250-AA 1 3 2000 MCM 2500 MCM 1780 2300 3.75 10.13 4.50 BPCV350-25-AA BP2CV350-25-AA 1 3 1/2 1/0 STR 250 MCM #1/0 #4/0 3.00 9.38 3.00 BPCV350-40-AA BP2CV350-40-AA 1 3 1/2 250 MCM 400 MCM #4/0 397.5 3.00 8.88 3.00 BPCV350-60-AA BP2CV350-60-AA 1 3 1/2 350 MCM 600 MCM 336.4 477 3.00 8.88 3.00 BPCV350-90-AA BP2CV350-90-AA 1 3 1/2 500 MCM 900 MCM 477 795 3.00 8.88 3.00 BPCV350-125-AA BP2CV350-125-AA 1 3 1/2 900 MCM 1250 MCM 715 1113 3.00 9.13 3.25 BPCV350-160-AA BP2CV350-160-AA 1 3 1/2 1250 MCM 1600 MCM 1113 1431 3.75 10.25 4.38 BPCV350-200-AA BP2CV350-200-AA 1 3 1/2 1500 MCM 2000 MCM 1272 1780 3.75 11.19 4.50 BPCV400-25-AA BP2CV400-25-AA 1 4 1/0 STR 250 MCM #1/0 #4/0 3.25 10.00 3.00 BPCV400-40-AA BP2CV400-40-AA 1 4 250 MCM 400 MCM #4/0 397.5 3.25 10.00 3.00 BPCV400-60-AA BP2CV400-60-AA 1 4 350 MCM 600 MCM 336.4 477 3.25 10.00 3.00 BPCV400-90-AA BP2CV400-90-AA 1 4 500 MCM 900 MCM 477 795 3.25 10.00 3.00 BPCV400-125-AA BP2CV400-125-AA 1 4 900 MCM 1250 MCM 715 1113 3.25 10.25 3.25 BPCV400-160-AA BP2CV400-160-AA 1 4 1250 MCM 1600 MCM 1113 1431 3.75 11.38 4.38 BPCV400-200-AA BP2CV400-200-AA 1 4 1500 MCM 2000 MCM 1272 1780 3.75 11.50 4.50 BPCV400-250-AA BP2CV400-250-AA 1 4 2000 MCM 2500 MCM 1780 2300 3.75 11.50 4.50 BPCV500-10-AA BP2CV500-10-AA 2 5 4 STR #1/0 4 #1/0 3.25 9.50 1.88 BPCV500-25-AA BP2CV500-25-AA 1 5 1/0 STR 250 MCM #1/0 #4/0 3.25 10.50 3.00 BPCV500-40-AA BP2CV500-40-AA 1 5 250 MCM 400 MCM #4/0 397.5 3.25 10.50 3.00 BPCV500-60-AA BP2CV500-60-AA 1 5 350 MCM 600 MCM 336.4 477 3.25 10.50 3.00 BPCV500-90-AA BP2CV500-90-AA 1 5 500 MCM 900 MCM 477 795 3.25 10.50 3.00 BPCV500-125-AA BP2CV500-125-AA 1 5 900 MCM 1250 MCM 715 1113 3.25 10.75 3.25 BPCV500-160-AA BP2CV500-160-AA 1 5 1250 MCM 1600 MCM 1113 1431 3.75 11.88 4.38 BPCV500-200-AA BP2CV500-200-AA 1 5 1500 MCM 2000 MCM 1272 1780 3.75 12.00 4.50 BPCV500-250-AA BP2CV500-250-AA 1 5 2000 MCM 2500 MCM 1780 2300 3.75 12.00 4.50 BPCV600-25-AA BP2CV600-25-AA 1 6 1/0 STR 250 MCM #1/0 #4/0 3.50 12.88 3.00 BPCV600-90-AA BP2CV600-90-AA 1 6 500 MCM 900 MCM 477 795 4.00 12.00 3.00 BPCV600-250-AA BP2CV600-250-AA 1 6 2000 MCM 2500 MCM 1780 2300 4.00 13.50 4.50 BPCV600R-60-AA BP2CV600R-60-AA 1 6 OD 350 MCM 600 MCM 336.4 477 3.25 11.00 3.00 BPCV118R-90-AA BP2CV118R-90-AA 1 30MM 500 MCM 900 MCM 477 795 2.75 6.63 3.00 BPCV118R-125-AA BP2CV118R-125-AA 1 30MM 900 MCM 1250 MCM 715 1113 2.75 6.75 3.25 BPCV118R-125-S-AA BP2CV118R-125-S-AA 1 30MM 600 MCM 1250 MCM 556.5 1113 2.75 6.75 3.25 BPCV157R-125-S-AA BP2CV157R-125-S-AA 1 40MM 600 MCM 1250 MCM 556.5 1113 2.75 6.88 3.25 341 230 kV Aluminum Bolted Tee & Vee Connectors © 2011, AFL, all rights reserved. PP-3-00512, Revision 1, 4.16.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Tee & Vee Connectors Tee connector is designed for connecting stranded aluminum or ACSR conductor to tubular bus. Four clamp bolts on each conductor insures positive electrical contact. Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, U-bolt, nuts, and lockwashers. TYPE UPT-AA U-bolt Pipe to Cable Tee Connector B L C W Ordering Information CATALOG NUMBER SPS AAC CABLE RANGE DIMENSIONS IN INCHES MIN MAX B C L M T W UPT50-13-AA 1/2 6STR 2/0STR 2 1/2 3 5 3/4 1/2 1/2 2 1/8 UPT50-21-AA 1/2 1STR 4/0STR 2 1/2 3 5 3/4 1/2 1/2 2 7/32 UPT50-30-AA 1/2 1/0STR 300MCM 2 1/2 3 1/4 6 1/2 1/2 2 5/16 UPT75-13-AA 3/4 6STR 2/0STR 2 3/4 3 6 1/2 1/2 2 1/8 UPT75-21-AA 3/4 1STR 4/0STR 2 3/4 3 6 1/2 1/2 2 7/32 UPT75-30-AA 3/4 1/0STR 300MCM 2 3/4 3 1/4 6 1/4 1/2 1/2 2 5/16 UPT75-50-AA 3/4 300MCM 500MCM 2 3/4 3 1/4 6 1/4 1/2 1/2 2 1/2 UPT100-13-AA 1 6STR 2/0STR 2 3/4 3 6 1/4 1/2 1/2 2 1/8 UPT100-21-AA 1 1STR 4/0STR 2 3/4 3 6 1/4 1/2 1/2 2 7/32 UPT100-30-AA 1 1/0STR 300MCM 2 3/4 3 1/4 6 1/2 1/2 1/2 2 5/16 UPT100-50-AA 1 300MCM 500MCM 2 3/4 3 1/4 6 1/2 1/2 1/2 2 1/2 UPT100-90-AA 1 500MCM 900MCM 2 3/4 3 1/2 6 3/4 1/2 1/2 2 13/16 UPT125-13-AA 1 1/4 6STR 2/0STR 3 3 6 5/8 1/2 1/2 2 1/8 M T 342 230 kV Aluminum Bolted Tee & Vee Connectors © 2011, AFL, all rights reserved. PP-3-00512, Revision 1, 4.16.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Tee & Vee Connectors www.AFLglobal.com or 800-890-8878 TYPE UPT-AA U-bolt Pipe to Cable Tee Connector Ordering Information CATALOG NUMBER SPS AAC CABLE RANGE DIMENSIONS IN INCHES MIN MAX B C L M T W UPT125-21-AA 1 1/4 1STR 4/0STR 3 3 6 5/8 1/2 1/2 2 7/32 UPT125-30-AA 1 1/4 1/0STR 300MCM 3 3 1/4 6 7/8 1/2 1/2 2 5/16 UPT125-50-AA 1 1/4 300MCM 500MCM 3 3 1/4 6 7/8 1/2 1/2 2 1/2 UPT125-90-AA 1 1/4 500MCM 900MCM 3 3 1/2 7 1/8 1/2 1/2 2 13/16 UPT125-100-AA 1 1/4 750MCM 1000MCM 3 3 1/2 7 1/8 1/2 1/2 2 27/32 UPT150-13-AA 1 1/2 6STR 2/0STR 3 3 6 7/8 1/2 1/2 2 7/32 UPT150-21-AA 1 1/2 1STR 4/0STR 3 3 6 7/8 1/2 1/2 2 7/32 UPT150-30-AA 1 1/2 1/0STR 300MCM 3 3 1/4 7 1/8 1/2 1/2 2 5/16 UPT150-50-AA 1 1/2 300MCM 500MCM 3 3 1/4 7 1/8 1/2 1/2 2 1/2 UPT150-90-AA 1 1/2 500MCM 900MCM 3 3 1/2 7 3/8 1/2 1/2 2 13/16 UPT150-100-AA 1 1/2 800MCM 1000MCM 3 3 1/2 7 3/8 1/2 1/2 2 27/32 UPT150-150-AA 1 1/2 1000MCM 1500MCM 3 4 1/2 8 3/8 1/2 5/8 3 1/4 UPT150-200-AA 1 1/2 1500MCM 2000MCM 3 4 1/2 8 3/8 1/2 5/8 3 3/4 UPT200-21-AA 2 1STR 4/0STR 3 1/4 3 7 3/8 1/2 1/2 2 7/32 UPT200-30-AA 2 1/0STR 300MCM 3 1/4 3 1/4 7 5/8 1/2 1/2 2 5/16 UPT200-50-AA 2 300MCM 500MCM 3 1/4 3 1/4 7 5/8 1/2 1/2 2 1/2 UPT200-90-AA 2 500MCM 900MCM 3 1/4 3 1/2 7 7/8 1/2 1/2 2 13/16 UPT200-100-AA 2 750MCM 1000MCM 3 1/4 3 1/2 7 7/8 1/2 1/2 2 27/32 UPT200-150-AA 2 1000MCM 1500MCM 3 1/4 4 1/2 8 7/8 1/2 5/8 3 1/4 UPT200-200-AA 2 1500MCM 2000MCM 3 1/4 4 1/2 8 7/8 1/2 5/8 3 3/4 UPT250-30-AA 2 1/2 1/0STR 300MCM 3 1/4 3 1/4 8 1/8 1/2 1/2 2 5/16 UPT250-50-AA 2 1/2 300MCM 500MCM 3 1/4 3 1/4 8 1/8 1/2 1/2 2 1/2 UPT250-90-AA 2 1/2 500MCM 900MCM 3 1/4 3 1/2 8 3/8 1/2 1/2 2 13/16 UPT250-100-AA 2 1/2 750MCM 1000MCM 3 1/4 3 1/2 8 3/8 1/2 1/2 2 27/32 UPT250-150-AA 2 1/2 1000MCM 1500MCM 3 1/4 4 1/2 9 3/8 1/2 5/8 3 1/4 UPT250-200-AA 2 1/2 1500MCM 2000MCM 3 1/4 4 1/2 9 3/8 1/2 5/8 3 3/4 UPT300-30-AA 3 1/0STR 300MCM 3 1/4 3 1/4 8 3/4 1/2 1/2 2 5/16 UPT300-50-AA 3 300MCM 500MCM 3 1/4 3 1/4 8 3/4 1/2 1/2 2 1/2 UPT300-90-AA 3 500MCM 900MCM 3 1/2 3 1/2 9 1/2 1/2 2 13/16 UPT300-100-AA 3 750MCM 1000MCM 3 1/4 3 1/2 9 1/2 1/2 2 27/32 UPT300-150-AA 3 1000MCM 1500MCM 3 3/4 4 1/2 10 3/8 5/8 5/8 3 1/4 UPT300-200-AA 3 1500MCM 2000MCM 3 3/4 4 1/2 10 3/8 5/8 5/8 3 3/4 UPT400-30-AA 4 1/0STR 300MCM 3 3/4 4 1/2 10 3/8 5/8 5/8 2 5/16 UPT500-150-AA 5 1000MCM 1500MCM 3 3/4 4 10 3/8 5/8 5/8 3 1/4
