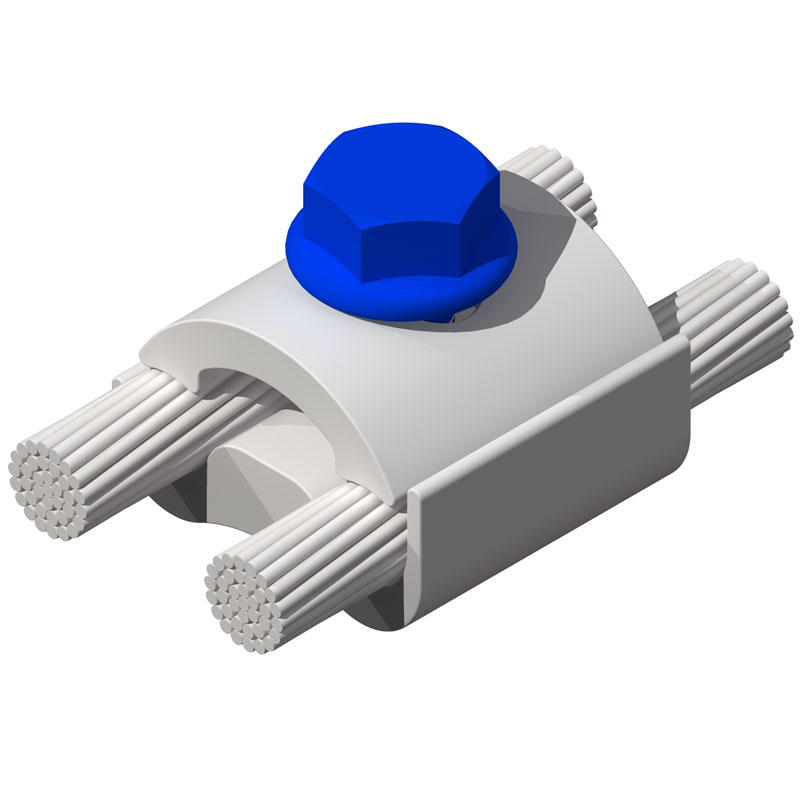

© 2011, AFL, all rights reserved. PP-3-00206. Revision 4, 7.14.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 308 230 kV Aluminum Bolted Parallel Clamps 230 kV – Bolted Parallel Clamps continued TYPE AC, ACA Parallel Clamp ACA Material Aluminum Alloy Hardware AC Galvanized steel U-bolts, nuts, and lockwashers. ACA Yellow anodized aluminum U-bolts, nuts, and lockwashers. B H FIG. 1 B B W FIG. 2 FIG. 3 Ordering Information CATALOG NUMBER FIG. NO. ACSR RANGE ALUMINUM RANGE DIMENSIONS IN INCHES BOLT SIZE MAIN TAP MAIN TAP B H W AC ACA MIN MAX MIN MAX MIN MAX MIN MAX AC401 ACA401 1 #2 SOL 1/0 STR #2 SOL 1/0 STR #2 SOL 2/0 STR #2 SOL 2/0 STR 3 3 1/4 2 3/8 1/2 AC402 ACA402 1 2/0 STR 3/0 STR #2 SOL 1/0 STR 3/0 STR 4/0 STR #2 SOL 2/0 STR 3 3/8 3 1/2 2 3/8 1/2 AC403 ACA403 1 2/0 STR 3/0 STR 2/0 STR 3/0 STR 3/0 STR 4/0 STR 3/0 STR 4/0 STR 3 3/8 3 1/2 2 3/8 1/2 AC404 ACA404 1 3/0 STR 300 MCM #2 SOL 1/0 STR 4/0 STR 350 MCM #2 SOL 2/0 STR 3 5/8 3 5/8 2 1/2 1/2 AC405 ACA405 1 3/0 STR 300 MCM 2/0 STR 3/0 STR 4/0 STR 350 MCM 3/0 STR 4/0 STR 3 5/8 3 7/8 2 1/2 1/2 AC406 ACA406 1 3/0 STR 300 MCM 3/0 STR 300 MCM 4/0 STR 350 MCM 4/0 STR 350 MCM 3 5/8 3 7/8 2 1/2 1/2 AC407 ACA407 1 300 MCM 397.5 MCM #2 SOL 1/0 STR 350 MCM 477 MCM #2 SOL 2/0 STR 3 7/8 4 3/8 3 5/8 AC408 ACA408 1 300 MCM 397.5 MCM 2/0 STR 3/0 STR 350 MCM 477 MCM 3/0 STR 4/0 STR 3 7/8 4 3/8 3 5/8 AC409 ACA409 1 300 MCM 397.5 MCM 3/0 STR 300 MCM 350 MCM 477 MCM 4/0 STR 350 MCM 3 7/8 4 5/8 3 5/8 AC410 ACA410 1 300 MCM 397.5 MCM 300 MCM 397.5 MCM 350 MCM 477 MCM 350 MCM 477 MCM 3 7/8 4 5/8 3 5/8 AC411 ACA411 1 397.5 MCM 605 MCM 2/0 STR 3/0 STR 500 MCM 715.5 MCM 500 MCM 715.5 MCM 4 3/8 4 3/4 3 1/8 5/8 AC412 ACA412 1 397.5 MCM 605 MCM 3/0 STR 300 MCM 500 MCM 715.5 MCM 4/0 STR 350 MCM 4 3/8 4 3/4 3 1/8 5/8 AC413 ACA413 1 397.5 MCM 605 MCM 300 MCM 397.5 MCM 500 MCM 715.5 MCM 350 MCM 477 MCM 4 3/8 5 3 1/8 5/8 AC414 ACA414 1 397.5 MCM 605 MCM 397.5 MCM 605 MCM 500 MCM 715.5 MCM 500 MCM 715.5 MCM 4 3/8 5 3 1/8 5/8 AC415 ACA415 1 605 MCM 900 MCM 3/0 STR 300 MCM 750 MCM 1033.5 MCM 4/0 STR 350 MCM 4 3/4 5 1/8 3 3/8 5/8 AC416 ACA416 1 605 MCM 900 MCM 300 MCM 397.5 MCM 750 MCM 1033.5 MCM 350 MCM 477 MCM 4 3/4 5 1/8 3 3/8 5/8 AC417 ACA417 1 605 MCM 900 MCM 397.5 MCM 605 MCM 750 MCM 1033.5 MCM 500 MCM 715.5 MCM 4 3/4 5 1/2 3 3/8 5/8 AC418 ACA418 1 605 MCM 900 MCM 605 MCM 900 MCM 750 MCM 1033.5 MCM 750 MCM 1033.5 MCM 4 3/4 5 1/2 3 3/8 5/8 AC418S ACA418S 1 477 MCM 636.4 MCM 2/0 STR 336.4 MCM 477 MCM 795 MCM 477 MCM 795 MCM 4 3/4 4 7/8 3 1/8 5/8 AC450 ACA450 1 1/0 STR 336.4 MCM 1/0 STR 336.4 MCM 1/0 STR 397.5 MCM 1/0 STR 397.5 MCM 3 5/8 4 3/16 2 1/2 1/2 309 230 kV – Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00206. Revision 4, 7.14.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Bolted Parallel Clamps TYPE AC, ACA Parallel Clamp Ordering Information CATALOG NUMBER FIG. NO. ACSR RANGE ALUMINUM RANGE DIMENSIONS IN INCHES BOLT SIZE MAIN TAP MAIN TAP B H W AC ACA MIN MAX MIN MAX MIN MAX MIN MAX AC460 ACA460 1 300 MCM 795 MCM 1/0 STR 336.4 MCM 336.4 MCM 954 MCM 1/0 STR 397.5 MCM 4 5/8 4 15/16 3 1/16 1/2 AC462 ACA462 1 336.4 MCM 795 MCM 110.8 MCM 447 MCM 397.5 MCM 954 MCM 3/0 STR 500 MCM 4 5/8 4 15/16 3 1/16 1/2 AC470 ACA470 1 300 MCM 795 MCM 300 MCM 795 MCM 336.4 MCM 954 MCM 336.4 MCM 954 MCM 4 5/8 5 9/16 3 7/32 5/8 AC480 ACA480 1 795 MCM 1033.5 MCM 795 MCM 1033.5 MCM 800 MCM 1113 MCM 800 MCM 1113 MCM 4 5/8 5 3/4 3 1/4 5/8 AC504 ACA504 2 397.5 MCM 605 MCM 397.5 MCM 605 MCM 500 MCM 715.5 MCM 500 MCM 715.5 MCM 5 7/8 5 3 1/8 5/8 AC505 ACA505 2 605 MCM 900 MCM 3/0 STR 300 MCM 750 MCM 1033.5 MCM 4/0 STR 350 MCM 6 3/4 5 1/8 3 3/8 5/8 AC506 ACA506 2 605 MCM 900 MCM 300 MCM 397.5 MCM 750 MCM 1033.5 MCM 350 MCM 477 MCM 6 3/4 5 1/8 3 3/8 5/8 AC507 ACA507 2 605 MCM 900 MCM 397.5 MCM 605 MCM 750 MCM 1033.5 MCM 500 MCM 715.5 MCM 6 3/4 5 1/2 3 3/8 5/8 AC508 ACA508 2 605 MCM 900 MCM 605 MCM 900 MCM 750 MCM 1033.5 MCM 750 MCM 1033.5 MCM 6 3/4 5 1/2 3 3/8 5/8 AC509 ACA509 2 954 MCM 1192.5 MCM 300 MCM 397.5 MCM 1113 MCM 1351.5 MCM 350 MCM 477 MCM 8 6 3 7/8 3/4 AC510 ACA510 2 954 MCM 1192.5 MCM 397.5 MCM 605 MCM 1113 MCM 1351.5 MCM 500 MCM 715.5 MCM 8 6 3 7/8 3/4 AC511 ACA511 2 954 MCM 1192.5 MCM 605 MCM 900 MCM 1113 MCM 1351.5 MCM 750 MCM 1033.5 MCM 8 6 3/8 3 7/8 5/8 AC512 ACA512 2 954 MCM 1192.5 MCM 954 MCM 1192.5 MCM 1113 MCM 1351.5 MCM 1113 MCM 1351.5 MCM 8 6 3/8 3 7/8 3/4 AC513 ACA513 2 1272 MCM 1590 MCM 397.5 MCM 605 MCM 1431 MCM 1750 MCM 500 MCM 715.5 MCM 9 3/4 6 5/16 4 3/4 AC514 ACA514 2 1272 MCM 1590 MCM 605 MCM 900 MCM 1431 MCM 1750 MCM 750 MCM 1033.5 MCM 9 3/4 6 5/8 4 1/8 3/4 AC515 ACA515 2 1272 MCM 1590 MCM 954 MCM 1192.5 MCM 1431 MCM 1750 MCM 1113 MCM 1351.5 MCM 9 3/4 7 4 1/8 3/4 AC516 ACA516 2 1033.5 MCM 1590 MCM 1033.5 MCM 1590 MCM 1033.5 MCM 1750 MCM 1033.5 MCM 1750 MCM 9 3/4 7 4 1/8 5/8 AC518 ACA518 2 1780 MCM 2300 MCM 605 MCM 1033.5 MCM 2000 MCM 2500 MCM 700 MCM 1192.5 MCM 9 3/4 6 1/2 4 5/16 5/8 AC520 ACA520 2 1780 MCM 2300 MCM 1780 MCM 2300 MCM 2000 MCM 2500 MCM 2000 MCM 2500 MCM 9 3/4 7 3/8 4 5/16 5/8 AC604 ACA604 3 336.4 MCM 397.5 MCM 336.4 MCM 397.5 MCM 350 MCM 477 MCM 350 MCM 477 MCM 7 4 1/2 2 1/2 1/2 AC605 ACA605 3 397.5 MCM 605 MCM 336.4 MCM 397.5 MCM 500 MCM 715.5 MCM 350 MCM 477 MCM 7 4 3/4 2 11/16 1/2 AC606 ACA606 3 397.5 MCM 605 MCM 397.5 MCM 605 MCM 500 MCM 715.5 MCM 500 MCM 715.5 MCM 7 1/2 4 3/4 2 11/16 1/2 AC607 ACA607 3 605 MCM 900 MCM 336.4 MCM 397.5 MCM 715.5 MCM 1033.5 MCM 350 MCM 477 MCM 7 1/2 4 7/8 2 15/16 1/2 AC608 ACA608 3 605 MCM 900 MCM 397.5 MCM 605 MCM 715.5 MCM 1033.5 MCM 500 MCM 715.5 MCM 7 1/2 4 7/8 2 15/16 1/2 AC609 ACA609 3 605 MCM 900 MCM 605 MCM 900 MCM 715.5 MCM 1033.5 MCM 715.5 MCM 1033.5 MCM 7 1/2 4 7/8 2 15/16 1/2 AC610 ACA610 3 954 MCM 1192.5 MCM 336.4 MCM 397.5 MCM 1000 MCM 1351.5 MCM 350 MCM 477 MCM 10 5 1/4 3 7/16 5/8 AC611 ACA611 3 954 MCM 1192.5 MCM 397.5 MCM 605 MCM 1000 MCM 1351.5 MCM 500 MCM 715.5 MCM 10 5 1/4 3 7/16 5/8 AC612 ACA612 3 954 MCM 1192.5 MCM 605 MCM 900 MCM 1000 MCM 1351.5 MCM 715.5 MCM 1033.5 MCM 10 5 3/4 3 7/16 5/8 AC613 ACA613 3 954 MCM 1192.5 MCM 954 MCM 1192.5 MCM 1000 MCM 1351.5 MCM 1000 MCM 1351.5 MCM 10 5 3/4 3 7/16 5/8 AC614 ACA614 3 1272 MCM 1590 MCM 336.4 MCM 397.5 MCM 1431 MCM 1750 MCM 350 MCM 477 MCM 10 5 3/8 3 5/8 5/8 AC615 ACA615 3 1272 MCM 1590 MCM 397.5 MCM 605 MCM 1431 MCM 1750 MCM 500 MCM 715.5 MCM 10 5 5/8 3 5/8 5/8 AC616 ACA616 3 1272 MCM 1590 MCM 605 MCM 900 MCM 1431 MCM 1750 MCM 715.5 MCM 1033.5 MCM 10 5 3/4 3 5/8 5/8 AC617 ACA617 3 1272 MCM 1590 MCM 954 MCM 1192.5 MCM 1431 MCM 1750 MCM 1000 MCM 1351.5 MCM 10 6 3 5/8 5/8 AC618 ACA618 3 1272 MCM 1590 MCM 1272 MCM 1590 MCM 1431 MCM 1750 MCM 1431 MCM 1750 MCM 10 6 3 5/8 5/8 www.AFLglobal.com or 800-890-8878 310 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00207, Revision 1, 6.24.14 Specifications are subject to change without notice. 230 kV Aluminum Bolted Parallel Clamps TYPE AC100-AA Parallel Connector Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE RUN TAP ACC ACSR ACC ACSR B H L AC100 ACA100 #8 SOL 1/0 STR #8STR 1/0 ACSR #8 SOL 1 STR #8STR #2 ACSR 1 1/8 1 15/16 1 3/8 5/16 AC101 ACA101 #8 SOL 1/0 STR #8STR 1/0 ACSR #8 SOL 1/0 STR #8STR 1/0 ACSR 1 3/8 2 1 3/4 3/8 AC102 ACA102 #4 SOL 4/0 STR #4STR 4/0 ACSR #4 SOL 4/0 STR #4STR 4/0 ACSR 2 2 5/8 2 1/8 1/2 AC103 ACA103 #4 SOL 350 MCM #4STR 336.4 MCM ACSR #8 SOL 2/0 STR #8STR 2/0 ACSR 1 13/16 2 1/4 2 1/16 3/8 AC122 ACA122 #2 SOL 500 MCM #2STR 397.5 MCM ACSR #6 SOL 3/0 STR #6STR 3/0 ACSR 2 1/4 2 3/4 2 3/8 1/2 AC124 ACA124 1/0 STR 1033.5 MCM 1/0 STR 954 MCM ACSR #2 SOL 4/0 STR #4STR 4/0 ACSR 2 9/16 2 3/8 3 5/8 B H BOLT RETAINER L Single bolt type parrallel connector for joining two cables. Bolt retainer built into casting for one wrench installation. Material Aluminum Alloy Hardware ACA100 Series: Aluminum bolts, lockwashers and nuts AC100 series: Galvanized steel bolts, lockwashers and nuts Notes 1. For Stainless Belleville washers and add "-BW" to catalog number. EX: AC102-BW 2. For Electro Tin plate add "-SN" to catalog number. EX: ACA103-SN 3. For ALNOX prefilled connector add "-LP" to catalog number. EX: AC103-LP 311 230 kV – Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00392, Revision 1, 11.1.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Bolted Parallel Clamps TYPE PC-AA Connector For Two Cables In Parallel A clamp type connector for connecting two cable or wire conductors in parallel. Any combination accommodating unequal size cables is avaliable. Ordering Information CATALOG NUMBER CONDUCTOR RANGE DIMENSIONS IN INCHES BOLT SIZE ACSR ALUM. OR CU. MIN MAX MIN MAX H L W PC10-10-AA 1(6/1) 80(8/1) 2/0 SOL 1/0 STR 1 3/4 3 1 17/32 1/2 PC13-13-AA 1/0(6/1) 3/0 SOL 2/0 STR 1 3/4 3 1 5/8 1/2 PC17-17-AA 2/0 110.8(12/7) 4/0 SOL 3/0 STR 2 4 1 27/32 1/2 PC21-21-AA 3/0 134.6(12/7) 4/0 STR 2 4 2 1/32 1/2 PC25-25-AA 4/0 203(8/7) 250 MCM 266.8 MCM 2 1/4 4 2 1/16 1/2 PC30-30-AA 176.9(12/7) 266.8(26/7) 300 MCM 2 1/4 4 1/2 2 9/32 1/2 PC35-35-AA 211.3(12/7) 336.4(18/1) 336.4 MCM 350 MCM 2 1/4 4 1/2 2 3/8 1/2 PC40-40-AA 203.2(16/19) 397.5(18/1) 394.5 MCM 400 MCM 2 1/2 5 2 1/2 1/2 PC50-50-AA 397.5(26/7) 477(18/1) 450 MCM 500 MCM 2 1/2 5 2 5/8 1/2 PC60-60-AA 477(24/7) 477(30/7) 550 MCM 600 MCM 2 1/2 5 2 27/32 1/2 PC65-65-AA 500(30/7) 636(36/1) 636 MCM 650 MCM 2 1/2 5 3 1/2 PC75-75-AA 605(26/7) 666.6(24/7) 700 MCM 750 MCM 2 1/2 5 1/4 3 1/16 1/2 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts and lockwashers. Notes 1. To order an unequal size cable clamp create a catalog number. EX: for a 636 MCM run and 300 MCM tap, order: PC65-30-AA. 2. For Galvanized steel hardware, add suffix "-GS" to catalog number order: PC65-30-AA-GS. 3. For Grade Five Galvanized Steel Hardware, add "-GS5" to catalog number. EX: PC25-25-AA-GS5 H W L continued © 2011, AFL, all rights reserved. PP-3-00392, Revision 1, 11.1.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 312 230 kV Aluminum Bolted Parallel Clamps 230 kV – Bolted Parallel Clamps TYPE PC-AA Connector For Two Cables In Parallel Ordering Information (cont.) CATALOG NUMBER CONDUCTOR RANGE DIMENSIONS IN INCHES BOLT SIZE ACSR ALUM. OR CU. MIN MAX MIN MAX H L W PC80-10-AA 1(6/1) 800 MCM 2/0 SOL 800 MCM 3 1/16 5 1/4 2 9/16 1/2 PC80-13-AA 1/0(6/1) 795(36/1) 3/0 SOL 800 MCM 3 1/16 5 1/4 2 9/16 1/2 PC80-80-AA 715.5(24/7,26/7) 795(36/1) 795 MCM 800 MCM 2 1/2 5 1/4 3 1/8 1/2 PC103-103-AA 795(24/7) 954(54/7) 900 MCM 1033.5 MCM 2 3/4 5 1/2 3 3/8 1/2 PC127-127-AA 1033.5(36/1) 1113(54/19) 1100 MCM 1272 MCM 3 5 1/2 3 5/8 1/2 PC150-150-AA 1192.5(45/7) 1351.5(54/19) 1300 MCM 1500 MCM 3 1/2 6 4 1/8 5/8 PC175-127-AA Large Groove 1431(45/7) 1590(54/19) 1590 MCM 1750 MCM 3 7/8 6 4 3/8 1/2 Small Groove 1033.5(36/1) 1113(54/19) 1100 MCM 1272 MCM PC175-175-AA 1431(45/7) 1590(54/19) 1590 MCM 1750 MCM 3 1/2 6 4 1/2 5/8 PC200-200-AA 1590(54/19) 1780(54/19) 1800 MCM 2000 MCM 3 1/2 6 4 1/2 5/8 PC250-250-AA 2156 2312 2250 MCM 2500 MCM 4 1/4 7 3/4 5 1/4 5/8 PC350-350-AA – – 3000 MCM 3500 MCM 3 1/2 6 5 5/8 312 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00484, Revision 0, 1.08.11 Specifications are subject to change without notice. 230 kV Aluminum Bolted Parallel Clamps www.AFLglobal.com or 800-890-8878 TYPE TRV-AA Parallel Connector Connects a cable main parallel to a cable tap, features clamping members made of aluminum. The bolts, nuts and lockwashers are stainless steel to enhance clamping efficiency and resistance to corrosion. The assembly is encased in a plastic cover. Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE RUN TAP MIN MAX MIN MAX B C H J L N TRV10-10-AA #8 # 1/0 #8 # 1/0 1.500 2 11/32 1.370 1 25/32 1.620 2 5/8 5/16 TRV10-35-AA #8 # 1/0 # 3/0 350 2.090 2 15/16 1.900 2 7/32 2.120 3 1/8 3/8 TRV17-10-AA #4 # 3/0 #8 # 1/0 1.700 2 19/32 1.610 2 1/32 2.120 3 1/8 3/8 TRV17-17-AA #4 # 3/0 #4 # 3/0 1.750 2 19/32 1.610 2 1/32 2.120 3 1/8 3/8 TRV35-10-AA # 3/0 350 #8 # 1/0 2.090 2 15/16 1.900 2 7/32 2.120 3 1/8 3/8 TRV35-35-AA # 3/0 350 # 3/0 350 2.310 3 5/32 1.910 2 1/4 2.120 3 1/8 3/8 Material Aluminum Alloy Hardware Stainless Steel bolts, Belleville spring washers, and Neoprene bolt retainers. Cover Black Polyethylene Note For conductor grooves coated with Alnox, order by adding prefix -LP. EX: TRV10-10-AA-LP B A A H C J L N 313 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00457, Revision 1, 3.1.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Parallel Clamps Distribution Parallel Groove Clamps (Series 390 and 490) Catalog 390 and Catalog 490 Series Distribution Parallel Groove Clamps with a single bolt accomodate a range of conductors in each groove. This type of clamp is commonly used for service drop connections and as a tap from large to relatively small conductors. Ordering Information CATALOG NUMBER GROOVE SIZE BOLT SIZE (IN) TORQUE (FT-LBS) NOMINAL WEIGHT (LBS) RUN 1 TAP 2 490.0 0 0 5/16" 10 0.060 395.5 5 5 3/8" 15 0.092 396.6 6 6 3/8" 15 0.129 397.5 7 5 7/16" 20 0.179 392.6 2 6 1/2" 25 0.316 393.6 3 6 5/8" 40 0.642 Material Aluminum Alloy Hardware Blue anodized bolt. Notes 1. To order Parallel Groove Clamps prefilled with Alnox Compound, add P or W suffix to part number. See ordering information below. 2. The use of Alnox Compound liberally in grooves and on wire is recommended. Be sure conductors are clean. All conductors (new and old) should be thoroughly cleaned with a scratch brush or emery cloth. 3. Extensive field experience and exposure tests show that if a suitable type joint compound is liberally applied over and around the contact area, copper-to-aluminum electric connections can be made satisfactorily with aluminum clamps without copper bushings. Alnox Compound is recommended. Standard groove numbers are used for the complete range of clamps and connectors. These numbers are incorporated into the AFL part number itself. GROOVE SIZE GROOVE SIZE CONDUCTOR SIZE DIMENSIONS IN INCHES ACSR STRANDED ALUMINUM MIN MAX MIN MAX MIN MAX 0 0.128 0.325 6 6/1 2 7/1 8 & 8W 2 5 0.128 0.398 6 6/1 1/0 8 & 8W 1/0 6 0.162 0.464 6 6/1 2/0 6/1 6 3/0 1 0.292 0.502 2 6/1 3/0 2 3/0 7 0.368 0.593 1/0 4/0 1/0 266.8 MCM 2 0.464 0.743 3/0 397 18/1 3/0 400 MCM 3 0.743 1.152 397 18/1 795 26/7 450 MCM 1,000 MCM 4 1.060 1.545 795 45/7 1590 54/19 874.5 MCM 1,750 MCM Notes 1. NEMA standard abbreviations for aluminum or copper: W = solid conductor, ACSR = aluminum conductor/steel reinforced 314 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00457, Revision 1, 3.1.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Parallel Clamps www.AFLglobal.com or 800-890-8878 Center Bolt Clamps Series 480 Catalog 480 Series Center Bolt Clamps are a multiple bolt heavy duty universal groove design which can handle the full electrical load of the conductor. They offer the convenience of installation without any loose parts. Catalog 480 Clamps are made from extruded high strength aluminum alloy and can be taped easily. Additionally, they have a minimum bulk, which results in a neat appearance. Ordering Information CATALOG NUMBER GROOVE SIZE NUMBER OF BOLTS BOLT SIZE (IN) TORQUE (FT-LBS) NOMINAL WEIGHT (LBS) RUN 1 TAP 2 486.6 6 6 2 3/8" 15 0.2 481.0 1 0 2 3/8" 15 0.3 481.1 1 1 2 3/8" 15 0.3 482.1 2 1 2 1/2" 25 0.6 482.2 2 2 3 1/2" 25 1.1 483.2 3 2 2 5/8" 40 1.8 483.3 3 3 3 5/8" 40 2.8 Standard groove numbers are used for the complete range of clamps and connectors. These numbers are incorporated into the AFL part number itself. GROOVE SIZE GROOVE SIZE CONDUCTOR SIZE DIMENSIONS IN INCHES ACSR STRANDED ALUMINUM MIN MAX MIN MAX MIN MAX 0 0.128 0.325 6 6/1 2 7/1 8 & 8W 2 5 0.128 0.398 6 6/1 1/0 8 & 8W 1/0 6 0.162 0.464 6 6/1 2/0 6/1 6 3/0 1 0.292 0.502 2 6/1 3/0 2 3/0 7 0.368 0.593 1/0 4/0 1/0 266.8 MCM 2 0.464 0.743 3/0 397 18/1 3/0 400 MCM 3 0.743 1.152 397 18/1 795 26/7 450 MCM 1,000 MCM 4 1.060 1.545 795 45/7 1590 54/19 874.5 MCM 1,750 MCM Notes 1. NEMA standard abbreviations for aluminum or copper: W = solid conductor, ACSR = aluminum conductor/steel reinforced Material Aluminum Alloy Hardware Blue anodized bolt. Notes 1. To order Parallel Groove Clamps prefilled with Alnox Compound, add P or W suffix to part number. See ordering information below. 2. The use of Alnox Compound liberally in grooves and on wire is recommended. Be sure conductors are clean. All conductors (new and old) should be thoroughly cleaned with a scratch brush or emery cloth. 3. Extensive field experience and exposure tests show that if a suitable type joint compound is liberally applied over and around the contact area, copper-to-aluminum electric connections can be made satisfactorily with aluminum clamps without copper bushings. Alnox Compound is recommended. 315 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00457, Revision 1, 3.1.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Parallel Clamps U-Bolt Clamps Series 580 Catalog 580 Series U-Bolt Clamps are heavy duty, high efficiency connectors with AFL full-capacity grooves. The U-Bolts are high strength aluminum alloy for excellent thermal expansion and corrosion resistance characteristics. Material Aluminum Alloy Hardware Yellow anodized aluminum U-bolts, nuts and lockwashers. Notes 1. To order Parallel Groove Clamps prefilled with Alnox Compound, add P or W suffix to part number. See ordering information below. 2. The use of Alnox Compound liberally in grooves and on wire is recommended. Be sure conductors are clean. All conductors (new and old) should be thoroughly cleaned with a scratch brush or emery cloth. 3. Extensive field experience and exposure tests show that if a suitable type joint compound is liberally applied over and around the contact area, copper-to-aluminum electric connections can be made satisfactorily with aluminum clamps without copper bushings. Alnox Compound is recommended. Ordering Information CATALOG NUMBER GROOVE SIZE NUMBER OF BOLTS BOLT SIZE (IN) TORQUE (FT-LBS) NOMINAL WEIGHT (LBS) RUN 1 TAP 2 581.1 1 1 1 3/8" 15 0.3 582.1 2 1 1 1/2" 25 0.6 582.2 2 2 2 1/2" 25 1.3 583.1 3 1 1 5/8" 40 1.1 583.2 3 2 2 5/8" 40 2.6 583.3 3 3 3 5/8" 40 3.9 584.1 4 1 1 5/8" 40 1.7 584.2 4 2 2 5/8" 40 3.6 584.3 4 3 3 5/8" 40 5.8 584.4 4 4 3 5/8" 40 6.0 Standard groove numbers are used for the complete range of clamps and connectors. These numbers are incorporated into the AFL part number itself. GROOVE SIZE GROOVE SIZE CONDUCTOR SIZE DIMENSIONS IN INCHES ACSR STRANDED ALUMINUM MIN MAX MIN MAX MIN MAX 0 0.128 0.325 6 6/1 2 7/1 8 & 8W 2 5 0.128 0.398 6 6/1 1/0 8 & 8W 1/0 6 0.162 0.464 6 6/1 2/0 6/1 6 3/0 1 0.292 0.502 2 6/1 3/0 2 3/0 7 0.368 0.593 1/0 4/0 1/0 266.8 MCM 2 0.464 0.743 3/0 397 18/1 3/0 400 MCM 3 0.743 1.152 397 18/1 795 26/7 450 MCM 1,000 MCM 4 1.060 1.545 795 45/7 1590 54/19 874.5 MCM 1,750 MCM Notes 1. NEMA standard abbreviations for aluminum or copper: W = solid conductor, ACSR = aluminum conductor/steel reinforced 316 230 kV Aluminum Bolted Parallel Clamps © 2011, AFL, all rights reserved. PP-3-00491, Revision 0, 1.12.11 Specifications are subject to change without notice. 230 kV Aluminum Bolted Parallel Clamps www.AFLglobal.com or 800-890-8878 TYPE UD-AA Universal Parallel Clamp A universal clamp to provide a connection for two cables or wires over a wide range of sizes. Ordering Information CATALOG NUMBER CONDUCTOR RANGE AAC FIGURE NUMBER DIMENSIONS IN INCHES H L BOLT SIZE MIN MAX UD10-2-AA #6 SOL. 1/0 STR. 1 1 3/4 2 3/8 UD21-4-AA #4 SOL. 4/0 STR. 2 2 2 1/4 3/8 UD30-6-AA #2 SOL. 300 MCM 2 2 1/4 2 1/2 3/8 UD50-21-AA 4/0 STR. 500 MCM 3 2 3/4 4 3/8 1/2 UD80-30-AA 300 MCM 800 MCM 3 3 1/4 4 1/2 1/2 UD100-50-AA 500 MCM 1000 MCM 3 3 1/2 4 5/8 1/2 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts and lockwashers. Notes Voltage rating is 230 kV For tin plating add "-SN" to end of catalog number. EX: UD50-21-AA-SN Add suffix "GS" for galvanized steel hardware. EX: UD50-21-AA-GS L L L H FIG. 1 FIG. 2 FIG. 3
