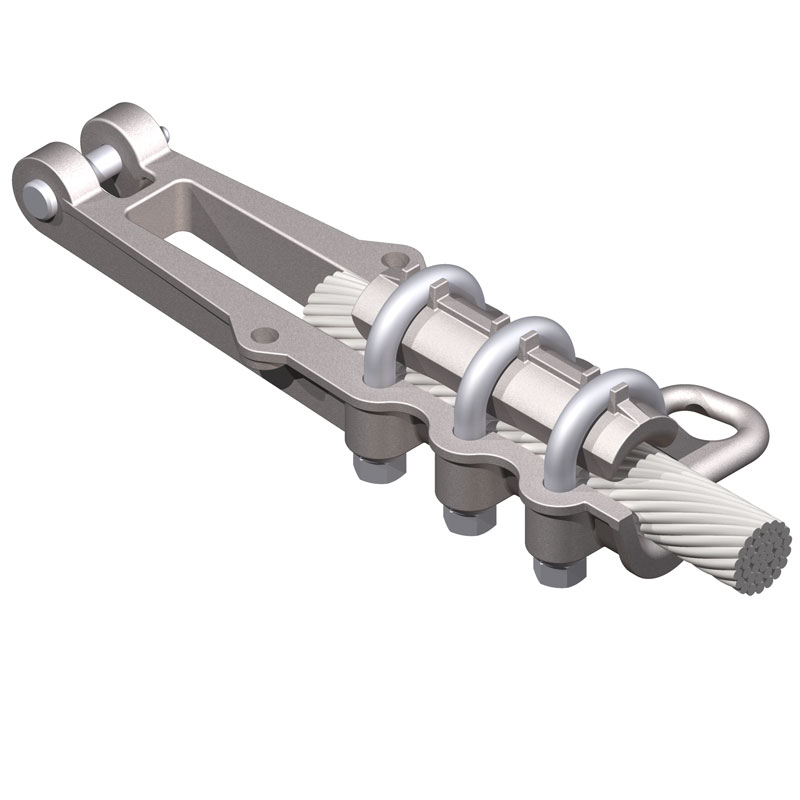

Dead ending strain clamp for stranded cable. U-bolts, with wave depressions in the body under each bolt, provide a snubbing action on the cable which results in high pull-out strength.
ab1cb471c90847f3b11358cd68bb682e
292 230 kV Aluminum Dead End Clamps © 2011, AFL, all rights reserved. PP-3-00455, Revision 3, 3.28.14 Specifications are subject to change without notice. 230 kV Aluminum Dead End Clamps www.AFLglobal.com or 800-890-8878 TYPE SEC-A-2U-AA Straight Dead End Clamp with Pulling Eye Ordering Information CATALOG NUMBER CABLE RANGE AAC CABLE RANGE ACSR DIAMETER DIMENSIONS IN INCHES BOLT SIZE MIN MAX MIN MAX MIN MAX K L S SEC13A-2U 6 STR 2/0 STR 6 2/0 .184 .460 7/8 8 5/16 11/16 3/8 SEC26A-2U 2 STR 266.8 MCM 4 266.8 MCM .247 .642 7/8 9 5/8 11/16 1/2 SEC34A-2U 3/0 350 MCM 3/0 336.4 MCM .464 .741 7/8 9 3/4 13/16 1/2 SEC48A-2U 4/0 556.5 MCM 3/0 477 MCM .522 .858 7/8 9 3/4 13/16 1/2 SEC64A-2U 300 MCM 795 MCM 266.8 MCM 666 MCM .626 1.026 15/16 11 1 1/16 1/2 SEC111A-2U 600 MCM 1272 MCM 556.5 MCM 1113 MCM .879 1.300 15/16 12 5/8 1 1/16 1/2 SEC159A-2U 750 MCM 1800 MCM 715.5 MCM 1590 MCM .987 1.548 15/16 14 7/8 1 1/16 5/8 Material Aluminum Alloy Hardware Galvanized steel bolts, nuts, and lockwashers. L COTTER BOLT GALV. STEEL S 5/8 K ∅ 3/4
Features:
- Aluminum alloy
- High pull-out strength
- Meets NEMA CC1 standards
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
Dead ending strain clamp for stranded cable. U-bolts, with wave depressions in the body under each bolt, provide a snubbing action on the cable which results in high pull-out strength.
