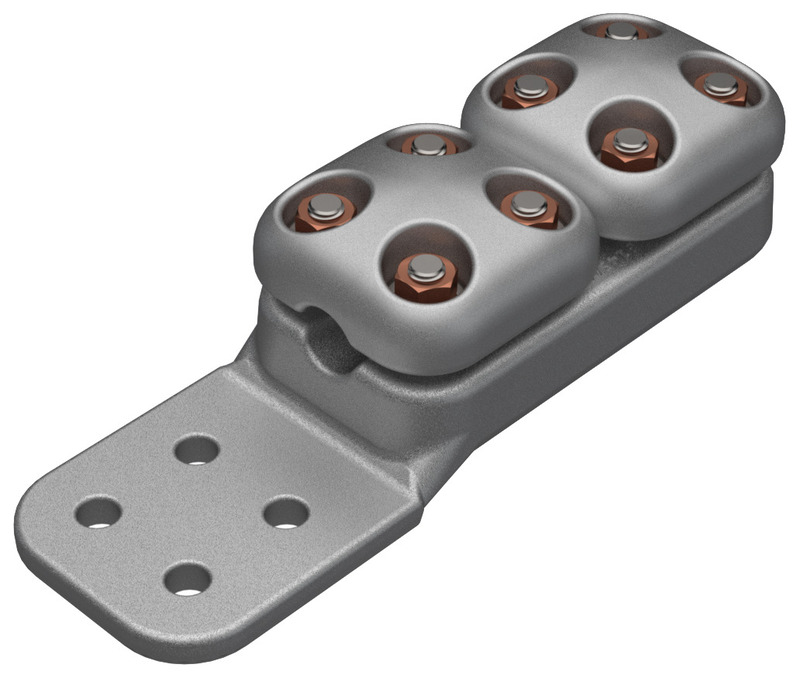

1 AFLglobal.com 1 (800) 890-8878 © 2025, AFL, all rights reserved. P P -3-00901, R evision 0, 3.28.2025 S pecications are subject to change without notice. 1 345/500 kV Aluminum Bolted Material Aluminum Alloy Hardware Stainless steel bolts, washers and Everdur nuts Notes • Suitable for applications up to 250°C • For Finished Surface on both sides of Pad, add "F" to catalog number. Example: TCL-79-4N4F-V-AA-HT • For Hardware Shield, add "-CSBV" to catalog number. Example: TCL79-4N4-V-AA-HT-CSBV TCL-N-V-AA-HT Bolted Terminal Connector – High Temperature TCL-N-A-AA-HT Bolted tap is designed to be corona free for 345 kV and 500 kV operation when pad covers are used to shield terminal hardware. Ordering Information Catalog Number Cable Range Dimensions (inches) MIN MAX ACSS Diameter A B C D L T TCL79-4N4-V-AA-HT 700 MCM 795 MCM 555.6 (30/7), 605 (24/7, 26/7, 30/7, 30/19), 636 (18/1, 36/1, 24/7, 26/7, 30/7, 30/19), 666.6 (24/7, 26/7) 0.940-1.026 3.41 3.88 4.00 1.97 12.53 0.50 TCL95-4N4-V-AA-HT 800 MCM 954 MCM 715.5 (24/7, 26/7, 30/19), 795 (36/1, 26/7, 45/7, 54/7, 30/19), 900 (45/7) 1.032-1.140 3.52 3.88 4.00 2.08 12.53 0.50 TCL103-4N4-V-AA-HT 1000 MCM 1033.5 MCM 900 (54/7), 954 (45/7, 54/7) 1.172-1.196 3.63 3.88 4.00 2.19 12.58 0.50 TCL127-4N4-V-AA-HT 1113 MCM 1272 MCM 1033.5 (45/7, 54/7), 1113 (45/7, 54/19) 1.216-1.300 3.81 4.50 4.50 2.25 13.66 0.50 TCL140-4N4-V-AA-HT 1300 MCM 1400 MCM 1192.5 (45/7, 54/19), 1272 (45/7,54/19) 1.315-1.385 3.81 4.50 4.50 2.25 13.67 0.50 Side View Front View AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. A T L D ∅ 0.56 (4X) 4.00 1.75 1.13 1.13 1.75 B C
