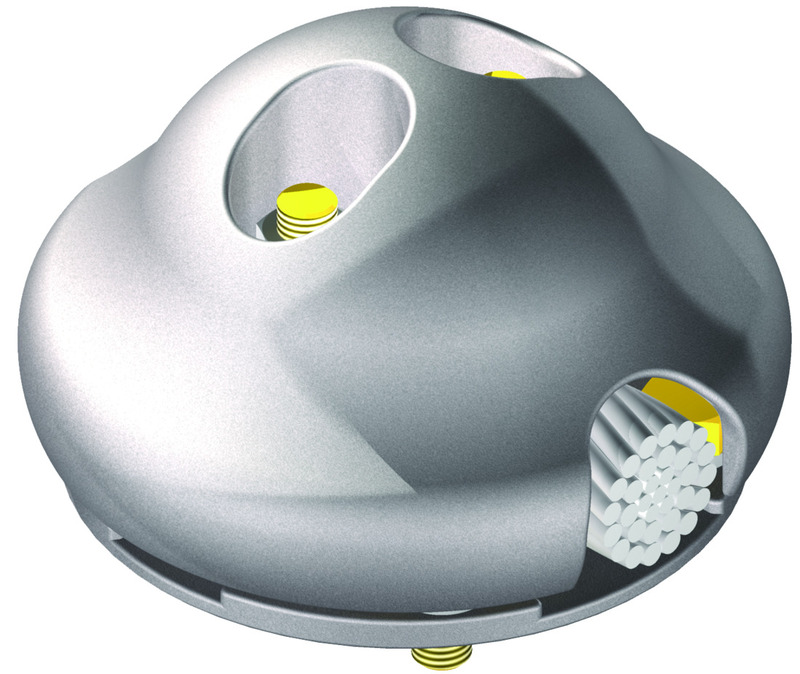

1 AFLglobal.com 1 ( 800) 890-8878 © 2025, AFL, all rights reserved. P P -3-00905, R evision 0, 7.25.2025 S pecications are subject to change without notice. 1 345/500 kV Aluminum Single conductor strain bus support is designed to be corona free for 345 kV service. Support is designed with universal groove to accept conductors with diameter from 1.545" to 2.158". TYPE 33800 EHV – High Temperature Cable Support Ordering Information Catalog Number Conductor Diameter Range Dimensions in inches Nominal Weight lbs A 5" Bolt Circle 33805-5 EHV 1.545 - 2.158 7.25 4.5 7" Bolt Circle 33805-7 EHV 1.545 - 2.158 9.5 6.6 3 ∅ A 0.44 6.16 MAX. Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. Notes 1. For use at high temperatures up to 250ºC, add "-HT" to catalog number. Example: 33805-5 EHV-HT AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
