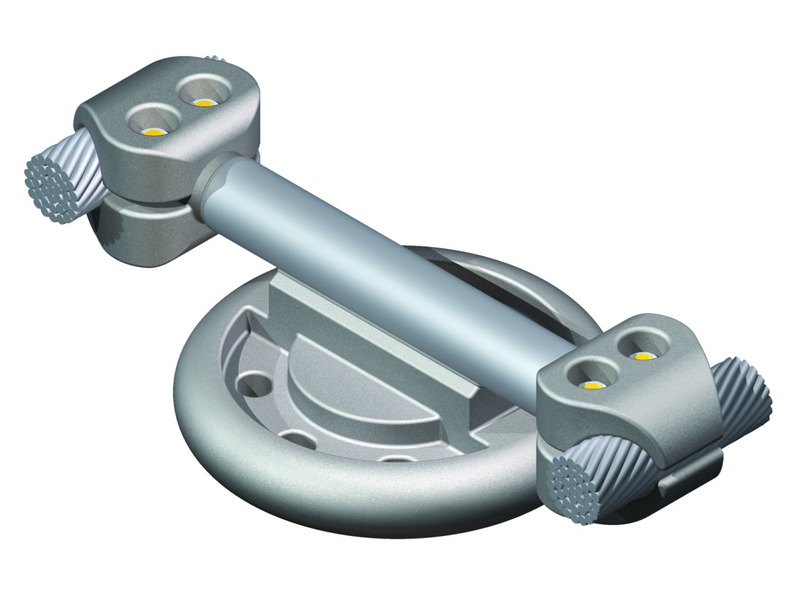

1 AFLglobal.com 1 (800) 890-8878 © 2025, AFL, all rights reserved. PP-3-00904, Revision 1, 9.8.2025 Specications are subject to change without notice. 1 345/500 kV Aluminum TYPE C2SWB-V-AA-HT Cable Support Clamp – High Temperature Two-conductor strain bus support is designed to be corona free for 500 kV service. Material Aluminum Alloy Hardware Aluminum bolts, lockwashers and nuts. Mounting Hardware Galvanized steel bolts and lockwashers. Notes 1. Suitable for applications up to 250°C. 2. For Stainless Steel Hardware, add "-SS" to catalog number. Example: C2SWB360-8-2-V-AA-HT-SS 3. For Stainless Steel Bolts, Lockwashers and Everdur nuts, add "-SSHBN" to catalog number. Example: C2SWB250-8-5-V-AA-HT-SSHBN B FACTORY WELD WEEP CIRCLE BOLT CIRCLE L S 1/2 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. 2 AFLglobal.com 1 (800) 890-8878 © 2025, AFL, all rights reserved. PP-3-00904, Revision 1, 9.8.2025 Specications are subject to change without notice. 345/500 kV Aluminum 2 TYPE C2SWB-V-AA-HT Cable Support Clamp – High Temperature Ordering Information Catalog Number Cable Range Bolt Circle Dimensions in Inches Aluminum ACSR Min Max B S L C2SWB79-12-5-V-AA-HT 750MCM 795MCM 636 (18/1) (24/7) (26/7) 5 2 11/16 12 C2SWB79-18-5-V-AA-HT 750MCM 795MCM 636 (18/1) (24/7) (26/7) 5 2 11/16 18 C2SWB95-8-5-V-AA-HT 800MCM 954MCM 795 (45/7) (24/7) (26/7) 5 2 11/16 8 C2SWB95-10-5-V-AA-HT 800MCM 954MCM 795 (45/7) (24/7) (26/7) 5 2 11/16 10 C2SWB95-12-5-V-AA-HT 800MCM 954MCM 795 (45/7) (24/7) (26/7) 5 2 11/16 12 C2SWB95-18-5-V-AA-HT 800MCM 954MCM 795 (45/7) (24/7) (26/7) 5 2 11/16 18 C2SWB95-18-7-V-AA-HT 800MCM 954MCM 795 (45/7) (24/7) (26/7) 7 2 13/16 18 C2SWB103-6-5-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 5 2 11/16 6 C2SWB103-6-7-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 7 2 13/16 6 C2SWB103-12-5-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 5 2 11/16 12 C2SWB103-12-7-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 7 2 13/16 12 C2SWB103-18-5-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 5 2 11/16 18 C2SWB103-18-7-V-AA-HT 1000MCM 1033.5MCM 954 (45/7) (54/7) 7 2 13/16 18 C2SWB127-12-5-V-AA-HT 1113MCM 1272MCM 1033(54/7), 1113 (45/7) (54/19) 5 4 1/2 11/16 12 C2SWB127-12-7-V-AA-HT 1113MCM 1272MCM 1033(54/7), 1113 (45/7) (54/19) 7 4 1/2 13/16 12 C2SWB127-18-5-V-AA-HT 1113MCM 1272MCM 1033(54/7), 1113 (45/7) (54/19) 5 4 1/2 11/16 18 C2SWB127-18-7-V-AA-HT 1113MCM 1272MCM 1033(54/7), 1113 (45/7) (54/19) 7 4 1/2 13/16 18 C2SWB143-12-5-V-AA-HT 1300MCM 1431MCM 1272 (45/7) (54/19) 5 4 1/2 11/16 12 C2SWB143-18-5-V-AA-HT 1300MCM 1431MCM 1272 (45/7) (54/19) 5 4 1/2 11/16 18 C2SWB143-18-7-V-AA-HT 1300MCM 1431MCM 1272 (45/7) (54/19) 7 4 1/2 13/16 18 C2SWB160-6-5-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 5 4 1/2 11/16 6 C2SWB160-6-7-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 7 4 1/2 11/16 6 C2SWB160-12-5-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 5 4 1/2 11/16 12 C2SWB160-12-7-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 7 4 1/2 11/16 12 C2SWB160-18-5-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 5 4 1/2 11/16 18 C2SWB160-18-7-V-AA-HT 1500MCM 1600MCM 1272 ROPE L. 1431 (45/7) (54/19) 7 4 1/2 13/16 18 C2SWB180-8-5-V-AA-HT 1700MCM 1800MCM 1590 (45/7) (54/19) 5 4 1/2 11/16 8 C2SWB180-12-5-V-AA-HT 1700MCM 1800MCM 1590 (45/7) (54/19) 5 4 1/2 11/16 12 C2SWB180-18-5-V-AA-HT 1700MCM 1800MCM 1590 (45/7) (54/19) 5 4 1/2 11/16 18 C2SWB180-18-7-V-AA-HT 1700MCM 1800MCM 1590 (45/7) (54/19) 7 4 1/2 13/16 18 C2SWB205-6-5-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 5 4 1/2 11/16 6 C2SWB205-12-5-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 5 4 1/2 11/16 12 C2SWB205-13-5-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 5 4 1/2 11/16 13 3 AFLglobal.com 1 (800) 890-8878 © 2025, AFL, all rights reserved. PP-3-00904, Revision 1, 9.8.2025 Specications are subject to change without notice. 3 345/500 kV Aluminum TYPE C2SWB-V-AA-HT Cable Support Clamp – High Temperature Ordering Information Catalog Number Cable Range Bolt Circle Dimensions in Inches Aluminum ACSR Min Max B S L C2SWB205-18-5-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 5 4 1/2 11/16 18 C2SWB205-18-7-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 7 4 1/2 13/16 18 C2SWB205-43-5-V-AA-HT 2000MCM 2049MCM 1780(84/19), 2034.5(72/7) 5 4 1/2 11/16 43 C2SWB240R-14-5-V-AA-HT — 2.40 O.D. — 5 4 1/2 11/16 14 C2SWB250-8-5-V-AA-HT 2250MCM 2500MCM 2156(84/19), 2300(96/19) 5 4 1/2 11/16 8 C2SWB250-12-5-V-AA-HT 2250MCM 2500MCM 2156(84/19), 2300(96/19) 5 4 1/2 11/16 12 C2SWB250-13-5-V-AA-HT 2250MCM 2500MCM 2156(84/19), 2300(96/19) 5 4 1/2 11/16 13 C2SWB250-14-7-V-AA-HT 2250 MCM 2500MCM 2156(84/19), 2300(96/19) 7 4 1/2 11/16 14 C2SWB250-18-5-V-AA-HT 2250MCM 2500MCM 2156(84/19), 2300(96/19) 5 4 1/2 11/16 18 C2SWB250-18-7-V-AA-HT 2250MCM 2500MCM 2156(84/19), 2300(96/19) 7 4 1/2 13/16 18 C2SWB275-18-5-V-AA-HT — 2750MCM 2515(76/19) 5 4 1/2 11/16 18 C2SWB275-18-7-V-AA-HT — 2750MCM 2515(76/19) 7 4 1/2 13/16 18 C2SWB300-12-7-V-AA-HT 2750MCM 3000MCM — 7 4 1/2 13/16 12 C2SWB350-6-5-V-AA-HT — 3500MCM — 5 5 1/2 11/16 6 C2SWB350-13-5-V-AA-HT — 3500 MCM — 5 5 1/2 11/16 13
