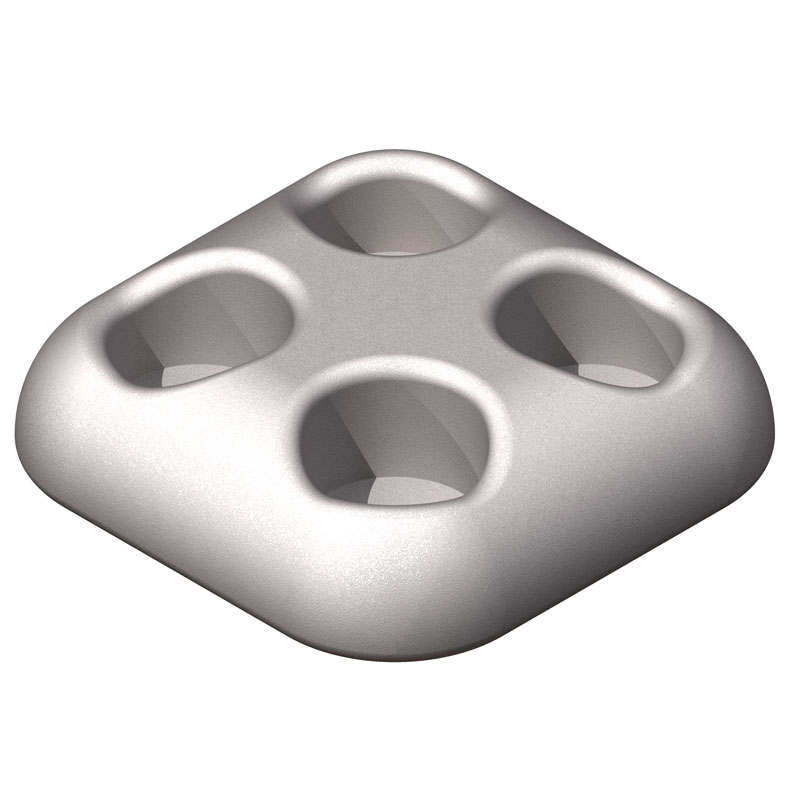

Hardware shields are designed to be corona free for 500 kV service.
d9129f85ff21470796d9cab7fa2ee741
www.AFLglobal.com or 800-890-8878 545 345/500 kV Hardware Shields © 2011, AFL, all rights reserved. Revision 1, 10.19.11 Specifications are subject to change without notice. 345/500 kV Hardware Shields TYPE CSBE-N-V-AA, 4040-EHV, 6040-EHV Ordering Information CATALOG NUMBER NUMBER OF HOLES DIMENSIONS IN INCHES A CSBE-4N4-V-AA 4 4 CSBE-6N4-V-AA 6 6 4040-EHV 4 - 6040-EHV 6 - CSBE-N-V-AA 4040-EHV 1 3 / 8 A 4 4040-EHV 1 1 / 8 1 / 4 ∅ 9 / 16 ∅ 9 / 16 1 1 / 8 1 1 / 4 1 / 4 1 3 / 4 1 3 / 4 4 4 1 3 / 4 1 3 / 4 6 1 3 / 4 6040-EHV ∅ 9 / 16 10 1 / 2 1 3 / 4 CSBE-4N4-V-AA 4 1 / 8 1 1 / 2 1 1 / 8 1 3 / 4 4 1 / 8 1 1 / 8 1 1 / 2 1 1 / 8 1 3 / 4 Designed to be corona free for 500 kV service. Material Aluminum Alloy 6040-EHV
Features:
- Aluminum alloy
- Pads conform to NEMA standards
Applications:
- Rated for 500 kV and below
- Substation
- Terminals
Hardware shields are designed to be corona free for 500 kV service. The shields are designed to for high voltage terminal accessories.
