A tee connector used to tap a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without drilling holes for clamping bolts. The wide variation of the HERCULON™ fitting enables one connector.
0404a973ff1249859851295871ad551c
127 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00366, Revision 0, 3.3.11 Specifications are subject to change without notice. Bronze Connectors for Flat Bar www.AFLglobal.com or 800-890-8878 TYPE HAF, H2AF, H3AF, H4AF Tee Connector For Tapping Flat Bar With Cable HAF connects one cable to flat bus bars, H2AF connects two cables to flat bus bars, H3AF connects three cables and H4AF connects four cables to flat bus bars. A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without the necessity for drilling holes for clamping bolts. The wide variation of the HERCULON ™ fitting enables one connector. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Note • Above 500 MCM connectors have thicker pads and are mounted outside buses. See catalog number for spacer information. Unless otherwise specified spacer will not be supplied with connectors. • For 4in wide bus bars and two 350kcmil cables order: H2AF35-4. • For 4in wide bus bars and three 350kcmil cables order: H3AF35-4. • For 4in wide bus bars and four 350kcmil cables order: H4AF35-4. HAF � B A HAF H2AF H3AF H4AF W E L 1/4 1/4
128 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00366, Revision 0, 3.3.11 Specifications are subject to change without notice. Bronze Connectors for Flat Bar www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER CABLE RANGE WIDTH OF BARS (W) DIMENSIONS IN INCHES BOLT SIZE MIN MAX A B E L HAF4-2 8 Solid 4 Solid 2 3 5/16 3 5/16 1 4 1/4 3/8 HAF8-2 4 Solid 1 Stranded 2 3 5/16 3 5/16 1 4 1/4 3/8 HAF13-2 1 Stranded 2/0 Stranded 2 3 5/16 3 5/16 1 4 3/8 3/8 HAF13-3 1 Stranded 2/0 Stranded 3 3 5/16 4 5/16 1 5 3/8 3/8 HAF21-2 2/0 Stranded 4/0 Stranded 2 3 5/16 3 5/16 1 4 7/16 3/8 HAF21-3 2/0 Stranded 4/0 Stranded 3 3 5/16 4 5/16 1 5 7/16 3/8 HAF30-2 4/0 Stranded 300 kcmil 2 3 5/16 3 5/16 2 4 5/8 3/8 HAF30-3 4/0 Stranded 300 kcmil 3 3 5/16 4 5/16 2 5 5/8 3/8 HAF35-2 250 kcmil 350 kcmil 2 3 5/16 3 5/16 2 4 5/8 3/8 HAF35-3 250 kcmil 350 kcmil 3 3 5/16 4 5/16 2 5 5/8 3/8 HAF35-4 250 kcmil 350 kcmil 2 3 5/16 5 5/16 2 6 5/8 3/8 HAF50-2 300 kcmil 500 kcmil 4 3 5/16 3 5/16 2 4 3/4 3/8 HAF50-3 300 kcmil 500 kcmil 3 3 5/16 4 5/16 2 5 3/4 3/8 HAF50-4 300 kcmil 500 kcmil 4 3 5/16 5 5/16 2 6 3/4 3/8 HAF75-2 500 kcmil 750 kcmil 2 3 5/16 3 5/16 2 4 7/8 3/8 HAF75-3 500 kcmil 750 kcmil 3 3 5/16 4 5/16 2 5 7/8 3/8 HAF75-4 500 kcmil 750 kcmil 4 3 5/16 5 5/16 2 7 1/4 3/8 HAF100-2 750 kcmil 1000 kcmil 2 3 5/16 3 5/16 2 5 5/16 3/8 HAF100-3 750 kcmil 1000 kcmil 3 4 5/16 4 5/16 3 6 5/16 3/8 HAF100-4 750 kcmil 1000 kcmil 4 4 3/4 5 3/4 3 7 11/16 1/2 HAF100-5 750 kcmil 1000 kcmil 5 4 3/4 6 3/4 3 8 11/16 1/2 TYPE HAF, H2AF, H3AF, H4AF Tee Connector For Tapping Flat Bar With Cable HAF connects one cable to flat bus bars, H2AF connects two cables to flat bus bars, H3AF connects three cables and H4AF connects four cables to flat bus bars.
www.AFLglobal.com or 800-890-8878 129 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00368, Revision 3, 5.24.18 Specifications are subject to change without notice. Bronze Connectors for Flat Bar TYPE HHF, H2HF, H3HF, H4HF Tee Connector For Tapping Flat Bar With Cable HHF connects one cable to flat bus bars, H2HF connects two cables to flat bus bars, H3HF connects three cables and H4HF connects four cables to flat bus bars. A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without the necessity for drilling holes for clamping bolts. The wide variation of the Herculon fitting enables one connector to accommodate a number of cable sizes. Connectors listed have 1/4 inch thick pads for 1/4 inch buses spaced 1/4 inch apart up to 600 MCM. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Notes • For 4 in. wide bus bars and two 350 kcmil cables, order: H2HF35-4. • For 4 in. wide bus bars and three 350 kcmil cables, order: H3HF35-4. • For 4 in. wide bus bars and four 350 kcmil cables, order: H4HF35-4. HHF B A HHF H2HF H3HF H4HF W E L 1/4 1/4
www.AFLglobal.com or 800-890-8878 130 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00368, Revision 3, 5.24.18 Specifications are subject to change without notice. Bronze Connectors for Flat Bar Ordering Information CATALOG NUMBER CABLE RANGE WIDTH OF BARS (W) CABLE RANGE (DIA.) DIMENSIONS IN INCHES BOLT SIZE MIN MAX FROM TO A B E L HHF4-2 8 Soild 4 Solid 2 0.128 0.204 3 5/16 3 5/16 1 4 1/4 3/8 HHF4-3 8 Soild 4 Solid 3 0.128 0.204 4 5/16 4 5/16 3 5 3/16 3/8 HHF8-2 4 Solid 1 Stranded 2 0.204 0.332 3 5/16 3 5/16 1 4 1/4 3/8 HHF13-2 1 Stranded 2/0 Stranded 2 0.332 0.419 3 5/16 3 5/16 1 4 3/8 3/8 HHF13-3 1 Stranded 2/0 Stranded 3 0.332 0.419 3 5/16 4 5/16 1 5 3/8 3/8 HHF21-2 2/0 Stranded 4/0 Stranded 2 0.419 0.528 3 5/16 3 5/16 1 4 7/16 3/8 HHF21-3 2/0 Stranded 4/0 Stranded 3 0.419 0.628 3 5/16 4 5/16 1 5 7/16 3/8 HHF30-2 4/0 Stranded 300 kcmil 2 0.528 0.628 3 5/16 3 5/16 2 4 5/8 3/8 HHF30-3 4/0 Stranded 300 kcmil 3 0.528 0.628 3 5/16 4 5/16 2 5 5/8 3/8 HHF35-2 250 kcmil 350 kcmil 2 0.575 0.681 3 5/16 3 5/16 2 4 5/8 3/8 HHF35-3 250 kcmil 350 kcmil 3 0.575 0.681 3 5/16 4 5/16 2 5 5/8 3/8 HHF35-4 250 kcmil 350 kcmil 4 0.575 0.681 3 5/16 5 5/16 2 6 5/8 1/2 HHF50-2 300 kcmil 500 kcmil 2 0.63 0.814 3 5/16 3 5/16 2 4 3/4 3/8 HHF50-3 300 kcmil 500 kcmil 3 0.63 0.814 3 5/16 4 5/16 2 5 3/4 3/8 HHF50-4 300 kcmil 500 kcmil 4 0.63 0.814 3 5/16 5 5/16 2 6 3/4 1/2 HHF50-5 300 kcmil 500 kcmil 5 0.63 0.814 3 3/4 6 3/4 2 8 1/8 1/2 HHF75-2 500 kcmil 750 kcmil 2 0.814 0.998 3 5/16 3 5/16 2 4 7/8 3/8 HHF75-3 500 kcmil 750 kcmil 3 0.814 0.998 3 5/16 4 5/16 2 5 7/8 3/8 HHF75-4 500 kcmil 750 kcmil 4 0.814 0.998 3 5/16 5 5/16 2 7 1/4 1/2 HHF100-2 750 kcmil 1000 kcmil 2 0.998 1.152 3 5/16 3 5/16 2 5 5/16 3/8 HHF100-3 750 kcmil 1000 kcmil 3 0.998 1.152 4 5/16 4 5/16 3 6 5/16 3/8 HHF100-4 750 kcmil 1000 kcmil 4 0.998 1.152 4 3/4 5 3/4 3 7 11/16 1/2 HHF100-5 750 kcmil 1000 kcmil 5 0.998 1.152 4 3/4 6 3/4 3 8 11/16 1/2 TYPE HHF, H2HF, H3HF, H4HF Tee Connector For Tapping Flat Bar With Cable HHF connects one cable to flat bus bars, H2HF connects two cables to flat bus bars, H3HF connects three cables and H4HF connects four cables to flat bus bars.
Features:
- Bronze alloy
- HERCULON™ fitting enables one connector
- Everdur hardware
Applications:
- Rated for 230 kV
- Substation
- Copper bus bar to copper cable
A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without drilling holes for clamping bolts. The wide variation of the HERCULON™ fitting enables one connector.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Tee Terminal Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
310

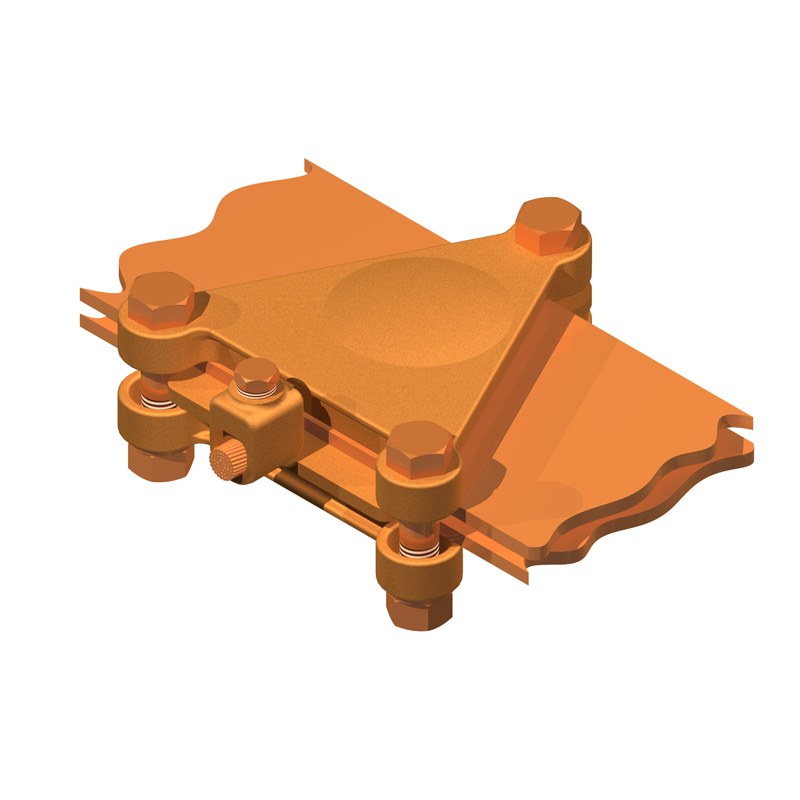

230 kV Bronze Bolted Bus Bar to Cable Tee Connector
Close
230 kV Bronze Bolted Bus Bar to Cable Tee Connector
Features:
- Bronze alloy
- HERCULON™ fitting enables one connector
- Everdur hardware
Applications:
- Rated for 230 kV
- Substation
- Copper bus bar to copper cable
PRODUCT DESCRIPTION
A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without drilling holes for clamping bolts. The wide variation of the HERCULON™ fitting enables one connector.
