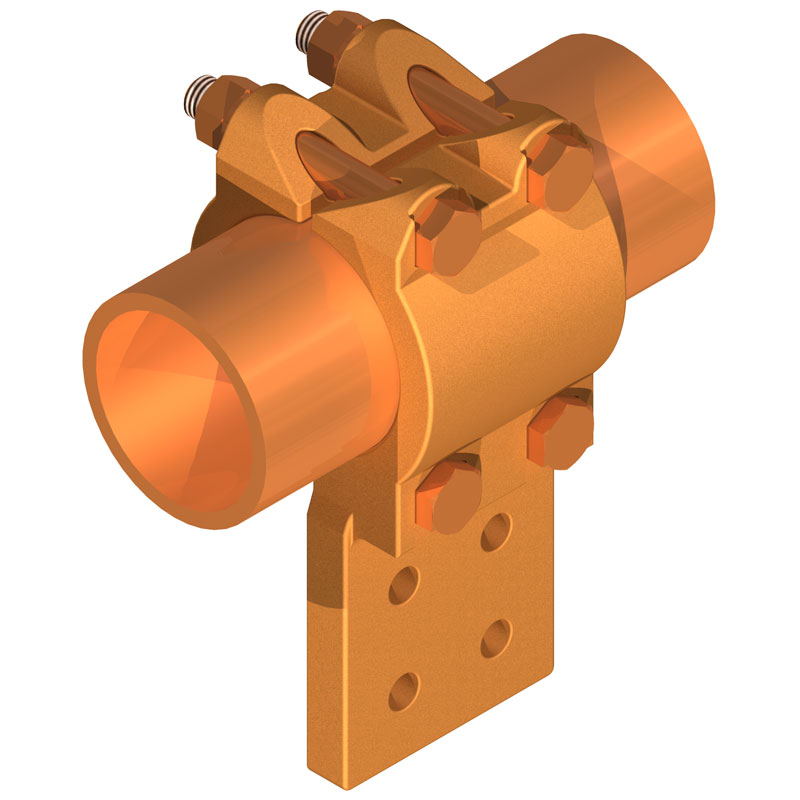

A bolted clamp type terminal used to connect standard pipe size tubular buses to flat surfaces.
0404a973ff1249859851295871ad551c
190 AFLglobal.com 1 (800) 890-8878 © 2 011, AFL, all rights reserved. PP-3-00394, Revision 6, 11.3.2025 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Bronze Terminals, Taps 190 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. Material Copper Alloy Hardware Everdur bolts, nuts, and lockwashers. Notes • For finish on both surfaces, add suffix "F" to end of catalog number. EX: PFTS100-1-2NF • For tin plating add suffix "-SN" to end of catalog number. EX: PFTS100-1-2N-SN A tee connector for joining a single bar tap conductor to a tubular bus run. Made of high conductivity cast copper alloy. FIG. 1 A Ø 0.56 A X B FIG. 2 C X 1.75 Ø 0.56 1.75 B C D T 1.75 Ø 0.56 C 1.75 1.25 X 1.75 1.75 A FIG. 3 TYPE PFTS Pipe To Flat Bar Tee Connector
191 AFLglobal.com 1 (800) 890-8878 © 2 011, AFL, all rights reserved. PP-3-00394, Revision 6, 11.3.2025 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . 191 Bronze Terminals, Taps Ordering Information Catalog Number SPS Fig. No. Dimensions in Inches Bolt Size A B C D T X PFTS75-1-2N 3/4 1 2.00 2.00 3.00 4.63 0.38 0.63 1/2 PFTS75-1-3N 3/4 2 3.00 2.00 3.00 4.50 0.31 0.63 3/8 PFTS100-1-2N 1 1 2.00 2.13 3.00 4.63 0.38 0.63 1/2 PFTS100-1-3N 1 2 3.00 2.13 3.00 4.81 0.38 0.63 1/2 PFTS100-1-4N 1 2 4.00 2.13 3.00 4.81 0.38 0.63 1/2 PFTS125-1-2N 1 1/4 1 2.00 2.50 3.00 4.94 0.50 0.63 1/2 PFTS125-1-4N 1 1/4 2 3.00 2.50 3.00 5.06 0.50 0.63 1/2 PFTS125-1-4N4 1 1/4 2 4.00 2.50 3.00 4.94 0.50 0.63 1/2 PFTS150-1-2N 1 1/2 1 2.00 2.63 3.00 5.06 0.50 0.63 1/2 PFTS150-1-3N 1 1/2 2 3.00 2.63 3.00 5.06 0.50 0.63 1/2 PFTS150-1-4N4 1 1/2 2 4.00 2.63 4.00 6.06 0.50 1.13 1/2 PFTS150-1-4N 1 1/2 2 4.00 2.63 3.00 5.06 0.50 0.63 1/2 PFTS200-1-2N 2 1 2.00 2.75 3.00 5.31 0.63 0.63 1/2 PFTS200-1-3N 2 2 3.00 2.75 3.00 5.31 0.63 0.63 1/2 PFTS200-1-4N4 2 2 4.00 2.75 4.00 6.31 0.63 1.13 1/2 PFTS200-1-4N 2 2 4.00 2.75 3.00 5.31 0.63 0.63 1/2 PFTS250-1-2N 2 1/2 1 2.00 2.75 3.00 5.56 0.50 0.63 1/2 PFTS250-1-3N 2 1/2 2 3.00 2.75 3.00 5.56 0.50 0.63 1/2 PFTS250-1-4N4 2 1/2 2 4.00 2.75 4.00 6.31 0.50 1.13 1/2 PFTS250-1-4N 2 1/2 2 4.00 2.75 3.00 5.56 0.50 0.63 1/2 PFTS300-1-2N 3 1 2.00 3.25 3.00 6.06 0.75 0.63 5/8 PFTS300-1-3N 3 2 3.00 3.25 3.00 6.06 0.75 0.63 5/8 PFTS300-1-4N4 3 2 4.00 3.25 4.00 7.06 0.75 1.13 5/8 PFTS300-1-4N 3 2 4.00 3.25 3.00 6.06 0.75 0.63 5/8 PFTS300-1-6N4 3 3 6.00 3.25 4.00 7.06 0.75 1.13 5/8 PFTS350-1-2N 3 1/2 1 2.00 3.25 3.25 6.31 0.88 0.63 5/8 PFTS350-1-3N 3 1/2 2 3.00 3.25 3.00 6.31 0.88 0.63 5/8 PFTS350-1-4N4 3 1/2 2 4.00 3.25 4.00 7.31 0.88 1.13 5/8 PFTS350-1-4N 3 1/2 2 4.00 3.25 3.00 6.31 0.88 0.63 5/8 PFTS400-1-3N 4 2 3.00 3.25 3.00 6.56 0.88 0.63 5/8 PFTS400-1-4N4 4 2 4.00 3.25 4.00 7.56 0.88 1.13 5/8 PFTS400-1-4N 4 2 4.00 3.25 3.00 6.56 0.88 0.63 5/8 PFTS500-1-3N 5 2 3.00 3.75 3.00 7.13 1.00 0.63 5/8 PFTS500-1-4N4 5 2 4.00 3.75 4.00 8.13 1.00 1.13 5/8 PFTS500-1-4N 5 2 4.00 3.75 3.00 7.13 1.00 0.63 5/8 PFTS500-1-6N4 5 3 6.00 3.75 4.00 8.13 1.00 1.13 5/8 PFTS500R-1-4N4 5 OD 2 4.00 3.25 4.00 7.81 1.00 1.13 5/8 PFTS600-1-4N4 6 2 4.00 5.75 4.00 8.75 1.25 1.13 5/8 TYPE PFTS Pipe To Flat Bar Tee Connector
205 AFLglobal.com 1 ( 800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00138, Revision 4, 11.3.2025 Specifications are subject to change without notice. 205 Bronze Terminals, Taps AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. Material Copper Alloy Hardware Everdur-nuts, bolts and lock washers. Notes • Contact pads can be furnished to any specification of size undrilled or drilled to specified hole sizes and center to center dimensions. • For Electro Tin Plate, add "-SN" to catalog number. EX: TP300-4N-SN • For Angled Pad, add "A" to prefix and angle to catalog number. EX: TPA350-4N-60 • For Undrilled Pad, add "U" to pad size in catalog number. EX: TP350-4U TYPE TP, TPA-30, TPA-45, TPA-60, TPA-90 Copper Clamp Terminal for Tubular Bus to Flat TP A bolted clamp type terminal for connecting standard pipe size tubular buses to flat surfaces. FIG. 1 A Ø H Ø H Ø H TPA-30 30º 45º TPA-45 TPA-90 TPA-60 60º 90º A A X Y C B C L SYM. C L SYM. FIG. 2 FIG. 3 C Y X T S TP C L Y
206 AFLglobal.com 1 ( 800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00138, Revision 4, 11.3.2025 Specifications are subject to change without notice. Bronze Terminals, Taps 206 TYPE TP, TPA-30, TPA-45, TPA-60, TPA-90 Copper Clamp Terminal for Tubular Bus to Flat Ordering Information Catalog Number SPS Fig. No. Dimensions in inches A C B H T X Y S Bolt Size TP25-1 1/4 1 1 1/4 — 2 7/16 1/4 — — — 3/8 TP25-2 1/4 2 1 1/4 1 7/8 2 7/16 1/4 7/16 1 3/8 TP25-2N 1/4 2 1 1/2 3 2 9/16 1/4 5/8 1 3/4 11/16 3/8 TP38-1 3/8 1 1 1/4 — 2 7/16 1/4 — — — 3/8 TP38-2 3/8 2 1 1/4 2 1/8 2 1/8 7/16 1/4 7/16 1 3/4 3/8 TP38-2N 3/8 2 1 1/2 3 1/4 2 1/8 9/16 1/4 5/8 1 3/4 3/4 3/8 TP50-1 1/2 1 1 1/2 — 2 9/16 5/16 — — — 3/8 TP50-2 1/2 2 1 1/2 2 1/4 2 7/16 5/16 1/2 1 1/4 — 3/8 TP50-2N 1/2 2 1 1/2 3 2 9/16 5/16 5/8 1 3/4 7/8 3/8 TP75-1 3/4 1 1 3/4 — 2 9/16 3/8 — — 15/16 3/8 TP75-2 3/4 2 1 1/2 2 1/4 2 9/16 3/8 1/2 1 1/4 — 3/8 TP75-2N 3/4 2 2 3 2 7/16 3/8 5/8 1 3/4 1 3/8 TP100-2 1 2 1 3/4 2 1/4 2 1/8 9/16 3/8 1/2 1 1/4 — 3/8 TP100-2N 1 2 1 3/4 3 2 1/8 7/16 3/8 5/8 1 3/4 1 3/8 3/8 TP100-4 1 3 2 1/4 2 1/4 2 1/8 9/16 3/8 1/2 1 1/4 1 1/8 3/8 TP100-4N 1 3 3 3 2 1/8 7/16 3/8 5/8 1 3/4 1 3/8 3/8 TP125-2 1 1/4 2 2 1/4 3 2 1/2 9/16 7/16 3/4 1 1/2 — 1/2 TP125-2N 1 1/4 2 2 1/4 3 2 1/2 9/16 7/16 5/8 1 3/4 1 1/2 1/2 TP125-4 1 1/4 3 3 3 2 1/2 9/16 7/16 3/4 1 1/2 1 11/32 1/2 TP125-4N 1 1/4 3 3 3 2 1/2 9/16 7/16 5/8 1 3/4 1 1/2 1/2 TP150-2 1 1/2 2 2 1/2 3 1/4 2 5/8 9/16 1/2 3/4 1 3/4 — 1/2 TP150-2N 1 1/2 2 2 1/2 3 2 5/8 9/16 1/2 5/8 1 3/4 1 1/2 1/2 TP150-4 1 1/2 3 3 3 2 5/8 9/16 1/2 3/4 1 1/2 1 9/16 1/2 TP150-4N 1 1/2 3 3 3 2 5/8 9/16 1/2 5/8 1 3/4 1 1/2 1/2 TP200-2 2 2 2 3/4 3 1/4 2 3/4 9/16 1/2 3/4 1 3/4 — 1/2 TP200-2N 2 2 2 3/4 3 2 3/4 9/16 1/2 5/8 1 3/4 1 3/4 1/2 TP200-4 2 3 3 1/4 3 1/4 2 3/4 9/16 1/2 3/4 1 3/4 1 13/16 1/2 TP200-4N 2 3 3 3 2 3/4 9/16 1/2 5/8 1 3/4 1 3/4 1/2 TP200R-4N 2 O.D. 3 3 3 2 3/4 9/16 1/2 5/8 1 3/4 1 3/4 1/2 TP250-2 2 1/2 2 3 3 3/4 2 3/4 9/16 11/16 1 1 3/4 — 1/2 TP250-2N 2 1/2 2 3 3 2 3/4 9/16 11/16 5/8 1 3/4 2 1/8 1/2 TP250-4 2 1/2 3 3 3/4 3 3/4 2 3/4 9/16 11/16 7/8 2 2 3/16 1/2 TP250-4N 2 1/2 3 3 3 2 3/4 9/16 11/16 5/8 1 3/4 2 1/8 1/2 TP250-4N4 2 1/2 3 4 4 2 3/4 9/16 11/16 1 1/8 1 3/4 — 1/2 TP300-4 3 3 4 1/2 4 1/2 3 1/4 9/16 11/16 7/8 2 3/4 — 5/8 TP300-4N 3 3 4 4 3 1/4 9/16 11/16 5/8 1 3/4 2 1/2 5/8 TP300-4N4 3 3 4 4 3 1/4 9/16 11/16 1 1/8 1 3/4 2 11/16 5/8 TP300-5N4S-7/8T 3 3 5 4 3 1/4 9/16 7/8 1 1/8 1 3/4 — 5/8 TP350-4 3 1/2 3 4 3/4 4 3/4 3 1/4 9/16 13/16 7/8 3 2 7/8 5/8 TP350 4N 3 1/2 3 3 3 3 1/4 9/16 13/16 5/8 1 3/4 2 5/8 5/8 TP350-4N4 3 1/2 3 4 4 3 1/4 9/16 13/16 1 1/8 1 3/4 2 5/8 5/8 TP400-4 4 3 5 1/2 5 1/2 3 3/8 11/16 13/16 1 1/8 3 1/4 — 5/8 TP400-4N 4 3 3 3 3 3/8 9/16 13/16 5/8 1 3/4 3 1/8 5/8 TP600-4N4 6 3 4 4 5 3/4 9/16 1 1/4 1 1/8 1 3/4 — 5/8
207 AFLglobal.com 1 ( 800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00162, R evision 3, 11.3.2025 S peci cations are subject to change without notice. 207 Bronze Terminals, Taps AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. Material Copper Alloy Hardware Everdur-bolts, nuts, and lockwashers. TYPE TPC Terminal Connector Ordering Information Catalog Number SPS Fig. No. Dimensions in inches Bolt Size A B C T X TPC25-2N 1/4 1 1 1/2 2 3 1/4 5/8 3/8 TPC38-2N 3/8 1 1 1/2 2 3 1/4 5/8 3/8 TPC50-2N 1/2 1 1 1/2 2 3 5/16 5/8 3/8 TPC50-4N 1/2 2 3 2 3 5/16 5/8 3/8 TPC75-2N 3/4 1 1 1/2 2 3 3/8 5/8 3/8 TPC75-4N 3/4 2 3 2 3 3/8 5/8 3/8 TPC100-2N 1 1 1 3/4 2 1/8 3 3/8 5/8 3/8 TPC100-4N 1 2 3 2 1/8 3 3/8 5/8 3/8 TPC100-4N4 1 2 4 2 1/8 4 3/8 1 1/8 3/8 TPC125-2N 1 1/4 1 2 2 1/2 3 7/16 5/8 1/2 TPC125-4N 1 1/4 2 3 2 1/2 3 7/16 5/8 1/2 TPC125-4N4 1 1/4 2 4 2 1/2 4 7/16 1 1/8 1/2 TPC150-2N 1 1/2 1 2 1/2 2 5/8 3 1/2 5/8 1/2 TPC150-4N 1 1/2 2 3 2 5/8 3 1/2 5/8 1/2 TPC150-4N4 1 1/2 2 4 2 5/8 4 1/2 1 1/8 1/2 TPC200-2N 2 1 2 3/4 2 3/4 3 1/2 5/8 1/2 TPC200-4N 2 2 3 2 3/4 3 1/2 5/8 1/2 TPC200-4N4 2 2 4 2 3/4 4 1/2 1 1/8 1/2 TPC250-2N 2 1/2 1 3 2 3/4 3 11/16 5/8 1/2 TPC250-4N 2 1/2 2 3 2 3/4 3 11/16 5/8 1/2 TPC250-4N4 2 1/2 2 4 2 3/4 4 11/16 1 1/8 1/2 TPC300-4N 3 2 3 3 1/4 3 11/16 5/8 5/8 TPC300-4N4 3 2 4 3 1/4 4 11/16 1 1/8 5/8 TPC350-4N 3 1/2 2 3 3 1/4 3 13/16 5/8 5/8 TPC350-4N4 3 1/2 2 4 3 1/4 4 13/16 1 1/8 5/8 TPC400-4N 4 2 3 3 3/8 3 13/16 5/8 5/8 TPC400-4N4 4 2 4 3 3/8 4 13/16 1 1/8 5/8 TPC600-4N4 6 2 4 5 3/4 4 1 1/4 1 1/8 5/8 FIG. 1 A Ø9/16 1 3/4 A X B FIG. 2 C X T 1 3/4 Ø9/16 1 3/4
Features:
- Bronze alloy
- External bus pipe fit for SCH 40 and SCH 80 bus pipe
- Everdur hardware
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Copper bus pipe
A bolted clamp type terminal used to connect standard pipe size tubular buses to flat surfaces.
