A high strength, cast bronze insulator adapter for adjusting bus center line heights from insulators. Adapters for heights and bolt circle mountings other than those listed can be readily supplied.
0404a973ff1249859851295871ad551c
www.AFLglobal.com or 800-890-8878 31 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. 2.21.11 Specifications are subject to change without notice. TYPE AD A high strength cast bronze insulator adapter for adjusting bus center line heights from insulators. Adapters for heights and bolt circle mountings other than those listed can be readily supplied. Material Copper Alloy M M N C H FIG. 1 FIG. 2 C H 3/8 3/8 C 3/8 H B FIG. 3 M
www.AFLglobal.com or 800-890-8878 32 Bronze Bus Supports Bronze Bus Supports Ordering Information CATALOG NUMBER FIGURE NUMBER BOLT CIRCLE (B) BOLT CIRCLE (C) DIMENSIONS IN INCHES B C H M N AD3-1/2-3 1 - 3 - 4 1/4 1/2 9/16 - AD3-3/4-3 1 - 3 - 4 1/4 3/4 9/16 - AD3-1-3 1 - 3 - 4 1/4 1 9/16 - AD3-1-1/4-3 1 - 3 - 4 1/4 1 1/4 9/16 - AD3-1-1/2-3 1 - 3 - 4 1/4 1 1/2 9/16 - AD3-1-3/4-3 1 - 3 - 4 1/4 1 3/4 9/16 - AD5-1/2-5 1 - 5 - 6 1/4 1/2 11/16 - AD5-3/4-5 1 - 5 - 6 1/4 3/4 11/16 - AD5-1-5 1 - 5 - 6 1/4 1 11/16 - AD5-1-1/4-5 1 - 5 - 6 1/4 1 1/4 11/16 - AD5-1-1/2-5 1 - 5 - 6 1/4 1 1/2 11/16 - AD5-1-3/4-5 1 - 5 - 6 1/4 1 3/4 11/16 - AD3-2-3 2 - 3 - 4 1/4 2 9/16 - AD3-2-1/2-3 2 - 3 - 4 1/4 2 1/2 9/16 - AD3-3-3 2 - 3 - 4 1/4 3 9/16 - AD3-3-1/2-3 2 - 3 - 4 1/4 3 1/2 9/16 - AD3-4-3 2 - 3 - 4 1/4 4 9/16 - AD3-5-3 2 - 3 - 4 1/4 5 9/16 - AD3-6-3 2 - 3 - 4 1/4 6 9/16 - AD3-2-5 3 3 5 6 1/4 4 1/4 2 11/16 9/16 AD3-2-1/2-5 3 3 5 6 1/4 4 1/4 2 1/2 11/16 9/16 AD3-3-5 3 3 5 6 1/4 4 1/4 3 11/16 9/16 AD3-3-1/2-5 3 3 5 6 1/4 4 1/4 3 1/2 11/16 9/16 AD3-4-5 3 3 5 6 1/4 4 1/2 4 11/16 9/16 AD3-5-5 3 3 5 6 1/4 4 1/4 5 11/16 9/16 AD3-6-5 3 3 5 6 1/4 4 1/4 6 11/16 9/16 AD5-2-5 2 - 5 - 6 1/4 2 11/16 - AD5-2-1/2-5 2 - 5 - 6 1/4 2 1/2 11/16 - AD5-3-5 2 - 5 - 6 1/4 3 11/16 - AD5-3-1/2-5 2 - 5 - 6 1/4 3 1/2 11/16 - AD5-4-5 2 - 5 - 6 1/4 4 11/16 - AD5-5-5 2 - 5 - 6 1/4 5 11/16 - AD5-6-5 2 - 5 - 6 1/4 6 11/16 - TYPE AD
Features:
- Bus supports avalible with 3-inch, 5-inch and 7-inch bolt circles
- Bronze alloy
- Adapters for heights and bolt circle mountings
Applications:
- Rated for 230 kV
- Substation
- Insulator adapter
A high strength, cast bronze insulator adapter for adjusting bus center line heights from insulators. Adapters for heights and bolt circle mountings other than those listed can be readily supplied.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Tee Terminal Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
255

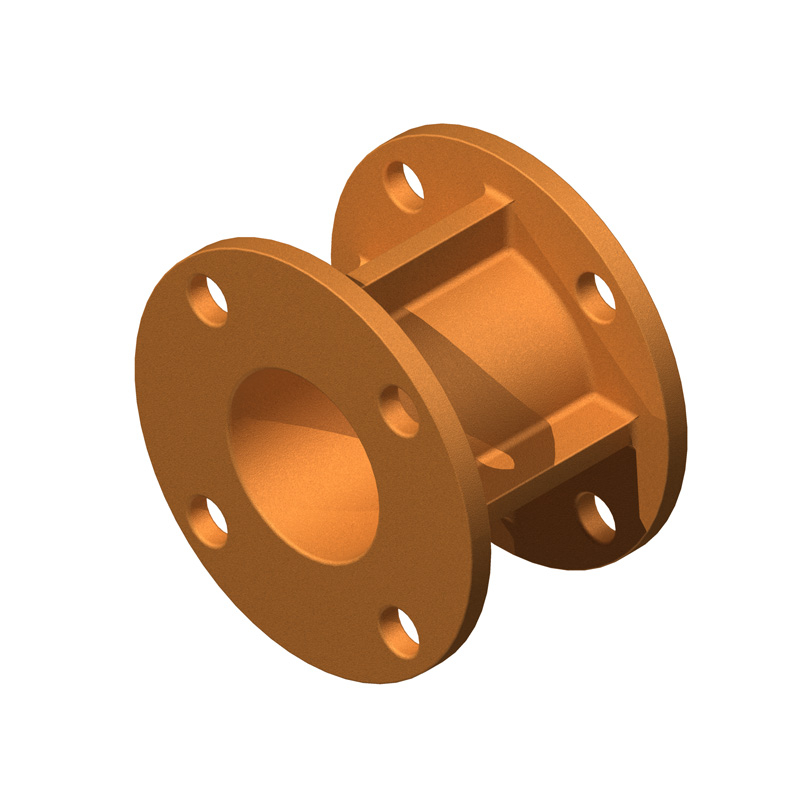

230 kV Bronze Bolted Bus Support Insultor Adapter
Close
230 kV Bronze Bolted Bus Support Insultor Adapter
Features:
- Bus supports avalible with 3-inch, 5-inch and 7-inch bolt circles
- Bronze alloy
- Adapters for heights and bolt circle mountings
Applications:
- Rated for 230 kV
- Substation
- Insulator adapter
PRODUCT DESCRIPTION
A high strength, cast bronze insulator adapter for adjusting bus center line heights from insulators. Adapters for heights and bolt circle mountings other than those listed can be readily supplied.
