Flexible copper braid is used to link conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated pad.
0404a973ff1249859851295871ad551c
www.AFLglobal.com or 800-890-8878 66 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00279, Revision 2, 3.6.17 Specifications are subject to change without notice. TYPE CF-N (NEMA Pad Sizes) Flexible Copper Braid Flexible copper braid for linking conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated copper pad. Material Copper Alloy Notes •Braid may be custom made for any configuration of length, pad size and hole diameter. •For Electro Tin Plate, add suffix "-SN" to end of catalog number. Ex: CF771-10-N-SN •For Undrilled Pad, add suffix "-U" to pad size in catalog number. Ex: CF772-16-N-U L 3 1 3/4 PURE COPPER FERRULES T Ø9/16 5/8 A FIG. 1 FIG. 2 FIG. 3 TINNED COPPER BRAID FIG. 4 Ordering Information CATALOG NUMBER FIG. NO. INDOOR AMPERE RATING* DIMENSIONS IN INCHES A L T CF 724-12-N 4 520 1 1/2 12 1/4 CF 771-10-N 1 190 1 10 3/16 CF 771-16-N 1 190 1 16 3/16 CF 771-18-N 1 190 1 18 3/16 CF 771-20-N 1 190 1 20 3/16 CF 771-24-N 1 190 1 24 3/16 CF 771-36-N 1 190 1 36 3/16 CF 772-16-N 2 330 1 16 1/4 CF 772-18-N 2 330 1 18 1/4 CF 772-20-N 2 330 1 20 1/4 CF 772-21-N 2 330 1 21 1/4 CF 772-24-N 2 330 1 24 1/4 CF 772-30-N 2 330 1 30 1/4 CF 773-15-N 3 470 1 15 5/16 CF 773-16-N 3 470 1 16 5/16 CF 773-18-N 3 470 1 18 5/16 CF 773-20-N 3 470 1 20 5/16 CF 773-24-N 3 470 1 24 5/16 *Note: A.C. Ampere ratings in still but confined air for maximum temperature rise 30ºC above 40ºC ambient with major surfaces of braid in horizontal position.
www.AFLglobal.com or 800-890-8878 67 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00279, Revision 2, 3.6.17 Specifications are subject to change without notice. TYPE CF-N (NEMA Pad Sizes) Flexible Copper Braid Ordering Information CATALOG NUMBER FIG. NO. INDOOR AMPERE RATING* DIMENSIONS IN INCHES A L T CF 774-16-N 4 600 1 16 3/8 CF 774-18-N 4 600 1 18 3/8 CF 774-20-N 4 600 1 20 3/8 CF 774-24-N 4 600 1 24 3/8 CF 1051-16-N 1 255 1 1/2 16 5/32 CF 1051-18-N 1 255 1 1/2 18 5/32 CF 1051-20-N 1 255 1 1/2 20 5/32 CF 1051-24-N 1 255 1 1/2 24 5/32 CF 1052-16-N 2 360 1 1/2 16 7/32 CF 1052-18-N 2 360 1 1/2 18 7/32 CF 1052-20-N 2 360 1 1/2 20 7/32 CF 1052-24-N 2 360 1 1/2 24 7/32 CF 1053-16-N 3 570 1 1/2 16 9/32 CF 1053-18-N 3 570 1 1/2 18 9/32 CF 1053-20-N 3 570 1 1/2 20 9/32 CF 1053-24-N 3 570 1 1/2 24 9/32 CF 1054-16-N 4 650 1 1/2 16 11/32 CF 1054-18-N 4 650 1 1/2 18 11/32 CF 1054-20-N 4 650 1 1/2 20 11/32 CF 1054-24-N 4 650 1 1/2 24 11/32 CF 1541-16-N 1 340 1 1/2 16 3/16 CF 1541-18-N 1 340 1 1/2 18 3/16 CF 1541-20-N 1 340 1 1/2 20 3/16 CF 1541-24-N 1 340 1 1/2 24 3/16 CF 1542-16-N 2 530 1 1/2 16 1/4 CF 1542-18-N 2 530 1 1/2 18 1/4 CF 1542-20-N 2 530 1 1/2 20 1/4 CF 1542-24-N 2 530 1 1/2 24 1/4 CF 1542-25-N 2 530 1 1/2 25 1/4 CF 1542-36-N 2 530 1 1/2 36 1/4 CF 1543-16-N 3 700 1 1/2 16 5/16 CF 1543-18-N 3 700 1 1/2 18 5/16 CF 1543-20-N 3 700 1 1/2 20 5/16 CF 1543-21-N 3 700 1 1/2 21 5/16 CF 1543-23-N 3 700 1 1/2 23 5/16 CF 1543-24-N 3 700 1 1/2 24 5/16 CF 1544-16-N 4 850 1 1/2 16 13/32 CF 1544-16 1/2-N 4 850 1 1/2 16 1/2 13/32 CF 1544-18-N 4 850 1 1/2 18 13/32 CF 1544-20-N 4 850 1 1/2 20 13/32 CF 1544-24-N 4 850 1 1/2 24 13/32 CF 2301-16-N 1 360 1 1/2 16 1/4 CF 2301-18-N 1 360 1 1/2 18 1/4 CF 2301-20-N 1 360 1 1/2 20 1/4 CF 2301-24-N 1 360 1 1/2 24 1/4 CF 2301-30-N 1 360 1 1/2 30 1/4 CF 2302-9-N 2 600 1 1/2 9 3/8 CF 2302-16-N 2 600 1 1/2 16 3/8 CF 2302-18-N 2 600 1 1/2 18 3/8 CF 2302-20-N 2 600 1 1/2 20 3/8 CF 2302-24-N 2 600 1 1/2 24 3/8 CF 2302-25-N 2 600 1 1/2 25 3/8 CF 2302-30-N 2 600 1 1/2 30 3/8 CF 2303-15-N 3 820 1 1/2 15 1/2 CF 2303-16-N 3 820 1 1/2 16 1/2 CF 2303-18-N 3 820 1 1/2 18 1/2 CF 2303-20-N 3 820 1 1/2 20 1/2 CF 2303-22-N 3 820 1 1/2 22 1/2 CF 2303-24-N 3 820 1 1/2 24 1/2 CF 2303-25-N 3 820 1 1/2 25 1/2 CF 2304-15 1/2-N 4 1000 1 1/2 15 1/2 13/16 CF 2304-16-N 4 1000 1 1/2 16 13/16 *Note: A.C. Ampere ratings in still but confined air for maximum temperature rise 30ºC above 40ºC ambient with major surfaces of braid in horizontal position.
www.AFLglobal.com or 800-890-8878 68 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00279, Revision 2, 3.6.17 Specifications are subject to change without notice. Ordering Information CATALOG NUMBER FIG. NO. INDOOR AMPERE RATING* DIMENSIONS IN INCHES A L T CF 2304-18-N 4 1000 1 1/2 18 13/16 CF 2304-20-N 4 1000 1 1/2 20 13/16 CF 2304-24-N 4 1000 1 1/2 24 13/16 CF 2304-36-N 4 1000 1 1/2 36 13/16 CF 2304-42-N 4 1000 1 1/2 42 13/16 CF 3021-9 1/2-N 1 415 1 1/2 9 1/2 5/16 CF3021-14-N 1 415 1 1/2 14 5/16 CF 3021-16-N 1 415 1 1/2 16 5/16 CF 3021-18-N 1 415 1 1/2 18 5/16 CF 3021-20-N 1 415 1 1/2 20 5/16 CF 3201-24-N 1 415 1 1/2 24 5/16 CF 3021-27-N 1 415 1 1/2 27 5/16 CF 3022-9 3/4-N 2 700 1 1/2 9 3/4 1/2 CF 3022-10 1/2-N 2 700 1 1/2 10 1/2 1/2 CF 3022-14-N 2 700 1 1/2 14 1/2 CF 3022-16-N 2 700 1 1/2 16 1/2 CF 3022-18-N 2 700 1 1/2 18 1/2 CF 3022-20-N 2 700 1 1/2 20 1/2 CF 3022-24-N 2 700 1 1/2 24 1/2 CF 3022-30-N 2 700 1 1/2 30 1/2 CF 3022-60-N 2 700 1 1/2 60 1/2 CF 3023-16-N 3 960 1 1/2 16 13/16 CF 3023-18-N 3 960 1 1/2 18 13/16 CF 3023-20-N 3 960 1 1/2 20 13/16 CF 3023-24-N 3 960 1 1/2 24 13/16 CF 3024-14-N 4 1200 1 1/2 14 15/16 CF 3024-16-N 4 1200 1 1/2 16 15/16 CF 3024-18-N 4 1200 1 1/2 18 15/16 CF 3024-20-N 4 1200 1 1/2 20 15/16 CF 3024-24-N 4 1200 1 1/2 24 15/16 CF 3024-28-N 4 1200 1 1/2 28 15/16 CF 3024-29-N 4 1200 1 1/2 29 15/16 CF 3024-64-N 4 1200 1 1/2 64 15/16 *Note: A.C. Ampere ratings in still but confined air for maximum temperature rise 30ºC above 40ºC ambient with major surfaces of braid in horizontal position. TYPE CF-N (NEMA Pad Sizes) Flexible Copper Braid
69 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00277, Revision 0, 2.24.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE CF Flexible Copper Braid Flexible copper braid for linking conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated pad. Material Copper Note • Braid may be custom made for any configuration of length, pad size or hole diameter. • For tin plated contact pads add suffix "-SN" to end of catalog number. Ex: CF771-SN • For undrilled contact pads add suffix "-U" to end of catalog number. Ex: CF771-U • For undrilled contact pads and tin plated pads, add suffix "-U-SN" to end of catalog number. Ex: CF771-U-SN L B Y PURE COPPER FERRULES T Ø7/16 X A FIG. 1 FIG. 2 FIG. 3 TINNED COPPER BRAID FIG. 4
70 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00277, Revision 0, 2.24.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE CF Flexible Copper Braid Ordering Information CATALOG NUMBER CIRCULAR MIL AREA FIGURE NO. INDOOR AMPERE RATING* DIMENSIONS IN INCHES A B L T X Y CF771 76,800 1 190 1 2 5/8 12 3/16 11/16 1 1/4 CF771-7 76,800 1 190 1 2 5/8 7 3/16 11/16 1 1/4 CF771-10 76,800 1 190 1 2 5/8 10 3/16 11/16 1 1/4 CF771-11 76,800 1 190 1 2 5/8 11 3/16 11/16 1 1/4 CF771-15 76,800 1 190 1 2 5/8 15 3/16 11/16 1 1/4 CF771-18 76,800 1 190 1 2 5/8 18 3/16 11/16 1 1/4 CF771-20 76,800 1 190 1 2 5/8 20 3/16 11/16 1 1/4 CF771-24 76,800 1 190 1 2 5/8 24 3/16 11/16 1 1/4 CF771-36 76,800 1 190 1 2 5/8 36 3/16 11/16 1 1/4 CF772 153,600 2 330 1 2 5/8 12 1/4 11/16 1 1/4 CF772-10 153,600 2 330 1 2 5/8 10 1/4 11/16 1 1/4 CF772-18 153,600 2 330 1 2 5/8 18 1/4 11/16 1 1/4 CF773 230,400 3 470 1 2 5/8 12 5/16 11/16 1 1/4 CF774-14 230,400 4 600 1 2 5/8 14 5/16 11/16 1 1/4 CF774-16 230,400 4 600 1 2 5/8 16 5/16 11/16 1 1/4 CF774-19 21/32 230,400 4 600 1 2 5/8 19 21/32 5/16 11/16 1 1/4 CF774-24 230,400 4 600 1 2 5/8 24 5/16 11/16 1 1/4 CF1541 153,600 1 340 1 1/2 3 12 3/16 3/4 1 1/2 CF1541-18 153,600 1 340 1 1/2 3 18 3/16 3/4 1 1/2 CF1541-24 153,600 1 340 1 1/2 3 24 3/16 3/4 1 1/2 CF1542 307,200 2 530 1 1/2 3 12 1/4 3/4 1 1/2 CF1542-18 307,200 2 530 1 1/2 3 18 1/4 3/4 1 1/2 CF1542-22 307,200 2 530 1 1/2 3 22 1/4 3/4 1 1/2 CF1542-24 307,200 2 530 1 1/2 3 24 1/4 3/4 1 1/2 CF1543 460,800 3 700 1 1/2 3 12 5/16 3/4 1 1/2 CF1543-14 460,800 3 700 1 1/2 3 14 5/16 3/4 1 1/2 CF1543-14 1/2 460,800 3 700 1 1/2 3 14 1/2 5/16 3/4 1 1/2 CF1543-16 460,800 3 700 1 1/2 3 16 5/16 3/4 1 1/2 CF1543-18 460,800 3 700 1 1/2 3 18 5/16 3/4 1 1/2 CF1543-20 460,800 3 700 1 1/2 3 20 5/16 3/4 1 1/2 CF1543-24 460,800 3 700 1 1/2 3 24 5/16 3/4 1 1/2 CF1543-28 460,800 3 700 1 1/2 3 28 5/16 3/4 1 1/2 CF1543-30 460,800 3 700 1 1/2 3 30 5/16 3/4 1 1/2 CF1543-36 460,800 3 700 1 1/2 3 36 5/16 3/4 1 1/2 CF1544-10 616,000 4 850 1 1/2 3 10 13/32 3/4 1 1/2 CF2301 230,400 1 360 1 1/2 3 12 1/4 3/4 1 1/2 CF2301-18 230,400 1 360 1 1/2 3 18 1/4 3/4 1 1/2 CF2302 460,800 2 600 1 1/2 3 12 3/8 3/4 1 1/2 CF2303 691,200 3 820 1 1/2 3 12 1/2 3/4 1 1/2 CF2303-18 691,200 3 820 1 1/2 3 18 1/2 3/4 1 1/2 CF2303-20 691,200 3 820 1 1/2 3 20 1/2 3/4 1 1/2 CF2303-24 691,200 3 820 1 1/2 3 24 1/2 3/4 1 1/2 CF3021 302,400 1 415 1 1/2 3 12 5/16 3/4 1 1/2 CF3021-18 302,400 1 415 1 1/2 3 18 5/16 3/4 1 1/2 CF3021-24 302,400 1 415 1 1/2 3 24 5/16 3/4 1 1/2 CF3021-30 302,400 1 415 1 1/2 3 30 5/16 3/4 1 1/2 CF3022 604,800 2 700 1 1/2 3 12 1/2 3/4 1 1/2 CF3022-14 604,800 2 700 1 1/2 3 14 1/2 3/4 1 1/2 CF3022-19 604,800 2 700 1 1/2 3 19 1/2 3/4 1 1/2 CF3022-20 604,800 2 700 1 1/2 3 20 1/2 3/4 1 1/2 CF3022-24 604,800 2 700 1 1/2 3 24 1/2 3/4 1 1/2 CF3022-30 604,800 2 700 1 1/2 3 30 1/2 3/4 1 1/2 CF3023 907,200 3 960 1 1/2 3 12 11/16 3/4 1 1/2 CF3023-22 907,200 3 960 1 1/2 3 22 11/16 3/4 1 1/2 CF3023-24 907,200 3 960 1 1/2 3 24 11/16 3/4 1 1/2 CF3023-30 907,200 3 960 1 1/2 3 30 11/16 3/4 1 1/2 CF3024-48 1,209,600 4 1200 1 1/2 3 48 15/16 3/4 1 1/2 *Note: A.C. Ampere ratings in still but confined air for maximum temperature rise 30ºC above 40ºC ambient with major surfaces of braid in horizontal position.
71 Bronze Braided or Laminated Expansion Bronze Braided or Laminated Expansion © 2011, AFL, all rights reserved. PP-3-00278, Revison 0, 2.24.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE CFC Flexible Copper Braid Composite flexible copper braid for linking conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated pad. Material Copper Note • Braid may be custom made for any configuration of length, pad size or hole diameter. • For tin plated contact pads add suffix "-SN" to end of catalog number. Ex: CFC1-2-SN • For undrilled contact pads add suffix "-U" to end of catalog number. Ex: CF771-U Ordering Information CATALOG NUMBER NUMBER OF BARS DIMENSIONS IN INCHES INDOOR AMPERE RATING* WIDTH OF BARS H CFC1-2 1 2 1 1/2 700 CFC1-3 1 3 1 1/2 1000 CFC1-4 1 4 1 1/2 1350 CFC1-5 1 5 1 1/2 1600 CFC2-2 2 2 2 1200 CFC2-3 2 3 2 1650 CFC2-4 2 4 2 1/2 2250 CFC2-5 2 5 2 2650 CFC3-2 3 2 2 1/2 1650 CFC3-3 3 3 2 1/2 2000 CFC3-4 3 4 2 3/4 2700 CFC3-5 3 5 2 1/2 3200 CFC4-2 4 2 2 1/2 1800 CFC4-3 4 3 2 3/4 2250 CFC4-4 4 4 3 1/2 3000 CFC4-5 4 5 3 3500 *Note: A.C. Ampere ratings in still but confined air for maximum temperature rise 30ºC above 40ºC ambient with major surfaces of braid in horizontal position. H 3 1 1/2 12 3/4 3/8 3/8
Features:
- Tin-plated copper braid
- Copper terminal
- Avalible in custom lengths
Applications:
- Rated for 230 kV
- Substation
- Bronze braided expansion connectors
Flexible copper braid are is used to link conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated pad.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
261
Close

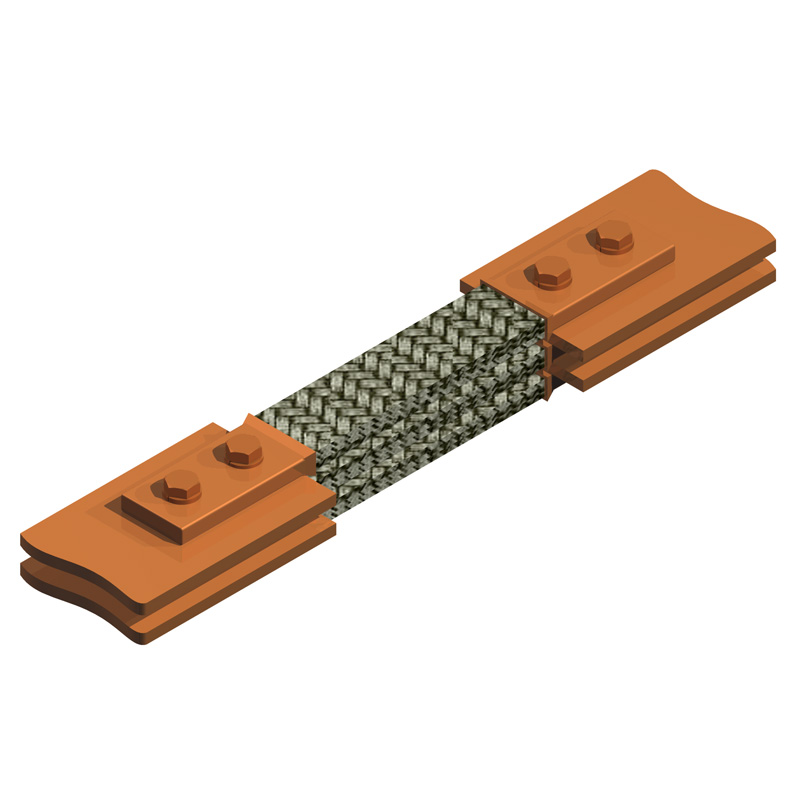

230 kV Bronze Bolted Flexible Braid Expansion Connectors
Features:
- Tin-plated copper braid
- Copper terminal
- Avalible in custom lengths
Applications:
- Rated for 230 kV
- Substation
- Bronze braided expansion connectors
PRODUCT DESCRIPTION
Flexible copper braid are is used to link conductors that are subject to motion. The braid is tin plated copper wire, terminated at each end by a non-plated pad.
