Swage Aluminum Bus Supports are designed to connect bus bar to insulators on 3-inch, 5-inch and 7-inch bolt circles. Some Bus Supports use Swage Technology for installation. These accessories vary from 230-500kV. PSD-AA, PSD-CH-AA, PSD-V-AA, PSD-V-CH-AA, WPS-AA, SWPS-AA, SWPSS-AA
1bcc2ec2c7d1476d92fd17b2fc5258bc
www.AFLglobal.com or 800-890-8878 98 Swage Bus Accessories 230 kV SUPPORTS Bus Support, Pipe, Slide or Tight Fit Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts and lockwashers Galvanized steel base mounting hardware included Notes • For Chatter Spring, add "-CH" to catalog number. EX: PSD400-3-CH-AA • For Grade Five Galvanized Steel Hardware, add "-GS5" to catalog number. EX: PSD400-5-AA-GS5 • For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: PSD400-3-AA-SSBHN • For base mounting dimensions and hardware, see page 3 in the general catalog index of AFL's Substation Catalog or page 46 of the Swage Accessories Catalog. TYPE PSD-AA, PSD-CH-AA A T F L © 2011, AFL, all rights reserved. PP-3-00405 , Revision 2, 9.5.18 Specifications are subject to change without notice. Bolted clamp type support, for pipe-to-pipe connection, with reversible tight or rigid fit. Ordering Information CATALOG NUMBER S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD CHATTER SPRING A F L T PSD75-3-AA PSD75-3-CH-AA 3/4 3 2 4-1/4 6-3/4 3/8 1/2 PSD75-5-AA PSD75-5-CH-AA 3/4 5 2-1/4 6-1/4 9 3/8 1/2 PSD100-3-AA PSD100-3-CH-AA 1 3 2 4-1/4 7 3/8 1/2 PSD100-5-AA PSD100-5-CH-AA 1 5 2-1/4 6-1/4 9 3/8 1/2 PSD125-3-AA PSD125-3-CH-AA 1-1/4 3 2-1/4 4-1/4 7-1/4 3/8 1/2 PSD125-5-AA PSD125-5-CH-AA 1-1/4 5 2-3/8 6-1/4 9-1/2 3/8 1/2 PSD150-3-AA PSD150-3-CH-AA 1-1/2 3 2-1/2 4-1/4 7-1/4 3/8 1/2 PSD150-5-AA PSD150-5-CH-AA 1-1/2 5 2-1/2 6-1/4 9-1/2 3/8 1/2 PSD200-3-AA PSD200-3-CH-AA 2 3 2-3/4 4-1/4 7-1/4 3/8 1/2 PSD200-5-AA PSD200-5-CH-AA 2 5 2-3/4 6-1/4 9-1/2 3/8 1/2 PSD250-3-AA PSD250-3-CH-AA 2-1/2 3 3-1/8 4-1/4 7-3/4 3/8 1/2 PSD250-5-AA PSD250-5-CH-AA 2-1/2 5 3-1/8 6-1/4 10 3/8 1/2 PSD300-3-AA PSD300-3-CH-AA 3 3 3-5/8 4-1/4 7-3/4 3/8 5/8 PSD300-5-AA PSD300-5-CH-AA 3 5 3-5/8 6-1/4 10 3/8 5/8 PSD300-7-AA PSD300-7-CH-AA 3 7 3-5/8 8-1/2 12-1/4 1/2 5/8 PSD350-3-AA PSD350-3-CH-AA 3-1/2 3 4 4-1/4 7-3/4 3/8 5/8 PSD350-5-AA PSD350-5-CH-AA 3-1/2 5 4 6-1/4 10 3/8 5/8 PSD350-7-AA PSD350-7-CH-AA 3-1/2 7 4 8-1/2 12 1/2 5/8
www.AFLglobal.com or 800-890-8878 99 Swage Bus Accessories 230 kV SUPPORTS Bus Support, Pipe, Slide or Tight Fit TYPE PSD-AA, PSD-CH-AA (cont.) Ordering Information CATALOG NUMBER S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD CHATTER SPRING A F L T PSD400-3-AA PSD400-3-CH-AA 4 3 4-1/2 4-1/4 7-3/4 1/2 5/8 PSD400-5-AA PSD400-5-CH-AA 4 5 4-1/2 6-1/4 10 1/2 5/8 PSD400-7-AA PSD400-7-CH-AA 4 7 4-1/2 8-1/2 12-1/4 1/2 5/8 PSD450-3-AA PSD450-3-CH-AA 4-1/2 3 4-3/4 4-1/4 8 1/2 5/8 PSD450-5-AA PSD450-5-CH-AA 4-1/2 5 4-3/4 6-1/4 10 1/2 5/8 PSD450-7-AA PSD450-7-CH-AA 4-1/2 7 4-3/4 8-1/2 12-3/4 5/8 5/8 PSD500-3-AA PSD500-3-CH-AA 5 3 5 4-1/4 8 1/2 5/8 PSD500-5-AA PSD500-5-CH-AA 5 5 5 6-1/4 10 1/2 5/8 PSD500-7-AA PSD500-7-CH-AA 5 7 5 8-1/2 12-3/4 1/2 5/8 PSD600-3-AA PSD600-3-CH-AA 6 3 5-1/2 4-1/4 8-1/4 1/2 5/8 PSD600-5-AA PSD600-5-CH-AA 6 5 5-1/2 6-1/4 10-1/2 1/2 5/8 PSD600-7-AA PSD600-7-CH-AA 6 7 5-1/2 8-1/2 12-3/4 1/2 5/8 PSD800-5-AA PSD800-5-CH-AA 8 5 6-7/8 6-1/4 10-1/2 1/2 5/8 PSD800-7-AA PSD800-7-CH-AA 8 7 6-7/8 8-1/2 12-3/4 1/2 5/8 © 2011, AFL, all rights reserved. PP-3-00405 , Revision 2, 9.5.18 Specifications are subject to change without notice.
www.AFLglobal.com or 800-890-8878 100 © 2011, AFL, all rights reserved. PP-3-00408, Revision 4, 2.14.18 Specifications are subject to change without notice. Swage Bus Accessories 345/500 kV SUPPORTS TYPE PSD-V-AA, PSD-V-CH-AA Bolted Bus Support, Pipe, Slide or Tight Fit Double ring support is designed to be corona free for 345 kV and 500 kV service. Support is designed to be slip or tight fit depending on top caps. Ordering Information CATALOG NUMBER S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD WITH CHATTER SPRING A B F T PSD250-5-V-AA PSD250-5-V-CH-AA 2 1/2 5 3 1/8 9 7/8 6 1/4 17/32 1/2 PSD300-3-V-AA PSD300-3-V-CH-AA 3 3 3 5/8 10 1/8 4 1/4 5/8 5/8 PSD300-5-V-AA PSD300-5-V-CH-AA 3 5 3 5/8 10 1/4 6 1/4 1/2 5/8 PSD300-7-V-AA PSD300-7-V-CH-AA 3 7 3 5/8 14 1/2 8 1/2 1/2 5/8 PSD350-5-V-AA PSD350-5-V-CH-AA 3 1/2 5 4 10 1/4 6 1/4 1/2 5/8 PSD350-7-V-AA PSD350-7-V-CH-AA 3 1/2 7 4 14 1/2 8 1/2 1/2 5/8 PSD400-3-V-AA PSD400-3-V-CH-AA 4 3 4 1/2 10 1/8 4 1/4 9/16 5/8 PSD400-5-V-AA PSD400-5-V-CH-AA 4 5 4 1/2 10 1/4 6 3/8 9/16 5/8 PSD400-7-V-AA PSD400-7-V-CH-AA 4 7 4 1/2 14 1/2 8 1/2 1/2 5/8 PSD500-3-V-AA PSD500-3-V-CH-AA 5 3 5 10 1/8 4 1/4 9/16 5/8 PSD500-5-V-AA PSD500-5-V-CH-AA 5 5 5 10 1/4 6 1/4 1/2 5/8 PSD500-5/7-V-AA PSD500-5/7-V-CH-AA 5 5 & 7 5 12 3/4 8 1/2 5/8 5/8 PSD500-7-V-AA PSD500-7-V-CH-AA 5 7 5 12 3/4 8 1/2 5/8 5/8 PSD600-5-V-AA PSD600-5-V-CH-AA 6 5 5 1/2 10 1/4 6 1/4 1/2 5/8 PSD600-7-V-AA PSD600-7-V-CH-AA 6 7 5 1/2 12 3/4 8 1/2 5/8 5/8 PSD800R-5-V-AA PSD800R-5-V-CH-AA 8 DIA 5 7 1/2 10 1/4 6 1/4 1/2 5/8 PSD800R-7-V-AA PSD800R-7-V-CH-AA 8 DIA 7 7 1/2 12 3/4 8 1/2 5/8 5/8 PSD800-5-V-AA PSD800-5-V-CH-AA 8 5 6 7/8 10 1/4 6 1/4 1/2 5/8 PSD800-7-V-AA PSD800-7-V-CH-AA 8 7 6 7/8 12 3/4 8 1/2 5/8 5/8 PSD-V-AA Material Aluminum Alloy Hardware Galvanized steel bolts and lockwashers for mounting. Yellow anodized aluminum bolts, nuts, and lockwashers. PSD-V-CH-AA F T B A TIGHT FIT SLIP FIT Notes • For Grade Five galvanized steel hardware, add "-GS5" to catalog number. EX: PSD400-7-V-AA-GS5
www.AFLglobal.com or 800-890-8878 101 Swage Bus Accessories 230 kV © 2010, AFL, all rights reserved. PP-3-00614, Revision 0, 10.15.13 Specifications are subject to change without notice. SUPPORTS TYPE WPS-AA Aluminum Welded Bus Support Horizontal type support for pipe or tube to insulator. Slip or rigid fit applications. Material Aluminum Alloy Hardware Galvanized steel mounting hardware. Notes • For base mounting dimensions and hardware see page 3 in the general catalog index of AFL's Substation Catalog or page 46 of the Swage Accessories Catalog . L B B H W A F continued
www.AFLglobal.com or 800-890-8878 102 Swage Bus Accessories 230 kV © 2010, AFL, all rights reserved. PP-3-00614, Revision 0, 10.15.13 Specifications are subject to change without notice. SUPPORTS Ordering Information CATALOG NUMBER S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES STANDARD WITH CHATTER SPRING A B C D F H L W WPS100-3-AA WPS100-3-CH-AA 1 A 2 1 3 - 4 1/4 2 31/32 6 1/4 1 29/32 WPS100-5-AA WPS100-5-CH-AA 1 A 2 1/4 1 5 - 6 1/4 3 7/32 7 27/32 1 29/32 WPS125-3-AA WPS125-3-CH-AA 1 1/4 A 2 1/4 1 3 - 4 1/4 3 3/8 6 1/4 2 9/32 WPS125-5-AA WPS125-5-CH-AA 1 1/4 A 2 3/8 1 5 - 6 1/4 3 17/32 8 1/8 2 9/32 WPS150-3-AA WPS150-3-CH-AA 1 1/2 A 2 1/2 1 1/4 3 - 4 1/4 3 3/4 6 3/4 2 9/32 WPS150-5-AA WPS150-5-CH-AA 1 1/2 A 2 1/2 1 1/4 5 - 6 1/4 3 3/4 8 3/4 2 9/32 WPS200-3-AA WPS200-3-CH-AA 2 A 2 3/4 1 1/2 3 - 4 1/4 4 1/4 7 1/4 3 5/32 WPS200-5-AA WPS200-5-CH-AA 2 A 2 3/4 1 1/2 5 - 6 1/4 4 1/4 9 1/8 3 5/32 WPS250-3-AA WPS250-3-CH-AA 2 1/2 A 3 1/8 1 1/2 3 - 4 1/4 5 7 1/4 3 13/16 WPS250-5-AA WPS250-5-CH-AA 2 1/2 A 3 1/8 1 1/2 5 - 6 1/4 5 9 3/16 3 13/16 WPS250-7-AA WPS250-7-CH-AA 2 1/2 A 3 1/8 1 1/2 7 - 8 1/2 5 12 3 13/16 WPS300-3-AA WPS300-3-CH-AA 3 A 3 5/8 1 3/4 3 - 4 1/4 5 25/32 7 3/4 4 5/16 WPS300-3/5-AA WPS300-3/5-CH-AA 3 B 3 5/8 1 3/4 3 5 6 1/4 5 25/32 9 3/4 4 5/16 WPS300-5-AA WPS300-5-CH-AA 3 A 3 5/8 1 3/4 5 - 6 1/4 5 25/32 9 3/4 4 5/16 WPS300-5/7-AA WPS300-5/7-CH-AA 3 B 3 5/8 1 3/4 5 7 8 1/2 5 25/32 12 1/4 4 5/16 WPS300-7-AA WPS300-7-CH-AA 3 A 3 5/8 1 3/4 7 - 8 1/2 5 25/32 12 1/4 4 5/16 WPS350-3-AA WPS350-3-CH-AA 3 1/2 A 4 1 3/4 3 - 4 1/4 6 1/2 7 3/4 5 WPS350-3/5-AA WPS350-3/5-CH-AA 3 1/2 B 4 1 3/4 3 5 6 1/4 6 1/2 9 3/4 5 WPS350-5-AA WPS350-5-CH-AA 3 1/2 A 4 1 3/4 5 - 6 1/4 6 1/2 9 3/4 5 WPS350-5/7-AA WPS350-5/7-CH-AA 3 1/2 B 4 1 3/4 5 7 8 1/2 6 1/2 12 1/8 5 WPS350-7-AA WPS350-7-CH-AA 3 1/2 A 4 1 3/4 7 - 8 1/2 6 1/2 12 1/8 5 WPS400-3-AA WPS400-3-CH-AA 4 A 4 1/2 2 3 - 4 1/4 7 1/4 8 1/8 5 15/32 WPS400-3/5-AA WPS400-3/5-CH-AA 4 B 4 1/2 2 3 5 6 1/4 7 1/4 10 1/4 5 15/32 WPS400-5-AA WPS400-5-CH-AA 4 A 4 1/2 2 5 - 6 1/4 7 1/4 10 1/4 5 15/32 WPS400-5/7-AA WPS400-5/7-CH-AA 4 B 4 1/2 2 5 7 8 1/2 7 1/4 12 1/2 5 15/32 WPS400-7-AA WPS400-7-CH-AA 4 A 4 1/2 2 7 - 8 1/2 7 1/4 12 1/2 5 15/32 WPS450-3-AA WPS450-3-CH-AA 4 1/2 A 4 3/4 2 3 - 4 1/4 7 1/4 8 1/4 5 31/32 WPS450-3/5-AA WPS450-3/5-CH-AA 4 1/2 B 4 3/4 2 3 5 6 1/4 7 1/4 10 1/4 5 31/32 WPS450-5-AA WPS450-5-CH-AA 4 1/2 A 4 3/4 2 5 - 6 1/4 7 1/4 10 1/4 5 31/32 WPS450-5/7-AA WPS450-5/7-CH-AA 4 1/2 B 4 3/4 2 5 7 8 1/2 7 1/4 12 1/2 5 15/32 WPS450-7-AA WPS450-7-CH-AA 4 1/2 A 4 3/4 2 7 - 8 1/2 7 1/4 12 1/2 5 15/32 WPS500-3-AA WPS500-3-CH-AA 5 A 5 2 1/4 3 - 4 1/4 8 9/16 8 7/8 6 5/8 WPS500-3/5-AA WPS500-3/5-CH-AA 5 B 5 2 1/4 3 5 6 1/4 8 9/16 10 7/8 6 5/8 WPS500-5-AA WPS500-5-CH-AA 5 A 5 2 1/4 5 - 6 1/4 8 9/16 10 7/8 6 5/8 WPS500-5/7-AA WPS500-5/7-CH-AA 5 B 5 2 1/4 5 7 8 1/2 8 9/16 13 1/8 6 5/8 WPS500-7-AA WPS500-7-CH-AA 5 A 5 2 1/4 7 - 8 1/2 8 9/16 13 1/8 6 5/8 WPS600-3-AA WPS600-3-CH-AA 6 A 5 1/2 2 1/4 3 - 4 1/4 9 23/32 8 7/8 7 7/8 WPS600-3/5-AA WPS600-3/5-CH-AA 6 B 5 1/2 2 1/4 3 5 6 1/4 9 23/32 10 7/8 7 7/8 WPS600-5-AA WPS600-5-CH-AA 6 A 5 1/2 2 1/4 5 - 6 1/4 9 23/32 10 7/8 7 7/8 WPS600-5/7-AA WPS600-5/7-CH-AA 6 B 5 1/2 2 1/4 5 7 8 1/2 9 23/32 13 1/8 7 7/8 WPS600-7-AA WPS600-7-CH-AA 6 A 5 1/2 2 1/4 7 - 8 1/2 9 23/32 13 1/8 7 7/8 TYPE WPS-AA Aluminum Welded Bus Support
103 © 2013, AFL, all rights reserved. PP-3-00645, Revision 2, 3.16.18 Specifications are subject to change without notice. Swage Bus Accessories www.AFLglobal.com or 800-890-8878 SUPPORTS C L C L Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • See General Information Section for this dimension. • 5" and 6" S.P.S. parts require double swages TYPE SWPS-AA Swage Horizontal Bus Support A Swage type horizontal bus support. ∅ B ∅ B ∅ C BOLT CIRCLE B BOLT CIRCLE A —Machine Finish A D E continued
104 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00645, Revision 2, 3.16.18 Specifications are subject to change without notice. SUPPORTS Ordering Information AFL NO. S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E SWPS200-3-CH-AA 2 A 2.75 3.00 - 3.75 15.63 65TD200 230 SWPS200-3/5-CH-AA 2 B 2.75 3.00 5.00 3.75 16.88 65TD200 230 SWPS200-5-CH-AA 2 A 2.75 5.00 - 3.75 16.88 65TD200 230 SWPS200-5/7-CH-AA 2 B 2.75 5.00 7.00 3.75 19.38 65TD200 230 SWPS200-7-CH-AA 2 A 2.75 7.00 - 3.75 19.38 65TD200 230 SWPS250-3-CH-AA 2.5 A 3.16 3.00 - 4.00 16.13 65TD250 230 SWPS250-3/5-CH-AA 2.5 B 3.16 3.00 5.00 4.00 17.38 65TD250 230 SWPS250-5-CH-AA 2.5 A 3.16 5.00 - 4.00 17.38 65TD250 230 SWPS250-5/7-CH-AA 2.5 B 3.16 5.00 7.00 4.00 19.88 65TD250 230 SWPS250-7-CH-AA 2.5 A 3.16 7.00 - 4.00 19.88 65TD250 230 SWPS300-3-CH-AA 3 A 3.63 3.00 - 3.75 16.63 65TD300 500 SWPS300-3/5-CH-AA 3 B 3.63 3.00 5.00 3.75 17.88 65TD300 500 SWPS300-5-CH-AA 3 A 3.63 5.00 - 3.75 17.88 65TD300 500 SWPS300-5/7-CH-AA 3 B 3.63 5.00 7.00 3.75 20.38 65TD300 500 SWPS300-7-CH-AA 3 A 3.63 7.00 - 3.75 20.38 65TD300 500 SWPS350-3-CH-AA 3.5 A 4.00 3.00 - 4.00 17.13 65TD350 500 SWPS350-3/5-CH-AA 3.5 B 4.00 3.00 5.00 4.00 18.38 65TD350 500 SWPS350-5-CH-AA 3.5 A 4.00 5.00 - 4.00 18.38 65TD350 500 SWPS350-5/7-CH-AA 3.5 B 4.00 5.00 7.00 4.00 20.88 65TD350 500 SWPS350-7-CH-AA 3.5 A 4.00 7.00 - 4.00 20.88 65TD350 500 SWPS400-3-CH-AA 4 A 4.50 3.00 - 4.50 18.13 65TD400 500 SWPS400-3/5-CH-AA 4 B 4.50 3.00 5.00 4.50 19.38 65TD400 500 SWPS400-5-CH-AA 4 A 4.50 5.00 - 4.50 19.38 65TD400 500 SWPS400-5/7-CH-AA 4 B 4.50 5.00 7.00 4.50 21.88 65TD400 500 SWPS400-7-CH-AA 4 A 4.50 7.00 - 4.50 21.88 65TD400 500 SWPS500-3/5-CH-AA 5 B 5.00 3.00 5.00 5.38 21.14 85TD500 500 SWPS500-5-CH-AA 5 A 5.00 5.00 - 5.38 21.14 85TD500 500 SWPS500-5/7-CH-AA 5 B 5.00 5.00 7.00 5.38 23.64 85TD500 500 SWPS500-7-CH-AA 5 A 5.00 7.00 - 5.38 23.64 85TD500 500 SWPS600-3/5-CH-AA 6 B 5.50 3.00 5.00 6.62 23.62 115TD600 500 SWPS600-5-CH-AA 6 A 5.50 5.00 - 6.62 23.62 115TD600 500 SWPS600-5/7-CH-AA 6 B 5.50 5.00 7.00 6.62 26.12 115TD600 500 SWPS600-7-CH-AA 6 A 5.50 7.00 - 6.62 26.12 115TD600 500 TYPE SWPS-AA Swage Horizontal Bus Support
www.AFLglobal.com or 800-890-8878 105 © 2013, AFL, all rights reserved. PP-3-00646, Revision 1, 3.11.15 Specifications are subject to change without notice. Swage Bus Accessories SUPPORTS C L C L Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWPSS-AA Swage Horizontal Bus Support A Swage type horizontal bus support. ∅ B ∅ B ∅ C BOLT CIRCLE B BOLT CIRCLE A —Machine Finish A D E continued
www.AFLglobal.com or 800-890-8878 106 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00646, Revision 1, 3.11.15 Specifications are subject to change without notice. SUPPORTS Ordering Information AFL NO. S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C D E SWPSS200-3-CH-AA 2 A 2.75 3.00 — 3.75 11.88 65TD200 230 SWPSS200-3/5-CH-AA 2 B 2.75 3.00 5.00 3.75 13.13 65TD200 230 SWPSS200-5-CH-AA 2 A 2.75 5.00 — 3.75 13.13 65TD200 230 SWPSS200-5/7-CH-AA 2 B 2.75 5.00 7.00 3.75 15.63 65TD200 230 SWPSS200-7-CH-AA 2 A 2.75 7.00 — 3.75 15.63 65TD200 230 SWPSS250-3-CH-AA 2.5 A 3.13 3.00 — 4.00 12.13 65TD250 230 SWPSS250-3/5-CH-AA 2.5 B 3.13 3.00 5.00 4.00 13.38 65TD250 230 SWPSS250-5-CH-AA 2.5 A 3.13 5.00 — 4.00 13.38 65TD250 230 SWPSS250-5/7-CH-AA 2.5 B 3.13 5.00 7.00 4.00 15.88 65TD250 230 SWPSS250-7-CH-AA 2.5 A 3.13 7.00 — 4.00 15.88 65TD250 230 SWPSS300-3-CH-AA 3 A 3.63 3.00 — 3.75 12.88 65TD300 500 SWPSS300-3/5-CH-AA 3 B 3.63 3.00 5.00 3.75 14.13 65TD300 500 SWPSS300-5-CH-AA 3 A 3.63 5.00 — 3.75 14.13 65TD300 500 SWPSS300-5/7-CH-AA 3 B 3.63 5.00 7.00 3.75 16.63 65TD300 500 SWPSS300-7-CH-AA 3 A 3.63 7.00 — 3.75 16.63 65TD300 500 SWPSS350-3-CH-AA 3.5 A 4.00 3.00 — 4.00 13.13 65TD350 500 SWPSS350-3/5-CH-AA 3.5 B 4.00 3.00 5.00 4.00 14.38 65TD350 500 SWPSS350-5-CH-AA 3.5 A 4.00 5.00 — 4.00 14.38 65TD350 500 SWPSS350-5/7-CH-AA 3.5 B 4.00 5.00 7.00 4.00 16.88 65TD350 500 SWPSS350-7-CH-AA 3.5 A 4.00 7.00 — 4.00 16.88 65TD350 500 SWPSS400-3-CH-AA 4 A 4.50 3.00 — 4.50 13.63 65TD400 500 SWPSS400-3/5-CH-AA 4 B 4.50 3.00 5.00 4.50 14.88 65TD400 500 SWPSS400-5-CH-AA 4 A 4.50 5.00 — 4.50 14.88 65TD400 500 SWPSS400-5/7-CH-AA 4 B 4.50 5.00 7.00 4.50 17.38 65TD400 500 SWPSS400-7-CH-AA 4 A 4.50 7.00 — 4.50 17.38 65TD400 500 SWPSS500-3/5-CH-AA 5 B 5.00 3.00 5.00 5.38 15.76 85TD500 500 SWPSS500-5-CH-AA 5 A 5.00 5.00 — 5.38 15.76 85TD500 500 SWPSS500-5/7-CH-AA 5 B 5.00 5.00 7.00 5.38 18.26 85TD500 500 SWPSS500-7-CH-AA 5 A 5.00 7.00 — 5.38 18.26 85TD500 500 SWPSS600-3/5-CH-AA 6 B 5.50 3.00 5.00 6.63 17.00 115TD600 500 SWPSS600-5-CH-AA 6 A 5.50 5.00 — 6.63 17.00 115TD600 500 SWPSS600-5/7-CH-AA 6 B 5.50 5.00 7.00 6.63 19.50 115TD600 500 SWPSS600-7-CH-AA 6 A 5.50 7.00 — 6.63 19.50 115TD600 500 TYPE SWPSS-AA Swage Horizontal Bus Support

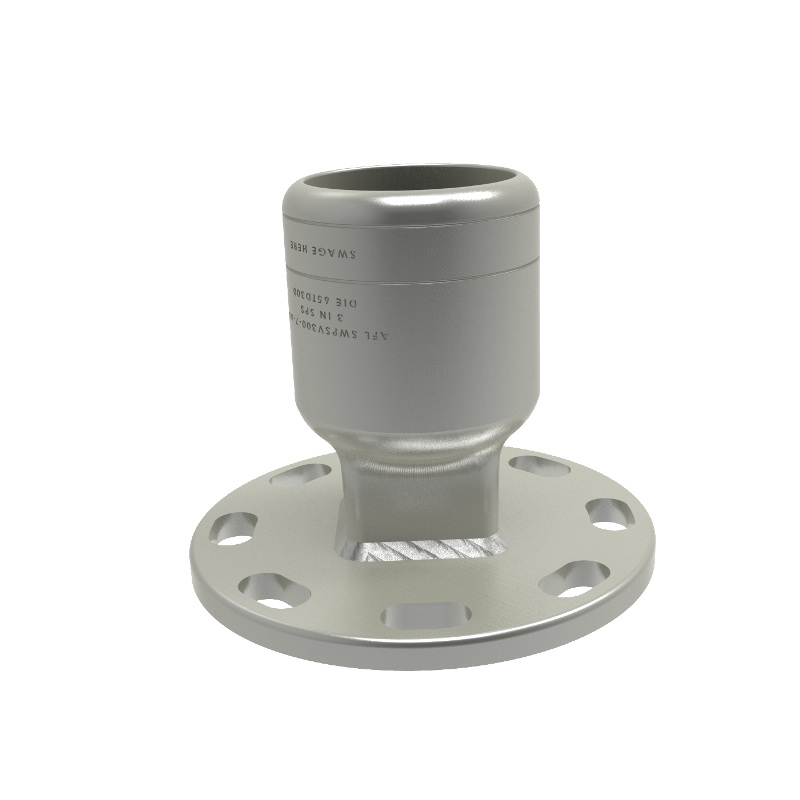

www.AFLglobal.com or 800-890-8878 107 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00607, Revision 2, 10.9.19 Specifications are subject to change without notice. SUPPORTS Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWPSV-AA Swage Vertical Bus Support A Swage type vertical bus support. —Machine Finish Ordering Information AFL NO. S.P.S. FIG. NO. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C SWPSV100-3-AA 1 1 6.30 3.00 - 65TD100 230 SWPSV100-3/5-AA 1 2 6.36 3.00 5.00 65TD100 230 SWPSV100-5-AA 1 1 6.30 5.00 - 65TD100 230 SWPSV150-3-AA 1.5 1 6.30 3.00 - 65TD150 230 SWPSV150-3/5-AA 1.5 2 6.36 3.00 5.00 65TD150 230 SWPSV150-5-AA 1.5 1 6.30 5.00 - 65TD150 230 SWPSV200-3-AA 2 1 6.30 3.00 - 65TD200 230 SWPSV200-3/5-AA 2 2 6.36 3.00 5.00 65TD200 230 SWPSV200-5-AA 2 1 6.30 5.00 - 65TD200 230 SWPSV250-3-AA 2.5 1 6.29 3.00 - 65TD250 230 SWPSV250-3/5-AA 2.5 2 6.36 3.00 5.00 65TD250 230 SWPSV250-5-AA 2.5 1 6.29 5.00 - 65TD250 230 SWPSV300-3-AA 3 1 6.70 3.00 - 65TD300 345 SWPSV300-3/5-AA 3 2 6.76 3.00 5.00 65TD300 345 SWPSV300-5-AA 3 1 6.76 5.00 - 65TD300 345 SWPSV300-5/7-AA 3 2 6.76 5.00 7.00 65TD300 345 SWPSV300-7-AA 3 1 6.76 7.00 - 65TD300 345 ∅ B A ∅ B ∅ C FIG. 1 FIG. 2 continued
www.AFLglobal.com or 800-890-8878 108 Swage Bus Accessories © 2013, AFL, all rights reserved. PP-3-00607, Revision 2, 10.9.19 Specifications are subject to change without notice. SUPPORTS TYPE SWPSV-AA Swage Vertical Bus Support Ordering Information AFL NO. S.P.S. FIG. NO. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A B C SWPSV350-3-AA 3.5 1 6.95 3.00 - 65TD350 345 SWPSV350-3/5-AA 3.5 2 7.01 3.00 5.00 65TD350 345 SWPSV350-5-AA 3.5 1 7.01 5.00 - 65TD350 345 SWPSV350-5/7-AA 3.5 2 7.01 5.00 7.00 65TD350 345 SWPSV350-7-AA 3.5 1 7.01 7.00 - 65TD350 345 SWPSV400-3-AA 4 1 6.95 3.00 - 65TD400 345 SWPSV400-3/5-AA 4 2 7.01 3.00 5.00 65TD400 345 SWPSV400-5-AA 4 1 7.01 5.00 - 65TD400 345 SWPSV400-5/7-AA 4 2 7.01 5.00 7.00 65TD400 345 SWPSV400-7-AA 4 1 7.01 7.00 - 65TD400 345 SWPSV500-3/5-AA 5 2 9.26 3.00 5.00 85TD500 345 SWPSV500-5-AA 5 1 9.26 5.00 - 85TD500 345 SWPSV500-5/7-AA 5 2 9.26 5.00 7.00 85TD500 345 SWPSV500-7-AA 5 1 9.26 7.00 - 85TD500 345 SWPSV600-5-AA 6 1 12.14 5.00 - 115TD600 345 SWPSV600-5/7-AA 6 2 12.14 5.00 7.00 115TD600 345 SWPSV600-7-AA 6 1 12.14 7.00 - 115TD600 345
Features:
- Aluminum
- Swage compression fitting
Applications:
- Ratings vary from 230 kV to 500 kV
- Substation
- Aluminum bus accessories
Swage Aluminum Bus Supports are designed to connect bus bar to insulators on 3-inch, 5-inch and 7-inch bolt circles. Some Bus Supports use Swage Technology for installation. These accessories vary from 230-500kV.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
1088
Close
Swage Bus Supports
Features:
- Aluminum
- Swage compression fitting
Applications:
- Ratings vary from 230 kV to 500 kV
- Substation
- Aluminum bus accessories
PRODUCT DESCRIPTION
Swage Aluminum Bus Supports are designed to connect bus bar to insulators on 3-inch, 5-inch and 7-inch bolt circles. Some Bus Supports use Swage Technology for installation. These accessories vary from 230-500kV.
