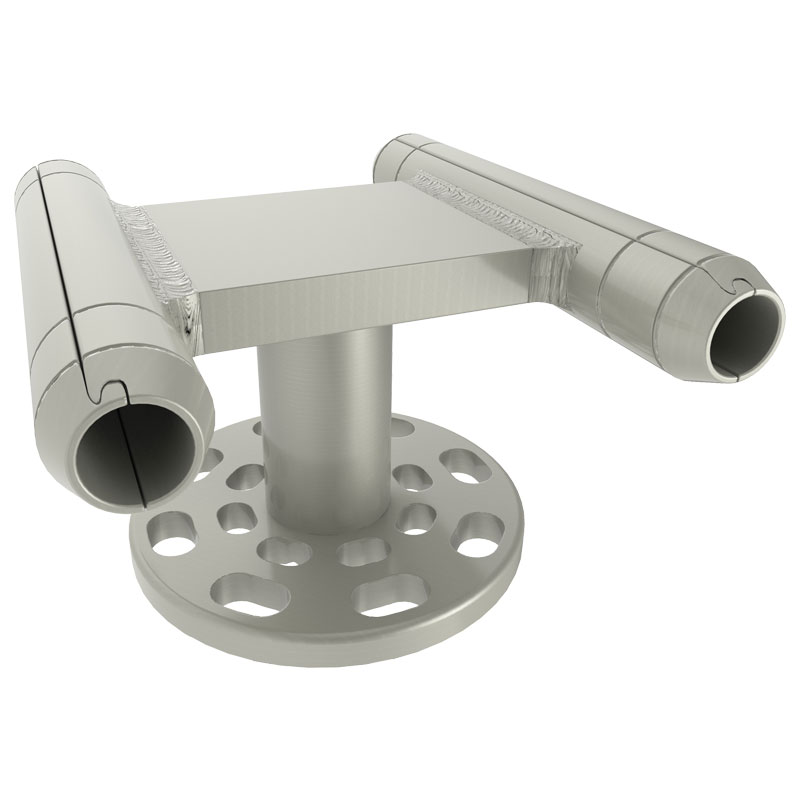

1 AFLglobal.com 1 (800) 890-8878 © 2018, AFL, a ll r ights r e s e r v e d . P P -3-00834, R e v ision 4, 8.26.2024 Specications a r e s ubject t o c h a nge w ithout notice. 1 SWAGE360 ® C a b le Accessories continued TYPE SWAS-AA Swage Split Cable Spacer Material Aluminum Alloy A B Ordering Information AFL NO. CABLE RANGE DIMENSIONS ( inches) DIE SIZE EST. WEIGHT ( lbs ) VOLTAGE RATING ( kV ) AAC ACSR A B SWAS1613-8-AA 2/0 1/0 9.00 8.00 45TD16 2.51 230 SWAS1613-12-AA 2/0 1/0 9.00 12.00 45TD16 3.39 230 SWAS1625-8-AA 250 4/0 9.00 8.00 45TD16 2.26 230 SWAS1625-12-AA 250 4/0 9.00 12.00 45TD16 3.15 230 SWAS2026-8-AA 266.8 266.8 (18/1) 9.00 8.00 45TD20 2.90 345 SWAS2026-12-AA 266.8 266.8 (18/1) 9.00 12.00 45TD20 3.78 345 SWAS2030-8-AA 300 266.8 (26/7) 9.00 8.00 45TD20 2.83 345 SWAS2030-12-AA 300 266.8 (26/7) 9.00 12.00 45TD20 3.72 345 SWAS2035-8-AA 336.4, 350 300 (26/7), 336.4 (18/1) 9.00 8.00 45TD20 2.74 345 SWAS2035-12-AA 336.4, 350 300 (26/7), 336.4 (18/1) 9.00 12.00 45TD20 3.62 345 SWAS2039-8-AA 397.5 336.4 (26/7), 336.4 (30/7), 397.5 (18/1) 9.00 8.00 45TD20 2.62 345 SWAS2039-12-AA 397.5 336.4 (26/7), 336.4 (30/7), 397.5 (18/1) 9.00 12.00 45TD20 3.50 345 SWAS2445-8-AA 450 397.5 (24/7), 397.5 (26/7) 9.13 8.00 45TD24 3.41 345 SWAS2445-12-AA 450 397.5 (24/7), 397.5 (26/7) 9.13 12.00 45TD24 4.29 345 SWAS2447-8-AA 477 397.5 (30/7) 9.13 8.00 45TD24 3.35 345 SWAS2447-12-AA 477 397.5 (30/7) 9.13 12.00 45TD24 4.23 345 SWAS2450-8-AA 500 477 (18/1) 9.13 8.00 45TD24 3.32 345 SWAS2450-12-AA 500 477 (18/1) 9.13 12.00 45TD24 4.20 345 SWAS2455-8-AA 556.5 477 (24/7), 477 (26/7) 9.13 8.00 45TD24 3.19 345 SWAS2455-12-AA 556.5 477 (24/7), 477 (26/7) 9.13 12.00 45TD24 4.07 345 SWAS2860-8-AA 600 477 (30/7), 556.5 (18/1) 10.00 8.00 45TD28 4.38 345 SWAS2860-12-AA 600 477 (30/7), 556.5 (18/1) 10.00 12.00 45TD28 5.26 345 SWAS2863-8-AA 636 556.5 (24/7), 556.5 (26/7) 10.00 8.00 45TD28 4.30 345 SWAS2863-12-AA 636 556.5 (24/7), 556.5 (26/7) 10.00 12.00 45TD28 5.19 345 SWAS2871-8-AA 700, 715.5 556.5 (30/7), 605 (24/7), 605 (26/7), 636 (18/1), 636 (36/1) 10.00 8.00 45TD28 4.17 345 SWAS2871-12-AA 700, 715.5 556.5 (30/7), 605 (24/7), 605 (26/7), 636 (18/1), 636 (36/1) 10.00 12.00 45TD28 5.05 345 2 AFLglobal.com 1 (800) 890-8878 © 2018, AFL, a ll r ights r e s e r v e d . P P -3-00834, R e v ision 4, 8.26.2024 Specications a r e s ubject t o c h a nge w ithout notice. 2 SWAGE360 ® C a b le Accessories TYPE SWAS-AA Swage Split Cable Spacer Ordering Information AFL NO. CABLE RANGE DIMENSIONS ( inches) DIE SIZE EST. WEIGHT ( lbs ) VOLTAGE RATING ( kV ) AAC ACSR A B SWAS3075-8-AA 750 605 (30/7), 605 (30/19), 636 (24/7), 636 (26/7) 10.00 8.00 45TD30 4.70 345 SWAS3075-12-AA 750 605 (30/7), 605 (30/19), 636 (24/7), 636 (26/7) 10.00 12.00 45TD30 5.58 345 SWAS3079-4-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 4.00 45TD30 3.67 345 SWAS3079-6-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 6.00 45TD30 4.50 345 SWAS3079-8-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 8.00 45TD30 4.55 345 SWAS3079-12-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 12.00 45TD30 5.43 345 SWAS3087-8-AA 874.5 715.5 (26/7), 715.5 (30/19), 795 (45/7) 10.00 8.00 45TD30 4.37 345 SWAS3087-12-AA 874.5 715.5 (26/7), 715.5 (30/19), 795 (45/7) 10.00 12.00 45TD30 5.26 345 SWAS3290-6-AA 900 795 (24/7), 795 (54/7), 795 (26/7) 10.00 6.00 45TD32 4.90 500 SWAS3290-8-AA 900 795 (24/7), 795 (54/7), 795 (26/7) 10.00 8.00 45TD32 4.94 500 SWAS3290-12-AA 900 795 (24/7), 795 (54/7), 795 (26/7) 10.00 12.00 45TD32 5.82 500 SWAS3295-8-AA 954 795 (30/19) ,900 (45/7) 10.00 8.00 45TD32 4.89 500 SWAS3295-12-AA 954 795 (30/19) ,900 (45/7) 10.00 12.00 45TD32 5.78 500 SWAS32100-8-AA 1000 874.5 (54/7), 900 (54/7), 954 (45/7) 10.00 8.00 45TD32 4.81 500 SWAS32100-12-AA 1000 874.5 (54/7), 900 (54/7), 954 (45/7) 10.00 12.00 45TD32 5.69 500 SWAS32103-8-AA 1033.5 954 (54/7) 10.00 8.00 45TD32 4.71 500 SWAS32103-12-AA 1033.5 954 (54/7) 10.00 12.00 45TD32 5.59 500 SWAS32111-8-AA 1113 1033.5 (45/7), 1033.5 (54/7) 10.00 8.00 45TD32 4.52 500 SWAS32111-12-AA 1113 1033.5 (45/7), 1033.5 (54/7) 10.00 12.00 45TD32 5.40 500 SWAS36119-8-AA 1192.5 1113 (45/7) 10.50 8.00 45TD36 6.12 500 SWAS36119-12-AA 1192.5 1113 (45/7) 10.50 12.00 45TD36 7.00 500 SWAS36127-4-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 4.00 45TD36 5.09 500 SWAS36127-6-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 6.00 45TD36 5.53 500 SWAS36127-8-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 8.00 45TD36 5.97 500 SWAS36127-12-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 12.00 45TD36 6.86 500 SWAS36135-8-AA 1351.5 1192.5 (54/19), 1272 (45/7) 10.50 8.00 45TD36 5.96 500 SWAS36135-12-AA 1351.5 1192.5 (54/19), 1272 (45/7) 10.50 12.00 45TD36 6.84 500 SWAS36143-8-AA 1431 1272 (54/19), 1351.5 (45/7) 10.50 8.00 45TD36 5.78 500 SWAS36143-12-AA 1431 1272 (54/19), 1351.5 (45/7) 10.50 12.00 45TD36 6.66 500 SWAS36151-8-AA 1510.5 1351.5 (54/19), 1431 (45/7) 10.50 8.00 45TD36 5.60 500 SWAS36151-12-AA 1510.5 1351.5 (54/19), 1431 (45/7) 10.50 12.00 45TD36 6.48 500 SWAS36159-4-AA 1590 1431 (54/19), 1510.5 (45/7) 10.50 4.00 45TD36 6.00 500 SWAS36159-8-AA 1590 1431 (54/19), 1510.5 (45/7) 10.50 8.00 45TD36 5.45 500 SWAS36159-12-AA 1590 1431 (54/19), 1510.5 (45/7) 10.50 12.00 45TD36 6.34 500 SWAS36159-18-AA 1590 1431 (54/19), 1510.5 (45/7) 10.50 18.00 45TD36 6.20 500 SWAS36175-8-AA 1750 1510.5 (54/19), 1590 (45/7) 10.50 8.00 45TD36 5.07 500 SWAS36175-12-AA 1750 1510.5 (54/19), 1590 (45/7) 10.50 12.00 45TD36 5.95 500 SWAS36175-18-AA 1750 1510.5 (54/19), 1590 (45/7) 10.50 18.00 45TD36 5.82 500 SWAS36180-8-AA 1800 1590 (54/19) 10.50 8.00 45TD36 4.90 500 SWAS36180-12-AA 1800 1590 (54/19) 10.50 12.00 45TD36 5.79 500 SWAS36180-18-AA 1800 1590 (54/19) 10.50 18.00 45TD36 7.11 500 SWAS44200-6-AA 2000 1780 (84/19) 11.50 6.00 65TD44L 8.40 500 SWAS44200-8-AA 2000 1780 (84/19) 11.50 8.00 65TD44L 8.84 500 SWAS44200-12-AA 2000 1780 (84/19) 11.50 12.00 65TD44L 9.72 500 SWAS44230-8-AA 2250 2156 (84/19), 2167 (72/7) 11.50 8.00 65TD44L 8.22 500 SWAS44230-12-AA 2250 2156 (84/19), 2167 (72/7) 11.50 12.00 65TD44L 9.11 500 SWAS44250-8-AA 2500 2312 (76/19) 11.50 8.00 65TD44L 7.61 500 SWAS44250-12-AA 2500 2312 (76/19) 11.50 12.00 65TD44L 8.49 500 SWAS44250-18-AA 2500 2312 (76/19) 11.50 18.00 65TD44L 9.82 500 3 AFLglobal.com 1 (800) 890-8878 © 2018, AFL, a l l r i g h t s r e s e r v e d . P P -3-00835, R e v i s i o n 5, 9.15.2025 Specications a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . 3 SWAGE360 ® Cable Accessories TYPE SWAS-N-AA Swage Split Cable Spacer with NEMA Pad Material Aluminum Alloy continued A B F ∅ 0.56 (4X) T 1.75 0.75 E D 1.75 C Ordering Information AFL NO. CABLE RANGE DIMENSIONS ( inches) DIE SIZE AAC ACSR A B C D E F T SWAS1613-8-4N4-AA 2/0 1/0 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD16 SWAS1625-8-4N4-AA 250 4/0 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD16 SWAS2026-8-4N4-AA 266.8 266.8 (18/1) 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD20 SWAS2030-8-4N4-AA 300 266.8 (26/7) 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD20 SWAS2035-8-4N4-AA 336.4, 350 300 (26/7), 336.4 (18/1) 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD20 SWAS2039-8-4N4-AA 397.5 336.4 (26/7), 336.4 (30/7), 397.5 (18/1) 9.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD20 SWAS2445-8-4N4-AA 450 397.5 (24/7), 397.5 (26/7) 9.13 8.00 4.00 1.13 1.13 5.50 0.75 45TD24 SWAS2447-8-4N4-AA 477 397.5 (30/7) 9.13 8.00 4.00 1.13 1.13 5.50 0.75 45TD24 SWAS2450-8-4N4-AA 500 477 (18/1) 9.13 8.00 4.00 1.13 1.13 5.50 0.75 45TD24 SWAS2455-8-4N4-AA 556.5 477 (24/7), 477 (26/7) 9.13 8.00 4.00 1.13 1.13 5.50 0.75 45TD24 4 AFLglobal.com 1 (800) 890-8878 © 2018, AFL, a l l r i g h t s r e s e r v e d . P P -3-00835, R e v i s i o n 5, 9.15.2025 Specications a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . 4 SWAGE360 ® Cable Accessories TYPE SWAS-N-AA Swage Split Cable Spacer with NEMA Pad Ordering Information AFL NO. CABLE RANGE DIMENSIONS ( inches) DIE SIZE AAC ACSR A B C D E F T SWAS2860-8-4N4-AA 600 477 (30/7), 556.5 (18/1) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD28 SWAS2863-8-4N4-AA 636 556.5 (24/7), 556.5 (26/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD28 SWAS2871-8-4N4-AA 700, 715.5 556.5 (30/7), 605 (24/7), 605 (26/7), 636 (18/1), 636 (36/1) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD28 SWAS3075-8-4N4-AA 750 605 (30/7), 605 (30/19), 636 (24/7), 636 (26/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD30 SWAS3079-8-4N4-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD30 SWAS3079-6-4N4-AA 795 636 (30/7), 636 (30/19), 666.6 (24/7), 666.6 (26/7), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 10.00 6.00 4.00 1.13 1.13 5.50 0.75 45TD30 SWAS3087-8-4N4-AA 874.5 715.5 (26/7), 715.5 (30/19), 795 (45/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD30 SWAS3290-8-4N4-AA 900 795 (24/7), 795 (54/7), 795 (26/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS3295-6-4N4-AA 954 795 (30/19) ,900 (45/7) 10.00 6.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS3295-8-4N4-AA 954 795 (30/19) ,900 (45/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS32100-8-4N4-AA 1000 874.5 (54/7), 900 (54/7), 954 (45/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS32103-8-4N4-AA 1033.5 954 (54/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS32111-8-4N-AA 1113 1033.5 (45/7), 1033.5 (54/7) 10.00 8.00 3.00 0.63 0.63 4.50 0.75 45TD32 SWAS32111-8-4N4-AA 1113 1033.5 (45/7), 1033.5 (54/7) 10.00 8.00 4.00 1.13 1.13 5.50 0.75 45TD32 SWAS36119-8-4N4-AA 1192.5 1113 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36127-6-4N4-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 6.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36127-8-4N4-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36127-12-4N4-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 12.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36127-18-4N4-AA 1272 1113 (54/19), 1192.5 (45/7) 10.50 18.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36135-8-4N4-AA 1351.5 1192.5 (54/19), 1272 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36143-8-4N4-AA 1431 1272 (54/19), 1351.5 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36151-8-4N4-AA 1510.5 1351.5 (54/19), 1431 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36159-8-4N4-AA 1590 1431 (54/19), 1510.5 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36175-8-4N4-AA 1750 1510.5 (54/19), 1590 (45/7) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36180-8-4N4-AA 1800 1590 (54/19) 10.50 8.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS36180-18-4N4-AA 1800 1590 (54/19) 10.50 18.00 4.00 1.13 1.13 5.50 0.75 45TD36 SWAS44200-8-4N4-AA 2000 1780 (84/19) 11.50 8.00 4.00 1.13 1.13 5.50 1.00 65TD44 SWAS44230-8-4N4-AA 2250, 2300 2156 (84/19), 2167 (72/7) 11.50 8.00 4.00 1.13 1.13 5.50 1.00 65TD44 SWAS44230-18-4N4-AA 2250, 2300 2156 (84/19), 2167 (72/7) 11.50 18.00 4.00 1.13 1.13 5.50 1.00 65TD44 SWAS44250-8-4N4-AA 2500 2312 (76/19) 11.50 8.00 4.00 1.13 1.13 5.50 1.00 65TD44
