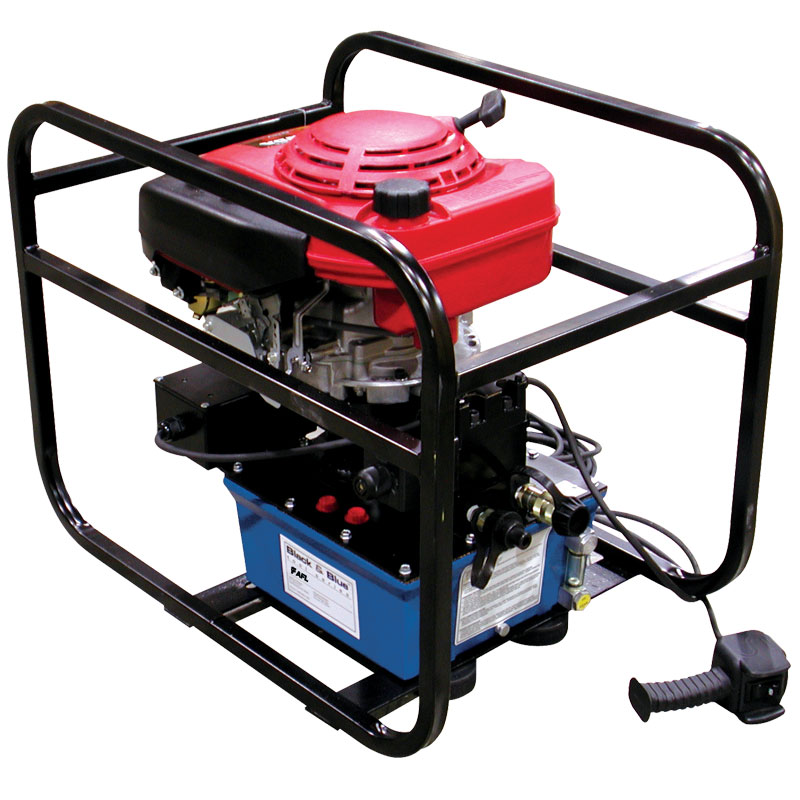

www.AFLglobal.com or 800-866-7385 Tools & Equipment 11 © 2003-20141, AFL, all rights reserved. Revision 2, 9.21.11 Specifications are subject to change without notice. H Y D R A U L I C S 30GHR Gas Hydraulic Pump The 30GHR is a gas powered pump that produces 10,000 PSI of hydraulic pressure. The two-stage pumping system allows for rapid ram advance. The unloading pressure of the pump is 1,000 PSI. The 30GHR comes with a remote control with a 10 foot cord and is designed for continuous duty. Features • 10,000 PSI high-pressure pump • Powered by a 5.5 HP Honda engine • Remote control with 10 foot cord • Designed to operate single acting and double acting tools • High-pressure relief valve • Pressure matched quick coupler supplied • Protective carrying cage • Sight gauge to monitor hydraulic oil level Ordering AFL NO. De SCRI pt ION 30GHR 10,000 PSI Gas Powered Hydraulic Pump with Remote Control Technical Data p ARAM ete R VALU e Gas Powered Motor 5.5 HP Honda Engine Control Remote Control with 10 foot cord Oil Delivery per minute 430 cu in @ 400 PSI 125 cu in @ 10,000 PSI Oil Reservoir 2 gallons (7.40 liters) Overall Length 21.75 in (55.25cm) Overall Width 19.75 in (50.17 cm) Overall Height 24.50 in (62.23 cm) Pump Weight with oil 135 lbs (61.36 kg) WARNING: Do not operate any compression tool without dies.
