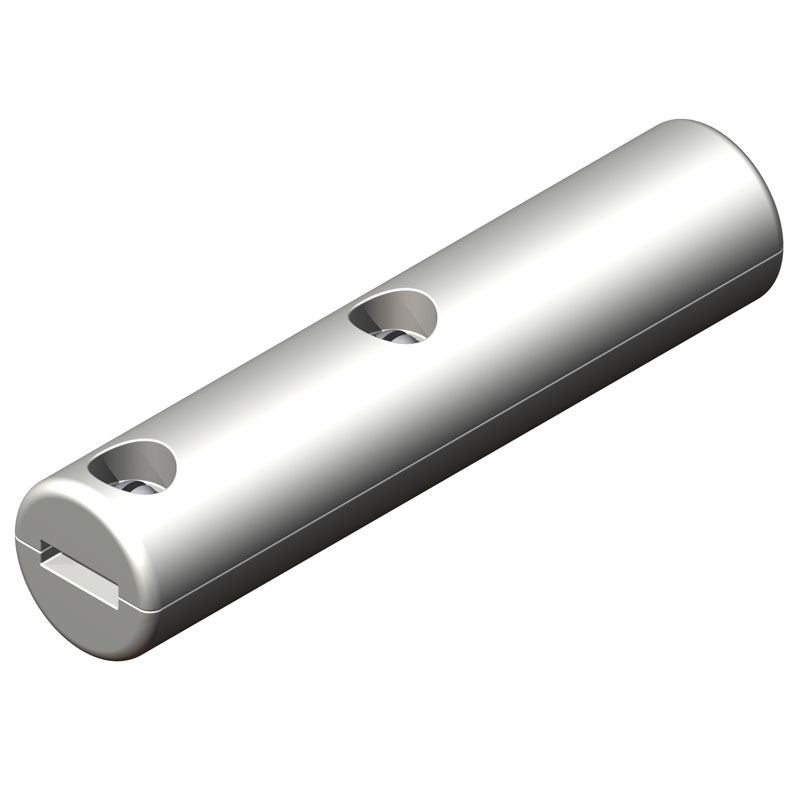

A composition molded limiter terminal shell for use with limiter terminal assembly types LLA-2R123, LLA-2PL, LLA-2P123, and LLA-2PL123.
52a8df1c09764d8682f3d27d16f0da42
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00095, Revision 2, 11.13.2025 Specifications are subject to change without notice. 1 Network Underground A composition molded shell consisting of two symmetrical halves assembled with machine screws and nuts. Internal cavities and heat confining barriers permit fusible section of limiter to clear circuit without damage to surrounding insulation. Type LLA-2P2 Limiter Terminal Shell for Use with Limiter Terminal Assembly Types LLA-2R123, LLA-2PL, LLA-2P123, and LLA-2PL123 Ordering Information Catalog Number Cable Range Dimensions in inches D-Diameter L LLA25-2P2 4/0 STR - 250 MCM 1 1/2 5 3/4 LLA50-2P2 300 MCM - 500 MCM 1 7/8 7 1/16 LLA75-2P2 750 MCM 1 7/8 7 1/16 D L AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
Features:
- Tin-plated copper alloy
Applications:
- Network Underground
A composition molded shell consisting of two symmetrical halves assembled with machine screws and nuts. Internal cavities and heat confining barriers permit fusible section of limiter to clear circuit without damage to surrounding insulation.
