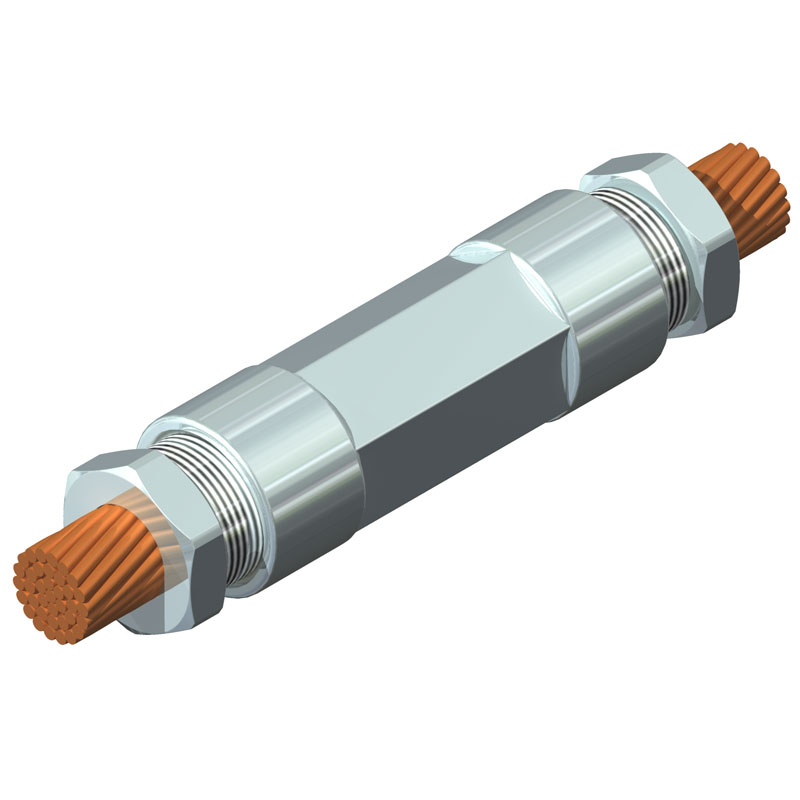

A straight line coupler for joining two cables on end. The symmetry and compact design render the connector easy to tape.
52a8df1c09764d8682f3d27d16f0da42
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00130, Revision 2, 11.12.2025 Specifications are subject to change without notice. 1 Network Underground A straight line coupler for joining two cables on end. The symmetry and compact design render the connector easy to tape. A high mechanical advantage ensures a sound mechanical and electrical connection for trouble free operation. Type STC Cable Coupler Ordering Information Catalog Number Cable Size Cable Diameter Dimensions in inches E F L LB STC2 6 STR 0.184 9/16 7/16 2 5/16 1 1/2 STC4 4 STR 0.232 5/8 1/2 2 5/16 1 1/2 STC6 2 STR 0.292 11/16 9/16 2 3/4 1 7/8 STC8 1 STR 0.332 13/16 5/8 3 2 STC10 1/0 STR 0.372 15/16 3/4 3 3/8 2 1/8 STC13 2/0 STR 0.419 1 13/16 3 1/2 2 1/4 STC17 3/0 STR 0.47 1 13/16 3 3/4 2 1/2 STC21 4/0 STR 0.528 1 1/8 7/8 3 13/16 2 5/8 STC25 250 MCM 0.575 1 3/16 15/16 4 2 3/4 STC30 300 MCM 0.63 1 1/4 1 4 3/8 3 STC35 350 MCM 0.681 1 3/8 1 1/8 5 1/8 3 3/4 STC40 400 MCM 0.728 1 3/8 1 1/8 5 3/16 3 13/16 STC50 500 MCM 0.813 1 1/2 1 1/4 5 1/4 3 7/8 STC60 600 MCM 0.893 1 9/16 1 5/16 5 3/4 4 STC70 700 MCM 0.964 1 3/4 1 7/16 6 4 1/4 STC75 750 MCM 0.998 1 13/16 1 1/2 6 1/2 4 5/8 STC80 800 MCM 1.031 1 13/16 1 1/2 6 5/8 4 3/4 STC90 900 MCM 1.094 1 15/16 1 5/8 6 3/4 4 7/8 STC100 1000 MCM 1.152 1 13/16 1 5/8 7 1/4 5 3/16 STC125 1250 MCM 1.289 2 1/4 2 8 5 5/8 STC150 1500 MCM 1.412 2 3/8 2 1/8 8 3/4 6 1/8 STC175 1750 MCM 1.526 2 1/2 2 1/4 9 1/4 6 1/2 STC200 2000 MCM 1.632 2 5/8 2 3/8 10 7 F L LB E AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
Applications:
- Network Underground
- Copper cable
A straight line coupler for joining two cables on end. The symmetry and compact design render the connector easy to tape. A high mechanical advantage insures a sound mechanical and electrical connection for trouble free operation.
