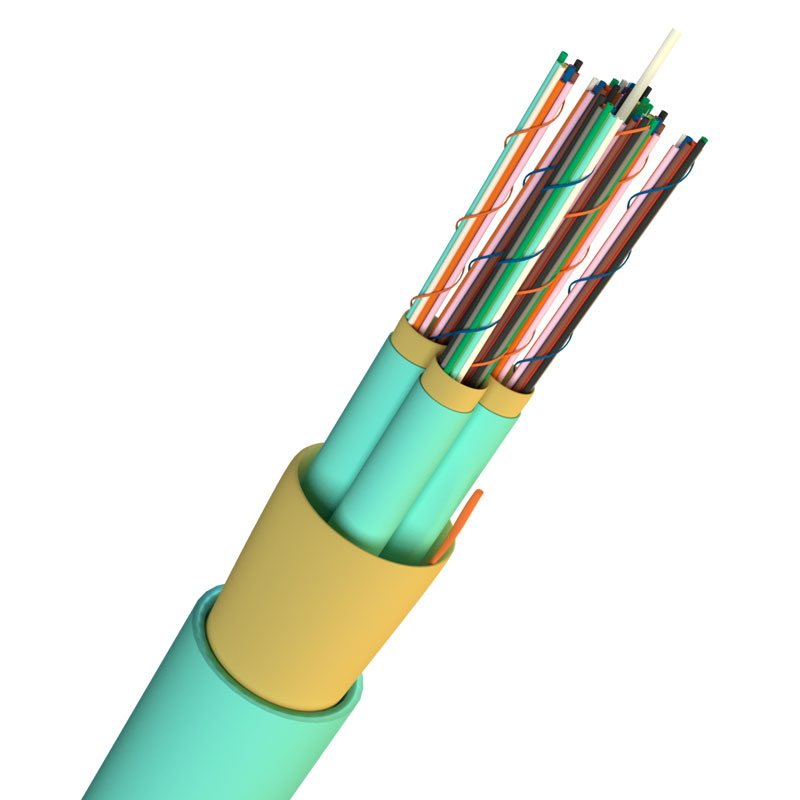

AFL's Sub-Unitized Premise MicroCore 3.0 Base-12 cables represent the foundation for AFLs MicroCore portfolio, designs are available up to 144 fibers.
ea69aa78858b443cb24463be439f7f74
1 FIBER OPTIC CABLE Fiber Optic Cable © 2019, AFL, all rights reserved. PP-1-00167, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Applications • Headend termination to a fiber "backbone" • Termination of fiber rack systems • Intra-building "backbones" • MTP/MPO or MTP to breakout terminations Features • Fiber counts from 24 to 144 • 3.0 mm cable diameter • 12-fiber sub-units • LSZH/Riser flame-rated jacket • All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within sub-units for use with MT termination Sub-unitized Premise MicroCore ® 3.0 Base-12 – CPR Certified AFL’s Sub-Unitized Premise MicroCore 3.0 Base-12 cables represent the foundation for the MicroCore portfolio, designs are available up to 144 fibers. Available with standard 250 μm based fiber design. Combining the highest quality materials with rigorous testing to industry standards, this generation builds on the same quality of construction as the previous versions of our Sub-Unitized Premise MicroCore cables. Each stand-alone sub cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This flexibility of design and deployment is not available in comparable high density designs. Designed for direct termination, and supportive of both single-fiber and multi-fiber architectures, this cable family is capable of serving as the backbone in any deployed system. Cable Components Central strength member 3 mm, 12 fiber Aramid strength members Outer LSZH/Riser jacket Central strength member 3 mm, 12 fiber Aramid strength members Outer LSZH/Riser jacket Central strength member 3 mm, 12 fiber sub-unit Aramid strength members Outer LSZH/Riser jacket 24, 36 and 48 fiber 144 fiber 72 fiber Technical Information—MicroCore 3.0 12 Fiber Sub-units TYPE FIBER COUNT NOMINAL DIAMETER INCHES (MM) WEIGHT LBS/1000 FT (KG/KM) TENSION LBS (N) BENDING RADIUS INCHES (CM) INSTALLATION LONG TERM INSTALLATION LONG TERM 12-FIBER SUBUNITS 24 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 36 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 48 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 60 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 72 0.44 (11.1) 77 (115) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 96 0.52 (13.3) 120 (175) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 144 0.59 (14.9) 125 (185) 150 (670) 45 (200) 7.5 (19.1) 5.0 (12.7)
© 2019, AFL, all rights reserved. PP-1-00167, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Premise Cable Temperature Specifications TEMPERATURE RANGE LSZH/RISER INSTALLATION -20°C to +70°C OPERATION 0°C to +60°C STORAGE -40°C to +70°C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT CE B2ca - s1a,d0,a1 Cable IEC 60332, 60754, 61034 LSZH/ONFR-LS Jacket Telcordia GR-409-CORE Jacket EIA/TIA 568 Jacket ICEA Jacket RoHS REACH Jacket Sub-unitized Premise MicroCore ® 3.0 Base-12 – CPR Certified Ordering Information—MicroCore 3.0 12-Fiber Sub-units with Standard Bare 250 μm Fiber TYPE FIBER COUNT AFL NO. CPR CERTIFICATION SINGLE-MODE OM3 50 μm OM4 50 μm OM5 50 μm 12-FIBER SUBUNITS 24 GE024930199B:C4C-B2CA GE024L301CCB:C4C-BIF-B2CA GE024C301CCB:C4C-BIF-B2CA GE024W301LLB:C4C-BIF-B2CA B2ca - s2,d1,a1 36 GE036930199B:C4C-B2CA GE036L301CCB:C4C-BIF-B2CA GE036C301CCB:C4C-BIF-B2CA GE036W301LLB:C4C-BIF-B2CA B2ca - s2,d1,a1 48 GE048930199B:C4C-B2CA GE048L301CCB:C4C-BIF-B2CA GE048C301CCB:C4C-BIF-B2CA GE048W301LLB:C4C-BIF-B2CA B2ca - s2,d1,a1 60 GE060930199B:C6C-B2CA GE060L301CCB:C6C-BIF-B2CA GE060C301CCB:C6C-BIF-B2CA GE060W301LLB:C6C-BIF-B2CA B2ca - s2,d1,a1 72 GE072930199B:C6C-B2CA GE072L301CCB:C6C-BIF-B2CA GE072C301CCB:C6C-BIF-B2CA GE072W301LLB:C6C-BIF-B2CA B2ca - s2,d1,a1 96 GE096930199B:C8C-B2CA GE096L301CCB:C8C-BIF-B2CA GE096C301CCB:C8C-BIF-B2CA GE096W301LLB:C8C-BIF-B2CA B2ca - s2,d1,a1 144 GE144930199B:CCC-B2CA GE144L301CCB:CCC-BIF-B2CA GE144C301CCB:CCC-BIF-B2CA GE144W301LLB:CCC-BIF-B2CA B2ca - s2,d1,a1
Features:
- Fiber counts from 24 to 144
- 3.0 mm cable diameter
- 12-fiber sub-units
- LSZH/Riser flame-rated jacket
- All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within sub-units for use with MT termination
Applications:
- Headend termination to a fiber "backbone"
- Termination of fiber rack systems
- Intra-building "backbones"
- MTP/MPO or MTP to breakout terminations
AFL’s Sub-Unitized Premise MicroCore 3.0 Base-12 cables represent the foundation for the MicroCore portfolio, designs are available up to 144 fibers. Available with standard 250 µm based fiber design. Combining the highest quality materials with rigorous testing to industry standards, this generation builds on the same quality of construction as the previous versions of our Sub-Unitized Premise MicroCore cables. Each stand-alone sub cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This flexibility of design and deployment is not available in comparable high density designs. Designed for direct termination, and supportive of both single-fiber and multi-fiber architectures, this cable family is capable of serving as the backbone in any deployed system.
