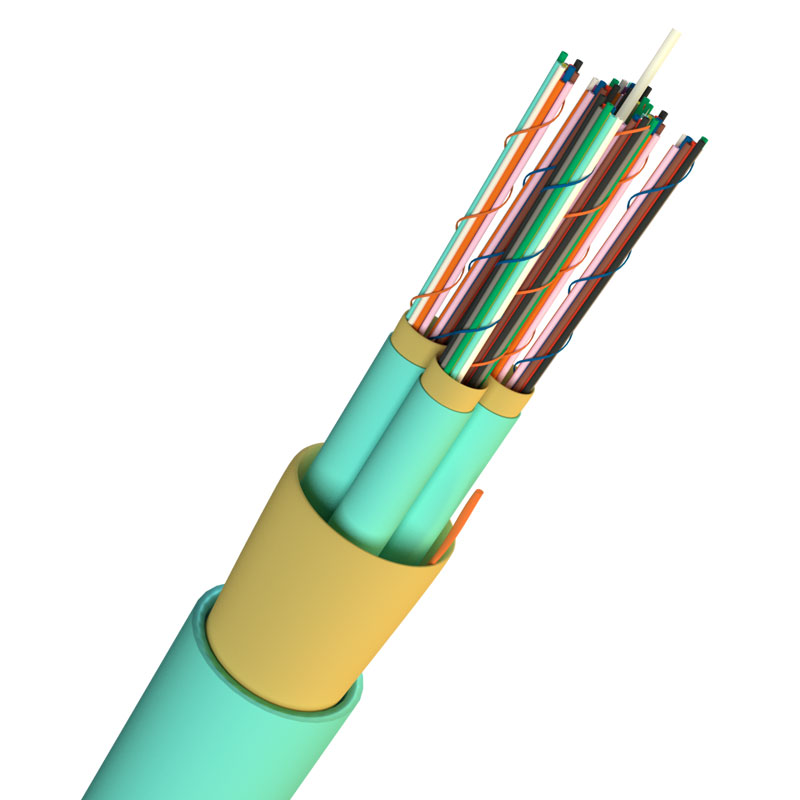

The third generation of AFL's Sub-Unitized Premise MicroCore fiber optic cable with CPR is another astounding evolution of high performance premise cabling.
ea69aa78858b443cb24463be439f7f74
1 FIBER OPTIC CABLE Fiber Optic Cable © 2019, AFL, all rights reserved. PP-1-00168, Revision 2, 3.22.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Applications • Headend termination to a fiber "backbone" • Termination of fiber rack systems • Intra-building "backbones" • MTP/MPO or MTP to breakout terminations Features • Available with 250 μm bare fiber (SM or MM) or SpiderWeb Ribbon (SM only) optical fiber technology • Fiber counts from 48 to 288 • 3.0 mm cable diameter • 24-fiber sub-units • LSZH/Riser flame-rated jacket • All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within sub-units for use with MT termination Sub-unitized Premise MicroCore ® 3.0 Base-24 – CPR Certified The third generation of AFL’s Sub-Unitized Premise MicroCore Cable is another astounding evolution of high performance premise cabling. Enabling even greater pathway density than our 2.0 version, the 3.0 Base-24 revolutionizes cable deployment and allows the end user to realize savings in space, routing infrastructures and fiber management with fiber counts up to 288 fibers available. Combining the highest quality materials with rigorous testing to industry standards, this generation builds on the same quality of construction as the previous versions of our Sub-Unitized Premise MicroCore cables. Each stand-alone sub cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This flexibility of design and deployment is not available in comparable high density designs. Designed for direct termination, and supportive of both single-fiber and multi-fiber architectures, this cable family is capable of serving as the backbone in any deployed system. Cable Components Central strength member 3 mm, 24-fiber sub-unit Aramid strength members Outer LSZH/Riser jacket Central strength member 3 mm, 24-fiber sub-unit Aramid strength members Outer LSZH/Riser jacket Central strength member 3 mm, 24-fiber sub-unit Aramid strength members Outer LSZH/Riser jacket 48, 72 and 96 fiber 240, 264 and 288 fiber 120 and 144 fiber Technical Information—MicroCore 3.0—24 Fiber Sub-units TYPE FIBER COUNT NOMINAL DIAMETER INCHES (MM) WEIGHT LBS/1000 FT (KG/KM) TENSION LBS (N) BENDING RADIUS INCHES (CM) INSTALLATION LONG TERM INSTALLATION LONG TERM 24-FIBER SUBUNITS 48 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 72 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 96 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 144 0.50 (12.7) 107 (160) 150 (670) 45 (200) 7.5 (19.1) 5.0 (12.7) 168 0.61 (15.5) 171 (255) 150 (670) 45 (200) 9.2 (23.5) 6.1 (15.5) 192 0.61 (15.5) 171 (255) 150 (670) 45 (200) 9.2 (23.5) 6.1 (15.5) 216 0.61 (15.5) 171 (255) 150 (670) 45 (200) 9.2 (23.5) 6.1 (15.5) 288 0.72 (18.4) 218 (325) 150 (670) 45 (200) 11.0 (27.6) 7.2 (18.4)
© 2019, AFL, all rights reserved. PP-1-00168, Revision 2, 3.22.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Premise Cable Temperature Specifications TEMPERATURE RANGE LSZH/RISER INSTALLATION -20°C to +70°C OPERATION 0°C to +60°C STORAGE -40°C to +70°C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT CE B2ca - s1a,d0,a1 B2ca - s1,d1,a1 Cable IEC 60332, 60754, 61034 LSZH/ONFR-LS Jacket Telcordia GR-409-CORE Jacket EIA/TIA 568 Jacket ICEA Jacket RoHS REACH Jacket Sub-unitized Premise MicroCore ® 3.0 Base-24 – CPR Certified Ordering Information—MicroCore 3.0—24-Fiber Sub-units with Multimode Fiber TYPE FIBER COUNT CPR CERTIFICATION OM3 50 μm OM4 50 μm OM5 50 μm 24-FIBER SUBUNITS 48 GE048L301CCB:O4C-BIF-B2CA GE048C301CCB:O4C-BIF-B2CA GE048W301LLB:O4C-BIF-B2CA B2ca - s1a,d0,a1 72 GE072L301CCB:O4C-BIF-B2CA GE072C301CCB:O4C-BIF-B2CA GE072W301LLB:O4C-BIF-B2CA B2ca - s1,d1,a1 96 GE096L301CCB:O4C-BIF-B2CA GE096C301CCB:O4C-BIF-B2CA GE096W301LLB:O4C-BIF-B2CA B2ca - s1,d1,a1 144 GE144L301CCB:O6C-BIF-B2CA GE0144C301CCB:O6C-BIF-B2CA GE144W301LLB:O6C-BIF-B2CA B2ca - s1,d1,a1 168 GE168L301CCB:O9C-BIF-B2CA GE168C301CCB:O9C-BIF-B2CA GE168W301LLB:O9C-BIF-B2CA B2ca - s1,d1,a1 192 GE192L301CCB:O9C-BIF-B2CA GE192C301CCB:O9C-BIF-B2CA GE192W301LLB:O9C-BIF-B2CA B2ca - s1,d1,a1 216 GE216L301CCB:OCC-BIF-B2CA GE216C301CCB:OCC-BIF-B2CA GE216W301LLB:OCC-BIF-B2CA B2ca - s1,d1,a1 288 GE288L301CCB:OCC-BIF-B2CA GE288C301CCB:OCC-BIF-B2CA GE288W301LLB:OCC-BIF-B2CA B2ca - s1a,d0,a1 * Multimode fiber cables only available with standard bare fiber . ** Item numbers are built with AFL Standard Fiber, AFL Standard Print with industry standard colors: SMF – Yellow; 50 μ m OM3 and OM4 – Aqua; and 50 μ m OM5 – Lime. Additional Fiber, Print and Color options available, please contact AFL for options. Ordering Information – MicroCore 3.0 24-Fiber Sub-units with Single-mode Fiber TYPE FIBER COUNT AFL NO. CPR CERTIFICATION SINGLE-MODE (Standard Bare Fiber) SINGLE-MODE (SpiderWeb Ribbon ® ) 24-FIBER SUBUNITS 48 GE048930199B:O4C-B2CA GE048P30199R:O4C-B2CA B2ca - s1a,d0,a1 72 GE072930199B:O4C-B2CA GE072P30199R:O4C-B2CA B2ca - s1,d1,a1 96 GE096930199B:O4C-B2CA GE096P30199R:O4C-B2CA B2ca - s1,d1,a1 144 GE144930199B:O6C-B2CA GE144P30199R:O6C-B2CA B2ca - s1,d1,a1 168 GE168930199B:O9C-B2CA GE168P30199R:O9C-B2CA B2ca - s1,d1,a1 192 GE192930199B:O9C-B2CA GE192P30199R:O9C-B2CA B2ca - s1,d1,a1 216 GE216930199B:OCC-B2CA GE216P30199R:OCC-B2CA B2ca - s1,d1,a1 288 GE288930199B:OCC-B2CA GE288P30199R:OCC-B2CA B2ca - s1a,d0,a1
Features:
- Available with 250 µm bare fiber or SpiderWeb Ribbon® optical fiber technology
- Fiber counts from 48 to 288
- 3.0 mm cable diameter
- 24-fiber sub-units
- LSZH/Riser flame-rated jacket
- All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within sub-units for use with MT termination
Applications:
- Headend termination to a fiber "backbone"
- Termination of fiber rack systems
- Intra-building "backbones"
- MTP/MPO or MTP to breakout terminations
The third generation of AFL’s Sub-Unitized Premise MicroCore Cable is another astounding evolution of high performance premise cabling. Enabling even greater pathway density than our 2.0 version, the 3.0 Base-24 revolutionizes cable deployment and allows the end user to realize savings in space, routing infrastructures and fiber management with fiber counts up to 288 fibers available. Combining the highest quality materials with rigorous testing to industry standards, this generation builds on the same quality of construction as the previous versions of our Sub-Unitized Premise MicroCore cables. Each stand-alone sub cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This flexibility of design and deployment is not available in comparable high density designs. Designed for direct termination, and supportive of both single-fiber and multi-fiber architectures, this cable family is capable of serving as the backbone in any deployed system.
