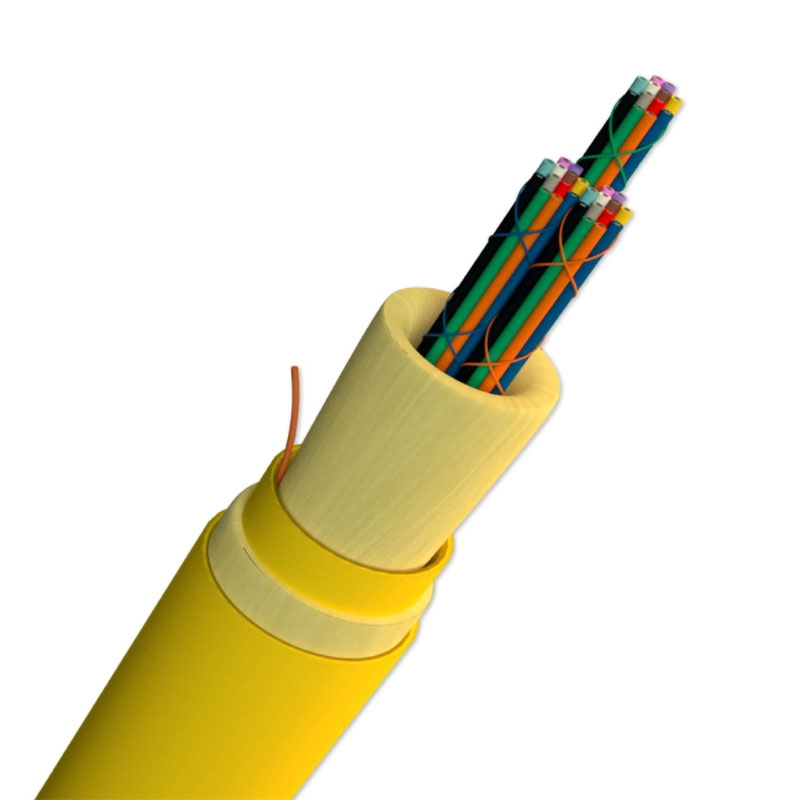

1 AFLglobal.com 1 (800) 866-7385 © 2019, AFL, all rights reserved. PP-1-00164, Revision 2, 12.17.2024 Specifications are subject to change without notice. Fiber Optic Cable 1 continued Cable Components Applications • Headend termination to a fiber “backbone” • Termination of fiber rack systems • Intra-building “backbones” • MTP/MPO or MTP to breakout terminations Features • Available with 250 μm bare fiber or SpiderWeb Ribbon (SWR) optical fiber technology • Bare Fiber counts 6 to 72 • SWR Fiber counts 12 to 144 • Installation tension rating of 150 lbs. Ruggedized MicroCore ® Cable AFL Ruggedized MicroCore (CPR) is the next generation of maximizing fiber density in AFL’s line of high density data center cables. Ruggedized MicroCore is an industry leading alternative to a traditional inside plant, central core loose tube ribbon cable. Both standard 250 μm based fiber and AFL revolutionary Spiderweb Ribbon ® Technology designs are available. SWR ® technology eliminates concerns associated with edge fiber stresses due to preferential bend of encapsulated ribbons. These cables consist of OFNP/FT6 (NFPA 262) or LSZH (including ONFR-ST1/FT4) flame-rated outer jacket with an installation tension rating of 150 lbs. qualified to meet and exceed the requirements of the latest Telcordia GR-409-CORE inside plant cabling requirements. Sub-unit Outer Jacket Aramid yarn for pull strength Sub-unit Outer Jacket Aramid yarn for pull strength String-bound fiber bundles Ruggedized 12 fiber Ruggedized 48 fiber Fiber Specifications Core Size/Fiber Type ISO/ IEC Maximum Attenuation (dB/km) Overfill Launch Min. Bandwidth (MHz•km) EMBc (MHz•km) Gigabit Ethernet Max. Link Distance (meters) 10 Gigabit Ethernet Max. Link Distance (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link ™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 – (5) 50 Giga-Link ™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 – (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 – (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 – (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 – (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 (P) AFL Bend-Insensitive Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 2 AFLglobal.com 1 (800) 866-7385 © 2019, AFL, all rights reserved. PP-1-00164, Revision 2, 12.17.2024 Specifications are subject to change without notice. Fiber Optic Cable 2 Premise Cable Contact AFL for further details. Ruggedized MicroCore ® Cable Mechanical Data No. of Fibers AFL No. Nominal Diameter inches (mm) Nominal Sub-Unit inches (mm) Weight lbs/1000 ft (kg/km) Tension Bending Radius Plenum Riser Installation lbs (N) Long Term lbs (N) Installation inches (cm) Long Term inches (cm) 6 RQ006*301##B RE006*301##B 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 8 RQ008*301##B RE008*301##B 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 12 RQ012*301##$ RE012*301##$ 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 24 RQ024*301##$ RE024*301##$ 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 48 RQ048*401##$ RE048*401##$ 0.22 (5.6) 0.16 (4.0) 22 (32) 150 (660) 45 (200) 3.3 (8.4) 2.2 (5.6) 72 RQ072*451##$ RE072*481##$ 0.25 (6.4) 0.18 (4.5) 30 (45) 150 (660) 45 (200) 3.8 (9.6) 2.5 (6.4) 96 RQ096P581##R RE096P581##R 0.31 (7.8) 0.23 (5.8) 44 (65) 150 (660) 45 (200) 4.7 (11.7) 3.1 (7.8) 144 RQ144P721##R RE144P721##R 0.39 (10.0) 0.28 (7.2) 74 (110) 150 (660) 45 (200) 5.9 (15.0) 3.9 (10.0) * Fiber Types – Replace asterisk (*) in AFL number with number in the Fiber Specifications table on previous page # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below $ Fiber Configuration– Replace dollar symbol ($) with B for standard bare fiber or R for AFL Spider Web Ribbon ® Temperature Specifications Temperature Range Plenum LSZH Installation 0°C to +60°C 0°C to +60°C Operation 0°C to +70°C -20°C to +70°C Storage -40°C to +70°C -40°C to +70°C Qualifications Governing Body Standard Code Component CE B2ca-s1a,d0,a1 or Cca-s1a,d2,a1 Cable NFPA 262 (OFNP) / FT6 Plenum Jacket IEC 60332, 60754, 61034 LSZH/OFNR-ST1 Jacket Telcordia GR-409-CORE Jacket TIA 568 Jacket ICEA Jacket RoHS REACH Jacket CPR Certications AFL No. CPR Certification RE006*301##B B2ca-s1a,d0,a1 RE008*301##B B2ca-s1a,d0,a1 RE012*301##$ B2ca-s1a,d0,a1 RE024*301##$ B2ca-s1a,d0,a1 RE048*401##$ B2ca-s1a,d1,a1 RE072*481##$ B2ca-s1a,d1,a1 RE096P581##R B2ca-s1a,d0,a1 RE144P721##R Cca-s1a,d2,a1 Cable Jacket Color Options Color Codes 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red L - Lime
