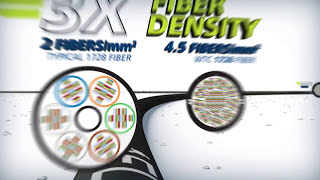

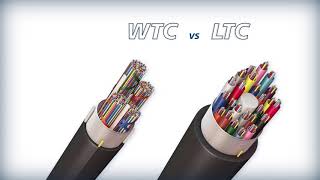

1 AFLglobal.com 1 (800) 866-7385 © 2017, AFL, all rights reserved. P P -1-00128, Revision 21, 3.11.2025 Speci≤cations are subject to change without notice. Fiber Optic Cable 1 Wrapping Tube Cable (WTC) with SpiderWeb Ribbon ® (SWR ® ) – 250 μm Fiber/250 μm Pitch The 250 μm Fiber/250 μm Pitch Wrapping Tube Cable (WTC), with SpiderWeb Ribbon ® (SWR ® ), is an ultra-high density outside plant cable designed specifically for fiber-to-the-home (FTTH) or access markets. It is compliant with the latest issue of the outside plant cable standard, Telcordia GR-20. With an ultra-high density and a new ribbon technology called SpiderWeb Ribbon ® , WTC provides the smallest cable diameter and lowest weight, high-fiber count ribbon cable in the industry. WTC with SWR ® cables are available in fiber counts from 48 to 1,728. SWR ® is a bonded fiber ribbon design allowing for either a highly efficient ribbon splicing or an individual fiber breakout splicing process. This flexibility allows for a single cable design to cover a diverse set of applications from access networks to high-fiber count mass fusion splicing. With the ability to roll and conform, the SWR ® provides for ultra-high density packaging in the WTC. SWR Technology 12F SWR ® Armored 4-rod FRP (288F - 1,728F) Multiple 12F SWR ® Bundle Contrahelical dual binder system Rip cord Water blocking tape Armor Dielectric Strength Member (FRP) Rods SWR Inner Jacket (MDPE) Rip cord Rip cord Non-armored & Armored 2-rod FRP (48F - 144F) Non-armored 4-rod FRP (288F - 1,728F) Applications • Data Center Inter-building Connections • Access Provider Metro Rings • Service Provider FTTx • Cable TV Subscriber Networks • Metro Rail Track-side Network Links • Suitable for Aerial Lashing, Pulled-in-duct, Air-Jetted-in-Duct, and Direct Buried (armored only) • Campus LAN Features • Build America/Buy America options available • Collapsible ribbon reduces size of cable compared to other encapsulated or pliable ribbon technologies • Design optimizes the fiber packing density making WTC/SWR cables the smallest ribbon cables without compromising robustness of the cable • Small-diameter cable allows more optical fibers to be placed into crowded or limited-space pathways • Light weight for easy handling in the field compared to traditional cables • Completely Gel-free for reduced time to access fiber and prep for splicing continued 2 AFLglobal.com 1 (800) 866-7385 © 2017, AFL, all rights reserved. P P -1-00128, Revision 21, 3.11.2025 Speci≤cations are subject to change without notice. Fiber Optic Cable 2 Optical Fiber Fiber Type (Fiber Count) Fiber Designator Fiber Diameter Fiber Pitch Standard MFD Maximum Attenuation (cabled) dB/km 1310 nm 1550 nm 250 μm Single-mode (48F to 864F) 9 250 μm 250 μm ITU-T G.652.D and G.657.A1 9.2 ± 0.4 μm ≤ 0.40 ≤ 0.30 Fujikura SR15E (144F to 1728F) K 250 μm 250 μm ITU-T G.652.D and G.657.A1 8.6 ± 0.4 μm ≤ 0.40 ≤ 0.30 BABA-Compliant Single-mode (48F to 864F) BK 250 μm 250 μm ITU-T G.652.D and G.657.A1 9.2 ± 0.4 μm ≤ 0.40 ≤ 0.30 BABA-Compliant Corning Single-mode (48F to 864F) BL 250 μm 250 μm ITU-T G.652.D and G.657.A1 9.2 ± 0.4 μm ≤ 0.40 ≤ 0.30 Wrapping Tube Cable (WTC) with SpiderWeb Ribbon ® (SWR ® ) – 250 μm Fiber/ 250 μm Pitch NOTES: For Fiber Type, replace “ X ” in the AFL No. with the character in the “Fiber Designator” field of the Optical Fiber table below. To designate length markings in AFL No., replace “ L ” in the AFL No. with “F” for Feet or “M” for Meters. * For BABA-compliant Wrapping Tube Cable, add -B to the end of the AFL No. ** Modified temperature performance – see Temperature Specifications table on page 3. Mechanical Data AFL No. Fiber Count Binder Unit Nominal Diameter Weight Short Term/Installation Long Term/Storage/Static inches (mm) lbs/1,000 ft (kg/km) Max Tensile Load lbs (N) Min Bend Radius inches (mm) Max Tensile Load lbs (N) Min Bend Radius inches (mm) Non-Armored LWSE-48- X -C-48-1-00N1D- L* 48 1 X 48F 0.43 (11.0) 61 (90) 607 (2700) 8.7 (221) 182 (810) 6.5 (165) LWSE-72- X -C-72-1-00N1D- L* 72 1 X 72F 0.43 (11.0) 61 (90) 607 (2700) 8.7 (221) 182 (810) 6.5 (165) LWSE-96- X -C-96-1-00N1D- L* 96 1 X 96F 0.43 (11.0) 64 (95) 607 (2700) 8.7 (221) 182 (810) 6.5 (165) LWSE-144- X -C-144-1-00N1D- L* 144 1 X 144F 0.43 (11.0) 61 (90) 607 (2700) 8.7 (221) 182 (810) 6.5 (165) LWSE-288- X -C-288-1-00N1D- L* 288 1 X 288F 0.47 (12.0) 71 (105) 607 (2700) 9.5 (242) 182 (810) 7.1 (181) LWSE-432- X -C-72-6-00N1D- L* 432 6 X 72F 0.53 (13.5) 91 (135) 607 (2700) 10.6 (270) 182 (810) 8.0 (203) LWSE-576- X -C-72-8-00N1D- L* 576 8 X 72F 0.59 (15.0) 111 (165) 607 (2700) 11.8 (300) 182 (810) 8.9 (226) LWSE-864- X -C-72-12-00N1D- L* 864 12 X 72F 0.69 (17.5) 145 (215) 607 (2700) 13.8 (351) 182 (810) 10.3 (262) LWSE-1152-K-C-144-8-00N1D- L* 1152 8 X 144F 0.73 (18.5) 161 (240) 607 (2700) 14.6 (371) 182 (810) 10.9 (277) LWSE-1728-K-C-144-12-00N1D- L* 1728 12 X 144F 0.91 (23.0) 242 (360) 607 (2700) 18.1 (460) 182 (810) 13.6 (346) Armored LWSE-144- X -C-144-1-10S1D- L* 144 1 X 144F 0.63 (16.0) 148 (220) 607 (2700) 12.6 (320) 182 (810) 9.5 (242) LWSE-288- X -C-288-1-10S1D- L* 288 1 X 288F 0.69 (17.5) 172 (255) 607 (2700) 13.8 (351) 182 (810) 10.3 (262) LWSE-432- X -C-72-6-10S1D- L* 432 6 X 72F 0.75 (19.0) 202 (300) 607 (2700) 15.0 (381) 182 (810) 11.2 (285) LWSE-576- X -C-72-8-10S1D- L* 576 8 X 72F 0.81 (20.5) 235 (350) 607 (2700) 16.1 (409) 182 (810) 12.1 (307) LWSE-864- X -C-72-12-10S1D- L* 864 12 X 72F 0.91 (23.0) 286 (425) 607 (2700) 18.1 (460) 182 (810) 13.6 (346) LWSE-1728-K-C-144-12-10S1D- L* 1728 ** 12 X 144F 1.14 (29.0) 410 (610) 607 (2700) 22.8 (579) 182 (810) 17.1 (435) continued Ordering Information Example: For BABA-compliant, 864F Wrapping Tube Cable with BABA-compliant Corning single-mode fiber and length markings in feet, order AFL No. LWSE-864-BL-C-72-12-10S1D-F-B Base Part Number: LWSE-864- X -C-72-12-10S1D- L* BL: BABA-Compliant Corning Single-mode Fiber F: Feet Markings -B: BABA-Complaint Wrapping Tube Cable Option 3 AFLglobal.com 1 (800) 866-7385 © 2017, AFL, all rights reserved. P P -1-00128, Revision 21, 3.11.2025 Speci≤cations are subject to change without notice. Fiber Optic Cable 3 Contact AFL for further details. Qualifications Governing Body Standard Code Component Telcordia GR-20 Fiber Optic Cable Temperature Specifications Temperature Range 1728F Armored Operation -40ºF to +158ºF (-40ºC to +70ºC) -4ºF to +158ºF (-20ºC to +70ºC) Storage -40ºF to +158ºF (-40ºC to +70ºC) -4ºF to +158ºF (-20ºC to +70ºC) Installation -22ºF to +140ºF (-30ºC to +60ºC) -4ºF to +140ºF (-20ºC to +60ºC) Fiber Count Binder Unit (BU) Ring Markings 48F No Binder Unit 1-4 Ring Marking 72F No Binder Unit 1-6 Ring Marking 96F No Binder Unit 1-8 Ring Marking 144F No Binder Unit 1-12 Ring Marking 288F No Binder Unit 1-24 Ring Marking 432F 6 Binder Units 1 2 3 4 5 6 1-6 Ring Marking 576F 8 Binder Units 1 2 3 4 5 6 7 8 864F 12 Binder Units 1 2 3 4 5 6 7 8 9 10 11 12 1152F 8 Binder Units 1 2 3 4 5 6 7 8 1-12 Ring Marking 1728F 12 Binder Units 1 2 3 4 5 6 7 8 9 10 11 12 1-12 Ring Marking Stripe Ring Fiber Identification R No. Stripe Ring Marking R No. Stripe Ring Marking R No. Stripe Ring Marking R No. Stripe Ring Marking 1 7 13 19 2 8 14 20 3 9 15 21 4 10 16 22 5 11 17 23 6 12 18 24 Wrapping Tube Cable (WTC) with SpiderWeb Ribbon ® (SWR ® ) – 250 μm Fiber/ 250 μm Pitch
