1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-1-00067, Revision 13, 2.19.2025 Specifications are subject to change without notice. Fiber Optic Cable 1 Applications • Communications closet to wall outlet • Wall outlet to desk • Connectorized patchcords for interconnect and cross-connect applications • Easy interface to ESCON ® , FDDI, and various other duplex connectors Features • Flexible, two-fiber design for ease of connections • Print legend customization • 12 standard Jacket colors available • Tight Buffer strippability (easy strip option allows removal of up to 1 meter of 900 μm material without stripping the fiber’s 250 μm coating) continued Zipcord, Dual-link and Micro-Dual Cable Zipcord, DUAL-link and Micro-Dual cables provide links to the future for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fibre Channel. AFL offers a broad selection of duplex cordage including Plenum, Riser and LSZH in multiple diameters. LSZH jacketed cables are OFNR listed. One design for global companies that don’t want to maintain multiple cable types for varying global standards. Cable Components Fiber Specifications Core Size/Fiber Type ISO/ IEC Maximum Attenuation (dB/km) Overfill Launch Min. Bandwidth (MHz•km) EMB c (MHz•km) Gigabit Ethernet max. Link Distance (meters) 10 Gigabit Ethernet max. Link Distance (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Zipcord DUAL-Link Micro-Dual
2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-1-00067, Revision 13, 2.19.2025 Specifications are subject to change without notice. Fiber Optic Cable 2 Recommended Products Description AFL No. FASTConnect ® Mechanical Connectors Refer to spec sheet for AFL No. FUSeconnect ® Splice-on Connectors Refer too spec sheet for AFL No. Temperature Specifications Plenum Riser/LSZH Operation 0ºC to +70ºC -20ºC to +70ºC Storage -40ºC to +75ºC -40ºC to +75ºC Installation 0ºC to +70ºC -10ºC to +70ºC Zipcord, Dual-link and Micro-Dual Cable Mechanical Data Cable Type AFL No. Fiber Count Nominal Diameter Weight Tension Bending Radius Riser Plenum/ LSZH lbs (N) inches (cm) Riser Plenum LSZH inches (mm) lbs/ 1000 ft (kg/km) lbs/ 1000 ft (kg/km) Installation Long Term Installation Long Term Zipcord ZA002 301#01 ZP002 301#01 ZE002 301#0E 2 0.11 x 0.22 (2.9 x 6.0) 10 (15) 12 (18) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) ZR002 241#01 ZP002 241#01 ZE002 241#0E 2 0.09 x 0.19 (2.4 x 4.8) 7 (10) 9 (14) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) ZR002 201#01 ZP002 201#01 ZE002 201#0E 2 0.08 x 0.16 (2.0 x 4.0) 5 (8) 7 (10) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) ZR002 161#01 ZP002 161#01 ZE002 161#0E 2 0.06 x 0.12 (1.6 x 3.2) 4 (6) 7 (6) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) Micro-Dual DR002 201#0B DP002 201#0B DE002 201#0B 2 0.08 (2.0) 3 (5) 5 (7) 22 (100) 9 (40) 1.2 (3.0) 0.78 (2.0) – DP002 161#0B DE002 161#0B 2 0.06 (1.6) – 2.7 (1.8) 22 (100) 9 (40) 0.9 (2.3) 0.6 (1.5) DUAL-Link DA002 481#01 DP002 481#01 DE002 481#0E 2 0.19 (4.8) 13 (20) 17 (20) 22 (100) 9 (40) 3.1 (7.2) 2.0 (7.2) DR002 281#01 DP002 281#01 DE002 281#0E 2 0.11 (2.8) 5 (7) 6 (9) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) DR002 241#01 DP002 241#01 DE002 241#0E 2 0.094 (2.4) 3 (5) 5 (7) 22 (100) 9 (40) 2.0 (5.0) 1.2 (3.0) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red Contact AFL for more details. Qualifications Governing Body Standard Code IEC 61034-1 IEC 61034-2 IEC 60332-1-1 IEC 60332-1-2 IEC 60754-1 IEC 60754-2 Telcordia GR-409-CORE RoHS Compliant to 2002/95/EC EIA/TIA 568-133
Features:
- Flexible, two-fiber design for ease of connections
- Print legend customization
- 12 standard Jacket colors available
- Optional Easy-Strip tight buffer (Removal of up to 1 meter of 900 µm material)
- Tight Buffer strippability (easy strip option allows removal of up to 1 meter of 900 µm material without stripping the fiber’s 250 µm coating)
- LSZH,PLENUM, RISER Jackets
- Prefix: DE, DP, DR
Applications:
- Communications closet to wall outlet
- Wall outlet to desk
- Connectorized patchcords for interconnect and cross-connect applications
- Easy interface to ESCON, FDDI, and various other duplex connectors

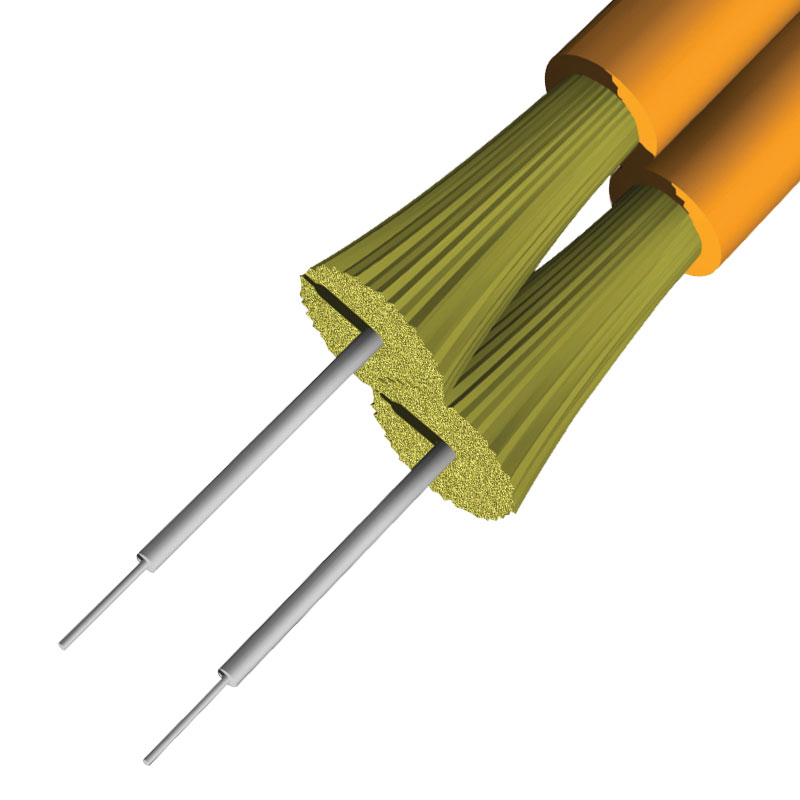

Zipcord, DUAL-link and Micro-Dual cables provide links to the future for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fibre Channel. AFL offers a broad selection of duplex cordage including Plenum, Riser and LSZH in multiple diameters. LSZH jacketed cables are OFNR listed. One design for global companies that don’t want to maintain multiple cable types for varying global standards.
