AFL now offers high fiber count Indoor/Outdoor Riser Cables.
9e7d6e4560954fb682e49e483ca0d2e3
1 Fiber Optic Cable Premise Cable © 2008, AFL, all rights reserved. PP-1-00052, Revision 10, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Indoor/Outdoor Multi-unit Riser Tight Buffered Cable Applications • ONFR inside plant and outside plant environments Cable Components Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION ( dB/km ) OVERFILL LAUNCH MIN. BANDWIDTH ( MHz•km ) EMB c ( MHz•km ) GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 10 GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Features • Available with 24 to 72 fibers • 12-fiber water-blocked sub-units • Moisture-resistant, fungus-resistant and UV-resistant sub-unit jackets and outer sheath A Fiber sub-unit - Tight buffered fiber - Aramid yarn - PVC jacket Binder Central member Outer jacket Ripcord AFL now offers high fiber count Indoor/Outdoor Riser Cables. Waterblocked 12-fiber sub-units are helically stranded to provide sub-unitized cables ranging from 24 to 72 fiber counts. These cables are OFNR listed for indoor applications. Both the sub-unit jackets and outer sheath contain a UV stabilizer and anti-fungus protection for use in outdoor applications. Sub-units contain a water-swellable aramid and 12 tight buffered fibers.
© 2008, AFL, all rights reserved. PP-1-00052, Revision 10, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Fiber Optic Cable Premise Cable Temperature Specifications TEMPERATURE RANGE INSTALLATION -20ºC to +75ºC OPERATION -40ºC to +75ºC STORAGE -40ºC to +75ºC Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE GR-409-CORE Water-Blocked Cabled Buffer Tube Core Sub-units EIA/TIA 598-A Sub-units ICEA S-104-696 Sub-units RoHS 2002/95/EC Cable Indoor/Outdoor Multi-unit Riser Tight Buffered Cable Mechanical Data CABLE TYPE AFL NO. FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION BENDING RADIUS lbs (N) inches (cm) RISER inches (mm) lbs/1000 ft (kg/km) INSTALLATION LONG TERM INSTALLATION LONG TERM Indoor/Outdoor Tight Buffered Cable KR024 611##1 24 0.67 (16.9) 169 (252) 300 (1320) 90 (396) 10.0 (25.3) 6.7 (16.9) KR036 611##1 36 0.67 (16.9) 178 (265) 300 (1320) 90 (396) 10.0 (25.3) 6.7 (16.9) KR048 611##1 48 0.67 (16.9) 187 (278) 300 (1320) 90 (396) 10.0 (25.3) 6.7 (16.9) KR060 611##1 60 0.76 (19.2) 197 (293) 300 (1320) 90 (396) 11.3 (28.8) 7.6 (19.2) KR072 611##1 72 0.81 (20.7) 233 (346) 300 (1320) 90 (396) 12.2 (31.0) 8.1 (20.7) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red
Features:
- Available with 24 to 72 fibers
- 12-fiber water-blocked sub-units
- Moisture-resistant, fungus-resistant and UV-resistant sub-unit jackets and outer sheath
Applications:
- ONFR inside plant and outside plant environments
- Campus installations where high fiber count trunk cable is required
- Backbone interconnects from Service Node to Campus Building

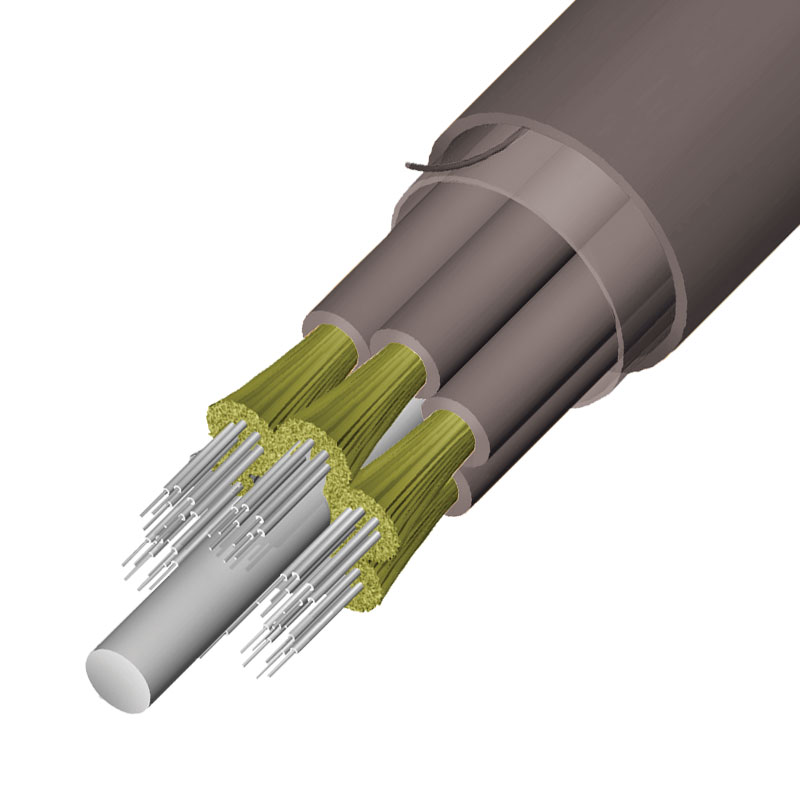

AFL now offers high fiber count Indoor/Outdoor Riser Cables. Waterblocked 12-fiber sub-units are helically stranded to provide sub-unitized cables ranging from 24 to 72 fiber counts. These cables are OFNR listed for indoor applications. Both the sub-unit jackets and outer sheath contain a UV stabilizer and anti-fungus protection for use in outdoor applications. Sub-units contain a water-swellable aramid and 12 tight buffered fibers.
