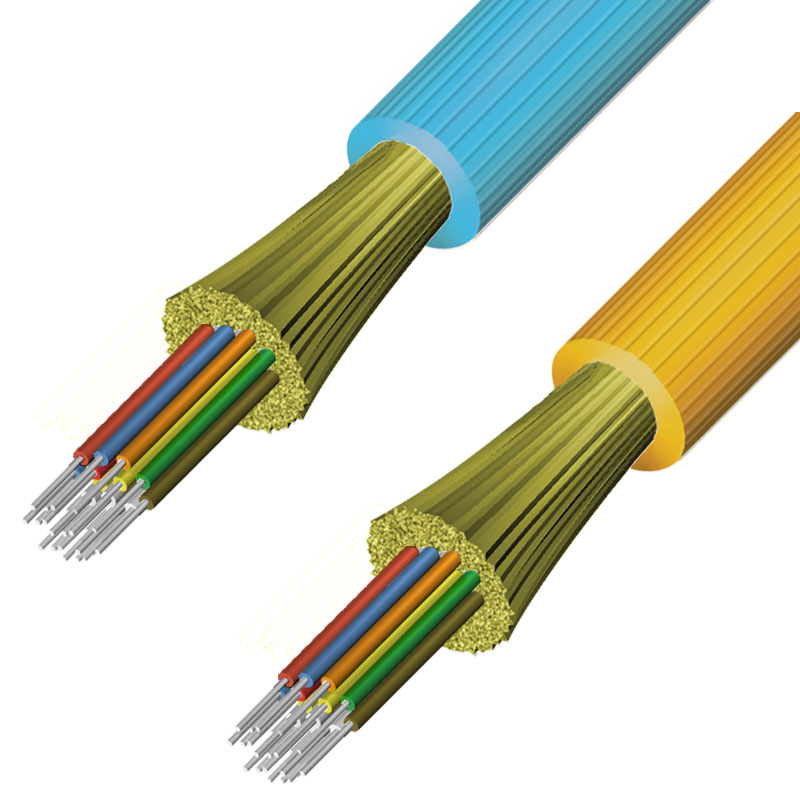

AFL eABF Air-Blown Fiber Optic Cable with six up to 96 fibers in a custom cable package that allows long-distance jetting into micro-ducts with inside diameters as small as 6 mm.
7e10b7be9bcf46a6bf26e5cceac17524
1 © 2013, AFL, all rights reserved. PP-1-00030, Revision 19, 8.19.2026 Specifications are subject to change without notice. Fiber Optic Cable 1 AFLglobal.com/contact Sales & Support eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, high-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems. Enterprise Blown Fiber (eABF ® ) Cable Applications • Designed for Data Center Interconnect • Horizontal Distribution • Backbone Distribution • Low-cost fiber upgrade migration strategies Features • Contains water-blocking components for additional fiber protection from accidental water exposure • Can be installed in eABF duct or third-party rated duct systems • Complete range of single-mode and multimode fibers to support 10G, 40G and 100G Ethernet architectures • Aramid-strengthened cable core for robust tensile load bearing capabilities • OD compatible with 6 mm ID Micro-ducts for higher density fiber pathway solutions Specifications – eABF Optical Fiber FIBER TYPE ISO DESIGNATION MAXIMUM ATTENUATION (dB/km) Overfill Launch Min. Bandwidth (MHz-km) EMBc (MHz-km) GIGABIT ETHERNET MAX. LINK DISTANCE (Meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (Meters) 850 nm 1300 nm 1310 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm 50/125 OM4 BIF 3.0 1.2 N/A N/A 3500 550 4700 1040 550 550 N/A SM OS2 (G.652D/ G.657.A1) N/A N/A 0.4 0.3 N/A N/A N/A N/A N/A N/A N/A BIF = Bend Insensitive Fiber Estimated Installation Distances OD/ID DISTANCE ( ft ) V-20 Install Distance—eABF 3.6 mm (12-24 Fibers) 8.5 x 6 3,000 V-20 Install Distance—eABF 3.8 mm (48 Fibers) 8.5 x 6 2,500 V-20 Install Distance—eABF 4.5 mm (72 Fibers) 8.5 x 6 1,500 continued
2 © 2013, AFL, all rights reserved. PP-1-00030, Revision 19, 8.19.2026 Specifications are subject to change without notice. Fiber Optic Cable 2 AFLglobal.com/contact Sales & Support Enterprise Blown Fiber (eABF ® ) Cable Mechanical Data—Plenum (OFNP) DURA-LINE NO. DESCRIPTION PRODUCT TYPE FIBER COUNT NOMINAL DIAMETER WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND RADIUS Inches (mm) Lbs/1,000 ft (kg/km) SHORT TERM lbs (N) LONG TERM lbs (N) SHORT TERM Inches (mm) LONG TERM Inches (mm) 20002974 MicroCable Plenum ENT-A SM-12 SMF 12 0.14 (3.6) 6.7 (10.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20002975 MicroCable Plenum ENT-A SM-24 SMF 24 0.14 (3.6) 7.4 (11.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20001451 MicroCable Plenum ENT-A SM-48 SMF 48 0.15 (3.8) 9.4 (14.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20003337 MicroCable Plenum ENT-A SM-72 SMF 72 0.18 (4.5) 15.0 (22.3) 22 (100) 7 (30) 3.6 (90) 1.8 (45) 20002989 MicroCable Plenum ENT-A OM4-12 OM4 (50/125) 12 0.14 (3.6) 6.7 (10.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20002990 MicroCable Plenum ENT-A OM4-24 OM4 (50/125) 24 0.14 (3.6) 7.4 (11.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20002919 MicroCable Plenum ENT-A OM4-48 OM4 (50/125) 48 0.15 (3.8) 9.4 (14.0) 22 (100) 7 (30) 1.2 (30) 0.8 (20) 20003341 MicroCable Plenum ENT-A OM4-72 OM4 (50/125) 72 0.18 (4.5) 15.0 (22.3) 22 (100) 7 (30) 3.6 (90) 1.8 (45) Contact AFL for packaging details or any further questions. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-409-CORE Fiber Optic Cable RoHS 2015/863 Fiber Optic Cable NFPA 262 OFNP Plenum Cables Temperature Specifications TEMPERATURE RANGE Installation 0ºC to +70ºC Operating* 0ºC to +70ºC Storage -40ºC to +75ºC *Not intended for outside plant access during operational use.
Features:
- Contains water-blocking components for additional fiber protection from accidental water exposure
- Can be installed in eABF duct or third-party rated duct systems
- Complete range of single-mode and multimode fibers to support 10G, 40G and 100G Ethernet architectures
- Aramid-strengthened cable core for robust tensile load bearing capabilities
- OD compatible with 6 mm ID Micro-ducts for higher density fiber pathway solutions
- 96-Fiber count fits into 8.5 mm x 6 mm Micro-duct for up to 2,304 fibers per 24-way Dura-Line FuturePath Duct
Applications:
- Designed for Data Center Interconnect
- Horizontal Distribution
- Backbone Distribution
- Low-cost fiber upgrade migration strategies
eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The patent pending cable design combines a light-weight, high-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.
