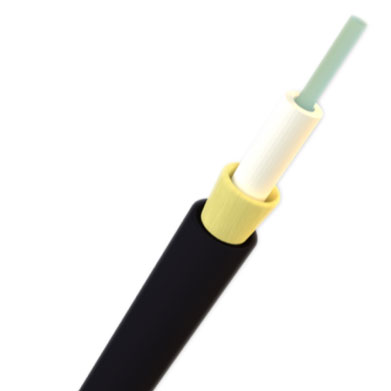

1 FIBER OPTIC CABLE Premise Cable © 2019, AFL, all rights reserved. PP-1-00158, Revision 3, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 AFL MDU Drop cables are light weight, robust products specifically designed for deployment in FTTx environments available in both Black and White outer jacket colors. Products feature UV-Resistant and Anti-fungal outer jacket, with water-blocking aramid yarns in the core for additional network protection. Features • Water blocked cable core helps ensure any damage will be limited in the core of the cable • Outer jacket is moisture-resistant, fungus- resistent and UV resistant for outdoor use • Riser rating enables this cable to be used in multiple environments: Riser, general inside plant and outside plant MDU Drop Cable Ordering Information DESCRIPTION FIBER GRADE ITU G.652.D / G.657.A1 ITU G.657.A2/B2 ITU G.657.B3 1F 3.0 mm - Black jacket KR0019301801-VZ KR001X301801-VZ-A2 KR001X301801-VZ-B3 1F 3.0 mm - White jacket KR0019301601-VZ KR001X301601-VZ-A2 KR001X301601-VZ-B3 1F 4.8 mm - Black jacket KR0019481801-VZ KR001X481801-VZ-A2 KR001X481801-VZ-B3 1F 4.8 mm - White jacket KR0019481601-VZ KR001X481601-VZ-A2 KR001X481601-VZ-B3 2F 4.8 mm - Black jacket KR0029481801-VZ KR002X481801-VZ-A2 KR002X481801-VZ-B3 2F 4.8 mm - White jacket KR0029481601-VZ KR002X481601-VZ-A2 KR002X481601-VZ-B3 Cable Components Water-Blocking Aramid Yarn Tight Buffered Fiber (900 μm Buffer) Riser Outer Jacket Mechanical Information FIBER COUNT NOMINAL DIAMETER inches (mm) WEIGHT lbs/1000 ft (kg/km) TENSION lbs (N) BENDING RADIUS inches (cm) INSTALL LONGTERM INSTALL LONGTERM 1F 3.0 mm 0.12 (3.0) 4.8 (7.1) 100 (440) 40 (200) 1.8 (4.5) 1.2 (3.0) 1F 4.8 mm 0.19 (4.8) 14 (21) 100 (440) 40 (200) 2.8 (7.2) 1.9 (4.8) 2F 4.8 mm 0.19 (4.8) 14 (21) 100 (440) 40 (200) 2.8 (7.2) 1.9 (4.8) Fiber Specifications CORE SIZE/FIBER TYPE MAXIMUM ATTENUATION ( dB/km ) GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 10 GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 1310 nm 1550 nm 1310 nm 1550 nm 1310 nm 1550 nm (9) Single-mode (ITU G.652.D/G.657.A1) 0.5 0.5 N/A 5,000 N/A 10,000 (X, -A2) ITU G.657.A2/B2 0.5 0.5 N/A 5,000 N/A 10,000 (X, -B3) ITU G.657.B3 0.5 0.5 N/A 5,000 N/A 10,000 Temperature Specifications TEMPERATURE RANGE OPERATION -40 ° C to +70 ° C STORAGE -40 ° C to +70 ° C INSTALLATION -20 ° C to +70 ° C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-409 Issue 2 ICEA ICEA-S-104-696, ICEA S-115-730 Verizon TPR 9424 Issue 3* * 4.8 mm OD design with ITU G.657.B3 grade fiber required to meet all requirements
