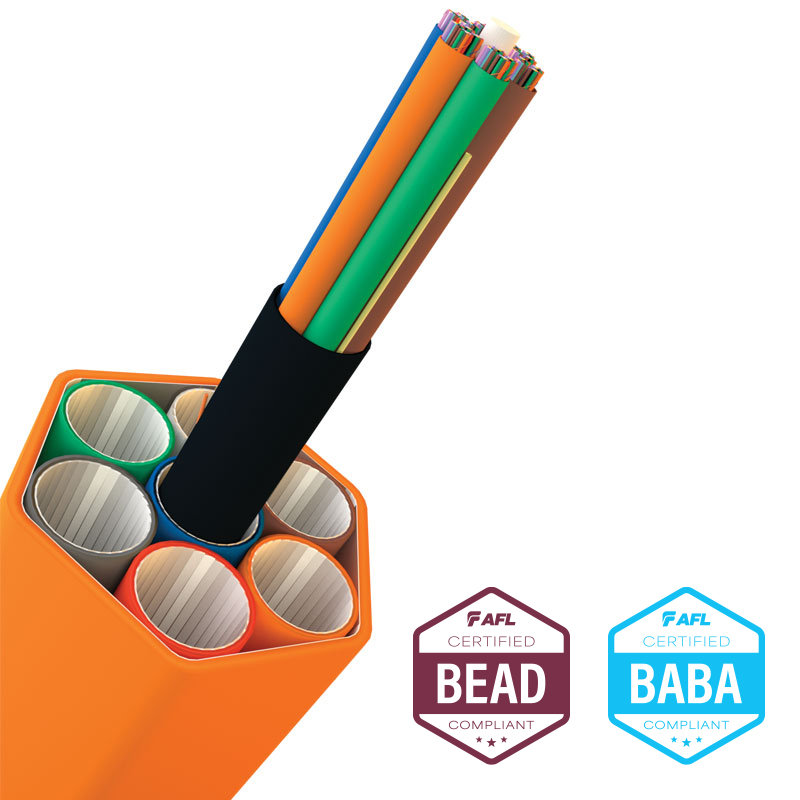

1 AFLglobal.com 1 (800) 866-7385 © 2013, AFL, all rights reserved. PP-1-00027, Revision 23, 11.27.2024 Specifications are subject to change without notice. Fiber Optic Cable 1 Applications • Long-haul, middle-mile and metro-loop • Campus inter-building backbone distribution • Low-cost fiber upgrade migration strategies Features • Build America/Buy America options available • 12 up to 432 250 μm fibers • Low-friction outer jacket designed for air-blown installations • Robust, kink-resistant buffer tubes reduce time and handling issues associated with enclosure build-outs • 300lb installation tensile load rating • OD compatible with 10 mm to 16 mm inside diameter microducts AFL OSP MicroCore® cable series (LM-Series) is designed for outside plant installation in microduct conduit systems. The foundation of the design is the multi-fiber-set, gel-filled buffer tube construction. The kink-resistant buffer tube contains multiple 12-fiber sets of color-coded fibers. Each set within the buffer tube is grouped using dual color-coded binder threads. The dry-blocked core is made up of SZ-stranded buffer tubes around a central strength member. The low-friction, high-strength overall jacketing system protects the cable-core while providing an optimized cable package supporting high-speed, long-distance jetting performance. The unique, high- fiber density geometry yields a cable construction that can accommodate up to 432 fibers and can be blown into microducts ranging in inside diameters from 10 mm to 16 mm. LM-Series OSP MicroCore ® Cable Cable Components Polyethylene Jacket Core Binders Buffer Tubes Ripcords Optical Fiber Central Strength Member WB Binders continued 2 AFLglobal.com 1 (800) 866-7385 © 2013, AFL, all rights reserved. PP-1-00027, Revision 23, 11.27.2024 Specifications are subject to change without notice. Fiber Optic Cable 2 Temperature Specifications Temperature Range Operation -30 ° C to +70 ° C Storage -30 ° C to +70 ° C Installation -10 ° C to +60 ° C Recommended Products Description AFL No. Apex ® X-2 Sealed Splice Closure Refer to spec sheet for AFL No. Apex ® X-2S Sealed Splice Closure Refer to spec sheet for AFL No. FUSEConnect ® MPO Splice-on Connectors Refer to spec sheet for AFL No. FUSEConnect ® Field-installable Splice-on Connectors Refer to spec sheet for AFL No. LMHD-Series OSP MicroCore ® Cable Refer to spec sheet for AFL No. Poli-MOD ® Patch and Splice Module Refer to spec sheet for AFL No. Contact AFL for further details. Qualifications Governing Body Standard Code Component ANSI/ICEA S-122-744 Cable TIA 598-D Fiber LM-Series OSP MicroCore ® Cable Standard Packaging Details Fiber Count Reel Dimensions (Flange X Width) Standard Reel Length Typical Total Weight 12-144 48 x 36 in. 20,000 ft (6,096 m) 950 lbs (430 kg) 288 58 x 38 in. 20,000 ft (6,096 m) 1,800 lbs (816 kg) 432 66 x 42 in. 20,000 ft (6,096 m) 2,450 lbs (1,111 kg) Mechanical Data AL No. Fiber Count No. of Tubes Nominal Diameter Min. Microduct Inner Diameter Nominal Weight Maximum Tensile Load Minimum Bend Radius Lbs (N) Inches (cm) Fibers/ Tube*** Inches (mm) Inches (mm) Lbs/1000ft (kg/km) Short Term Long Term Short Term Long Term LM012xC6101NS** 12 1-12 (5 fillers) 0.31 (7.9) 0.39 (10.0) 31 (46) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM024xC6101NS** 24 2-12 (4 fillers) 0.31 (7.9) 0.39 (10.0) 32 (48) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM048xC6101NS** 48 4-12 (2 fillers) 0.31 (7.9) 0.39 (10.0) 33 (49) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM072xC6101NS** 72 6-12 0.31 (7.9) 0.39 (10.0) 34 (51) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM096xO6101NS** 96 4-24 (2 fillers) 0.31 (7.9) 0.39 (10.0) 34 (51) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM144xO6101NS** 144 6-24 0.31 (7.9) 0.39 (10.0) 36 (53) 300 (1334) 90 (400) 6.5 (16) 5 (12) LM288xR6101NS** 288 6-48 0.41 (10.4) 0.51 (13.0) 63 (93) 300 (1334) 90 (400) 8.5 (21) 6.5 (16) LM432xOI301NS** 432 18-24 0.50 (12.6) 0.63 (16.0) 87 (190) 300 (1334) 90 (400) 10 (26) 7.5 (19) Note: Diameter and weight subject to change without notice * Fiber Types - Replace “x” in AFL number with number in the Fiber Specifications table below. ** For BABA-Compliant Part Number, add “-B” to end of part number. *** Fibers are arranged in 12-fiber sets identified by colored binder threads. For fiber identification details click here. Fiber Specifications Fiber Type “x” Standard Mode Field Diameter Attenuation 1300 nm 1550 nm 250 μm Single-mode 9 ITU-T G.652D/657.A1 9.2 um nominal 0.35 0.25 Corning 250 μm Single-mode AZ ITU-T G.652D/657.A1 9.2 um nominal 0.35 0.25 BABA-Compliant 250 μm Single-mode BK ITU-T G.652D/657.A1 9.2 um nominal 0.35 0.25 BABA-Compliant Corning 250 μm Single-mode BL ITU-T G.652D/657.A1 9.2 um nominal 0.35 0.25
