NEOCLEAN cleaners use a simple one push operation to quickly and effectively clean contamination from the ferrule end-face of connectors on jumpers or in adapters, reducing cleaning time. Effective for removing oil, dust, and dirt particulates that can have a negative impact on fiber optic network performance.
1b9a984252f4435fb97cd63872acfaea
1 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . Features • Patented single-action cleaning in a small ergonomic design • Variety of sizes and types for different connector styles • Cleans connectors in both jumpers and bulkhead adapters • Low cost per clean Applications • Removing oil, dust, and dirt without damaging delicate fiber end-faces • Both dry and wet cleaning (add cleaning fluid) • Clean connectors in tight spaces • Field or laboratory use One-Click Cleaner Easy-to-use solution for cleaning fiber optic connectors on jumpers and in adapters. Since over 85% of network outages are attributed to dirty and/or damaged connectors, it is critical to clean every connector! The patented One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. It is a favorite of field technicians for its ease of use, durability, effectiveness, and small size. One-Click ® Cleaner PRO - The One-Click Cleaner PRO is a high-performance cleaner built for speed and efficiency. It features an integrated guide cap design that reduces cleaning time up to 50% by eliminating constant switching of caps for cleaning the ferrule end-face on connectors, in or out of bulkhead adapters. The One-Click Cleaner Pro boasts over 775 clean - ing cycles in an ergonomic push-type cleaner, which is a significant increase from the previous model's 500 clean limitation. Designed to meet the needs of data centers, factories, and FTTH environments, One-Click Cleaner PRO optimizes optical connectivity, reduces downtime, and improves efficiency, making it an essential tool for fiber connector cleaning. Compact One-Click Cleaner Mini - Offering the same technology and perfor - mance as the original, the One-Click Cleaner mini enables cleaning connectors in tighter places. Its smaller size also makes it a great addition to test kits and cleaning kits. The mini One-Click Cleaners come in both 100+ or 500+ cleans per unit. One-Click Ultra Cleaner 2.5 - The One-Click Ultra Cleaner 2.5 has an enlarged cleaning area to clean more of the connector end-face. Cleaning up to a 2 mm diameter area of the connector end-face, the One-Click Ultra Cleaner 2.5 is a superior cleaner for SC, ST, and FC connectors. One-Click Cleaner D-LC (Duplex LC) - The One-Click Cleaner D-LC cuts cleaning time in half by effectively cleaning both connectors of a duplex LC connector simultaneously. Available in a long-lasting 500+ clean pen shape. One-Click ® Cleaners MU/LC SC/ST/FC Ultra 2.5 Mini-100 SC, ST, FC Mini-100 MU/LC D-LC SC PRO LC PRO
2 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . One-Click Cleaner MPO and MPO-16 The One-Click Cleaner MPO/MPO-16 is a revolutionary push-type cleaner that simplifies cleaning of the ferrule end-face of MPO/MTP ® connector. The One-Click MPO-16 cleans 16-fiber MPO/MTP connectors, both pinned (male) and socketed (female). MPO-16 is used with IEEE 802.3bs 400G trunk cabling with each fiber carrying 25 Gbps data signals (400GBASE-SR16 for example), among other applications. One-Click Cleaner CS/MDC Duplex The One-Click Cleaner CS/MDC cuts cleaning time in half by effectively cleaning both connectors of a duplex CS/MDC at one time. One-Click Cleaner SN Duplex The One-Click Cleaner SN cuts cleaning time in half by effectively cleaning both connectors of a duplex SN at one time. One-Click Cleaner HOC The Hardened Outdoor Connector (HOC) One-Click Cleaner is an essential cleaning tool for OptiTap ® , TITAN RTD ® , TRIDENT ® , and SC connectors. The new design of the HOC Cleaner allows it to be used for Plug/Receptacle without the need for the conventional guide cap. Ordering Information DESCRIPTION AFL NO. One-Click Cleaner SC, ST, FC (500+ cleans) 8500-05-0001MZ One-Click Cleaner MU/LC (500+ cleans) 8500-05-0002MZ One-Click Cleaner ODC, outdoor connector (500+ cleans) 8500-05-0004MZ One-Click Cleaner Mini-100 SC, ST, FC (100+ cleans) 8500-05-0005MZ One-Click Mini-100 MU/LC (100+ cleans) 8500-05-0006MZ One-Click Cleaner Mini-500 SC, ST, FC (500+ cleans) 8500-05-0009MZ One-Click Cleaner Mini-500 MU/LC (500+ cleans) 8500-05-0010MZ One-Click Ultra Cleaner 2.5 (enlarged cleaning) SC, ST, FC (500+ cleans) 8500-05-0007MZ One-Click Cleaner D-LC, Duplex LC (2 x 500+ cleans) 8500-05-0008MZ One-Click Cleaner MPO (500+ cleans) 8500-05-0030MZ One-Click Cleaner MPO-16 (500+ cleans) 8500-05-0013MZ One-Click Cleaner MT-RJ (500+ cleans) 8500-05-0031MZ One-Click Cleaner M20, 2.0 mm ferrule (500+ cleans) 8500-05-0014MZ One-Click Cleaner CS, MDC Duplex (500+ cleans) 8500-05-0015MZ One-Click Cleaner SN Duplex (500+ cleans) 8500-05-0016MZ One-Click Cleaner HOC, Hardened Optic Connectors (500+ cleans) 8500-05-0018MZ One-Click Cleaner SC Pro (775+ cleans) 8500-05-PRO-SC One-Click Cleaner LC Pro (775+ cleans) 8500-05-PRO-LC BOXES OF 5 UNITS One-Click Cleaner SC, ST, FC (box of 5 units) 8500-05-0021MZ One-Click Cleaner MU/LC (box of 5 units) 8500-05-0022MZ One-Click Cleaner Mini-100 SC, ST, FC (box of 5 units) 8500-05-0025MZ One-Click Cleaner Mini-100 MU/LC (box of 5 units) 8500-05-0026MZ One-Click Ultra Cleaner 2.5 SC, ST, FC (box of 5 units) 8500-05-0027MZ One-Click Cleaner MPO-16 (box of 5 units) 8500-05-0023MZ One-Click ® Cleaners SN Duplex MPO MPO-16 HOC CS, MDC
3 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . Features • Push action • Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E) • Low cost per clean Applications • Cleans connectors on jumpers or in adapters • SC, FC, ST, E2000, LC, and MU connectors • MPO and MTP connectors • Suitable for field or laboratory use NEOCLEAN-E uses a push action to clean contamination from the end-face of connectors on jumpers or in adapters. The replaceable cleaning cartridge can perform 750 cleans, reducing cleaning cost. NEOCLEAN-M is designed for cleaning MPO and MTP multi-fiber connectors used in data centers and other high-density optical networks. It uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO and MTP connectors and connectors in adapters. Ordering Information MODEL APPLICABLE CONNECTORS & DESCRIPTION # OF CLEANS AFL NO. NEOCLEAN-E1 For MU, LC with UPC/APC polishes 750+ 8500-15-0900MZ NEOCLEAN-E2 For SC,FC with UPC/APC polishes; OptiTap 8500-15-0901MZ NEOCLEAN-E3 For SC, ST, FC, E2000 with UPC/APC polishes; OptiTap 8500-15-0902MZ NEOCLEAN-M For MPO/MTP 600+ 8500-15-0909MZ NEOCLEAN Cleaners Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Clean to learn more about Push-Type Cleaners. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts FOCIS Flex Connector Inspection • Self-contained, tether-free, hand-held • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis Recommended Products Cletop Cleaners • Simple push-button shutter application • Easily replaceable cost- effective tape cartridges • Over 400 wipes per tape NEOCLEAN-E Models (E1, E2, E3) NEOCLEAN-M FCC2 Cleaning Fluid • Unique dispenser for use with AFL Connector Cleaning Tips and FiberWipes • Dissipates static charge • Up to 400+ cleanings per can
Features:
- Simple push action
- Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E)
- NEOCLEAN-M for MPO and MTP connectors - 600 cleans per unit
- Low cost per clean
Applications:
- Cleans connectors on jumpers or in adapters
- NEOCLEAN-E for SC, FC, ST, E2000, LC and MU connectors with UPC or APC polishes
- NEOCLEAN-M for MPO and MTP connectors
- Suitable for field or laboratory use

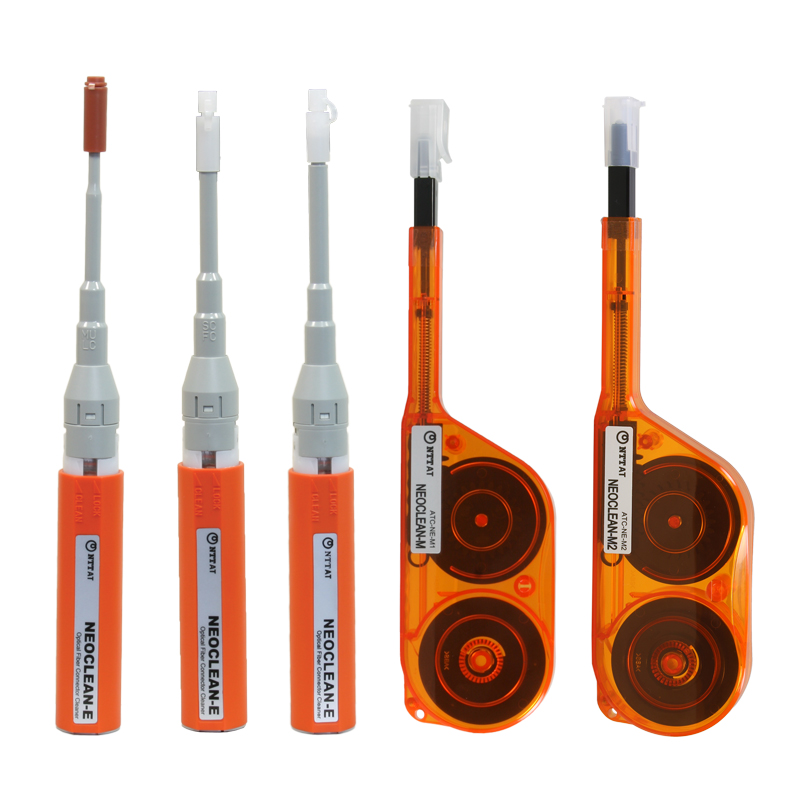

NEOCLEAN-E
Simple-to-Use Refillable Design
The NEOCLEAN-E uses a simple one push action to quickly and effectively clean contamination from the ferrule end-face of connectors on jumpers or in adapters, reducing cleaning time. It is effective for removing oil, dust, and dirt particulates that can have a negative impact on fiber optic network performance. The replaceable cleaning cartridge can perform 750 cleanings, reducing cleaning cost. Available for SC, FC, ST, E2000, LC and MU connectors with UPC or APC polishes.
NEOCLEAN-M
Clean MPO/MTP® Connectors with an Easy Push Operation
The NEOCLEAN-M is designed to clean MPO and MTP® multi-fiber connectors used in data centers and other high density optical networks. The NEOCLEAN-M uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO/ MTP exposed connectors and connectors in adapters. The one-push operation advances the specially designed microfiber tape while effectively and gently cleaning the end-face of the connector.
NEOCLEAN-M2
The NEOCLEAN-M2 is designed to clean MPO-16 and MTP-16 multi-fiber connectors used in data centers and other high density optical networks. The NEOCLEAN-M2 uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO-16/ MTP-16 exposed connectors and connectors in adapters. The one-push operation advances the specially designed microfiber tape while effectively and gently cleaning the end-face of the connector.
Ordering Information
| MODEL |
DESCRIPTION |
AFL NO. |
| NEOCLEAN-E1 |
NEOCLEAN-E for MU and LC connectors with UPC and APC polishes |
8500-15-0900MZ |
| NEOCLEAN-E2 |
NEOCLEAN-E for SC and FC connectors with UPC and APC polishes and OptiTap connectors |
8500-15-0901MZ |
| NEOCLEAN-E3 |
NEOCLEAN-E for SC, ST, FC and E2000 connectors with UPC and APC polishes and OptiTap connectors |
8500-15-0902MZ |
| NEOCLEAN-ES1 |
Pack of 3 Replacement Cartridges for NEOCLEAN-E1 |
8500-15-0903MZ |
| NEOCLEAN-ES2 |
Pack of 3 Replacement Cartridges for NEOCLEAN-E2 |
8500-15-0904MZ |
| NEOCLEAN-ES3 |
Pack of 3 Replacement Cartridges for NEOCLEAN-E3 |
8500-15-0905MZ |
| NEOCLEAN-M |
NEOCLEAN-M for MPO, MTP, and 12 fiber connectors |
8500-15-0909MZ |
| NEOCLEAN-M2 |
NEOCLEAN M-2 for MPO, MTP, and 16 fiber connectors |
8500-15-0910MZ |
Fiber Optic Connector Inspection
Inspection is an essential step in cleaning fiber optic connectors. Inspection enables the technician or installer to verify that the connector is free of contaminates that could permanently damage the connector end-face and lead to network failure. To ensure your fiber optic connectors are clean, you should follow the inspect-clean-inspect workflow.
See Fiber Optic Inspection for AFL's family of inspection products.
