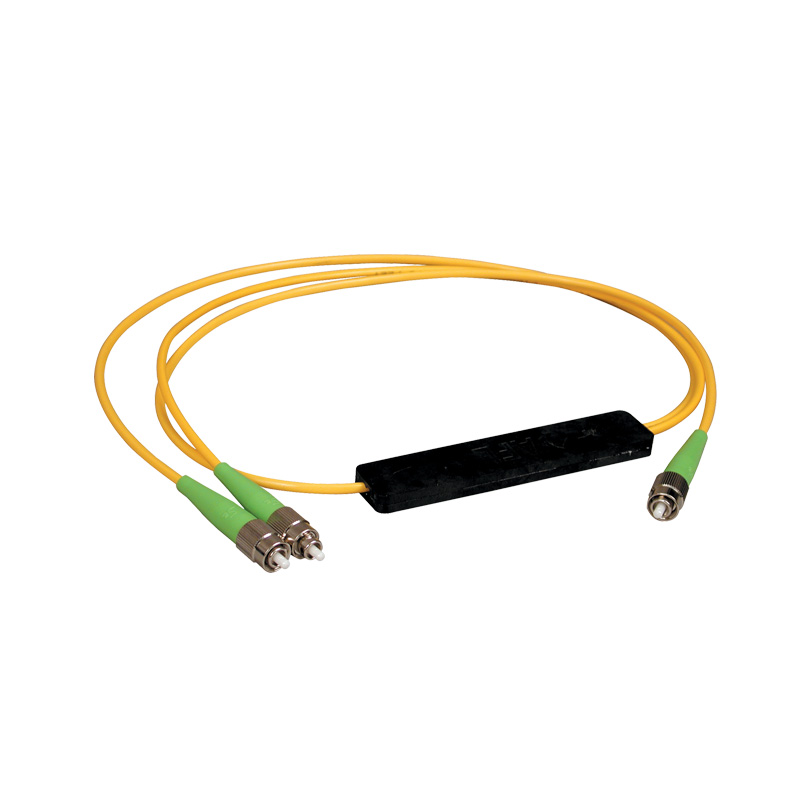

Ruggedized Wideband Couplers are available with 3 mm and 900 um furcated pigtail options and a variety of connector styles.
edd3c3a892d8496ab86d0731765b6e43
© 2002, AFL, all rights reserved. PP-2-00100, Revision 3, 8.31.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Coupler s / Splitters Features • Dual window wideband operation • Low insertion loss • Low PDL • High Directivity • Long term field application • Environmentally stable Ruggedized Wideband Couplers Enhancing AFL’s wideband coupler offering are two package styles for ruggedized versions of these reliable, standardized couplers – 3 mm and 900 μm furcated pigtail options and a variety of connector styles. All AFL couplers conform to stringent environmental and mechanical standards to provide high reliablity in a variety of customer applications. Specifications PARAMETER VALUE Operating Wavelength 1310 nm +/- 40 and 1550 nm +/- 40 Return Loss 55 dB Directivity 55 dB Operating Temperature -40° to +85°C Storage Temperature -40 to +85°C Ordering Information Applications • Telecommunications • CATV • LAN • Fiber in the Loop • Network monitoring Output Connector ULC = LC/UPC ALC = LC/APC USC = SC/UPC ASC = SC/APC UFC = FC/UPC AFC = FC/APC NC = No Connector Input Length 1M 2M 3M 4M 5M Input Connector ULC = LC/UPC ALC = LC/APC USC = SC/UPC ASC = SC/APC UFC = FC/UPC AFC = FC/APC NC = No Connector Leg Diameter 900=900 μm 3=3 mm Input Length 1M 2M 3M 4M 5M Inputs x Outputs 1x2 2x2 Split Ratio (%/%) 50/50 55/45 60/40 65/35 70/30 75/25 80/20 85/15 90/10 95/5 WBC 1x2 50/50 900 ULC 1M ULC 1M
Features:
- Dual window wideband operation
- Low insertion loss
- Low PDL
- High Directivity
- Long term field application
- Environmentally stable over -40ºC to +85ºC
- Environmentally stable with over 10 years of proven field reliability
Applications:
- Telecommunications
- CATV
- LAN
- Fiber in the Loop
- Network monitoring
Enhancing AFL's Wideband Coupler offering are two package styles for ruggedized versions of these reliable, standardized couplers. 3mm and 900um furcated pigtail options and a variety of connector styles are offered in both single-mode and multimode applications. All AFL's couplers conform to stringent environmental and mechanical standards to provide high reliablity in a variety of customer applications.
