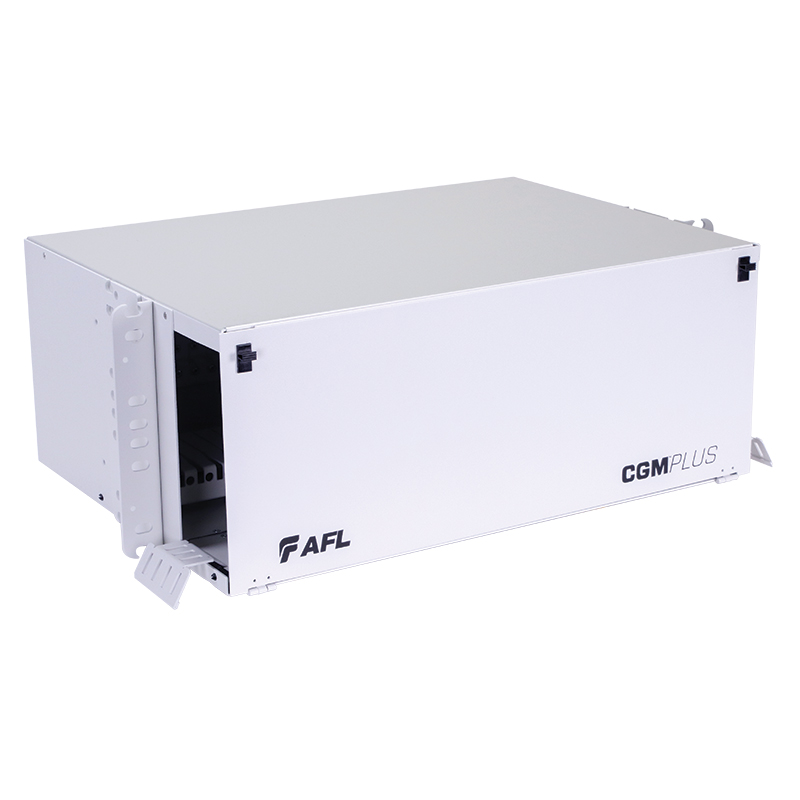

The CGM Plus is a high-density rack-mount panel designed for Wavelength Division Multiplexing (WDM) applications. The CGM Plus can hold LGX and CGM® devices interchangeably.
b9b01cbb66a84adb9326d811f4e634fc
© 2018, AFL, all rights reserved. PP-2-00280, Revision 2, 9.3.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Features • Galvannealed Steel construction • Textured white powder coat finish • 4RU panel height • Universal 19"/23" rack compatibility • Hinged tray system for increased access to modules • Compatible with CGM (Card Guide Module) and LGX products • Adjustable mounting depth Applications • Wavelength Division Multiplexing (WDM) • Headends/Central Offices • Service Provider • Telecommunications • Data Centers CGM ® PLUS The CGM Plus is a high-density rack-mount panel designed for Wavelength Division Multiplexing (WDM) applications. The CGM Plus can hold LGX ® and CGM ® devices interchangeably. The panel features a hinged tray system that extends from the front of the panel and conveniently folds out of the way for unobstructed access to installed modules. Routing rings on the front of the tray provide enhanced fiber management, allowing cable assemblies to enter and exit comfortably. Ordering Information DESCRIPTION CAPACITY AFL NO. LGX* CGM* CGM PLUS, 4RU, Empty, White, Front Access 12 24 FM004158 * Based on single-wide product Specifications DEPTH WIDTH HEIGHT WEIGHT 12.5" 17.375" 6.875" 23 Lbs. CGM PLUS CGM PLUS Open CGM PLUS Interior
Features:
- Galvannealed steel construction
- Textured white powder coat finish
- 4RU panel height
- Universal 19"/23" rack compatibility
- Hinged tray system for increased access to modules
- Compatible with CGM (Card Guide Module) and LGX products
- Adjustable mounting depth
Applications:
- Wavelength Division Multiplexing (WDM)
- Headends/Central Offices
- Service Provider
- Telecommunications
- Data Centers
The CGM Plus is a high-density rack-mount panel designed for Wavelength Division Multiplexing (WDM) applications. The CGM Plus can hold LGX and CGM® devices interchangeably.
The panel features a hinged tray system that extends from the front of the panel and conveniently folds out of the way for unobstructed access to installed modules.
Routing rings on the front of the tray provide enhanced fiber management, allowing cable assemblies to enter and exit comfortably.
Ordering Information
| DESCRIPTION |
CAPACITY (LGX)* |
CAPACITY (CGM)* |
AFL NO. |
| CGM PLUS, 4RU, Empty, White, Front Access |
12 |
24 |
FM004158 |
* Based on single-wide product
Specifications
| DEPTH |
WIDTH |
HEIGHT |
WEIGHT |
| 12.5" |
17.375" |
6.875" |
23 Lbs.
|
