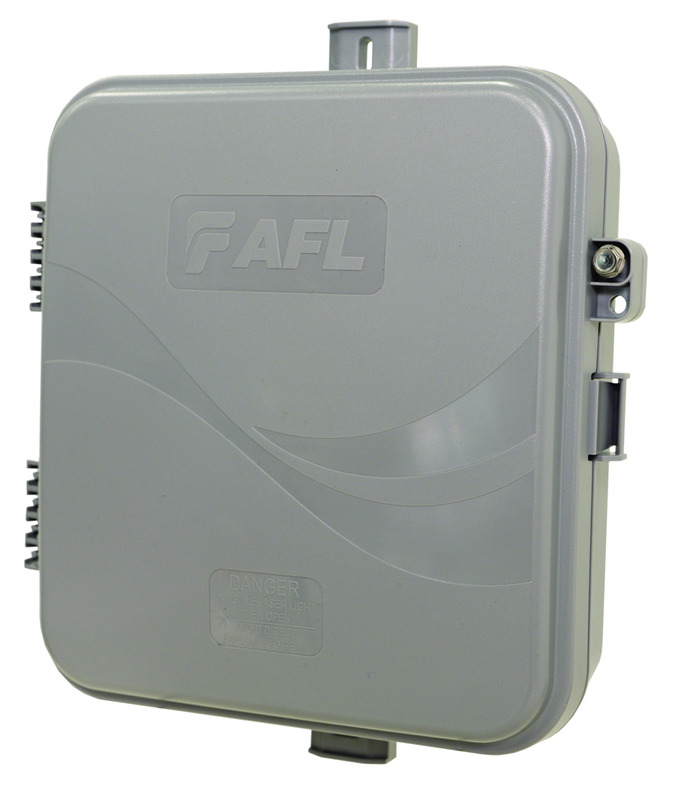

AFL’s OptiNID (OPN) MAX Optical Demarcation Enclosure is the latest entry in the
OptiNID fiber optic demarcation family of products.
95f12aefb36d46b08f12bbce20b2d75c
1 AFLglobal.com 1 ( 8 0 0 ) 8 6 6 -7385 © 2026, AFL, all rights reserved. PP-2-00446, Revision 0, 5.11.2026 Specifications are subject to change without notice. Optical Connectivity 1 OptiNID ® MAX Optical Demarcation Enclosure AFL’s OptiNID (OPN) MAX Optical Demarcation Enclosure is the latest entry in the OptiNID fiber optic demarcation family of products. The OPN MAX is designed with flexibility in mind with the capability to house up to 12 SC simplex or LC duplex adapters, along with the ability to house up to 24 single fiber splices. The OPN MAX is also optimized for the use of AFL’s FASTConnect ® or FUSEConnect ® field-installable connectors. The base of the enclosure houses an insert which incorporates fiber routing, adapter plate, and cable retention features. The OPN MAX also has several optional features such as a hinged splice tray to separate/protect bare fiber from cable slack, or a grounding plate for grounding toneable drop cables. The OPN MAX is available with two different base cable entry options, either a pair of U-shaped “drop-in” style grommets, or two half-inch ports allowing for a variety of different entry accessories. Features • Integrated splice tray for up to 48 single fusion splices • Hinged splice tray for more versatility and separation from the provider and customer side • Capability to easily hold up to 50ft of cable slack • Integrated gasket helps prevent water infiltration as well as protecting against insects • “U-Grommets” provide easy drop-in cable entry or two half-inch ports for a variety of cable entry options • Integrated mounting points external to the enclosure allow mounting to walls or poles without drilling holes through the box, creating leak paths "U-Grommet" Entry Option Applications • FTTx – Fiber-to-the-Home (single family, multi-dwelling), Fiber-to-the-Business (multi-tenant) • Wireless – Macro and small cell Specifications Parameter Values Dimensions – H x W x D 11.57 x 10.7 x 3.84 inches (29.39 x 27.18 x 9.75 cm) Material Polycarbonate UV Resistance (Days Exposed) 1000 hours per ASTM G154 (Cycle 1) Flammability UL 94-5VA Impact Test 0°F and 104°F (-18°C and 40°C) 10 ft-lbs on top, front and sides Chemical Resistance Resistant from cracking when subject to WD-40 Water Displacing Lubricant, No. 02005, 10% IGEPAL , Cable Filling compound (as used in the field), Splice Encapsulating Compound, Isopropyl Alcohol Grade HPLC, Wasp and Hornet Spray Drop Test 0°F and 104°F (-18°C and 40°C) from 30 in. (75 cm) Rain Wind-driven rain, MIL-STD-810E Method 506.3 Temperature Cycling with Humidity 30-day cycling from -40°F to 149°F (-40°C to 65°C) with 95% RH continued 1/2” Hole Entry Option BEAD compliant configurations and part numbers indicated where applicable. Non-compliant items may be eligible for BEAD De Minimis waiver. For complete list of compliant part numbers, see AFL BEAD Program Compliant Equipment List: AFLglobal.com/BEAD
2 AFLglobal.com 1 ( 8 0 0 ) 8 6 6 -7385 © 2026, AFL, all rights reserved. PP-2-00446, Revision 0, 5.11.2026 Specifications are subject to change without notice. Optical Connectivity 2 OptiNID ® MAX Optical Demarcation Enclosure Ordering Information Cover Logo X = No logo A= AFL A M A Base A = U-shape Grommets B = 1/2”Entry Holes X Lockscrew X = No lockscrew 1 = With lockscrew OptiNID MAX M = OPN MAX B = BEAD Compliant OPN MAX A Adapter A = SC/APC Simplex B = SC/UPC Simplex L = LC/UPC Duplex N = LC/APC Duplex 12 Adapter Quantity 00 = None 01 = One 06 = Six 12 = Twelve 24 = 24 (LC Duplex only) Pigtail Kit OR PLC Splitter X = None A = SC/APC Pigtail B = SC/UPC Pigtail L = LC/UPC Pigtail N = LC/APC Pigtail 2 = 1x2 PLC Splitter 4 = 1x4 PLC Splitter 8 = 1x8 PLC Splitter 12 = 1x12 PLC Splitter X Ground X = No Ground G = 2 Lug Grounding Plate P Hardware Left P P A = Heyco compression fitting for 0.095" to 0.29" round cable B = Heyco compression fitting for 0.170" to 0.45" round cable D = PVC conduit fitting for 3/4" Conduit G = Rubber grommet K = Heyco compression fitting for 0.26" to 0.545" round cable L = Heyco compression fitting for 2 round cables up to 0.15" M = Heyco compression fitting for flat drop cable N = PVC conduit fitting for 1/2" conduit U = U-shaped grommet for U-shaped grommet base Ordering Information – Accessories Description AFL No. OptiNID MAX Splice Module, Pack of 20 AX-TRAY-MOD-20 Qualifications Governing Body Standard Code Telcordia GR-771, GR-2898 Dimensions (in inches) 11.57 X Tray X = No Tray T = With Tray X Hardware Back X = None G = Grommet Hardware Right OptiNID MAX Tray with Splice Module BEAD compliant configurations and part numbers indicated where applicable. Non-compliant items may be eligible for BEAD De Minimis waiver. For complete list of compliant part numbers, see AFL BEAD Program Compliant Equipment List: AFLglobal.com/BEAD 10.7 3.84 12.66
Features
- Integrated splice tray for up to 48
single fusion splices
- Hinged splice tray for more versatility
and separation from the provider and
customer side
- Capability to easily hold up to 50ft of
cable slack
- Integrated gasket helps prevent
water infiltration as well as protecting
against insects
- “U-Grommets” provide easy drop-in
cable entry or two half-inch ports for
a variety of cable entry options
- Integrated mounting points external
to the enclosure allow mounting to
walls or poles without drilling holes
through the box, creating leak paths
Applications
- FTTx – Fiber-to-the-Home
(single family, multi-dwelling),
Fiber-to-the-Business (multi-tenant)
- Wireless – Macro and small cell
AFL’s OptiNID (OPN) MAX Optical Demarcation Enclosure is the latest entry in the
OptiNID fiber optic demarcation family of products. The OPN MAX is designed with
flexibility in mind with the capability to house up to 12 SC simplex or LC duplex
adapters, along with the ability to house up to 24 single fiber splices. The OPN MAX
is also optimized for the use of AFL’s FASTConnect® or FUSEConnect® field-installable
connectors. The base of the enclosure houses an insert which incorporates fiber
routing, adapter plate, and cable retention features. The OPN MAX also has several
optional features such as a hinged splice tray to separate/protect bare fiber from
cable slack, or a grounding plate for grounding toneable drop cables. The OPN MAX
is available with two different base cable entry options, either a pair of U-shaped
“drop-in” style grommets, or two half-inch ports allowing for a variety of different
entry accessories.
