The IDEAA® EWME enclosure is designed to mount on an exterior wall or post/pole to provide OSP protection.
9ac63218727e4db0ae818611e9007a64
1 AFLglobal.com 1 (800) 866-7385 © 2011, AFL, all rights reserved. PP-2-00061, Revision 13, 8.22.2025 Speci≥cations are subject to change without notice. Optical Connectivity 1 IDEAA ® (Integrated Distribution Enabling Access Apparatus) Ordering Information Description AFL No. Pad Mount with Skirt and 100 foot tails IDEAA Exterior Distribution Cabinet - 72 Pad, 1 x 72 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000307 IDEAA Exterior Distribution Cabinet - 144 Pad, 1 x 144 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000304 IDEAA Exterior Distribution Cabinet - 216 Pad, 1 x 216 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000305 IDEAA Exterior Distribution Cabinet - 288 Pad, 1 x 288 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000301 IDEAA Exterior Distribution Cabinet - 432 Pad, 2 x 216 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000321 IDEAA Exterior Distribution Cabinet - 864 Pad, 2 x 432 Fiber Distribution Cable (Wrapping Tube Cable (WTC), with SpiderWeb Ribbon ® (SWR ® ), 1 x 144 Fiber Input Cable WTC/SWR EA000590 Features • Modular distribution platform allows for incremental deployment costs and immediate cost savings • Small size is unobtrusive in residential deployments • Enhanced fiber management provides simplified routing and termination • Dual-door entry allows easy access to distribution and fiber management fields • Flexible pad and pole mounting options allow for deployment in convenient locations • Expandable feeder cables allow for point-to-point distribution (cross-connect) 288 Fiber (Closed) 864 Fiber (Open) Specifications Through Ports Height Width Depth Splitter Capacity Input/Pass Up to 288 Fiber 38" 20" 20" 9 24 432 Fiber 46" 20" 20" 14-15 24 (48 available) 576 and 864 48" 42.5" 20" 28 144 Pole Mount with Bracket and 100 foot tails IDEAA Exterior Distribution Cabinet - 144 Pole, 1 x 144 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000314 IDEAA Exterior Distribution Cabinet - 288 Pole, 1 x 288 Fiber Distribution Cable (Loose Tube),1 x 24 Fiber Input Cable (Loose Tube) EA000302 IDEAA Exterior Distribution Cabinet - 432 Pole, 2 x 216 Fiber Distribution Cable (Loose Tube), 1 x 24 Fiber Input Cable (Loose Tube) EA000322 Qualifications Governing Body Standard Code Telcordia GR-3215 The IDEAA Exterior Distribution Cabinet (EDC) provides a convenient modular approach to centralized fiber distribution. All sizes of the EDC utilize the IDEAA splitter module to enable versatility across the platform. The EDC utilizes innovative jumper routing to enable efficient fiber management utilizing equal length pigtails for the entire cabinet. IDEAA Exterior Distribution Cabinet
2 AFLglobal.com 1 (800) 866-7385 © 2011, AFL, all rights reserved. PP-2-00061, Revision 13, 8.22.2025 Speci≥cations are subject to change without notice. Optical Connectivity 2 Applications • Direct Wall Mount • Interior Wall Mount Enclosure/ Pedestal • Exterior Wall Mount Enclosure • Exterior Distribution Enclosure/ Pedestal • Exterior Distribution Cabinet • Rack Mount Bracket Features • SC and LC Module configurations can accommodate up to a 64 fiber distribution • Modular design allows for highly flexible and scalable deployments • Durable hardened plastic exterior provides a rugged encasement • Single and multi-package modules available IDEAA ® Integrated Distribution Enabling Access Apparatus AFL’s Integrated Distribution Enabling Access Apparatus (IDEAA) product family revolutionizes the way passive optical splitters are deployed in the network. Utilizing a small modular design and leveraging planar waveguide technology to yield an ultra low polarization dependent loss, low insertion loss, and high port uniformity, the IDEAA product possesses the flexibility to be used in a wide variety of applications. The IDEAA module provides a lower cost and more versatile alternative to preexisting PON architecture arrangements. Rather than being confined to a traditional “splitter-in- cabinet” design, the IDEAA product family allows service providers to employ PON architecture across all areas of the network. The IDEAA module’s unique design enables customers to utilize a revolutionary stand-alone mounting capability. In addition to conforming to a number of different applications, each IDEAA module can be mounted as an independent distribution point. This unit can be neatly secured to a wall or even placed on an existing rack or cabinet. IDEAA SC and LC Modules The IDEAA SC and LC modules come equipped with an internal PLC device which is factory terminated and tested. An integrated hinge provides easy access to the SC or LC adapter interface while reducing space when mounted. The SC and LC modules use APC connectors to meet the strict back reflection requirements of the latest PON architectures. A wide variety of PLC splitter configurations are available. A dual 1x16 module is available with SC APC outputs and LC APC inputs. Two SC APC to LC APC jumpers are included to connect to the EDC SC APC input ports. Direct Wall Mount Capability The IDEAA product can easily mount to an interior wall without needing any additional enclosures. Simply use the integrated hinge plate to install the module directly to a wall. The module contains port identification for each output fiber. Ordering Information Description AFL No. IDEAA Module, SC, 1x32 EA000102 IDEAA Module, SC Output, LC Input Dual 1x16 EA000583 IDEAA Module, SC, 1x16 EA000103 IDEAA Module, SC, 1x8 EA000104 IDEAA Module, SC, 1X4 EA000105 IDEAA Module , LC, 2x32 EA000547 Specifications Parameter Value 1x4 1x8 1x16 1x32 1x64 Wavelength Range (nm) 1260 - 1650 Typical Insertion Loss (dB) 6.7 9.8 12.9 16.6 19.8 Max Insertion Loss (dB) 7.4 10.5 14 17.5 21 Max IL Uniformity (dB) 1 1 1.5 2 2.2 Return Loss (dB) ≥55 Directivity (dB) ≥55 Max PDL (dB) 0.3 Qualifications Governing Body Standard Code Telcordia GR-1209, GR-1221
3 AFLglobal.com 1 (800) 866-7385 © 2011, AFL, all rights reserved. PP-2-00061, Revision 13, 8.22.2025 Speci≥cations are subject to change without notice. Optical Connectivity 3 IDEAA ® (Integrated Distribution Enabling Access Apparatus) Applications • OSP Splicing • MDU Splicing • FTTx Distribution Ordering Information Description AFL No. LL-400sx EA000370 LL-4848 Mass Fusion Splice Tray 911437-00-02 LL-2448 Universal Splice Tray 911289-00-02 LL-2448-48S Single Fusion Splice Tray FA000045 LL-2400 Single Fusion Splice Tray 91710-06 Channell OP1212 Pedestal FM000776 IDEAA ® Module LGX Mount Bracket EA000061 IDEAA SC/APC 1x32 Splitter Module EA000102 IDEAA SC/APC 1x16 Splitter Module EA000103 IDEAA SC/APC 1x8 Splitter Module EA000104 IDEAA SC/APC 1x4 Splitter Module EA000105 The IDEAA RMB allows attachment of one (1) IDEAA module to easily mount to industry standard LGX ® 118 fiber management rack panels. Simple push- pull pins allow the module to be easily installed and removed. Ordering Information Desceition AFL No. Rack-mount Panel LGX ® 118 Bracket for SC/APC IDEAA Module EA000654 Rack-mount Panel LGX ® 118 Bracket for MPO IDEAA Module EA000655 Capacity IDEAA Module 1RU Panel 2RU Panel 3RU Panel 4RU Panel # of 118 Positions 3 6 9 12 1x32 SC N/A N/A 3 4 1x16 SC N/A 3 3 6 1x8 and 1x4 SC 3 6 9 12 3x96 MPO 3 6 9 12 Features • Independent cable strain relief system • Cable entry/exit grommet seals • Removable Hinged Front Cover • Fiber routing system • Splice tray support system • 192 single fusion splices • 576 mass fusion splices • Grounding hardware kit included • 1 1x32 IDEAA Module with LGX Mount Bracket Features • Metal plate with push/pull pins • Powder coated black • LGX compatible IDEAA ® Rack Mount Bracket LGX ® is a registered trademark of Furukawa Electric North America, Inc. Specifications Parameter Value Material Chassis – aluminum Coatings Electrostatically applied, powder coat Color Antique white Dimensions in. (cm) (H x W x D) 23.9 x 9.5 x 5.0 (58.4 x 24.13 x 12.7) Weight lbs (kg) 5.0 (2.3) The LightLink (LL) 400sx Fiber Optic Splicing and Distribution Enclosure provides for organizing, splicing, and interconnecting fibers in FTTx, broadband, distribution and building entrance applications. Each LL-400sx enclosure features a scratch resistant powder coated aluminum base and a fully gasketed cover. A unique self- sizing grommet design allows for express and preterminated cable installation. The LL-400sx is a butt-style enclosure equipped with four independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 192 single or 576 mass-fused fibers. The LL-400sx can also mount up to two LGX118® adapter plates (splicing capacity limited to 144 single fusion and 432 mass fusion splices when adapter plates are installed). LL-400sx Optical Splicing/Distribution Enclosure
Features:
- Rugged, weatherproof thermoplastic alloy housing
- Cable entry/exit grommet seals
- Versatile inner mounting plate for IDEAA module
- Fiber Routing System
Applications:
- OSP Fiber Distribution
- MDU Fiber Distribution
- FTTx Fiber Distribution

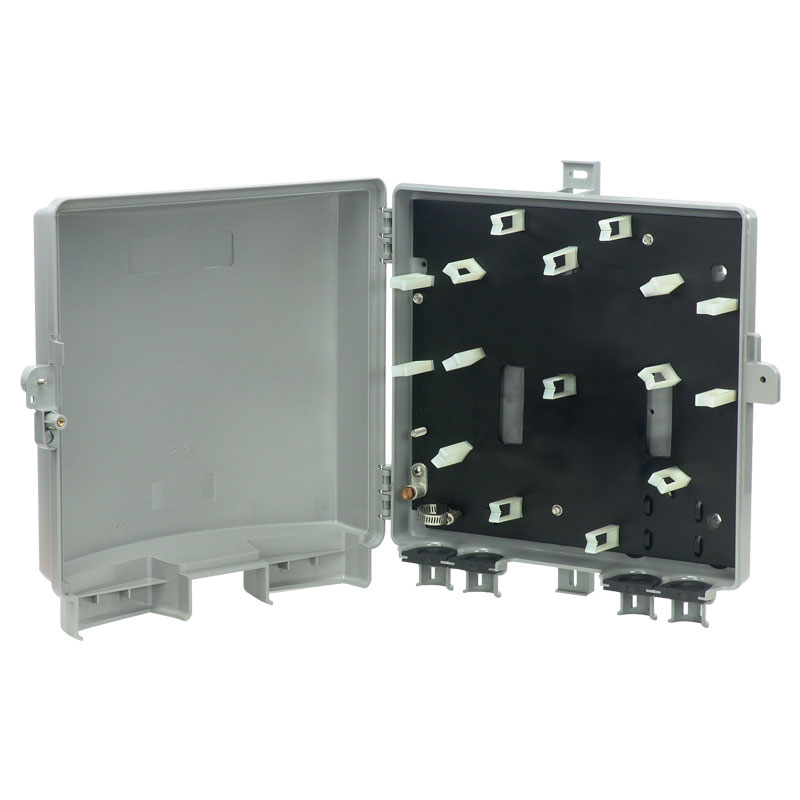

The IDEAA® EWME enclosure is designed to mount on an exterior wall or post/pole to provide OSP protection. The enclosure is designed to take separate input and output pre-terminated fiber cables or use of the AFL FuseConnect technology.
