High-fiber count, loose tube and riser-rated indoor/outdoor loose tube cable assemblies provide a safe and proven method of utilizing preterminated connector technology for outside plant applications.
b66be15506fa4b8990506b7555831c1b
Fiber Inside Plant www.AFLglobal.com or (800)235-3423 182 © 2002, AFL, all rights reserved. PP-2-00090, Revision 2, 11.22.11 Specifications are subject to change without notice. Features • Fiber counts from 6 to 144 fibers • Available with ST, SC, FC, and LC connectors single-mode • Pigtail assemblies, standard configuration (nonstandard configurations available) • ST, SC, FC and LC connectors available in both single-mode and multimode • Pre-installed pulling eye kits available Loose Tube & Riser Rated Indoor/ Outdoor Loose Tube Cable Assemblies High fiber count Loose Tube & Riser Rated Indoor/Outdoor Loose Tube Cable assemblies provide a safe and proven method of utilizing preterminated connector technology for outside plant applications. These assemblies help control cost by eliminating labor- intensive field termination and provide the same factory terminated reliability the indus- try has trusted for many years. Cable assemblies are available in Indoor/Outdoor Loose Tube, suitable for use in both indoor and outdoor applications. Each unit is manufac- tured to exceed all TIA and Telecordia requirements. Applications • Outdoor Cabinets • External-Building Runs • Vaults • CEV’s • 1 meter standard breakout length • 2.4mm standard furcation for SC, FC, and ST • 1.6mm standard furcation for LC • UV resistant outer jacket • Gel-filled loose buffer tubes (RL), Gel-filled Loose Tube (LT) • Meets Telcordia GR-20-CORE Riser Rated Indoor/Outdoor Loose Tube Specifications Cable Components Riser Rated stranded design loose tube cable is moisture and U.V. resistant, S-Z stranded for easy mid-span access, UL-listed type OFNR (UL1666) riser-rated, and can be used in both duct and lashed applications. PVC jacket Loose Tube Cable Components Loose Tube stranded design cables feature fiber counts up to 432, compliance with EIA/TIA and REA/RUS PE-90, and are S-Z stranded for easy mid-span access. Temperature Range Pa R ame T e R Va L ue Operating -40°C to +70°C Storage -40°C to +75°C Installation 0°C to +70°C Temperature Range Pa R ame T e R Va L ue Operating -40°C to +70°C Storage -40°C to +75°C Installation -30°C to +70°C strength member binder dry water blocking system dielectric center member optical fibers rip cord gel-filled buffer tube polyethylene jacket polyester tape optical fiber rip cord water-blocking system gel-filled loose buffer tube FRP central member PVC jacket strength member binder dry water blocking system dielectric central member optical fibers rip cord gel-filled buffer tube NOT e : Refer to page on Connector Specifications.
Fiber Inside Plant www.AFLglobal.com or (800)235-3423 183 © 2002, AFL, all rights reserved. PP-2-00090, Revision 2, 11.22.11 Specifications are subject to change without notice. Dimensions Loose Tube & Riser Rated Indoor/ Outdoor Loose Tube Cable Assemblies Connector e nd a Single-mode ASC = Angle SC AFC = Angle FC USC = Ultra SC UFC = Ultra FC UST = Ultra ST ULC = Ultra LC Cable Type LT = Loose Tube RL = Riser Rated Indoor/Outdoor Loose Tube Fiber Count 006 = 6 012 = 12 024 = 24 036 = 36 048 = 48 072 = 72 096 = 96 144 = 144 Fiber Type Q = Single-mode X = Single-mode ITU-T G.657A BIF Cable Length (meters) XXXX (specify length) 0010 = 10 meters Leg Diameter N = 900μm End A / XXX End B NN = 900μm End A and B F = Furcated End A / XXX End B FF = Furcated Ends A and B FN = Furcated Ends A / 900μm End B NF = 900μm End A / Furcated Ends B ASC Ordering Information ASC LT 024 Q 0010 NN Connector e nd B Single-mode ASC = Angle SC AFC = Angle FC USC = Ultra SC UFC = Ultra FC UST = Ultra ST ULC = Ultra LC XXX = No connector Lengths Available Cable lengths are dependent on fiber cable type and count. Consult customer service for maximum lengths available.
Features:
- Fiber counts from 6 to 144 fibers (up to 432 for Loose Tube)
- Available with ST, SC, FC and LC connectors single-mode
- Pigtail assemblies, standard configuration (nonstandard configurations available)
- ST, SC, FC and LC connectors available in both single-mode and multimode
- Pre-installed pulling eye kits available
- 1 meter standard breakout length
- 2.4 mm standard furcation for SC, FC and ST; 1.6 mm standard furcation for LC
- UV resistant outer jacket
- S-Z stranded for easy mid-span access
- Gel-filled loose buffer tubes (RL) Gel-filled Loose Tube (LT)
Applications:
- Outdoor cabinets
- External-building runs
- Vaults
- CEVs
- Duct and lashed applications

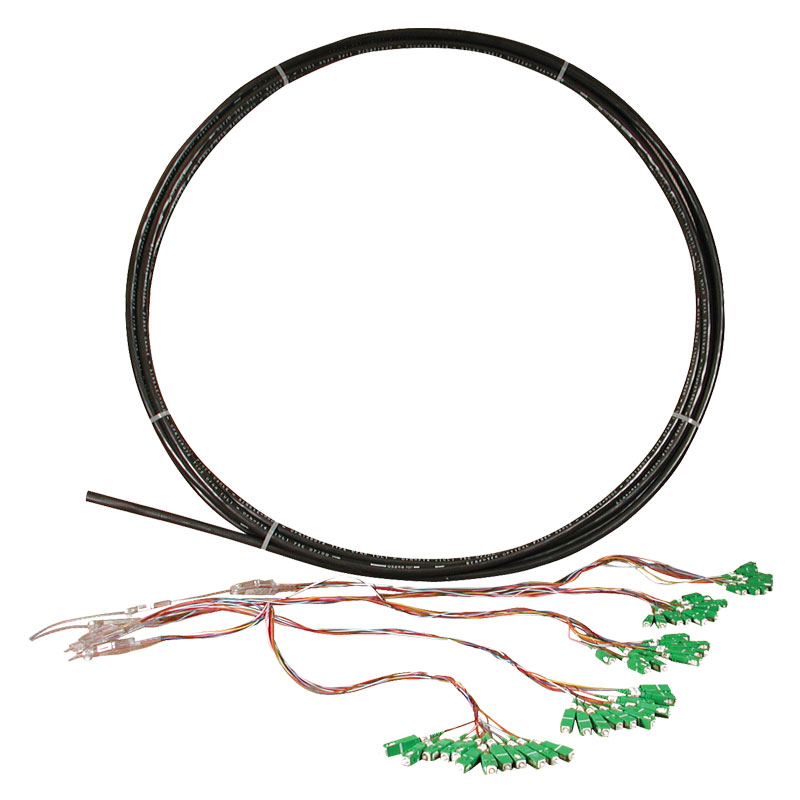

High-fiber count, loose tube and riser-rated indoor/outdoor loose tube cable assemblies provide a safe and proven method of utilizing preterminated connector technology for outside plant applications. These assemblies help control costs by eliminating labor-intensive field termination and providing the same factory terminated reliability the industry has trusted for many years. Cable assemblies are available in indoor/outdoor loose tube, suitable for use in both indoor and outdoor applications.
