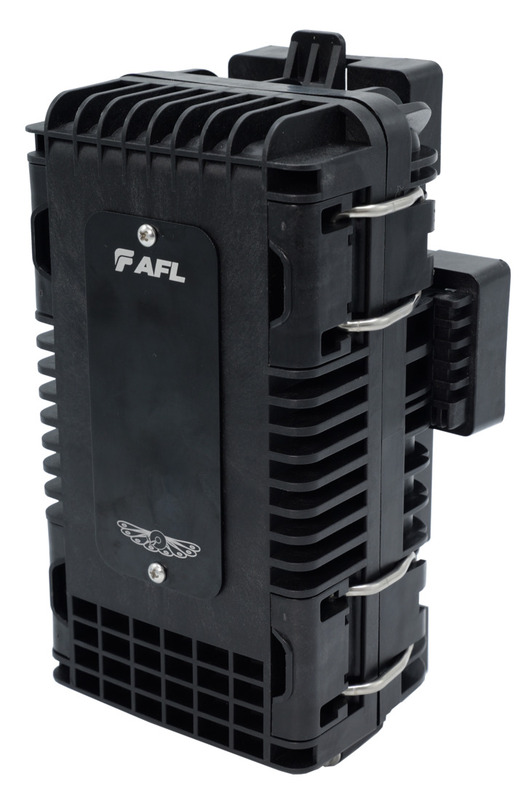

AFL RTD® Micro Splice Terminal is a compact terminal for
lower-density FTTx routes where right-sized drop capacity,
straightforward fiber access, and rugged environmental
sealing are essential.
beb20175ed324b528c7d50028b4375bc
1 © 2026, AFL, all rights reserved. PP-2-00453, Revision 0, 9.2.2026 Specifications are subject to change without notice. Optical Connectivity 1 AFLglobal.com/contact Sales & Support AFL RTD ® Micro Splice Terminal is a compact terminal for lower-density FTTx routes where right-sized drop capacity, straightforward fiber access, and rugged environmental sealing are essential. These splice terminals help operators streamline outside plant builds with a common platform that supports centralized splicing and distributed splitting. Modular trays, isolated access, and support for standard optical components simplify deployment, inventory planning, and lifecycle maintenance. AFL RTD ® Micro Splice Terminal Features • Modular, field-replaceable trays for splice and splitter • Spreadable adapter technology for easier access and handling • Isolated feeder/branch and drop access to reduce service disruption • Support for standard connectors, optical components and field-installable drops • 4 drop ports optimized for right-sized deployments • Designed for OSP harsh environments continued Applications • FTTx builds where mid-span splicing is required for new customer adds • Rural broadband deployments with lower subscriber density • Long distribution routes serving individual homes or small clusters • Centralized splice terminal architectures • Distributed split Specifications Parameter Value Dimensions 9.0 in. x 5.0 in. x 3.6 in. Weight 2.8 lbs Splice Capacity 24 splices Drop Capacity 4 ports Cable Ports Feeder: 5-14 mm diameter Branch: 3-12 mm diameter Supported Drop Cables Round: 3.0 mm and 4.8 mm Standard Flat: 8.1 x 4.6 mm Micro Flat: 5.4 x 3.0 mm Mounting Pole, wall, strand, pedestal, handhole Functional Options Loose-tube splice, ribbon fiber splice, pre-connectorized drops, PLC splitters Adapter Types SC/APC, SC/UPC, LC/APC, LC/UPC (duplex) PEACOC is a registered trademark of Go!Foton Corporation
2 © 2026, AFL, all rights reserved. PP-2-00453, Revision 0, 9.2.2026 Specifications are subject to change without notice. Optical Connectivity 2 AFLglobal.com/contact Sales & Support Temperature Specifications Temperature Range Operation -40°C to 65°C Installation -18°C to 40°C Contact AFL for further details. Ordering Information Type Description AFL No. SC/APC Ports 4-Port Splice Terminal, SC/APC AST-M-S-ASC-04 4-Port Splice Terminal, SC/APC, GND AST-MG-S-ASC-04 4-Port Splice Terminal, 1x4 PLC, SCA AST-M-S-ASC-04-S14 LC/APC Ports 4-Port Splice Terminal, LC/APC AST-M-S-ALC-04 4-Port Splice Terminal, LC/APC, GND AST-MG-S-ALC-04 Aerial Mount Bracket 4-Port Mounting Bracket for Cable Strand FC169025 Pole/Wall Mount Bracket 4-Port Mounting Bracket for Pole/Wall FC173048 Splice Tray Kit 4-Port Splice Tray Kit FC173049 Accessories Grommets AFL RTD, Mini/Micro Terminal, Grommets for 3~12 mm Cable, 12 PCS FC171272 Grommets 4-Port Grommets for 5~14 mm Cable, 12 PCS FC171273 AFL RTD ® Micro Splice Terminal Architecture Support Parameter Value Splice Terminal Ideal for centralized architectures where feeder fiber is directly spliced to pre-connectorized drops or configured for splice-only applications. Splitter Terminal Ideal for distributed split architectures. Splitter trays can be replaced in the field to support service adds and changes. Qualifications Governing Body Standard Code IEC IEC 60529 (IP68) 20 FT for 7 days Telcordia GR-771 Compliant for below grade applications PEACOC is a registered trademark of Go!Foton Corporation For complete installation instructions on the AFL RTD ® Micro Splice Terminal, scan the QR code below.
Features
- Modular, field-replaceable trays for splice and splitter
- Spreadable adapter technology for easier access and
handling
- Isolated feeder/branch and drop access to reduce service
disruption
- Support for standard connectors, optical components and
field-installable drops
- 4 drop ports optimized for right-sized deployments
- Designed for OSP harsh environments
Applications
- FTTx builds where mid-span splicing is required for new
customer adds
- Rural broadband deployments with lower subscriber density
- Long distribution routes serving individual homes or small
clusters
- Centralized splice terminal architectures
- Distributed split
AFL RTD® Micro Splice Terminal is a compact terminal for
lower-density FTTx routes where right-sized drop capacity,
straightforward fiber access, and rugged environmental
sealing are essential. These splice terminals help operators
streamline outside plant builds with a common platform
that supports centralized splicing and distributed splitting.
Modular trays, isolated access, and support for standard
optical components simplify deployment, inventory planning,
and lifecycle maintenance.
