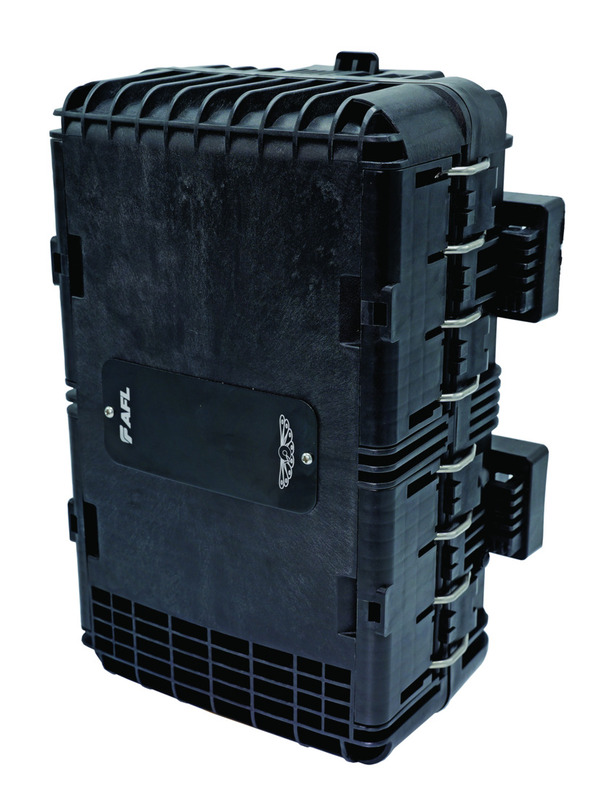

AFL RTD® Mini Splice Terminal is a mid-size terminal for
scalable FTTx distribution supporting higher drop count
requirements and greater configuration flexibility for splitter
or TAP-based designs.
beb20175ed324b528c7d50028b4375bc
1 © 2026, AFL, all rights reserved. PP-2-00452, Revision 0, 9.2.2026 Specifications are subject to change without notice. Optical Connectivity 1 AFLglobal.com/contact Sales & Support AFL RTD ® Mini Splice Terminal is a mid-size terminal for scalable FTTx distribution supporting higher drop count requirements and greater configuration flexibility for splitter or TAP-based designs. This splice terminal helps operators streamline outside plant builds with a common platform that supports centralized splicing and distributed splitting. Modular trays, isolated access and support for standard optical components simplify deployment, inventory planning, and lifecycle maintenance. AFL RTD ® Mini Splice Terminal Features • Modular, field-replaceable trays for splice and splitter • Spreadable adapter technology for easier access and handling • Isolated feeder/branch and drop access to reduce service disruption • Support for standard connectors, optical components and field-installable drops • 12 drop ports optimized for right-sized deployments • Designed for OSP harsh environments continued Applications • FTTx builds where mid-span splicing is required for new customer adds • Rural broadband deployments with lower subscriber density • Long distribution routes serving individual homes or small clusters • Centralized splice terminal architectures • Distributed split Specifications Parameter Value Dimensions 12.8 in. x 7.7 in. x 4.8 in. Weight 7.7 lbs Splice Capacity 144 splices Drop Capacity 12 ports Cable Ports Feeder: 13-25 mm diameter Branch: 3-12 mm diameter Supported Drop Cables Round: 3.0 mm and 4.8 mm Standard Flat: 8.1 x 4.6 mm Micro Flat: 5.4 x 3.0 mm Mounting Pole, wall, strand, pedestal, handhole Functional Options Loose-tube splice, ribbon fiber splice, pre-connectorized drops, PLC splitters Adapter Types SC/APC, SC/UPC, LC/APC, LC/UPC (duplex) PEACOC is a registered trademark of Go!Foton Corporation
2 © 2026, AFL, all rights reserved. PP-2-00452, Revision 0, 9.2.2026 Specifications are subject to change without notice. Optical Connectivity 2 AFLglobal.com/contact Sales & Support Qualifications Governing Body Standard Code IEC IEC 60529 (IP68) 20 FT for 7 days Telcordia GR-771 Compliant for below grade applications Temperature Specifications Temperature Range Operation -40°C to 65°C Installation -18°C to 40°C Contact AFL for further details. Ordering Information Type Description AFL No. SC/APC Ports 12-Port Splice Terminal, SC/APC AST-M-S-ASC-12 12-Port Splice Terminal, SC/APC, GND AST-MG-S-ASC-12 12-Port Splice Terminal, 1 Set of 1x4 PLC, 8 Pigtail SCA Multidrop AST-M-S-ASC-12-S14 12-Port Splice Terminal, 2 Sets of 1x4 PLC, 4 Pigtail SCA Multidrop AST-M-S-ASC-12-D14 LC/APC Ports 12-Port Splice Terminal, LC/APC AST-M-S-ALC-12 12-Port Splice Terminal, LC/APC, GND AST-MG-S-ALC-12 Aerial Mount Brackets 12-Port Mounting Bracket for Cable Strand FC169026 Pole/Wall Mount Bracket 12-Port Mounting Bracket for Pole/Wall FC173053 Splice Tray Kit 12-Port Splice Tray Kit FC173055 Accessories Grommets 12-Port Grommets for 3~25 mm Cable, 6 PCS FC171271 Grommets AFL RTD, Mini/Micro Terminal, Grommets for 3~12 mm Cable, 12 PCS FC171272 AFL RTD ® Mini Splice Terminal Architecture Support Parameter Value Splice Terminal Two branch ports are standard within the platform. Splitter Terminal Supports 1x2, 1x4, and 1x8 PLC splitter options within the family. PEACOC is a registered trademark of Go!Foton Corporation For complete installation instructions on the AFL RTD ® Mini Splice Terminal, scan the QR code below.
Features
- Modular, field-replaceable trays for splice and splitter
- Spreadable adapter technology for easier access and
handling
- Isolated feeder/branch and drop access to reduce service
disruption
- Support for standard connectors, optical components and
field-installable drops
- 12 drop ports optimized for right-sized deployments
- Designed for OSP harsh environments
Applications
- FTTx builds where mid-span splicing is required for new
customer adds
- Rural broadband deployments with lower subscriber density
- Long distribution routes serving individual homes or small
clusters
- Centralized splice terminal architectures
- Distributed split
AFL RTD® Mini Splice Terminal is a mid-size terminal for
scalable FTTx distribution supporting higher drop count
requirements and greater configuration flexibility for splitter
or TAP-based designs. This splice terminal helps operators
streamline outside plant builds with a common platform
that supports centralized splicing and distributed splitting.
Modular trays, isolated access and support for standard optical
components simplify deployment, inventory planning, and
lifecycle maintenance.
