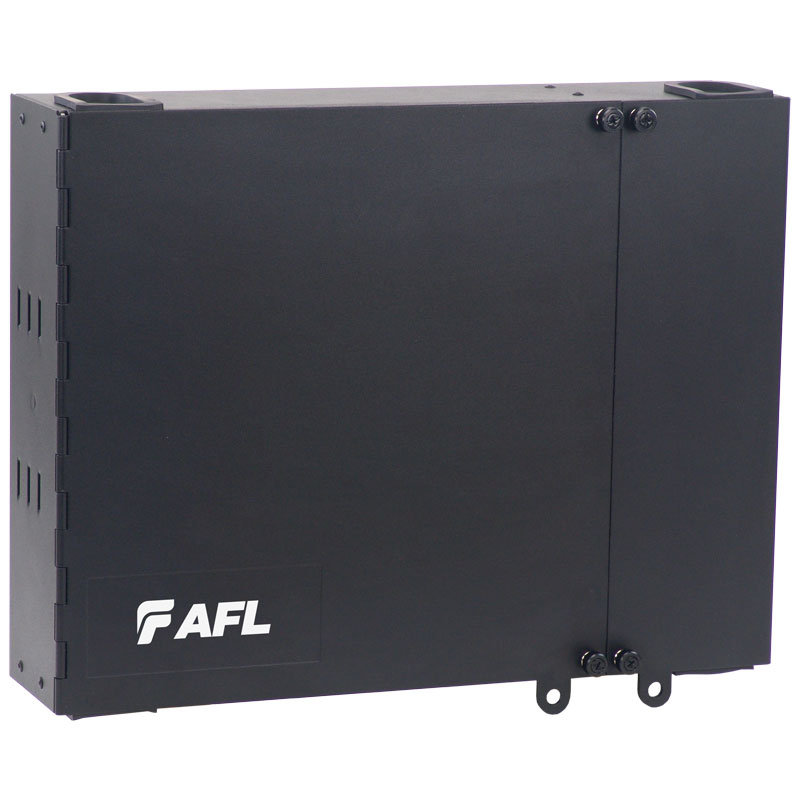

Features • Fits comfortably into new and existing interconnect, cross-connect and co-location environments • U-shaped cable entry eliminates the need to feed preconnectorized cables through an inconvenient access port • Modular design fully compatible with Poli-MOD ® products and XFM optical cassettes • Dual doors with separate locking options for flexibility and security • Available empty, with adapters, or with adapters, splice trays and pigtails pre-installed • LGX 118 compatible • Optional splice tray and holder (ordered separately) • All major connector types are supported Wall Mount Interconnect Enclosure (WME) with Two LGX ® Mounting Positions AFL’s wall mount interconnect enclosure (WME02) provides a convenient convergence point for interconnecting and/or splicing in wall mount applications. Provisioned for up to two LGX compatible adapter plates or optical modules, the enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openings of the enclosure. Robust steel construction ensures the highest level of protection for sensitive components while integrated roll-formed hinges eliminate possible fiber pinch points while deploying or servicing components within. The WME02 features discrete access doors for provider and customer access which are independently lockable with a common pad-lock or tube-style keyed lock. Applications • Co-Location sites • Customer premise • Hub/OTN sites • Telecommunication closets • Campus/enterprise environments Specifications • Solid steel construction • Powder coat black textured finish • Top or bottom cable entry with dust resistant grommets • Dual-hasp locking/security system • 12 to 24 fiber patch and splice density • Two LGX mounting positions • Physical dimensions: 12.0"H x 14.0"W x 2.5"D • Empty version weight: 10.65 lbs. LGX is a registered trademark of Furukawa Electric North America, Inc. WME-02 WME-02 shown empty WME-02 shown fully loaded 1 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00107, Revision 5, 9.23.2025 Specifications are subject to change without notice. Optical Connectivity 1 Wall Mount Interconnect Enclosure (WME) with Two LGX ® Mounting Positions LGX is a registered trademark of Furukawa Electric North America, Inc. Ordering Information Empty Description AFL No. WME02 Empty WME02E Loaded: WME with Adapter Plates/Adapters/Splice Trays/Pigtails (900 μm Tight Buffered Fibers 3 meters in Length) Connector Type Fiber Count AFL No. UPC SM (Blue) APC SM (Green) PC MM 62.5 μm (Beige) PC MM 50 μm (Black) SC 6 WME02FS-USCSM-006110 WME02FS-ASCSM-006110 WME02FS-PSCM6-006110 WME02FS-PSCM5-006110 12 WME02FS-USCSM-012110 WME02FS-ASCSM-012110 WME02FS-PSCM6-012110 WME02FS-PSCM5-012110 24 WME02FH-USFSM-024120 WME02FH-ASFSM-024120 WME02FH-PSFM6-024120 WME02FH-PSFM5-024120 LC 6 WME02FS-UDLSM-006110 WME02FS-ADLSM-006110 WME02FS-PDLM6-006110 WME02FS-PDLM5-006110 12 WME02FS-UDLSM-012110 WME02FS-ADLSM-012110 WME02FS-PDLM6-012110 WME02FS-PDLM5-012110 24 WME02FH-UDLSM-024120 WME02FH-ADLSM-024120 WME02FH-PDLM6-024120 WME02FH-PDLM5-024120 ST 6 WME02FS-USTSM-006110 — WME02FS-PSTM6-006110 WME02FS-PSTM5-006110 12 WME02FS-USTSM-012110 — WME02FS-PSTM6-012110 WME02FS-PSTM5-012110 24 WME02FH-USTSM-024120 — WME02FH-PSTM6-024120 WME02FH-PSTM5-024120 Half Loaded: WME with Adapter Plates and Adapters Only Connector Type Fiber Count AFL No. UPC SM (Blue) APC SM (Green) PC MM (Beige) SC 6 WME02AS-USCSM-006000 WME02AS-ASCSM-006000 WME02AS-PSCM6-006000 12 WME02AS-USCSM-012000 WME02AS-ASCSM-012000 WME02AS-PSCM6-012000 24 WME02AH-USFSM-024000 WME02AH-ASFSM-024000 WME02AH-PSFM6-024000 LC 6 WME02AS-UDLSM-006000 WME02AS-ADLSM-006000 WME02AS-PDLM6-006000 12 WME02AS-UDLSM-012000 WME02AS-ADLSM-012000 WME02AS-PDLM6-012000 24 WME02AH-UDLSM-024000 WME02AH-ADLSM-024000 WME02AH-PDLM6-024000 ST 6 WME02AS-USTSM-006000 — WME02AS-PSTM6-006000 12 WME02AS-USTSM-012000 — WME02AS-PSTM6-012000 24 WME02AH-USTSM-024000 — WME02AH-PSTM6-024000 Accessories Description AFL No. Splice Tray Kit: Single Fusion 12F, 2RU, WME02, WME04, 1 Splice Tray FM002827-1 Splice Tray Kit: Single Fusion 12F, 2RU, WME02, WME04, 2 Splice Trays FM002827-2 Connector/Adapter Key Type Description ASC Angle Polish SC (ZR) sleeve-SM ASF Angle Polish SC Duplex (ZR) sleeve-SM PSC Physical Polish SC (PB) sleeve-MM PSF Physical Polish SC Duplex (PB) sleeve-MM USC Ultra Polish SC with (ZR) sleeve-SM USF Ultra Polish SC Duplex (ZR) sleeve-SM PST Physical Polish ST (PB) sleeve-MM UST Ultra Polish ST (ZR) sleeve-SM ADL Angle Polish LC Duplex (ZR) sleeve-SM PDL Physical Polish LC Duplex (PB) sleeve-MM PLC Physical Polish LC (PB) sleeve-MM UDL Ultra Polish LC Duplex (ZR) sleeve-SM ULC Ultra Polish LC (ZR) sleeve-SM 2 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00107, Revision 5, 9.23.2025 Specifications are subject to change without notice. Optical Connectivity 2
