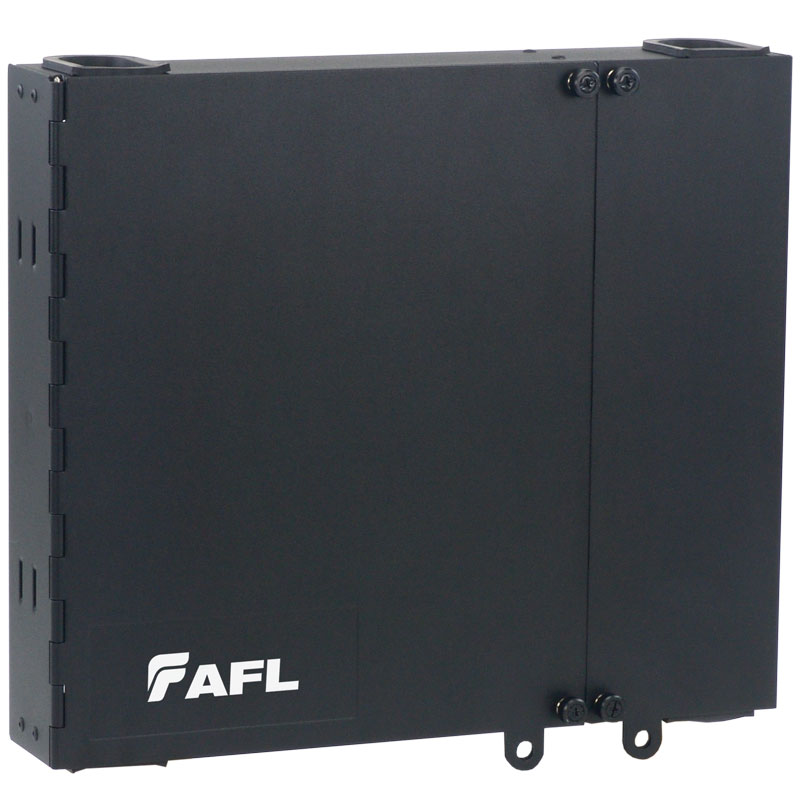

Features • Fits comfortably into new and existing interconnect, cross-connect and co-location environments • U-shaped cable entry eliminates the need to feed preconnectorized cables through an inconvenient access port • Modular design fully compatible with Poli-MOD ® products and XFM optical cassettes • Dual doors with separate locking options for flexibility and security • Available empty, with adapters, or with adapters, splice trays and pigtails pre-installed • LGX 118 compatible • Optional splice tray and holder (ordered separately) • All major connector types are supported Wall Mount Interconnect Enclosure (WME) with Four LGX ® Mounting Positions AFL’s wall mount interconnect enclosure (WME04) provides a convenient convergence point for interconnecting and/or splicing in wall mount applications. Provisioned for up to four LGX compatible adapter plates or optical modules, the enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openings of the enclosure. Robust steel construction ensures the highest level of protection for sensitive components while integrated roll-formed hinges eliminate possible fiber pinch points while deploying or servicing components within. The WME04 features discrete access doors for provider and customer access which are independently lockable with a common pad-lock or tube-style keyed lock. Applications • Co-Location sites • Customer premise • Hub/OTN sites • Telecommunication closets • Campus/enterprise environments Specifications • Solid steel construction • Powder coat black textured finish • Top or bottom cable entry with dust resistant grommets • Dual-hasp locking/security system • 24 to 48 fiber patch and splice density • Four LGX mounting positions • Physical dimensions: 12.0"H x 16.0"W x 3.63"D LGX is a registered trademark of Furukawa Electric North America, Inc. WME-04 WME-04 shown empty WME-04 shown fully loaded 1 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00108, Revision 4, 9.23.2025 Specifications are subject to change without notice. Optical Connectivity 1 Wall Mount Interconnect Enclosure (WME) with Four LGX ® Mounting Positions LGX is a registered trademark of Furukawa Electric North America, Inc. Ordering Information Empty Descripion AFL No. WME04 Empty WME04E loaded: WME with Adapter Plates/Adapters/Splice Trays/Pigtail (900 μm Tight Buffered Fibers 3 meters in Length) Connector Type Fiber Count AFL No. UPC SM (Blue) APC SM (Green) PC MM 62.5 μm (Beige) PC MM 50 μm (Black) SC 24 WME04FS-USCSM-024120 WME04FS-ASCSM-024120 WME04FS-PSCM6-024120 WME04FS-PSCM5-024120 48 WME04FH-USFSM-048140 WME04FH-ASFSM-048140 WME04FH-PSFM6-048140 WME04FH-PSFM5-048140 LC 24 WME04FS-UDLSM-024120 WME04FS-ADLSM-024120 WME04FS-PDLM6-024120 WME04FS-PDLM5-024120 48 WME04FH-UDLSM-048140 WME04FH-ADLSM-048140 WME04FH-PDLM6-048140 WME04FH-PDLM5-048140 ST 24 WME04FS-USTSM-024120 — WME04FS-PSTM6-024120 WME04FS-PSTM5-024120 48 WME04FH-USTSM-048140 — WME04FH-PSTM6-048140 WME04FH-PSTM5-048140 Half Loaded: WME with Adapter Plates and Adapters Only Connector Type Fiber Count AFL No. UPC SM (Blue) APC SM (Green) PC MM (Beige) SC 24 WME04AS-USCSM-024000 WME04AS-ASCSM-024000 WME04AS-PSCM6-024000 48 WME04AH-USFSM-048000 WME04AH-ASFSM-048000 WME04AH-PSFM6-048000 LC 24 WME04AS-UDLSM-024000 WME04AS-ADLSM-024000 WME04AS-PDLM6-024000 48 WME04AH-UDLSM-048000 WME04AH-ADLSM-048000 WME04AH-PDLM6-048000 ST 24 WME04AS-USTSM-024000 — WME04AS-PSTM6-024000 48 WME04AH-USTSM-048000 — WME04AH-PSTM6-048000 Accessories Description AFL No. Splice Tray Kit: Single Fusion 12F, 2RU, WME02, WME04, 3 Splice Trays FM002827-3 Splice Tray Kit: Single Fusion 12F, 2RU, WME02, WME04, 4 Splice Trays FM002827-4 Connector/Adapter Key Type Description ASC Angle Polish SC (ZR) sleeve-SM ASF Angle Polish SC Duplex (ZR) sleeve-SM PSC Physical Polish SC (PB) sleeve-MM PSF Physical Polish SC Duplex (PB) sleeve-MM USC Ultra Polish SC with (ZR) sleeve-SM USF Ultra Polish SC Duplex (ZR) sleeve-SM PST Physical Polish ST (PB) sleeve-MM UST Ultra Polish ST (ZR) sleeve-SM ADL Angle Polish LC Duplex (ZR) sleeve-SM PDL Physical Polish LC Duplex (PB) sleeve-MM PLC Physical Polish LC (PB) sleeve-MM UDL Ultra Polish LC Duplex (ZR) sleeve-SM ULC Ultra Polish LC (ZR) sleeve-SM 2 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00108, Revision 4, 9.23.2025 Specifications are subject to change without notice. Optical Connectivity 2
