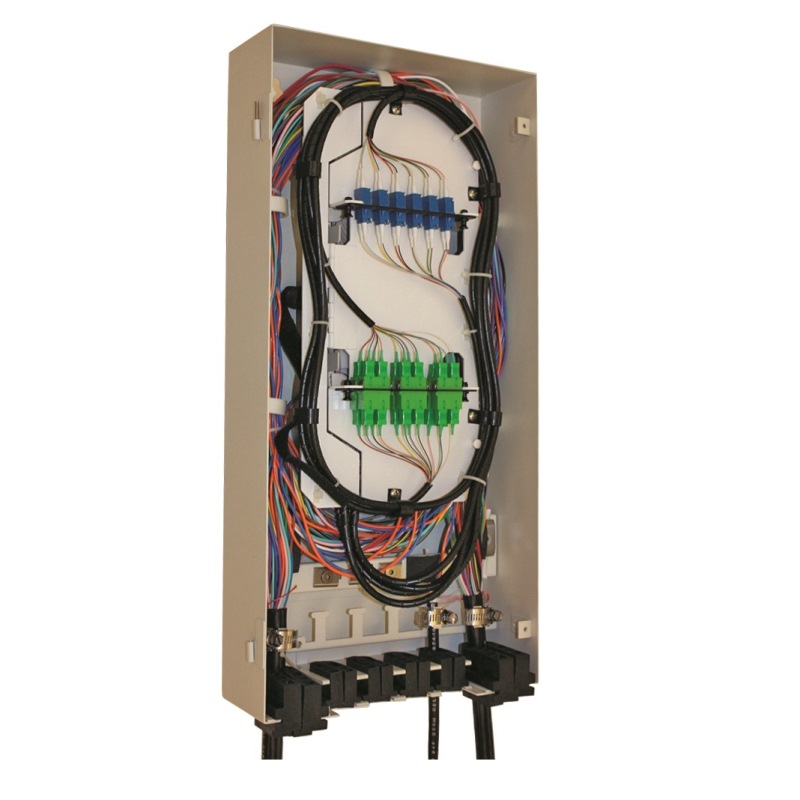

The LightLink (LL) 400b fiber optic splicing and distribution enclosure provides for organizing, splicing and interconnecting fibers in FTTx, broadband,distribution and building entrance applications.
074c3cc1494e414babc6c80a739a99f0
© 2002, AFL, all rights reserved. PP-2-00150, Revision 7, 6.25.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Specifications PARAMETER VALUE Material Chassis – aluminum Coatings Electrostatically applied, powder coat Color Antique white Dimensions (H x W x D) in. (cm) 22.75 x 11.00 x 4.0 (57.79 x 27.94 x 10.16) Weight lbs (kg) 6.5 (2.95) LightLink 400b Optical Splicing and Distribution Enclosure Features • Independent cable strain relief system • Cable entry/exit grommet seals • Fiber routing system • Splice tray support system • Supports optional interconnect modules • 240 single fusion splices • 432 mass fusion splices • Grounding hardware kit included Applications • OSP Splicing • MDU Splicing • FTTx Distribution LL-400b shown with optional interconnect module Hardware kit for external grounding (included) The LightLink (LL) 400b Fiber Optic Splicing and Distribution Enclosure provides for organizing, splicing and interconnecting fibers in FTTx, broadband, distribution and building entrance applications. Each LL-400b enclosure features a scratch resistant powder coated aluminum base and a fully gasketed cover. A unique self-sizing grommet design allows for express and preterminated cable installation. The LL-400b is a butt-style enclosure equipped with 6 independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 240 single or 432 mass-fused fibers. When installed into an LL-400b, the Inteconnect Module supports connectivity when used with LGX-118 adapter plates (purchased seperately). It is used in outdoor pedestals or building mounted LL-400b enclosures where interconnection is required. Ordering Information DESCRIPTION AFL NO. LL-400b 91894-04 LL-400b In 1212 Pedestal FM000636 LL-410 Interconnect Module, Supports Up To 2 LGX-118 Adapter Plates 911410-00-04 LL-2448 Universal Splice Tray 911289-00-02 LL-2448-48S Single Fusion Splice Tray FA000045 LL-2400 Single Fusion Splice Tray 91710-06 LL-400 Security Kit FM000787 LL-400b Large Dual-port Grommet Kit 911406-00-00 LL-400b Large Multi-port Grommet Kit FC000352 LG-410/LG-500 Dual-port Grommet Kit 911386-00-01 LG410/LG500 Multi-port Grommet Kit FC000573
Features:
- Independent cable strain relief system
- Cable entry and exit grommet seals
- Fiber routing system
- Splice tray support system
- Supports optional interconnect modules
- 240 single fusion splices
- 432 mass fusion splices
- Grounding hardware kit included
Applications:
- OSP splicing
- MDU splicing
- FTTx distribution
The LightLink (LL) 400b fiber optic splicing and distribution enclosure provides for organizing, splicing and interconnecting fibers in FTTx, broadband, distribution and building entrance applications.
Each LL-400b enclosure features a scratch resistant powder coated aluminum base and a fully gasketed cover. A unique self-sizing grommet design allows for express and preterminated cable installation. The LL-400b is a butt-style enclosure equipped with six independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 240 single or 432 mass-fused fibers. When installed into an LL-400b, the Inteconnect Module supports the interconnection of up to 24 SC optical bulkheads. It is used in outdoor pedestals or building mounted LL-400b enclosures where interconnection is required.
