Optical Splicing and Distribution Enclosure
074c3cc1494e414babc6c80a739a99f0
© 2013, AFL, all rights reserved. PP-2-00154, Revision 2, 1.31.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Outdoor Wall-mount Enclosures Specifications PARAMETER VALUE Material Chassis – aluminum Coatings Electrostatically applied, powder coat Color Antique white Dimensions (H x W x D) in. (cm) 23.9 x 9.5 x 5.0 (58.4 x 24.13 x 12.7) Weight lbs (kg) 5.0 (2.3) The LightLink (LL) 400sx Fiber Optic Splicing and Distribution Enclosure provides for organizing, splicing, and interconnecting fibers in FTTx, broadband, distribution and building entrance applications. Each LL-400sx enclosure features a scratch resistant powder coated aluminum base and a fully gasketed cover. A unique self-sizing grommet design allows for express and preterminated cable installation. The LL-400sx is a butt-style enclosure equipped with four independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 192 single or 576 mass-fused fibers. The LL-400sx can also mount up to two LGX118 ® adapter plates (splicing capacity limited to 144 single fusion and 432 mass fusion splices when adapter plates are installed). LightLink 400sx Optical Splicing and Distribution Enclosure Features • Independent cable strain relief system • Cable entry/exit grommet seals • Removable Hinged Front Cover • Fiber routing system • Splice tray support system • 192 single fusion splices • 576 mass fusion splices • Grounding hardware kit included Ordering Information DESCRIPTION AFL NO. LL-400sx EA000370 LL-4848 Mass Fusion Splice Tray 911437-00-02 LL-2448 Universal Splice Tray 911289-00-02 LL-2448-48S Single Fusion Splice Tray FA000045 LL-2400 Single Fusion Splice Tray 91710-06 Channell OP1212 Pedestal FM000776 IDEAA ® Module LGX Mount Bracket EA000061 IDEAA SC/APC 1x32 Splitter Module EA000102 IDEAA SC/APC 1x16 Splitter Module EA000103 IDEAA SC/APC 1x8 Splitter Module EA000104 IDEAA SC/APC 1x4 Splitter Module EA000105 LL-400sx in 1212 pedestal LL-400sx Applications • OSP Splicing • MDU Splicing • FTTx Distribution
Features:
- Independent cable strain relief system
- Cable entry/exit grommet seals
- Removable Hinged Front Cover
- Fiber routing system
- Splice tray support system
- 192 single fusion splices
- 576 mass fusion splices
- Grounding hardware kit included
Applications:
- OSP Splicing
- MDU Splicing
- FTTx Distribution

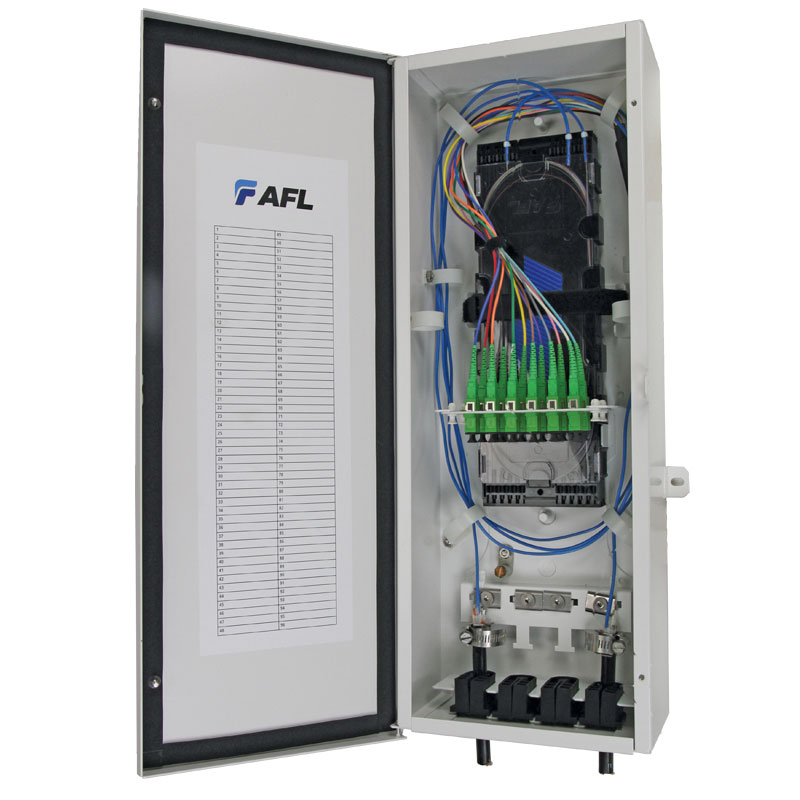

The LightLink (LL) 400sx Fiber Optic Splicing and Distribution Enclosure provides for organizing, splicing, and interconnecting fibers in FTTx, broadband, distribution and building entrance applications.
Each LL-400sx enclosure features a scratch resistant powder coated aluminum base and a fully gasketed cover. A unique self-sizing grommet design allows for express and preterminated cable installation. The LL-400sx is a butt-style enclosure equipped with four independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 192 single or 576 mass-fused fibers. The LL-400sx can also mount up to two LGX118® adapter plates (splicing capacity limited to 144 single fusion and 432 mass fusion splices when adapter plates are installed).
