Traditional fiber coating offering includes materials rated to 150°C (MTDA), 200°C (SPFA) and 300°C (Polyimide).
adfa2a922fb9478cb55f3a318744bea3,da68871b594545af910234240c34c2c1
SPECIALTY OPTICAL FIBER www.AFLglobal.com 1-508-890-7100 PERFORMANCE 175°C Rated Carbon Silicone Mid-Temp Acrylate Coating on VHM2000 175°C-RATED CARBON SILICONE MID-TEMP ACRYLATE COATING Applications • DTS / DAS monitoring for temperatures as high as 175°C Features • Easy to strip with mechanical strippers – strips easier than standard acrylate coating • Minimal / no residue after stripping – no impact on fusion splicing • Can be colored • Does not have a negative impact on bend loss Fiber Properties • Coating Diameter: 245 μm +/- 20 μm • Operating Temperature: -40°C to 175°C Available on all AFL MM and SM fiber types Long-Term Soak (2010 Hours) 175ºC - VHM2000 CSMTA Induced Loss 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.05 0 200 175 150 125 100 75 50 25 0 Temperature (ºC) 7/9 @ 0:00 7/19 @ 0:00 7/29 @ 0:00 8/8 @ 0:00 8/18 @ 0:00 8/28@ 0:00 9/7@ 0:00 9/17@ 0:00 9/27@ 0:00 Time (Minutes) –– 1300 nm –– 850 nm –– Temp Induced Loss (dB/Km) VHM2000 CSMTA vs. MTDA Strip Force Comparison - 'Average Strip' Force 3 2.5 2 1.5 1 0.5 0 1 2 3 4 5 6 7 8 9 10 Sample Number –– VHM2000 CSMTA –– MTDA Average 'Average' Force: 1.47 N Average 'Average' Force: 2.5 N Strip Force (N)
Features:
- Easy to strip with mechanical strippers – strips easier than standard acrylate coating
- Minimal to no residue after stripping – no impact on fusion splicing
- Colored versions available
- Does not have a negative impact on bend loss
- Available with carbon coating for hydrogen and chemical damage prevention
- Coating combination available in all Verrillon waveguides and glass compositions
Applications:
- Distributed Temperature Sensing (DTS)
- Distributed Acoustic Sensing (DAS)
- Distributed Strain Sensing (DSS)
- Suitable for application temperatures as high as 175°C

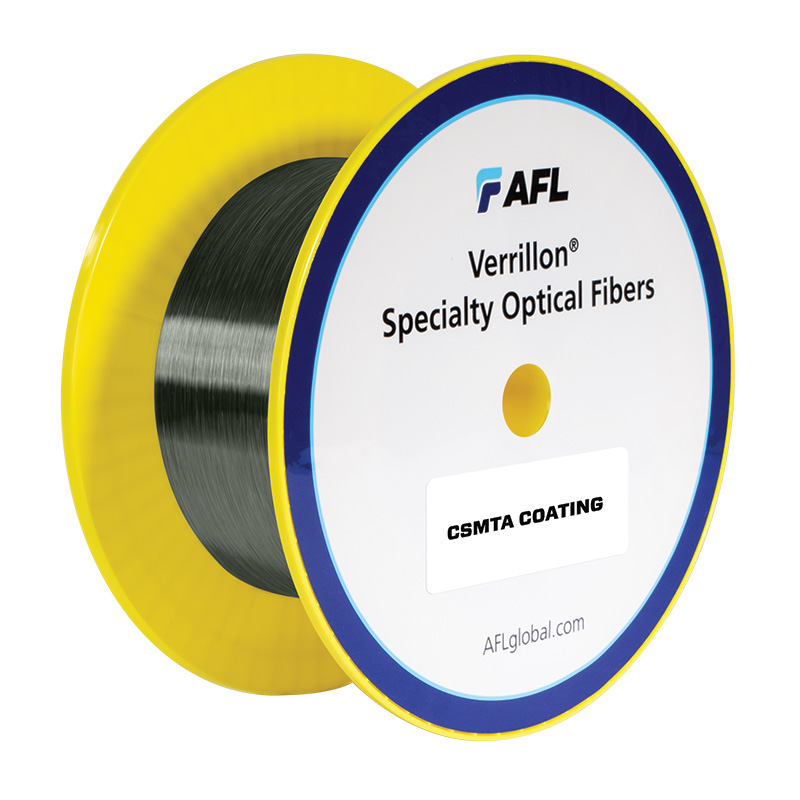

Verrillon’s® traditional fiber coating offering includes materials rated to 150°C (MTDA), 200°C (SPFA) and 300°C (Polyimide). For environments where temperatures are between 150°C and 200°C, Verrillon has introduced its new Carbon/Silicone/Mid-Temp Acrylate coating (CSMTA), designed to address such mid-temperature range applications. This coating combination has been fully qualified for use at 175°C in both long-term exposure and extensive cycling between -40°C and +175°C. In addition to its excellent temperature handling, the 175°C coating exhibits exceptional strippability with traditional mechanical tools due to the unique properties of its primary coating.
