VSR Series of Ultra-High Solarization-Resistant fiber is designed to transmit light in the Deep UV (DUV) region of the spectrum where standard silica glass suffers significant darkening with attenuation values higher than 2000 dB/km.
da68871b594545af910234240c34c2c1
1 Specialty Optical Fiber © 2020, AFL, all rights reserved. PP-6-00030, Revision 1, 4.29.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Features • High Transmission Performance in Deep UV Spectrum • Stable Performance in Long-Term Deep UV Exposure • High Energy UV irradiation resistance • Permanent solarization resistance Applications • UV Photolithography • Medical UV surgical laser delivery • UV Light guide, UV Curing • Spectroscopy • UV Sensing /Monitoring • Semiconductor manufacturing equipment • EB Curing /Printing /Processing • Fluorescent sensing under radiation Ultra-High Solarization Resistance Optical Fibers - VSR Series Verrillon ® VSR Series of Ultra-High Solarization-Resistant fiber is designed to transmit light in the Deep UV (DUV) region of the spectrum where standard silica glass suffers significant darkening with attenuation values higher than 2000 dB/km, which is unacceptable for any application in DUV region. Verrillon’s Ultra-High Solarization-Resistant Fiber performs long-term with exceptional throughput in Deep UV range without solarization effects. This fiber offers many possibilities in a broad range of applications in DUV and radiation environments. The UV darkening resistance is permanent and Verrillon’s VSR fiber does not degrade over time. Specifications ULTRA-HIGH SOLARIZATION RESISTANCE FIBERS PART NO. M100110CP140SR22-1 M400440CP465SR22-1 Description 100/110 Ultra-High Solarization-Resistant Step-Index Multimode fiber designed for Low-Loss Deep UV (DUV) applications. 400/440 Ultra-High Solarization-Resistant Step-Index Multimode fiber designed for Low-Loss Deep UV (DUV) applications. PARAMETER Material Core Pure Silica Pure Silica Cladding F-doped Silica F-doped Silica Coating Carbon / Polyimide Carbon / Polyimide Geometry Core Diameter (μm) 100 ± 3 400 ± 8 Clad Diameter (μm) 110 ± 3 440 ± 9 Core/Clad Offset (μm) ≤ 3.0 ≤ 3.0 Coat Diameter (μm) 140 ± 5 465 ± 7 Polyimide Coating Concentricity (%) ≥ 80% ≥ 80% Optical NA (nominal) 0.22 0.22 Operating Wavelength (nm) 180 nm - 850 nm 180 nm - 850 nm Mechanical Prooftest (kpsi) ≥ 100 ≥ 100 Operating Temperature (oC) -65 to +300 -65 to +300
Features:
- High Transmission Performance in Deep UV Spectrum
- Stable Performance in Long-Term Deep UV Exposure
- High Energy UV irradiation resistance
- Permanent solarization resistance
Applications:
- UV Photolithography
- Medical UV surgical laser delivery
- UV Light guide, UV Curing
- Spectroscopy
- UV Sensing /Monitoring
- Semiconductor manufacturing equipment
- EB Curing /Printing /Processing
- Fluorescent sensing under radiation

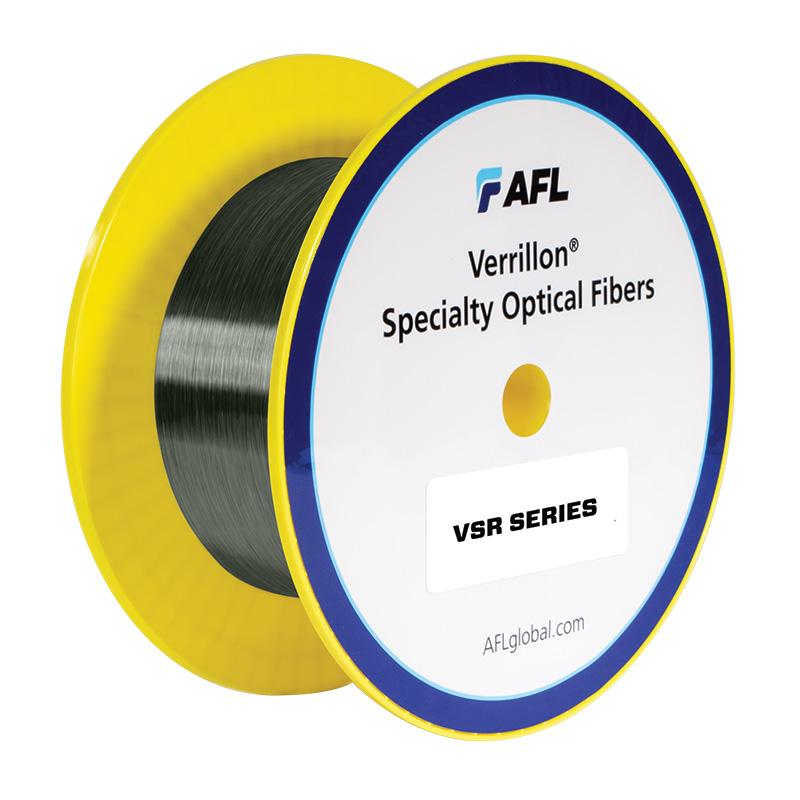

Verrillon® VSR Series of Ultra-High Solarization-Resistant fiber is designed to transmit light in the Deep UV (DUV) region of the spectrum where standard silica glass suffers significant darkening with attenuation values higher than 2000 dB/km, which is unacceptable for any application in DUV region.
Verrillon’s Ultra-High Solarization-Resistant Fiber performs long-term with exceptional throughput in Deep UV range without solarization effects. This fiber offers many possibilities in a broad range of applications in DUV and radiation environments. The UV darkening resistance is permanent and Verrillon’s VSR fiber does not degrade over time.
