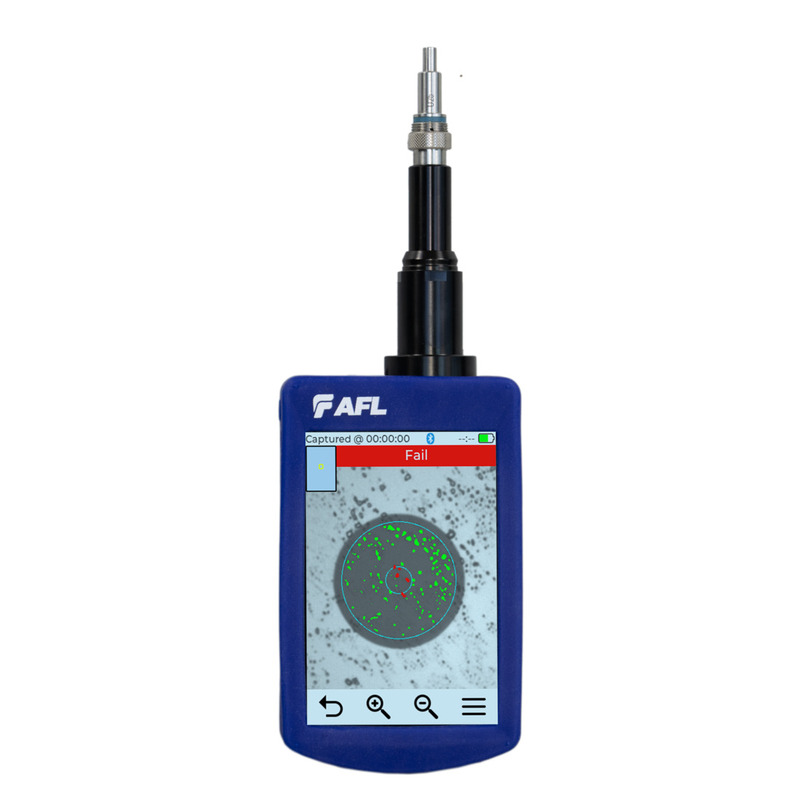

AFLglobal.com/contact Sales & Support © 2026, AFL, all rights reserved. FFLX-03-2000 Revision PR, 2026-06-03 Specifications are subject to change without notice. Test and Inspection 1 FOCIS Flex3 – Fiber Optic Connector Inspection System The FOCIS Flex3 delivers 100% connector inspection without slowing down the job. A single button press auto-focuses, captures and centers the end-face image, applies Pass/Fail criteria, and logs results. No guesswork and no manual steps required. Its large touchscreen makes contamination immediately visible. Wireless pairing with a FlexScan ® OTDR or smart device combines inspection and OTDR data into a single unified report. Compact enough to carry everywhere, straightforward enough to use every time. Works where you work : Fully self-contained with a large integrated display and rechargeable battery, the FOCIS Flex3 goes wherever the job takes you without the need for an external OTDR or tethered display unit. Connected when you need it: Pair wirelessly with a FlexScan ® OTDR or any smart device running AFL's free FlexApp and get instant access to captured images and Pass/Fail results, formatted, shareable, and ready for client delivery. Built-in storage: Holds up to 10,000 results with FlexScan-compatible file naming so your workflow stays consistent across devices. Micro-USB connectivity supports fast PC uploads and firmware updates. A tip for every connector: Interchangeable adapter tips cover the full spectrum including single-fiber and multi-fiber patch cords and bulkhead- mounted connectors with PC and APC polished end-faces. One tool handles the job, whatever form it takes. Bundled kits for significant savings: Choose a bundled kit that includes adapter tips, a soft carry case, and a Basic license for FlexReporter Software Suite. Full reporting capabilities: Inspection results may be stored and transferred to the FlexReporter Software Suite. Results data is wirelessly transferred via FlexApp (iOS/Android) to FlexReporter cloud-enabled storage for full reporting with FlexReports PC software. Features • Large hi-res touchscreen and smartphone-like operation • Self-contained, tether-free, compact, hand-held inspection solution • 1-button to auto-focus, center, capture, analyze, and save • IEC, IPC, AT&T, and user-defined auto-analysis • Stores 10K images or easily shares data via USB or Bluetooth • Full reporting capabilities using AFL's FlexReporter ® Software Suite Applications • Inspect connectors on patch cords or in bulkhead adapters • Optical network installation, troubleshooting, and maintenance • Assure critical fiber infrastructure performs properly • Keep fiber connections working at optimal performance levels • Verify proper connector cleaning practices are being used Easy, Fast, Compact, Tether-free Flex Reporter ™ Software Suite Mobile App PC Software
AFLglobal.com/contact Sales & Support © 2026, AFL, all rights reserved. FFLX-03-2000 Revision PR, 2026-06-03 Specifications are subject to change without notice. Test and Inspection 2 FOCIS Flex3 – Fiber Optic Connector Inspection System Pass/Fail results are instantly displayed in your choice of Image or Table view. Image View overlays Pass/Fail regions directly on the end- face image with failing scratches and defects highlighted in red and passing ones in green. Table View breaks down results by analysis zone (A, B, C, D), showing the applied rule alongside individual scratch and defect results for each zone. Using AFL’s free FlexApp (iOS/Android), inspection results may be wirelessly transferred to AFL’s FlexReporter ® cloud-enabled storage. Then results can be accessed via FlexReports PC software that provide a variety of easy-to- use options for report generation. A tip for every connector Interchangeable adapter tips cover the full spectrum of single-fiber patch cords and bulkhead-mounted connectors with PC and APC polished end-faces Large integrated display Large touchscreen displays simple-to-use interface and instantly visible inspection Pass/Fail analysis Easy reporting and results sharing AFL's FlexReporter ® Software Suite simplifies report generation and results sharing Clear Pass/Fail results in seconds Captured Pass/Fail analysis are easily viewed in either Image or Table view Test Results Wireless Transfer to Cloud-enabled FlexReports PC Software User Interface Highlights Product Highlights USB Power Port /Data Sharing Intuitive User Interface Hand-held Inspection Scope Table View - Fail Results Image View - Fail Results Image View - Pass Results Comprehensive Reporting
AFLglobal.com/contact Sales & Support © 2026, AFL, all rights reserved. FFLX-03-2000 Revision PR, 2026-06-03 Specifications are subject to change without notice. Test and Inspection 3 FOCIS Flex3 – Fiber Optic Connector Inspection System Notes: a. All specifications valid at 23 °C unless otherwise specified. b. Operating conditions: 60 tests in 20 minutes, then auto-off; Repeat each hour. c. Charging time data is provided for USB-C 2A charger supported Power Delivery 3.0. d. Note 2: Charging time data is provided for USB-C 2A charger supported Power Delivery 3.0. Optical Performance Field of View (FOV; viewed on FOCIS Flex3) Live: 708 x 958 mm and 645 x 890 mm. Captured: 708 x 806 mm Field of View (FOV; viewed on a PC) Single Fiber: 708 x 958 mm Manual Detection Capability (minimum) 0.25 mm Auto Analysis Resolution <1.0 mm Internally-stored Image Size (pixels) 2560 x 1920 JPG file, 678 x 678 pixels .GIF file Bluetooth Image & Overlay 2 x QVGA (320 x 240; image + overlay) to AFL test instruments 2 x VGA (640 x 480; image + overlay) files to Apple iOS and Android devices (IAP / MFi) Maximum No Damage Live Fiber Power Level +20 dBm; Image cannot be viewed if fiber is live Focus Methods Auto-focus and manual focus Centering Auto-centering captured single fiber images Zoom in Live, Capture, and Save modes x1 / x3 / x6 zoom Image Capture with Pass/Fail Analysis IEC 61300-3-35 ED2/ED3, AT&T TP-76461, IPC-8497-1, user-set criteria Results Storage (Image and Pass/Fail Results) Yes File Format jpg, gif File Storage Capacity 10,000 files Result Storage Capacity 1500 Operating Features Specification Display Size, Type, Resolution 3,5”, color TFT, touch screen with backlit, 320 x 480 with brightness control Battery Type Li-Pol, user replaceable Supported Languages English, Finnish, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish, Danish Bluetooth Characteristics IAP (iPod accessory protocol), SPP 0x1101, Apple MFi USB Characteristics Connector USB-C,charging, USB 2.0 mass storage device Physical and Power Characteristics Specification Operating Time (typical) 8 hours (b) ; 5 hours continuou (b) Power Save Features Auto-off (disabled, 2, 5, 10 min) Recharge Time (c) ≤4 hours Low-Battery Warning Alerts when ≤15 minutes battery operation remains Size 67 x 32 x 225 mm (2.7 x 1.3 x 8.8 in.) Weight 280 g (0.62 lb) Safety and Compliance Certifications UL, CE, FCC Environment Parameters Specification Storage Temperature -40 °C to +70 °C Operating Temperature °C 0 °C to +50 Relative Humidity 0 to 95% RH Vibration Limits 2G (transportation) Transit Drop (without soft case) 300 mm (12 inches, all sides, dust cover installed) Transit Drop (with soft case) 460 mm (18 inches, all sides, dust cover installed) Specifications (a)
AFLglobal.com/contact Sales & Support © 2026, AFL, all rights reserved. FFLX-03-2000 Revision PR, 2026-06-03 Specifications are subject to change without notice. Test and Inspection 4 FOCIS Flex3 – Fiber Optic Connector Inspection System Ordering Information AFL NO. Description FOCIS-FLEX3-N FOCIS Flex3 Kit, soft carry case, USB cable, AC charger, FlexReports-Basic software, no tips FOCIS-FLEX3-LCU FOCIS Flex3 Kit, soft carry case, USB cable, AC charger, FlexReports-Basic software, 2 LC UPC adapter tips (ferrule and bulkhead) FOCIS-FLEX3-LCA FOCIS Flex3 Kit, soft carry case, USB cable, AC charger, FlexReports-Basic software, 2 LC APC adapter tips (ferrule and bulkhead) FOCIS-FLEX3-SCU FOCIS Flex3. Kit, soft carry case, USB cable, AC charger, FlexReports-Basic software, 2 SC UPC adapter tips (ferrule and bulkhead) FOCIS-FLEX3-SCA FOCIS Flex3 Kit, soft carry case, USB cable, AC charger, FlexReports-Basic software, 2 SC APC adapter tips (ferrule and bulkhead) FOCIS Flex Adapter Tips (Contact AFL for adapter tips for other connector types) AFL NO. Description FFLX-01-SC SC-UPC bulkhead adapter tip FFLX-01-FC FC-UPC bulkhead adapter tip FFLX-01-ST ST-UPC bulkhead adapter tip FFLX-01-LC LC-UPC bulkhead adapter tip FFLX-01-U25 Universal 2.5 mm, UPC ferrule adapter tip FFLX-01-U125 Universal 1.25 mm, UPC ferrule adapter tip FFLX-4S-ASC SC-APC bulkhead adapter tip FFLX-4S-AFC FC-APC bulkhead adapter tip FFLX-4S-ALC LC-APC bulkhead adapter tip FFLX-01-A25 Universal 2.5 mm, APC ferrule adapter tip FFLX-01-A125 Universal 1.25 mm, APC ferrule adapter tip FFLX-01-EXTS46 FOCIS Flex adapter extension tube, straight, 46 mm FFLX-01-EXTS80 FOCIS Flex adapter extension tube, straight, 80 mm: FFLX-4S-E2K E2000 PC/UPC bulkhead adapter tip FFLX-4S-AE2K E2000/APC bulkhead adapter tip FFLX-4S-OTA Tip for SC/APC (OptiTap ® ) bulkhead adapter
AFLglobal.com/contact Sales & Support © 2026, AFL, all rights reserved. FFLX-03-2000 Revision PR, 2026-06-03 Specifications are subject to change without notice. Test and Inspection 5 FOCIS Flex3 – Fiber Optic Connector Inspection System Qualificati ons Category Regulation/Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety /EMC /EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method IEC Compliant to IEC 61300-3-35 for visual inspection of fiber optic connectors and fiber-stub transceivers IPC Compliant to IPC-8497-1 for cleaning methods and contamination assessment for optical assembly Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FOCIS Flex3. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Recommended Products FlexScan® FS300 (Quad) and FS200 (SM) OTDRs • SmartAuto® 1-button automated testing for fast results • LinkMap® color-coded icons for easy troubleshooting • FleXpress® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL FS200 FS300 Test Management and Reporting Software FlexReports Basic software is available as a free download on AFL's Software Resources webpage. FlexReports Basic includes a 60-day Advanced software trial. Once the evaluation period ends, users must upgrade to a FlexReports Advanced software license to continue using FlexReports Advanced features. AFL NO. Description RPTS-AD-USB-1 FlexReports Advanced, one seat license on USB RPTS-UP-TRM3-1 FLexReports Advanced, one seat, Upgrade from TRM ® 3 Advanced on USB. Users must have TRM-3 Advanced license FlexReports Basic FlexReports Basic, available for download on AFL Software Resources website FlexApp FlexApp data transfer mobile App, available on Google Play and Apple App Storee OFI-BIPMe Optical Fiber Identifier • World class signal sensitivity • Trigger lock, positive stop for optimum detection • Integrated optical power meter option
Features
- Large hi-res touchscreen and smartphone-like operation
- Self-contained, tether-free, compact, hand-held inspection solution
- 1-button to auto-focus, center, capture, analyze, and save
- IEC, IPC, AT&T, and user-defined auto-analysis
- Stores 10K images or easily shares data via USB or Bluetooth
- Full reporting capabilities using AFL's FlexReporter® Software Suite
Applications
- Inspect connectors on patch cords or in bulkhead adapters
- Optical network installation, troubleshooting, and maintenance
- Assure critical fiber infrastructure performs properly
- Keep fiber connections working at optimal performance levels
- Verify proper connector cleaning practices are being used
The FOCIS Flex3 delivers 100% connector inspection without slowing down the job. A single button press auto-focuses, captures and centers the
end-face image, applies Pass/Fail criteria, and logs results. No guesswork and no manual steps required. Its large touchscreen makes contamination
immediately visible. Wireless pairing with a FlexScan® OTDR or smart device combines inspection and OTDR data into a single unified report.
Compact enough to carry everywhere, straightforward enough to use every time.
Works where you work: Fully self-contained with a large integrated display and rechargeable battery, the FOCIS Flex3 goes wherever the job
takes you without the need for an external OTDR or tethered display unit.
Connected when you need it: Pair wirelessly with a FlexScan® OTDR or any smart device running AFL's free FlexApp and get instant access to
captured images and Pass/Fail results, formatted, shareable, and ready for client delivery
Built-in storage: Holds up to 10,000 results with FlexScan-compatible file naming so your workflow stays consistent across devices. Micro-USB
connectivity supports fast PC uploads and firmware updates.
A tip for every connector: Interchangeable adapter tips cover the full spectrum including single-fiber and multi-fiber patch cords and bulkheadmounted connectors with PC and APC polished end-faces. One tool handles the job, whatever form it takes.
Bundled kits for significant savings: Choose a bundled kit that includes adapter tips, a soft carry case, and a Basic license for FlexReporter
Software Suite.
Full reporting capabilities: Inspection results may be stored and transferred to the FlexReporter Software Suite. Results data is wirelessly
transferred via FlexApp (iOS/Android) to FlexReporter cloud-enabled storage for full reporting with FlexReports PC software.
