AFL’s FlowScout Quad OLTS is ideal for fiber testing in enterprise LAN and data center environments.
4d07f194fd8b4666a9aac10352a9ea49
© 2026, AFL, all rights reserved. DFLT-00-2000 Revision AA 2026-06-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® QUAD OLTS Certification Test Set 1 AFLglobal.com/contact Sales & Support AFL’s FlowScout Quad OLTS is ideal for fiber testing in enterprise LAN and data center environments. It is designed for fast, accurate Tier 1 optical loss certification of duplex fiber links and can test single-mode and multimode fiber. In addition to providing Tier I certification capability, it can also be used as a standalone power meter or light source. Additionally, the FlowScout Quad OLTS utilizes AFL’s Wave ID format, allowing it to automatically identify incoming wavelength(s) of signals sent from other AFL products using Wave ID. Extremely fast testing: The FlowScout Quad OLTS test set provides rapid testing on duplex fiber links. Highly accurate results and simple operation: The test set design is based on a precise, highly accurate testing technology to ensure accurate verification and validation of links. A simple icon-based user interface allows technicians to quickly set up, test, validate, and document fiber networks. The FlowScout Quad OLTS measures and automatically evaluates pass/fail loss against industry or user-set limits. The large color touchscreen displays detected power levels with color-coded pass/fail indications. All-in-One solution: The FlowScout ® Quad OLTS is a pair of hand-held testers designed to support native duplex multimode and single-mode testing with integrated VFL. One Reporting Platform for Documentation: Measured pass/fail limits and device information may be transferred from internal memory for download via Bluetooth or USB. Using AFL’s free FlexApp on iOS or Android mobile device, test results may be wirelessly transferred to AFL’s FlexReporter cloud for subsequent analysis, editing, and report generation with FlexReports PC software. Features • Quad 850/1300/1310/1550 Tier I OLTS Certifier • Single test set for duplex multimode and single-mode links • Extremely fast and accurate pass/fail analysis • Certification to industry standards and custom test limits • Large color touchscreen with icon-driven user interface • Single reporting platform - AFL’s FlexReporter ® Software Suite Applications • Tier I certification of enterprise LAN and data center fiber networks • Hyperscale data centers • Multi-tenant data centers
© 2026, AFL, all rights reserved. DFLT-00-2000 Revision AA 2026-06-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® QUAD OLTS Certification Test Set 2 AFLglobal.com/contact Sales & Support Duplex Tier I OLTS tester Easy certification of single-mode and multimode duplex links Fast and accurate pass/fail analysis Designed on a precise and extremely accurate testing technology to ensure highly accurate verification and validation of fiber links Automated workflow With the FlexReporter ® suite, work assignments and reporting can be centrally managed and automated Test Results Transfer to FlexReports PC Software User Interface Highlights Product Highlights Comprehensive Reporting USB Power Port / Software Upgrades Effortless Operation Hand-held Tester Simplified workflow with fewer steps Custom Test Setups Duplex Multimode and Single-mode Jumpers Referencing
© 2026, AFL, all rights reserved. DFLT-00-2000 Revision AA 2026-06-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® QUAD OLTS Certification Test Set 3 AFLglobal.com/contact Sales & Support Specifications (a) , (b) , (c) Optical Power Meter Power Meter Optical Interface Interchangeable connector adapter (LC standard) Detector Type InGaAs Calibrated Wavelengths 850 nm, 1300 nm, 1310 nm, 1550 nm Power Measurement Range -60 to +3 dBm Accuracy ± 5% @ -10 dBm Linearity ± 0.15 dB Measurement Units dB, dBm Display Resolution 0.01 dB Storage Capacity 10,000 results Length Measurement Range SM: Up to 200 km, MM: up to 5 km Warm Up Time 0 minutes Length Measurement Accuracy ±1 m ±1% of length Calibration Period 3 years Light Source Multimode Light Source Single-mode Light Source Optical Interface Interchangeable connector adapter (SC standard) Interchangeable connector adapter (SC standard) Source Type LED Laser Safety Class Class I Class I Wavelengths 850 ±30 nm, 1300 -40 nm to + 50 nm 1310 ±20 nm, 1550 ± 20 nm Spectral Width 850 nm: 50 nm (typ); 1300 nm: 140 nm (typ) <5 nm Launch Condition Encircled Flux Compliant (c) N/A Output Power -23 dBm -1 dBm Stability ±0.1 dB over 1 hour (after 15 minutes warm-up) ±0.15 dB over 8 hours (after 15 minutes warm-up) ±0.1 dB over 1 hour (after 15 minutes warm-up) ±0.15 dB over 8 hours (after 15 minutes warm-up) Wave ID Yes Yes Tone Generation 270 Hz, 330 Hz, 1 kHz, 2 kHz 270 Hz, 330 Hz, 1 kHz, 2 kHz Warm-up time 15 minutes 15 minutes Visual Fault Locator (VFL) Emitter Type Visible red laser 650 nm ± 20 nm Safety Class Class 3R FDA 21 CFR 1040.10 and 1040.11 IEC EN60825-1: 2014 Output Power (nominal) 4 mW into single-mode fiber Modes CW and 2 Hz flashing General Size 22 x 11 x 5.5 cm (8.5 x 4.5 x 2.2 in) Weight 0.9 kg (2.0 lb) Screen 5" capacitive color touchscreen Interface Bluetooth 5.1 BLE Power and Data Transfer USB-C Operating Temperature -10 °C to +50 °C, 0 to 90 % RH (non-condensing) Storage Temperature -20 °C to +60 °C, 0 to 90 % RH (non-condensing) Power Rechargeable Li-Ion or AC power adapter Battery Life >8 hours continuous testing Notes: a. All specifications valid at 23°C ± 2°C unless otherwise specified. b. Accuracy measured at 25 ºC and -10 dBm per N.I.S.T. standards. c. EF Compliance to IEC 61280-4-1 and TIA 526-14-C at 850 nm.
© 2026, AFL, all rights reserved. DFLT-00-2000 Revision AA 2026-06-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® QUAD OLTS Certification Test Set 4 AFLglobal.com/contact Sales & Support FlowScout QUAD OLTS Kits AFL NO. Description DFLT-KIT-0001MR FlowScout Quad OLTS Kit Recommended Products FOCIS Lightning2 (Multi-Fiber Connector Inspection • Self-contained, tether-free, hand-held inspection solution • Auto-focus an d auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis • FOCIS Lightning2: extremely fast multi-fiber auto-analysis for datacom and tele com inspection applications One-Click ® Cleaner SC/ST/FC, MU/LC • Patented single-action cleaning in a small ergonomic design • Variety of sizes and types for different connector styles • Cleans connectors in both jumpers and bulkhead adapters • Low cost per clean Qualificati ons Category Regulation/ Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-E for test and measurement requirements for optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fiber optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OPM8 optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts . Test Cords AFL NO. Description 8700-00-0275MR Test cord, USC-ULC,G657.A1, 2 m, 3 mm jacket, yellow 8700-00-0221MR Test cord,ULC-ULC, G657.A1, 2 m, 3 mm jacket, yellow 8700-00-0266MR Test cord, USC-ULC, OM4, 2 m, 3 mm OFNR jacket, violet 8700-00-0267MR Test cord, ULC-ULC, OM4, 2 m, 3 mm OFNR jacket, violet Ordering Information MU/LC SC/ST/FC
Features
- Quad 850/1300/1310/1550 Tier I OLTS Certifier
- Single test set for duplex multimode and single-mode links
- Extremely fast and accurate pass/fail analysis
- Certification to industry standards and custom test limits
- Large color touchscreen with icon-driven user interface
- Single reporting platform - AFL’s FlexReporter® Software Suite
Applications
- Tier I certification of enterprise LAN and data center fiber networks
- Hyperscale data centers
- Multi-tenant data centers
AFL’s FlowScout Quad OLTS is ideal for fiber testing in enterprise LAN and data center environments. It is designed for fast, accurate Tier 1 optical
loss certification of duplex fiber links and can test single-mode and multimode fiber.
In addition to providing Tier I certification capability, it can also be used as a standalone power meter or light source. Additionally, the
FlowScout Quad OLTS utilizes AFL’s Wave ID format, allowing it to automatically identify incoming wavelength(s) of signals sent from other AFL
products using Wave ID.
Extremely fast testing: The FlowScout Quad OLTS test set provides rapid testing on duplex fiber links.
Highly accurate results and simple operation: The test set design is based on a precise, highly accurate testing technology to ensure
accurate verification and validation of links. A simple icon-based user interface allows technicians to quickly set up, test, validate, and document
fiber networks. The FlowScout Quad OLTS measures and automatically evaluates pass/fail loss against industry or user-set limits. The large color
touchscreen displays detected power levels with color-coded pass/fail indications.

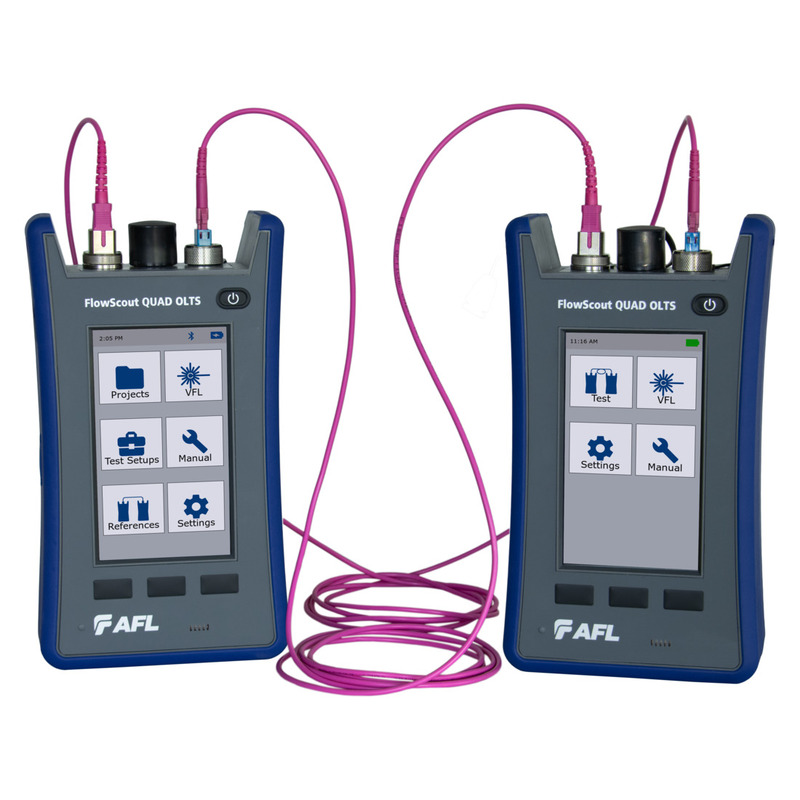

All-in-One solution: The FlowScout® Quad OLTS is a pair of hand-held testers designed to support native duplex multimode and
single-mode testing.
One Reporting Platform for Documentation: Measured pass/fail limits and device information may be transferred from internal memory
for download via Bluetooth or USB. Using AFL’s free FlexApp on iOS or Android mobile device, test results may be wirelessly transferred to AFL’s
FlexReporter cloud for subsequent analysis, editing, and report generation with FlexReports PC software.
