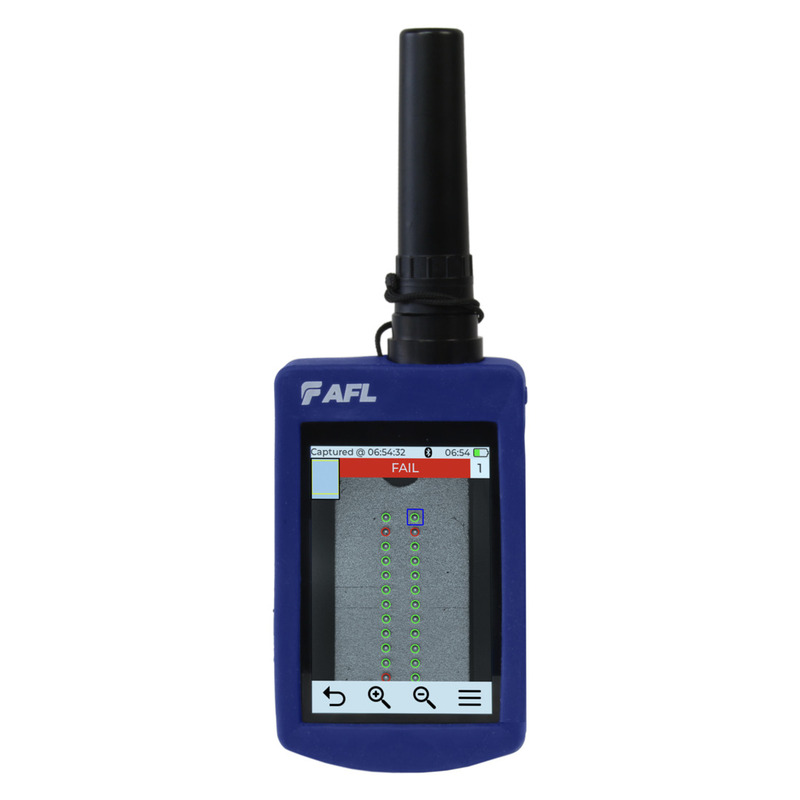

FOCIS Lightning2 es una sonda de inspección autónoma y compacta que capta toda la imagen de la cara frontal del MPO en menos de dos segundos. Un botón permite el autoenfoque, el centrado y el análisis de pasa/no pasa a nivel de conector y de fibra individual. Puede completar una tarea de inspección de 24 fibras MPO en menos de 15 segundos. Los resultados se pueden compartir fácilmente a través de USB, WiFi y Bluetooth®.
b3cceb4774a94a05a582e623f086de72
AFLglobal.com 1 (800) 235-3423 ©2022-2025, AFL, all rights reserved. FOCIS-LT2-2000 Revision AC, 2025-05-29 Specifications are subject to change without notice. Test and Inspection FOCIS Lightning ® 2 Multi-Fiber Optic Connector Inspection System 1 Features • Large, simple-to-use touch screen • Self-contained, tether-free, compact, hand-held inspection solution • Auto-focus and auto-centering for fast, easy inspection • Up to 8x zoom for enhanced fiber end-face viewing • Stores 10k images or easily shares data via USB or Bluetooth connectivity • IEC, IPC, AT&T, and user-defined auto-analysis • Wide variety of adapter tips for MPO and single-fiber connector types Applications • Inspect multi-fiber and single-fiber connectors and adapters • Data center fiber network installation, turn-up, and troubleshooting • Inspect hardened connectors in FTTx network • Verify proper connector cleaning practices • Pair with OTDR for comprehensive reporting FOCIS Lightning2 is a compact self-contained inspection probe that captures and displays the entire MPO end-face image in less than two seconds. One button provides auto-focusing, centering, and Pass/Fail analysis at the connector and individual fiber level. It can be used to inspect MPO-8, -12, -16, -24 and -32 connectors. Results can be easily shared via USB and Bluetooth ® . Pass/Fail results in seconds: FOCIS Lightning2 was designed to quickly inspect multi-fiber connectors and bulkheads, such as MPO and MTP ® , including multi-row varieties. It can perform industry standard and user-defined end-face cleanliness analysis at a rate of about 1 second per fiber – significantly speeding up inspection time when compared with other technologies. Internal storage and multiple export options: FOCIS Lightning2 can store 10,000 individual fiber images, analysis, overlays, and zones tables locally and can provide optional Bluetooth wireless links for archiving and reporting. AFL’s FlexApp (iOS and Android) provides a comprehensive and user-friendly feature set as well as connectivity with AFL’s FlexReporter-Cloud. Untethered operation: With rechargeable battery and integrated 3.5” TFT color LCD touchscreen, FOCIS Lightning2 can be used independently. Multi-fiber front-end adapter tips: Multi-fiber front-end adapter tips support single row and multi-row MPO connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces. The probe snout includes a key which in combination with a slot on the adapter tips ensures that adapter tips never loosen during use, under any circumstances. Easy reporting and archiving: The FlexReporter software suite is a complete platform for report generation and results sharing. This platform includes FlexApp, a mobile App that wirelessly transfers test results from the field to the Cloud. These results can be accessed via FlexReports that provide a variety of easy-to-use options for report generation. FlexReports Basic is included with all AFL OTDRs and enables users to quickly view and analyze results, generate simple single-fiber OTDR and OLTS reports. FlexReports Basic also includes a 60-day Advanced trial that includes full reporting and OTDR Trace Batch Editing. Flex Reporter ™ Software Suite Mobile App PC Software
AFLglobal.com 1 (800) 235-3423 ©2022-2025, AFL, all rights reserved. FOCIS-LT2-2000 Revision AC, 2025-05-29 Specifications are subject to change without notice. Test and Inspection FOCIS Lightning ® 2 Multi-Fiber Optic Connector Inspection System 2 Specifications a Optical Port Parameters Specification Field of View (FOV; viewed on FOCIS Lightning2) LFOV b : Live - 4333 x 6500 μm and 4333 x 5418 μm; Captured - 4333 x 5418 μm Multi Fibers: Live - 3200 x 4800 μm and 3200 x 4000 μm; Captured - 3200 x 4000 μm; Captured, Details - 200 x 225 μm Single Fiber: Live - 1314 x 2144 μm and 1314 x 1788 μm; Captured - 1314 x 1626 μm Field of View (FOV; viewed on a PC) LFOV b : 4333 x 6500 μm Multi Fibers: 3200 x 4800 μm Single Fiber: 1314 x 2144 μm Manual Detection Capability (minimum) 0.25 μm Auto Analysis Resolution <1.0 μm Internally Stored Image Size (pixels) LFOV b : 3840 x 2560 JPG file Multi Fibers: 3840 x 2560 JPG file, N x 160 x 160 pixels .GIF files Single Fiber: 3840 x 2560 JPG file, 468 x 468 pixels .GIF file Bluetooth Image and Overlay 2 x QVGA (320 x 240; image + overlay) to AFL test instruments 2 x VGA (640 x 480; image + overlay) files to Apple iOS and Android devices (IAP / MFi) Maximum No Damage Live Fiber Power Level +20 dBm; image cannot be viewed if fiber is live Focus Methods Auto-focus and manual focus Centering Auto-centering captured single fiber images Zoom in Live Mode 1x / 2x / 4x / 8x zoom Image Capture with Pass/Fail Analysis IEC 61300-3-35 (2015), AT&T TP-76461, IPC-8497-1, user-set criteria Results Storage (Image and Pass/Fail Results) Yes File Format JPG, GIF File Storage Capacity 10,000 files Result Storage Capacity Multi Fibers: 1000; Single Fiber:1500 Operating Features Bluetooth Characteristics (Wireless only) IAP (iPod Accessory Protocol), SPP 0 x 1101, Apple MFi USB Characteristics Connector USB-C, Charging, USB 2.0 Mass Storage Device Environment Parameters Storage Temperature -40 °C to +70 °C Operating Temperature 0 °C to +50 °C Relative Humidity 0 to 95% RH Vibration Limits 2G (transportation) Transit Drop (without soft case) 300 mm (12 inches, all sides, dust cover installed) Transit Drop (with soft case) 460 mm (18 inches, all sides, dust cover installed) Physical and Power Characteristics Display Size, Type, Resolution 3,5”color TFT touch screen with backlit, 320 x 480 with brightness control Battery Type Li-Pol, user-replaceable Operating Time (typical) 8 hours c ; 5 hours continuous c Power Save Features Auto-off (disabled, 2, 5, 10 min) Low-Battery Warning Alerts when ≤15 minutes battery operation remains Size 67 x 32 x 190 mm (2.7 x 1.3 x 7.5 in) Weight 280 g (0.62 lb) Notes: a. All specifications valid at 23°C ±2°C (73.4°F ±3.6°F). b. Large Field of View (LFOV) parameters are provided using LFOV MPO PC and APC adapters. c. Operating conditions: 60 tests in 20 minutes, then auto-off; repeat each hour. d. Trademarks are the property of their respective owners.
AFLglobal.com 1 (800) 235-3423 ©2022-2025, AFL, all rights reserved. FOCIS-LT2-2000 Revision AC, 2025-05-29 Specifications are subject to change without notice. Test and Inspection FOCIS Lightning ® 2 Multi-Fiber Optic Connector Inspection System 3 Specifications a Ordering Information AFL NO. Description FOCIS-LT2-N FOCIS Lightning2 Kit, soft carry case, USB cable, with no tips or One-Click ® cleaner FOCIS-LT2-U FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners FOCIS-LT2-A FOCIS Lightning2 Kit, soft carry case, USB cable, (1) APC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners FOCIS-LT2-UA FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners FOCIS-LT2-UASF FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners, single fiber adapter FOCIS-LT2-NW-N FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, with no tips or One-Click cleaner FOCIS-LT2-NW-U FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners FOCIS-LT2-NW-A FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) APC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners FOCIS-LT2-NW-UA FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners FOCIS-LT2-NW-UASF FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners, single-fiber adapter FOCIS Lightning Adapter Tips and Accessories AFL NO. Description Tip ID FLTNG-01-M12A Adapter tip for MPO-12/24 APC bulkhead (with key) M12A FLTNG-01-M12U Adapter tip for MPO-12/24 UPC bulkhead (with key) M12U FLTNG-01-M16U Adapter tip for MPO-16/32 UPC bulkhead (with key) M16U FLTNG-01-MPOA Adapter tip for MPO-12/16/24/32 APC bulkhead (no key) MPOA FLTNG-01-MMCA Adapter Tip for MMC APC connector patchords MMCA FLTNG-01-MMCE Adapter tip for MMC APC bulkhead MMCE FLTNG-01-MPOU Adapter tip for MPO-12/16/24/32 UPC bulkhead (no key) MPOU FLTNG-01-MAC Adapter Tip for MPO-12/16/24/32 APC connector (with key) MAC FLTNG-01-MUC Adapter Tip for MPO-12/16/24/32 UPC connector (with key) MUC FLTNG-01-OPTM Adapter Tip for OptiTip male (pinned) connector OPTM FLTNG-01-OPTF Adapter Tip for OptiTip female (unpinned) connector OPTF FLTNG2-01-SFC Coupler for most 'FFLX' single fiber connector adapter tips SFC FLTNG-01-ALCM Extended adapter tip for LC-APC bulkhead ALCM FLTNG-01-ULCM Extended adapter tip for LC-UPC bulkhead ULCM FLTNG-01-MPE MPO extender barrel MPE FLTNG2-01-LVU Adapter tip for Large Field of View (LFOV) - UPC LVU
AFLglobal.com 1 (800) 235-3423 ©2022-2025, AFL, all rights reserved. FOCIS-LT2-2000 Revision AC, 2025-05-29 Specifications are subject to change without notice. Test and Inspection FOCIS Lightning ® 2 Multi-Fiber Optic Connector Inspection System 4 Qualificati ons Category Regulation/Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety /EMC /EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method IEC Compliant to IEC 61300-3-35 for visual inspection of fiber optic connectors and fiber-stub transceivers IPC Compliant to IPC-8497-1 for cleaning methods and contamination assessment for optical assembly Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FOCIS Lightning2. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts . Test Management and Reporting Software FlexReports Basic software is available as free download on AFL Software Resources website. FlexReports Basic includes a 60-day Advanced software trial. Once the evaluation period ends, users must upgrade to FlexReports Advanced software license to continue using FlexReports Advanced features. AFL NO. Description RPTS-AD-USB-1 FlexReports Advanced, one seat license on USB RPTS-UP-TRM3-1 FLexReports Advanced, one seat, Upgrade from TRM ® 3 Advanced on USB. Users must have TRM-3 Advanced license FlexReports Basic FlexReports Basic, available for download on AFL Software Resources website FlexApp FlexApp data transfer mobile App, available on Google Play and Apple App Storee Recommended Products FlexScan ® FS300 (Quad) and FS200 (SM) OTDRs • SmartAuto ® 1-button automated testing for fast results • LinkMap ® color-coded icons for easy troubleshooting • FleXpress ® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL One-Click ® Cleaner MPO / MPO-16 • Ideal for Data Centers and high density optical networks • Designed to work on MTP ® /MPO multi-fiber connectors • Cleans connectors on jumpers and in adapters FS200 FS300
Características:
- Solución de inspección autónoma, sin ataduras, compacta y manual
- Enfoque y centrado automáticos para una inspección rápida y sencilla
- Análisis automático IEC, IPC, AT&T y definido por el usuario
- Amplia variedad de puntas adaptadoras para tipos de conectores MPO y de una sola fibra
Aplicaciones:
- Inspección de conectores y adaptadores multifibra y monofibra
- Instalación, puesta en marcha y resolución de problemas de redes ópticas de centros de datos
- Verificación de las prácticas adecuadas de limpieza de conectores
- Se empareja con el OTDR para obtener informes completos
Tecnología revolucionaria de inspección MPO en 2 segundos
El FOCIS Lightning2 es una sonda de inspección compacta e independiente, diseñada específicamente para los exigentes requerimientos de los centros de datos hiperescalables, donde la contaminación de los conectores puede afectar gravemente el rendimiento de la red. Esta herramienta avanzada captura y muestra la imagen completa de la cara del conector MPO en menos de dos segundos, siendo compatible con configuraciones MPO-8, -12, -16, -24 y -32, y permite compartir resultados fácilmente mediante USB y Bluetooth®. Con solo presionar un botón, realiza autoenfoque, centrado y análisis de aprobación/rechazo (Pass/Fail) tanto a nivel del conector como de cada fibra individual, ofreciendo un análisis de limpieza conforme a los estándares de la industria en aproximadamente 1 segundo por fibra, sin complejidad ni conjeturas.
Diseñado para Hiperescala. Ingeniería para la Velocidad.
Para los operadores hiperescalables que gestionan miles de conexiones MPO críticas, esta solución permite ciclos de validación ultrarrápidos que previenen tiempos de inactividad causados por contaminación, manteniendo las cargas de trabajo de IA y las aplicaciones de misión crítica operando a su máximo rendimiento. La imagen completa de la cara del conector garantiza que no pase desapercibida ninguna contaminación en todas las configuraciones MPO estándar, mientras que las capacidades integradas para compartir resultados agilizan la generación de informes y la colaboración en equipo. En entornos donde cada segundo de inactividad cuesta miles de dólares y las conexiones contaminadas pueden generar fallas en toda la red, el FOCIS Lightning2 transforma la inspección de fibra de un cuello de botella que consume tiempo en un proceso de validación instantáneo que mantiene la excelencia operativa a nivel hiperescalable.
La Ventaja Competitiva
Resultados Pass/Fail en segundos: El FOCIS Lightning2 está diseñado para inspeccionar rápidamente conectores multifibra y paneles, como MPO y MTP®, incluyendo variedades de múltiples filas. Puede realizar análisis de limpieza de la cara del conector conforme a estándares de la industria o definidos por el usuario a una velocidad de aproximadamente 1 segundo por fibra, acelerando significativamente el tiempo de inspección en comparación con otras tecnologías.
Almacenamiento interno y múltiples opciones de exportación: El FOCIS Lightning2 puede almacenar localmente 10,000 imágenes a nivel de conector e individuales por fibra, junto con análisis, superposiciones y tablas de zonas. Además, ofrece enlaces inalámbricos Bluetooth opcionales para archivado y generación de informes. La aplicación FlexApp de AFL (iOS y Android) ofrece un conjunto completo de funciones fáciles de usar, así como conectividad con la nube FlexReporter de AFL.
Operación sin cables: Con una batería recargable y una pantalla táctil LCD a color de 3.5", el FOCIS Lightning2 puede usarse de forma independiente, sin necesidad de monitores externos.
Puntas adaptadoras para conectores multifibra: Las puntas adaptadoras para la parte frontal admiten la inspección de conectores MT de una o varias filas en una amplia gama de cables de conexión y conectores montados en panel, con terminaciones pulidas PC/UPC o APC. El cabezal de la sonda incluye una llave que, en combinación con una ranura en las puntas adaptadoras, asegura que estas nunca se aflojen durante el uso, bajo ninguna circunstancia.
Informes y archivado fáciles: La Suite de Software FlexReporter de AFL es una plataforma completa para la generación de informes y el intercambio de resultados. Esta plataforma incluye FlexApp, una aplicación móvil que transfiere resultados de prueba desde el campo a la nube de forma inalámbrica. Estos resultados pueden consultarse mediante FlexReports, que ofrecen una variedad de opciones fáciles de usar para crear informes. FlexReports Basic se incluye con el FOCIS Lightning2 y permite a los usuarios visualizar, analizar y generar informes de manera rápida. También incluye una prueba de 60 días de FlexReports Advanced, con capacidades completas de generación de informes.
Información para pedidos
| DESCRIPTION |
AFL NO. |
| FOCIS Lightning2 Kit, soft carry case, USB cable, with no tips or One-Click® cleaner |
FOCIS-LT2-N |
| FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners |
FOCIS-LT2-U |
| FOCIS Lightning Kit, soft carry case, AC charger, (1) APC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners |
FOCIS-LT2-A |
| FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners |
FOCIS-LT2-UA |
| FOCIS Lightning2 Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners, single fiber adapter |
FOCIS-LTN-UASF |
| FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, with no tips or One-Click cleaner |
FOCIS-LT2-NW-N |
| FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners |
FOCIS-LT2-NW-U |
| FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) APC ferrule and bulkhead adapter tip, (2) One-Click MPO cleaners |
FOCIS-LT2-NW-A |
| FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners |
FOCIS-LT2-NW-UA |
| FOCIS Lightning2 No Wireless Kit, soft carry case, USB cable, (1) UPC and (1) APC ferrule and bulkhead adapter tips, (2) One-Click MPO cleaners,
single-fiber adapter |
FOCIS-LT2-NW-UASF |
Para más detalles e información para pedidos, consulta la hoja técnica a continuación o visita nuestra Guía de Compras en línea, actualizada y vigente.
