ConductaClean agita una solución especializada para eliminar la oxidación y la suciedad de los hilos conductores, y puede ajustarse para ciclos de tres minutos con apagado automático a los tres minutos.
014a6fca944f48cb8b4afde8fe1901ca
www.AFLglobal.com or 800-866-7385 Tools & Equipment © 2009, AFL, all rights reserved. PP-3-00792, Revision 4, 3.4.16 Specifications are subject to change without notice. ConductaClean ® Improper cleaning of conductor strands can result in higher resistance terminations and splices that cause fittings to operate at higher temperatures leading to premature failure. To alleviate this concern, AFL now offers ConductaClean, a reliable, cost-effective system for cleaning the ends of overhead conductors prior to installing compression accessories. ConductaClean incorporates technology developed by the Electric Power Research Institute. Manufactured by EDM International, Inc., ConductaClean agitates a specialized solution to remove oxidation and grime from conductor strands, and can be adjusted for three- minute cycles with auto-off at three minutes. User may restart for another cycle for very dirty conductor. With ConductaClean, line crews can thoroughly clean conductors in much less time than traditional hand-cleaning methods. The compact and portable design allows linemen to operate wherever the connector is most efficiently made—whether on the ground or up in a bucket. Available in new high-impact plastic transmission and distribution tools. Features • Cost effective, saving time for line crews • Easy to use, simple to operate • Requires no maintenance • Cleans to the core for better quality • Minimizes likelihood of premature failures • 18 volt system • Tools for transmission and distribution applications Average Cleaning Times (regardless of conductor size) TEMPERATURE CLEANING #1 CLEANING #2 - #6 70°F (21°C) 2 min. 3 min. 30°F (-1°C) 3 min. 4 min. NOTE : For cleanings #7-#12 the average cleaning time may increase slightly depending on conductor condition. Specifications PARAMETER APPLICATION TRANSMISSION DISTRIBUTION Model No. CCP-SYS-T CCP-SYS-D Material Plastic Plastic Tool Dimensions 11.5”W x 4”D x 27”H 11.5”W x 3.5”D x 24”H Tool Weight 8 lbs 7 lbs Conductor Size 266 kcmil to 2312 kcmil #2 to 795 kcmil Battery 18 V Milwaukee slider 18 V Milwaukee slider Distilled Water/Mix Packet 2 quarts 1 quart Cleanings/Bottle 5-12 (depending on condition of conductor) Patent # 8,839,804 1 before after New ConductaClean Plastic Tools for Transmission (left) and Distribution (right) New ConductaClean Cleaning Mix in individual foil packs (12-pack case) for Transmission with blue labels (left) and Distribution with red labels (right). Mixing jugs only included in carrying case not with mix packs.
www.AFLglobal.com or 800-866-7385 Tools & Equipment © 2009, AFL, all rights reserved. PP-3-00792, Revision 4, 3.4.16 Specifications are subject to change without notice. ConductaClean ® Product Division of EDM International, Inc. Product Division of EDM International, Inc. Patent # 8,839,804 2 All ConductaClean Tools Come with Carrying Case, Two 18V Batteries, Battery Charger and Mixing Jug. Pictured is CC-SYS-D Plastic Distribution Tool. Ordering Information—Distribution Tool AFL NO. DESCRIPTION CCP-SYS-D Plastic Distribution Tool Cleaning System—includes Tool, Mixing Jug, Two 18V Batteries, Battery Charger and Carrying Case CCP-MIX-D Mix for Plastic Distribution Tool, 12 Foil Packages CCP-BATT Plastic Transmission and Distribution Tool Battery CCP-CHGR Plastic Transmission and Distribution Tool Battery Charger Ordering Information—Transmission Tool AFL NO. DESCRIPTION CCP-SYS-T Plastic Transmission Tool Cleaning System—includes Tool, Mixing Jug, Two 18V Batteries, Battery Charger and Carrying Case CCP-MIX-T Mix for Plastic Transmission Tool, 12 Foil Packages CCP-BATT Plastic Transmission and Distribution Tool Battery CCP-CHGR Plastic Transmission and Distribution Tool Battery Charger
Características:
- Rentable, ahorra tiempo al personal de línea
- Fácil de usar, sencillo de manejar
- No requiere mantenimiento
- Limpia hasta el núcleo para mejorar la calidad
- Minimiza la probabilidad de fallos prematuros
- Sistema de 18 voltios
- Herramientas para aplicaciones de transmisión y distribución
Una limpieza inadecuada de los hilos conductores puede dar lugar a terminaciones y empalmes de mayor resistencia que hacen que los accesorios funcionen a temperaturas más elevadas, lo que provoca un fallo prematuro. Para aliviar esta preocupación, AFL ofrece ahora ConductaClean, un sistema fiable y rentable para limpiar los extremos de los conductores aéreos antes de instalar los accesorios de compresión. ConductaClean incorpora la tecnología desarrollada por el Instituto de Investigación de Energía Eléctrica.
Fabricado por EDM International, Inc., ConductaClean agita una solución especializada para eliminar la oxidación y la suciedad de los hilos conductores, y puede ajustarse para ciclos de tres minutos con apagado automático a los tres minutos. El usuario puede reiniciar otro ciclo para el conductor muy sucio. Con ConductaClean, los equipos de línea pueden limpiar a fondo los conductores en mucho menos tiempo que con los métodos tradicionales de limpieza a mano. El diseño compacto y portátil permite a los linieros operar donde el conector se haga más eficiente—ya sea en el suelo o en un cubo.

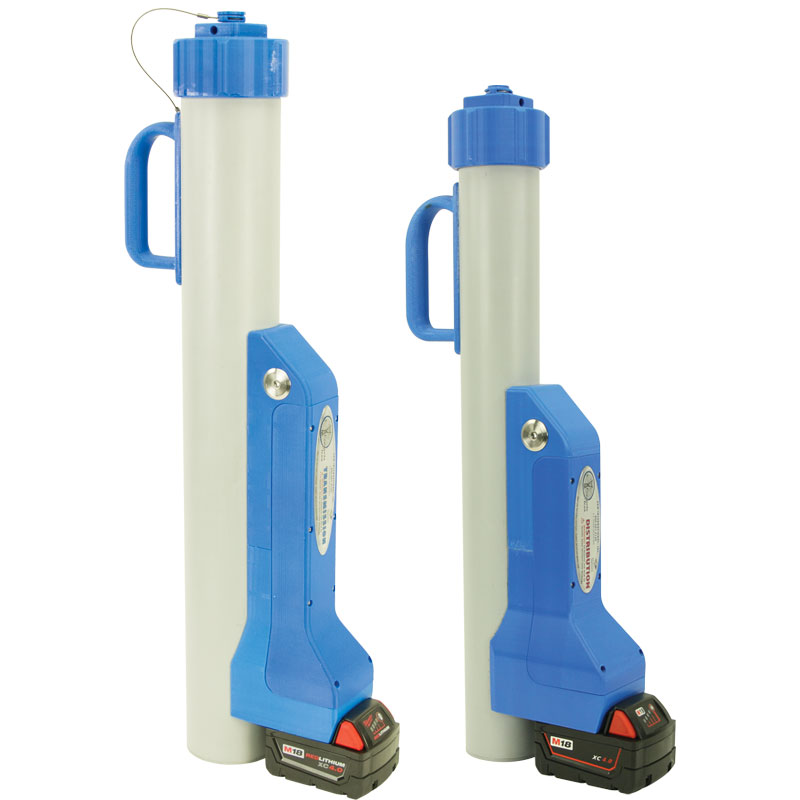

Disponible en las nuevas herramientas de transmisión y distribución de plástico de alto impacto.
